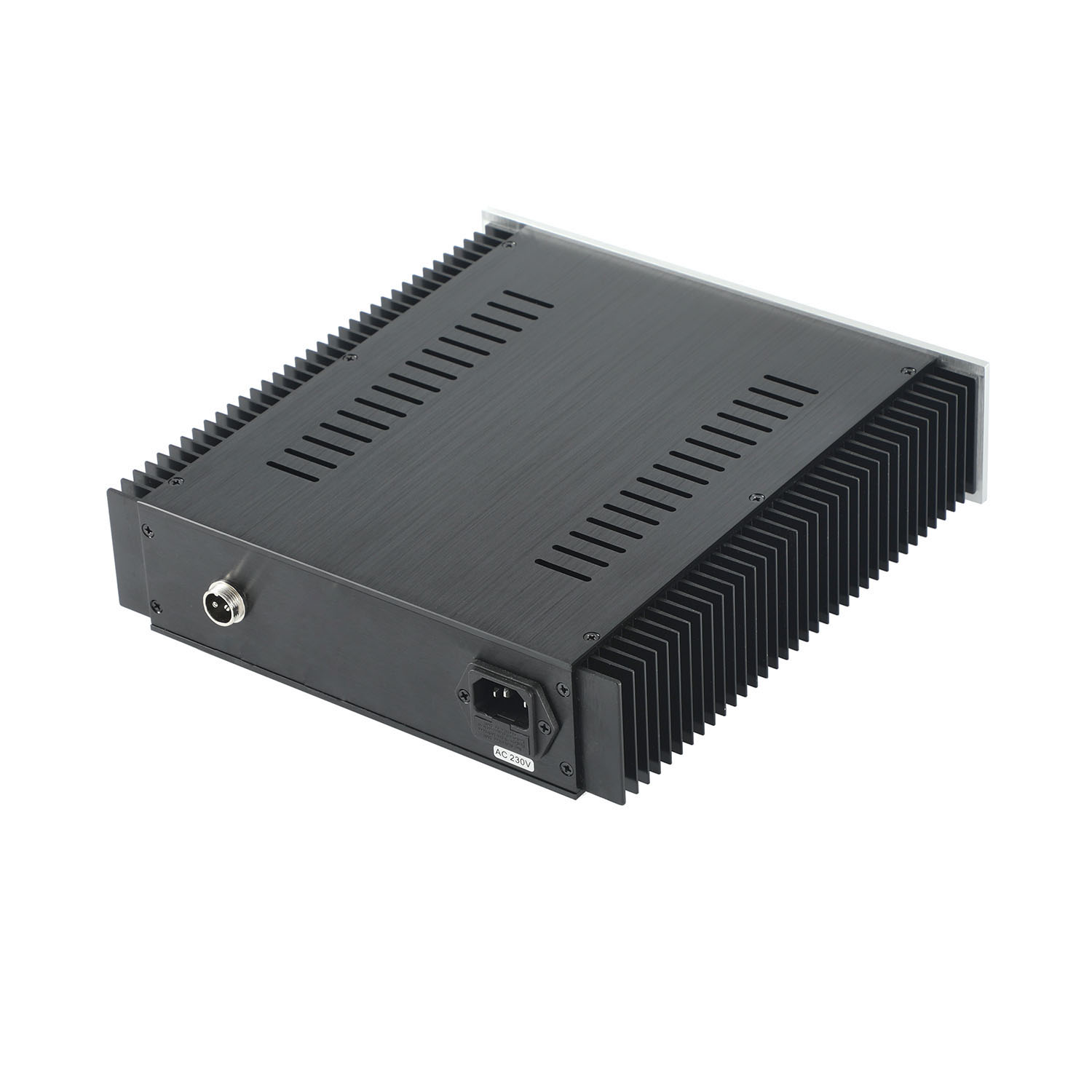

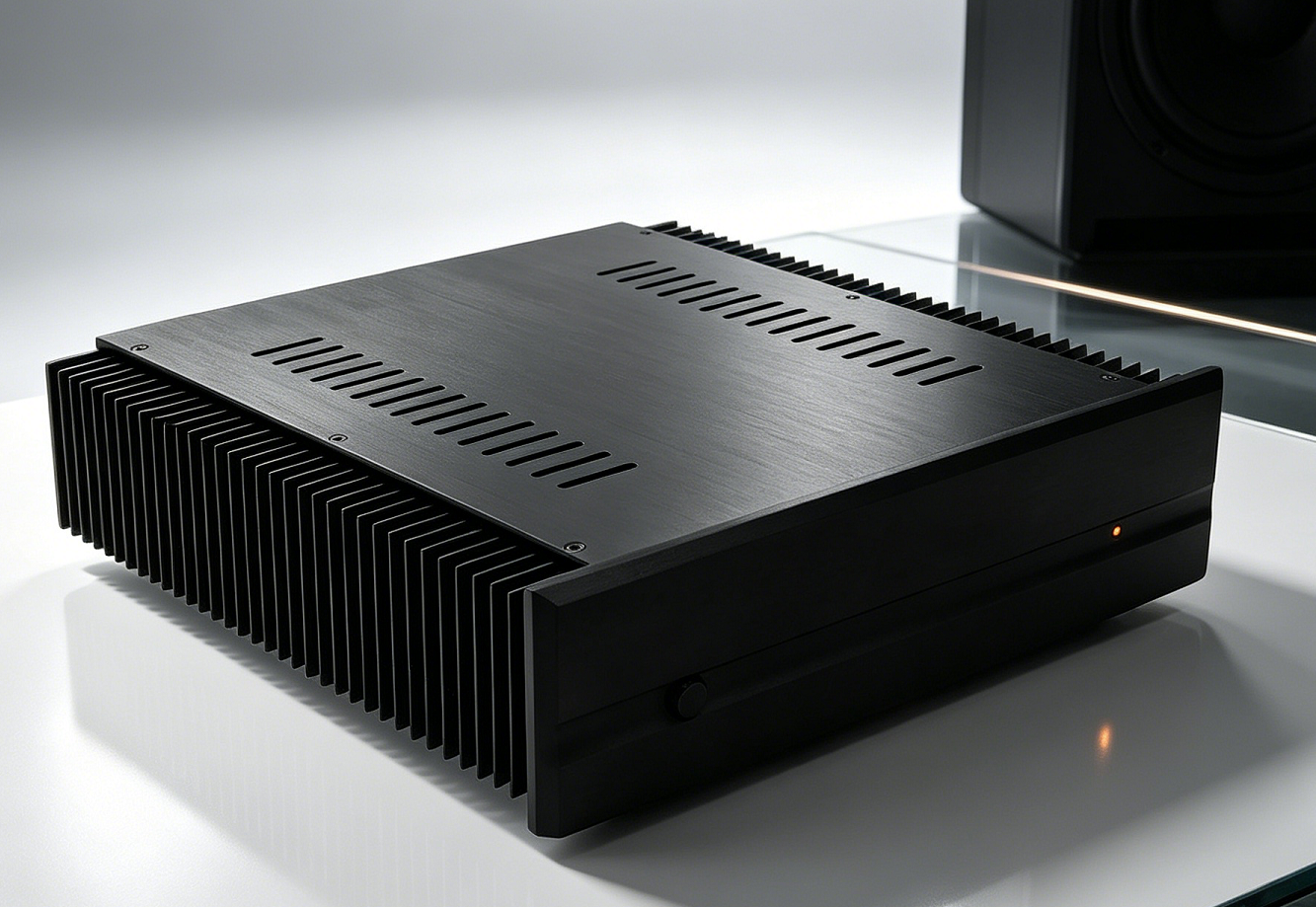

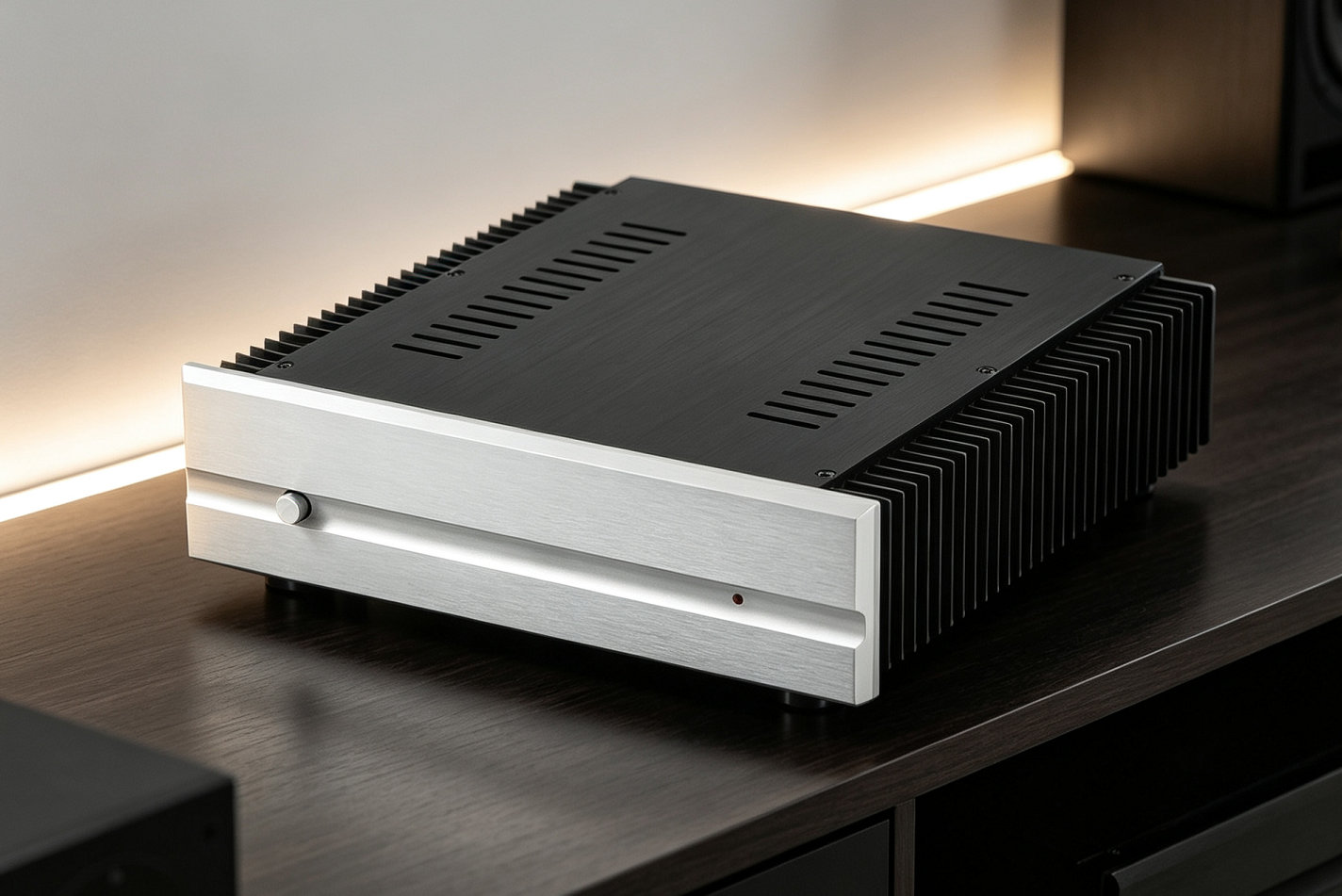

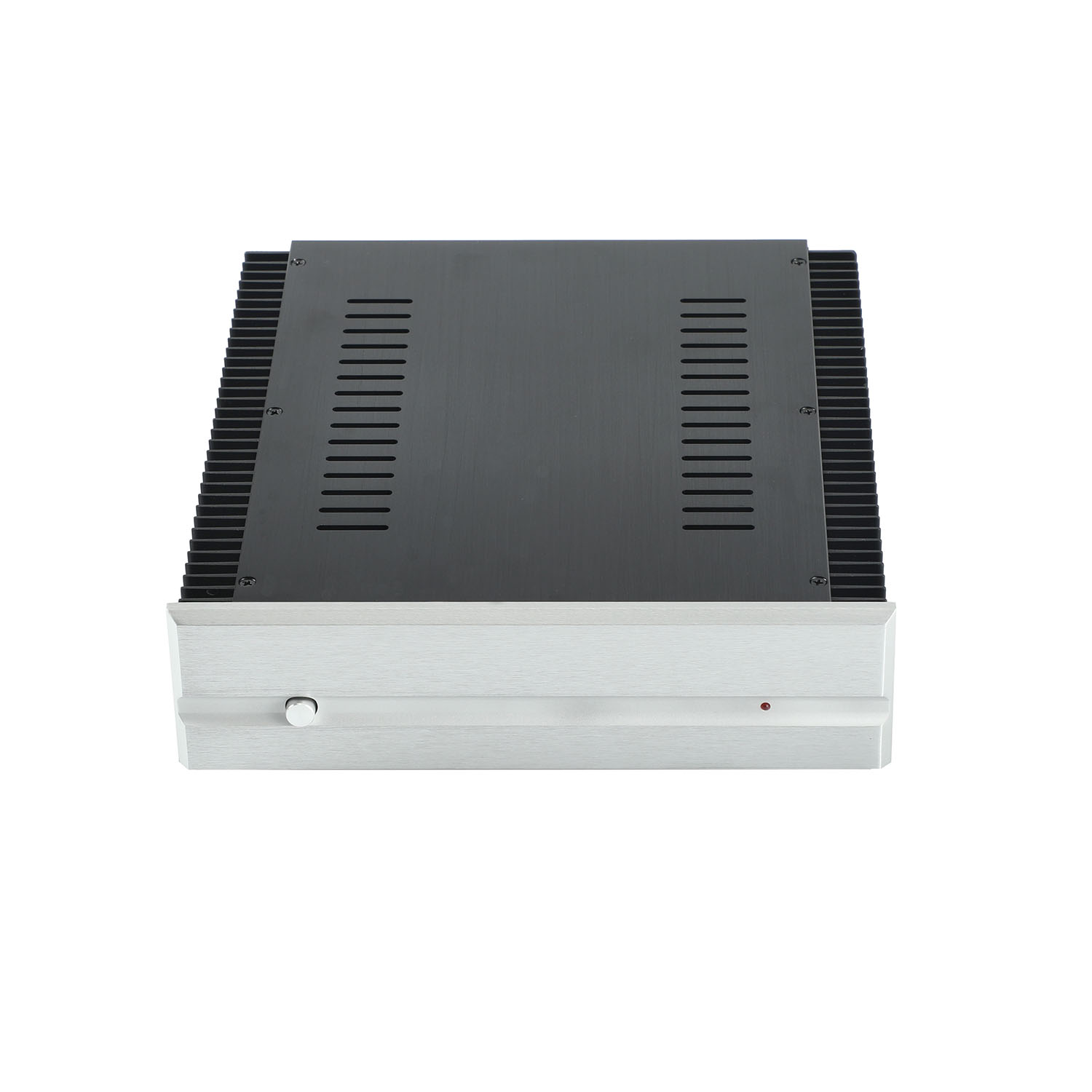

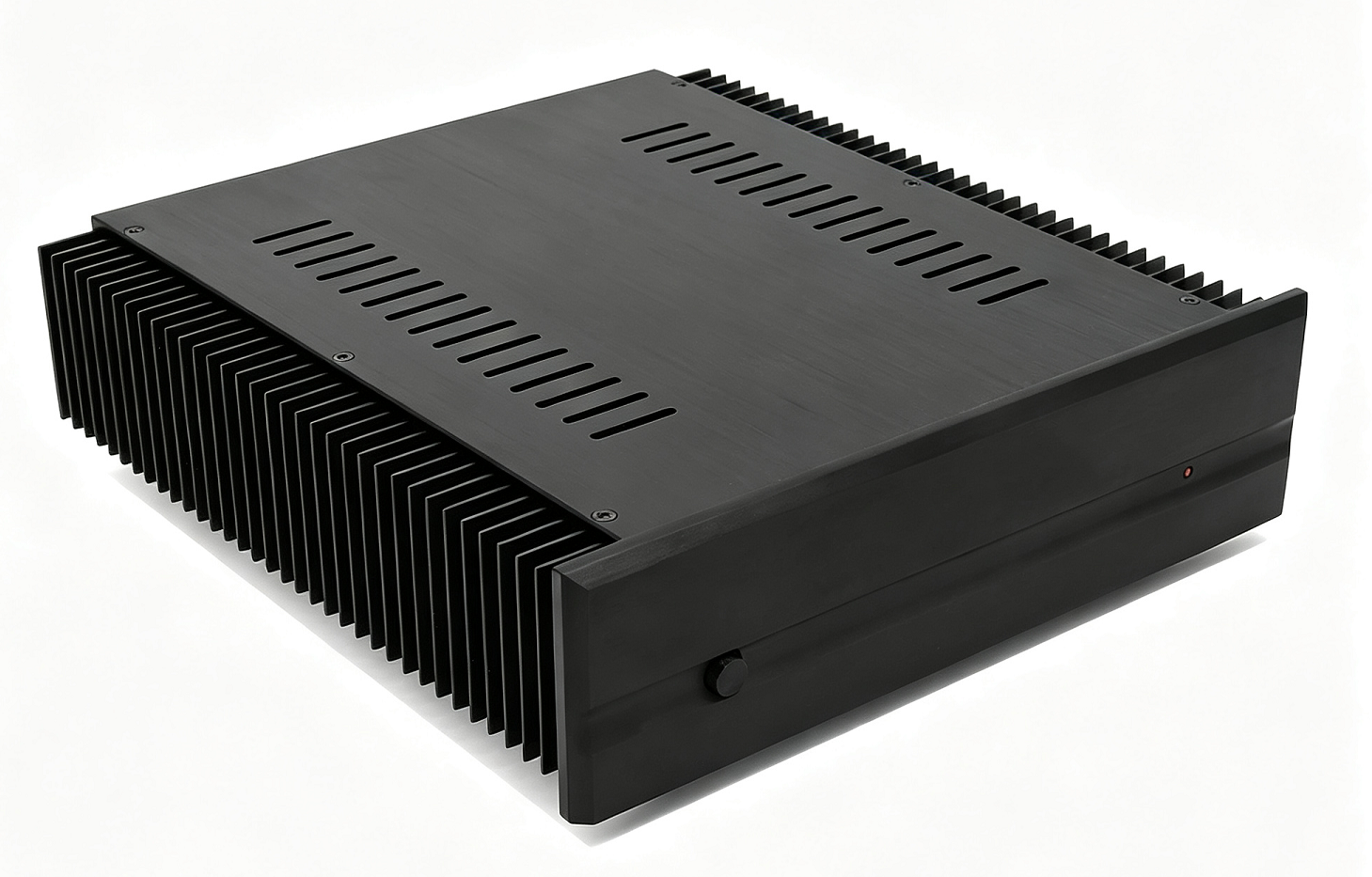

120W Hifi Fully Discrete Ultra Low Noise linear power supply DC28V 4A LPS/PSU

    This Power supply Circuit base on the famous sigma11 circuit. Stable voltage, ultra-low noise, ultra-low ripple. very suitable for updates all kind audio device Power supply.

Input voltage: AC115V or AC230V (Optional)

Output voltage: DC28V    4A   (we also can custom-make other voltage)

Toroid Transformer power 120VA.

Size: 245mm X 70mm X 258mm (WxHxD)

Weight: About 4.5kg

DC Plug size: Outer diameter 5.5mm, Internal diameter 2.5mm

(It will also compatible with 5.5*2.1mm socket. If you need other Size DC Plug, Please contact us).

Power supply Polarity: "1 +"    /   "2 -"

DC plug Polarity: Inner"+", External"-"

Package include:

A11 Linear Power supply                          X 1

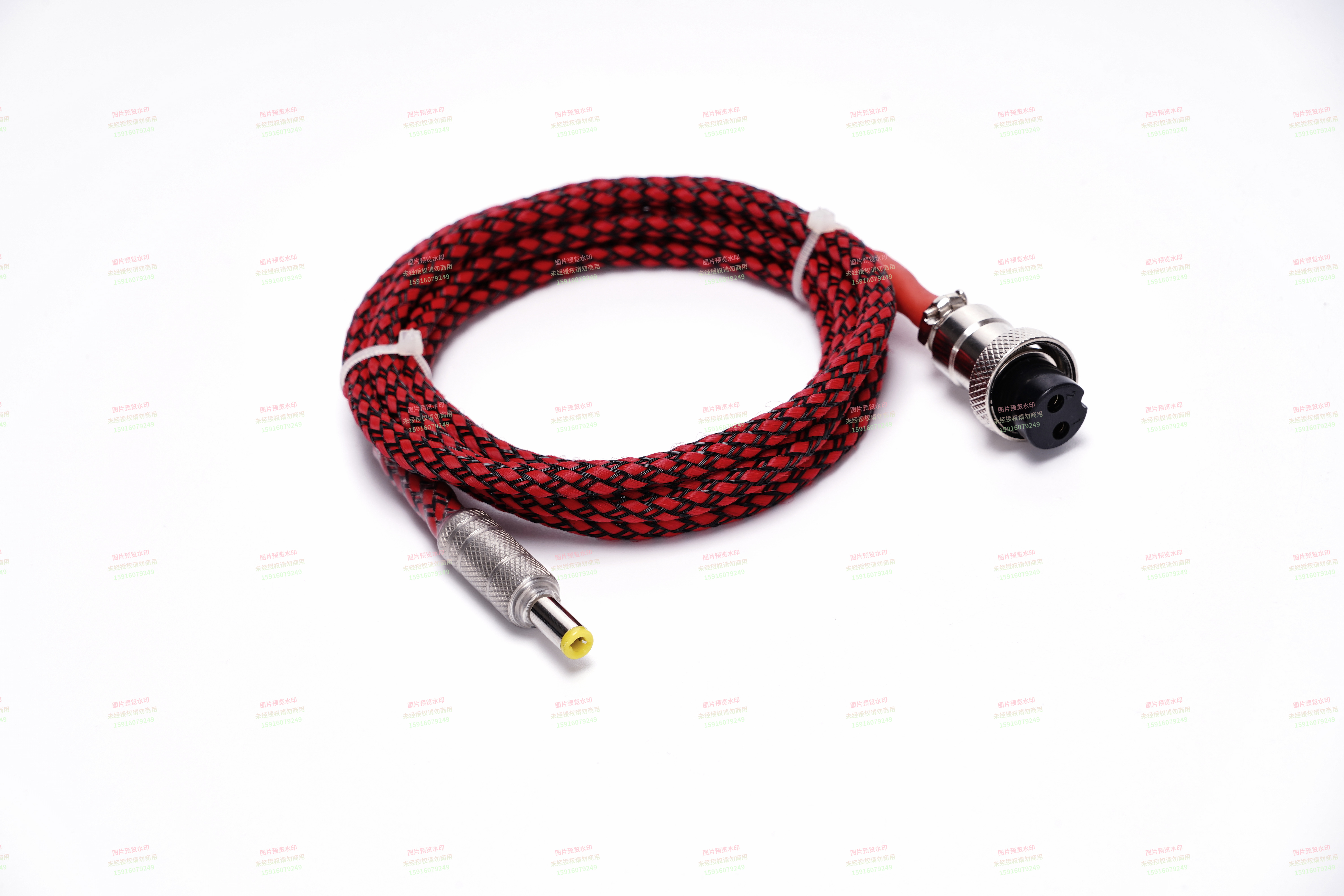

1.2M Length DC cable                        X 1



NOTE: Default is no AC power cable included !!!
