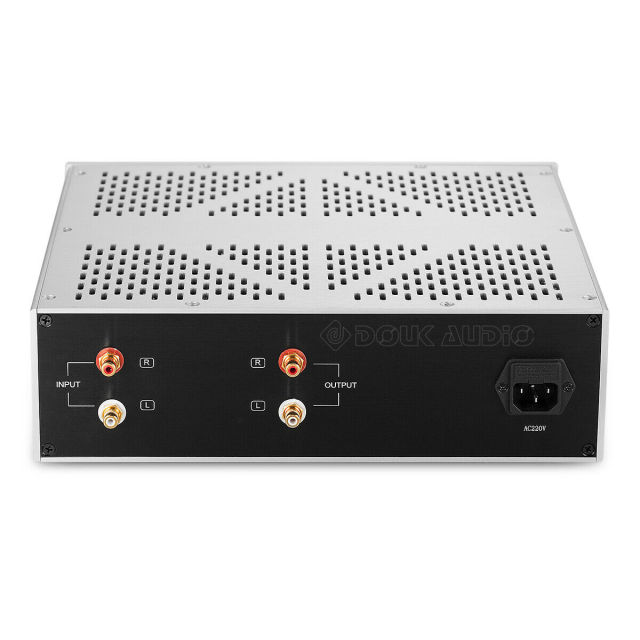

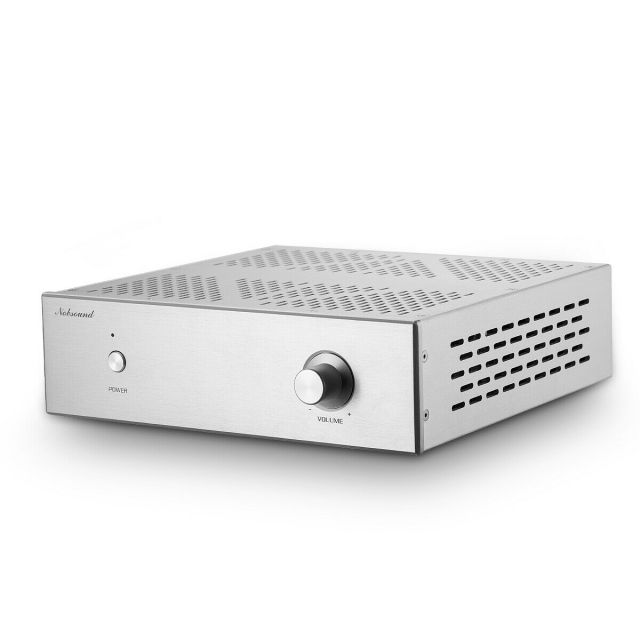

12AX7 Valve Tube Preamplifier HiFi 2.0 Channel Stereo Audio Preamp base on JADIS JP200 circuit

Base On JADIS JP200
0.0 (0 Reviews)
$0.00 $188.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Works voltage:
    AC110V
    AC220V
  • Type:
    Without 6pcs 12AX7 Tubes
    With All Tubes
    Please select the information you wantX
Quantity
-
+
  • Description

Item description

Features
  • Inspired by classic circuit, we optimize the components and design. The sound of this tube preamp is very clear, realistic and delicate. With standard RCA input and output, compatible with most common audio device, and greatly improve sound quality for your power amplifier or active speakers.

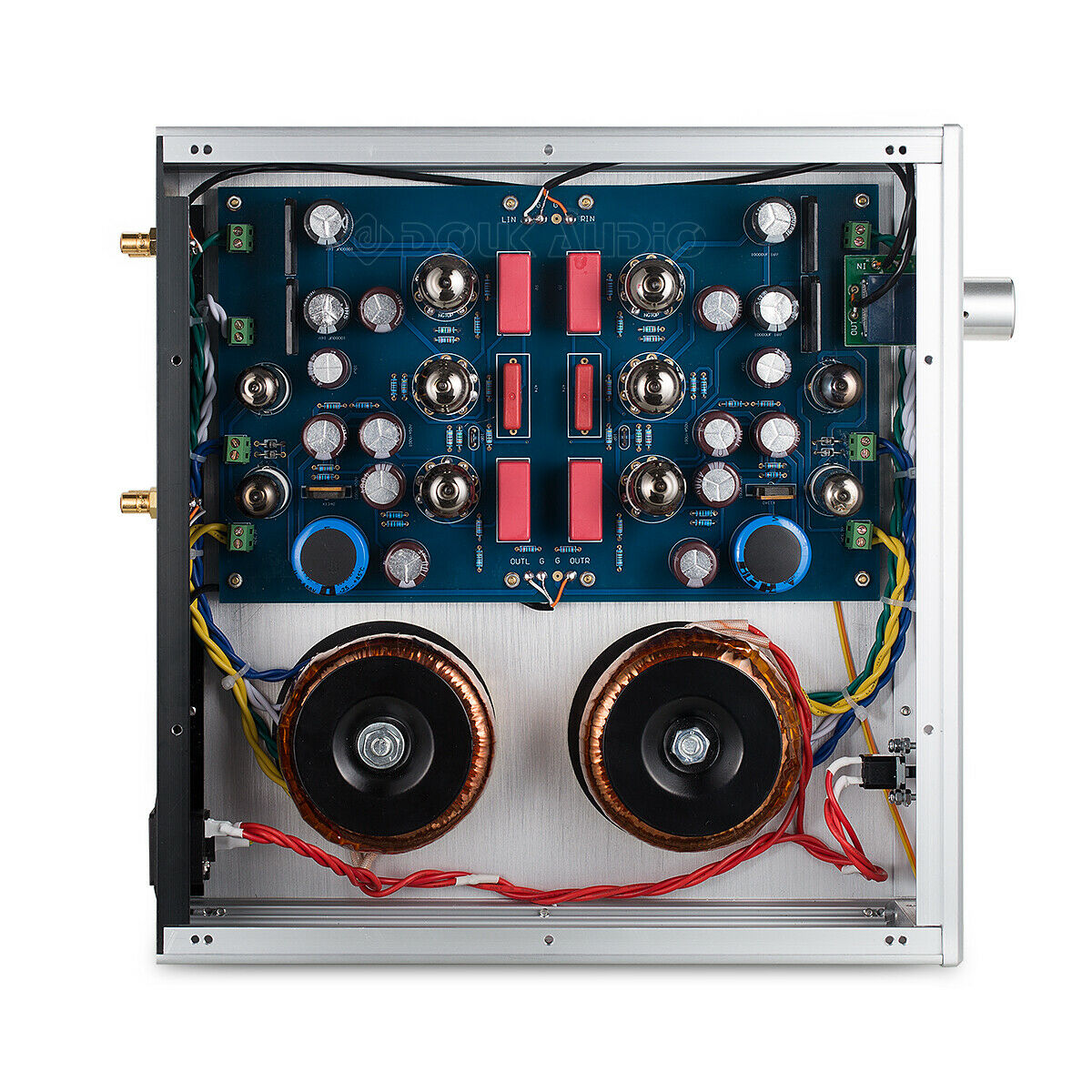

  • The required voltage is 2 groups AC320V-0 2 groups 6.3V 4 groups10V voltage. Two 50W oxygen-free copper audio transformers are used, and the left and right channels are independently powered, which improves the separation and stability.
  • High-quality components are used such as Japan ALPS 27 potentiometer, US CMC816 gold-plated RCA terminals, double-sided gold-plated PCB, Philips filter and resistor, Germany MKP10 capacitor and so on, to guarantee excellent sound quality.
Parameters
  • Amplification time: 6  times
  • Vacuum tube: 6*Beijing 12AX7 + 4*6Z4Q
  • Input impedance: 20-100K ohms
  • Output impedance: 20-100K ohms
  • Max output level: 2.3V
  • Frequency response: 30Hz-20KHz
  • THD: 0.005%
  • SNR: 102dB

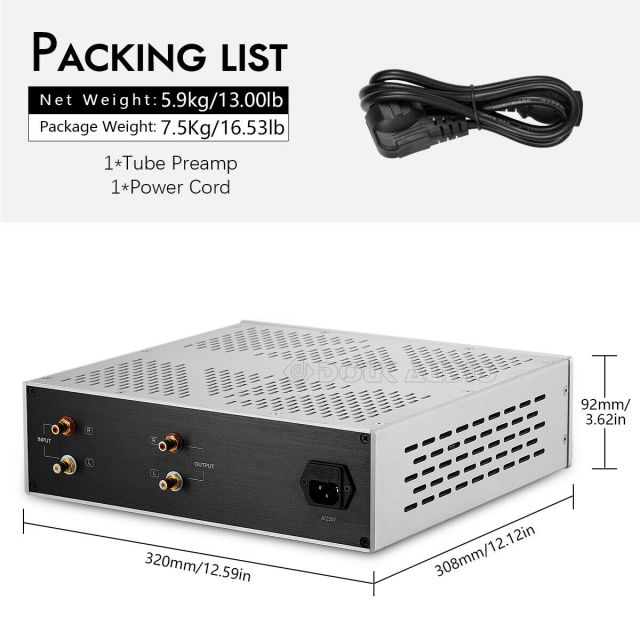

  • Dimensions(L*W*H): 320*308*92mm / 12.59*12.12*3.62in
  • Net weight: 5.9kg / 12.00lb
  • Package weight: 7.5kg / 16.53lb
