Product introduction:

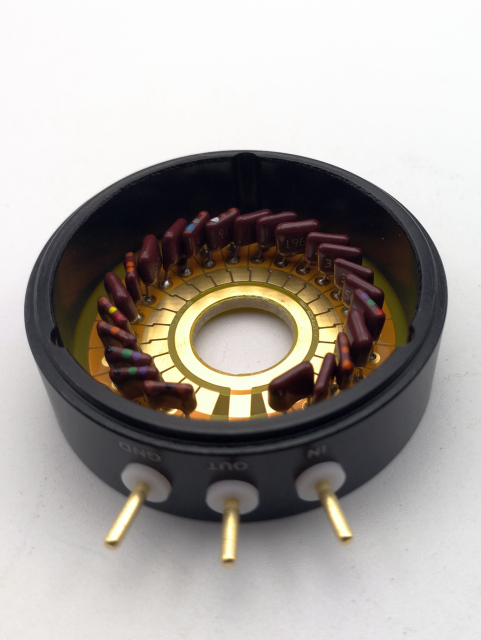

Resistance: This product adopts high-precision Japan NIKKOHM Resistors. The measured error of two channels is far less than 1%, which meets the users with high accuracy requirements.
Switch rack: the gold-plated contact has long wear-resistant life. After 10700 times of actual testing, the contact is intact after internal cleaning and can still be used normally. The first on and then off switching is noiseless, the feel is adjustable, and the quality is very good. Small size, easy to install, suitable for enthusiasts and installation merchants.
Product specification:
Type： Two-channel
Resistance ：
10K，50K，100K
Attenuation range: - 60dB ~ 0, mute gear, common volume area step 2dB. Exponential type, suitable for general power amplifier volume control
Installation dimensions:

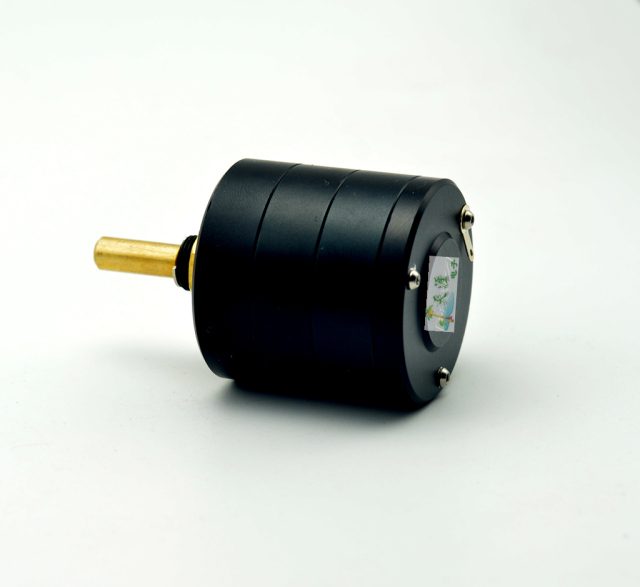

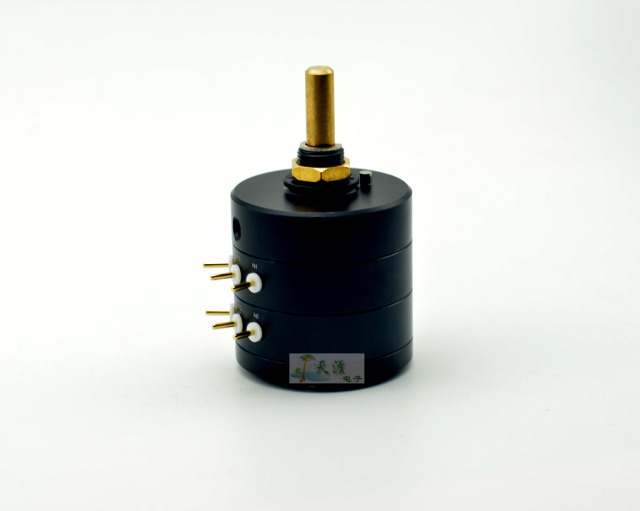

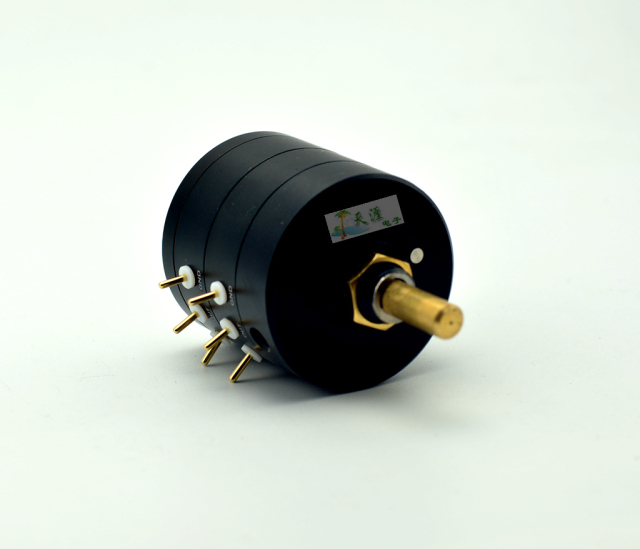

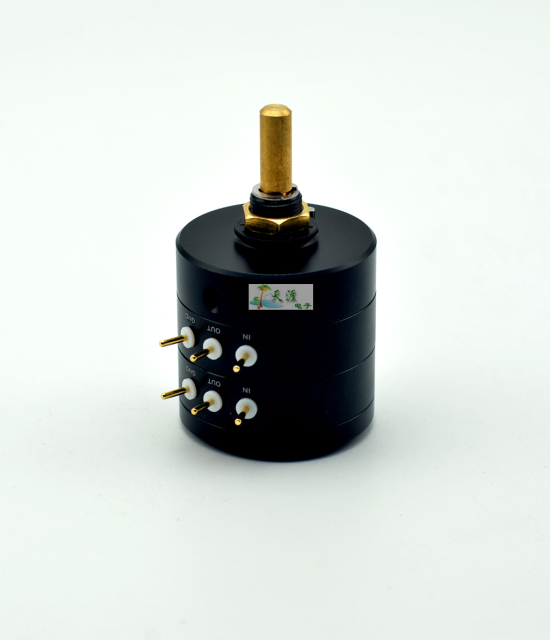

3.8cm (diameter) * 4cm, copper shaft round handle
Handle length: 1.5cm, diameter of fixing screw hole 10mm, diameter of positioning protrusion 2.8mm (the center of positioning protrusion is 9.6mm from the center of handle)
