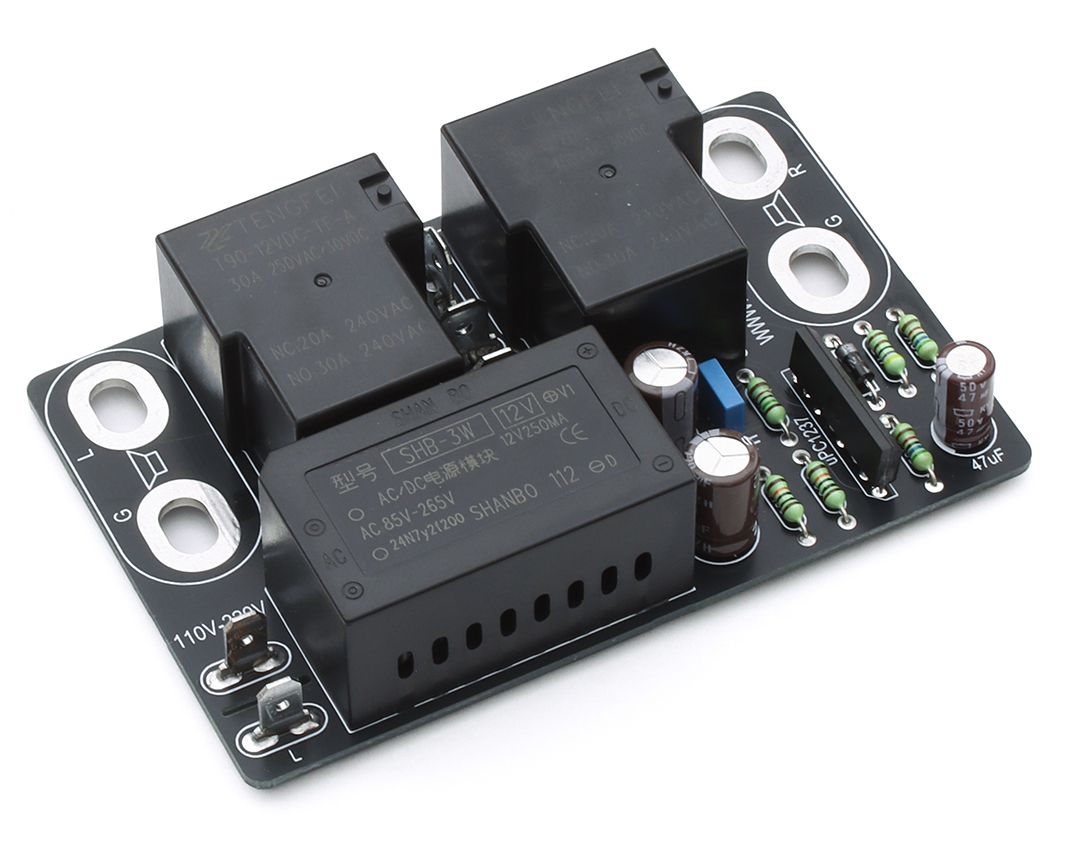

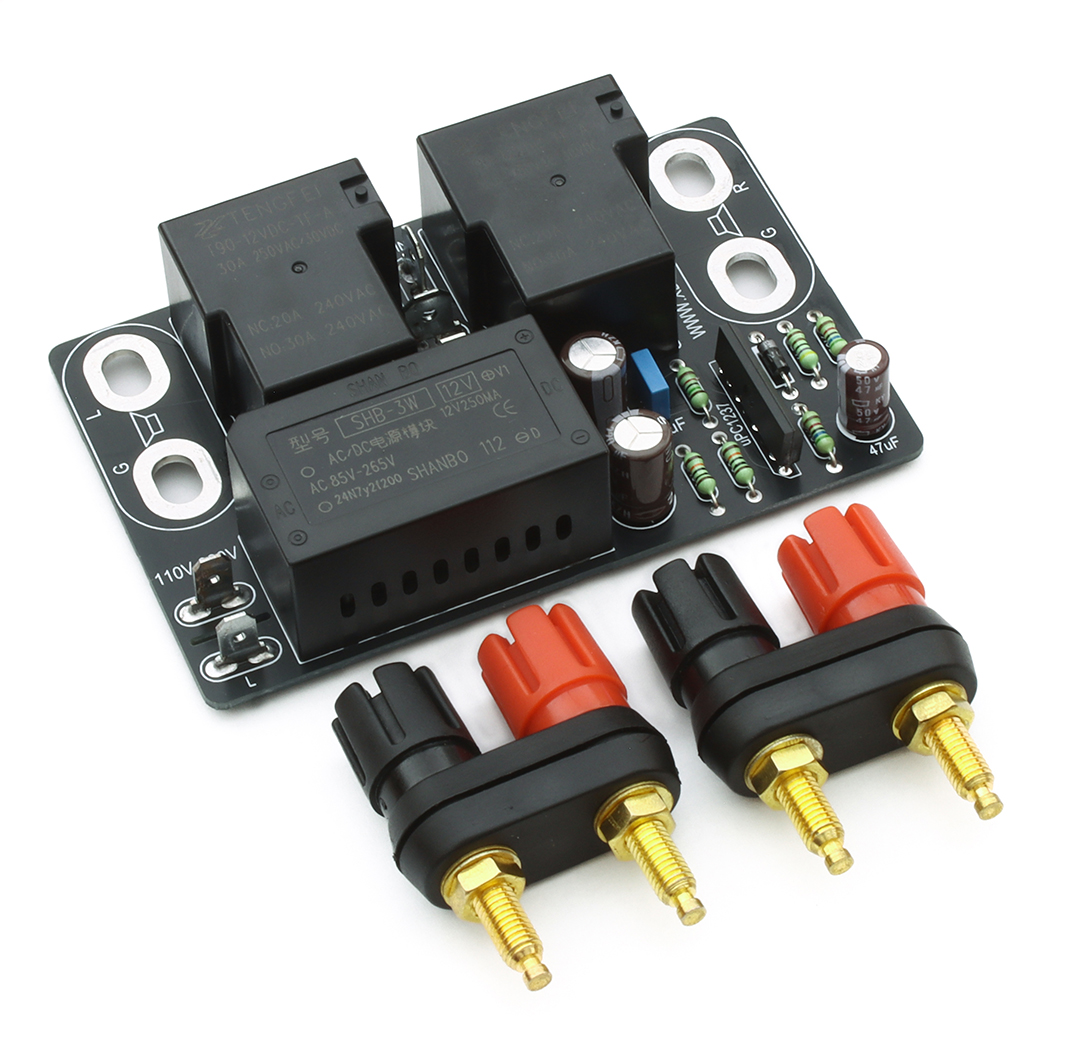

Technical parameters: • Working voltage: AC 110V~220V (230-240V voltage also ok)
• type: Left and right dual channel

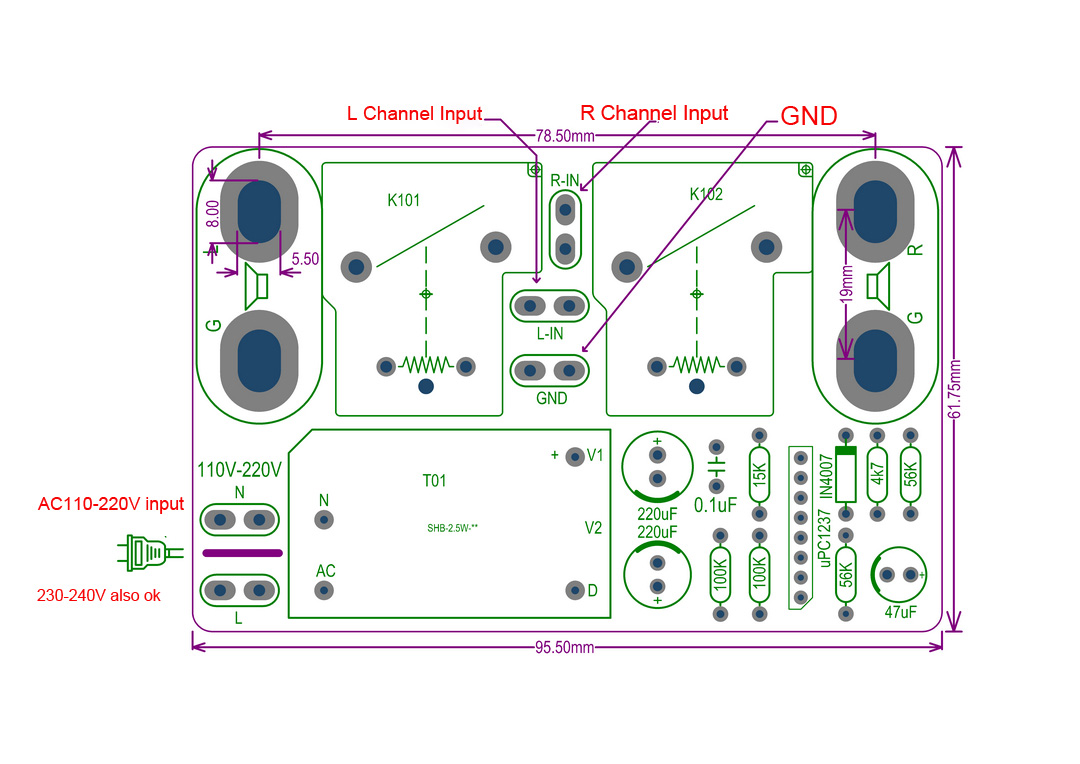

• Board size: 61.75mm * 95.5mm
• Height 21.5mm
Circuit design features:
• Adopting C1237 dedicated speaker protection chip
The relay can withstand a current of 30A
The onboard 110V~220V switching power supply supplies power to the protection board
The board adopts a double-sided PCB design, with 1% precision Japanese metal film resistors and Japanese electrolytic capacitors
The products are has two version for choose:Siemens capacitor version and
WIMA capacitor version. Please identify them when purchasing
Technical parameters: The USB processing chip adopts PCM2706C and supports USB 2.0 protocol.
DAC decoding PCM5102A, supports 24 bit and 32-bit data, with a maximum output of 2.1V.
Adopting a 12M active crystal oscillator.
Equipped with a 5V power supply via USB port, no external power supply is required.
Directly push impedance 8-160 Ω earphones.
Absolute zero background noise.
Product size: 94 * 50mm.
Supports WIN_XP, WIN7, and WIN10 operating systems.
• Supports Android system.
Basic configuration:
The USB chip uses PCM2706C and the DAC decoding chip PCM5102
• Solid state electrolytic capacitors in Japan
Siemens film capacitors or WM capacitors from Germany
3.5mm gold-plated headphone stand
Introduction to PCM5102:
It is a 32-bit stereo audio frequency to analog conversion chip (DAC) from TI company.
The chip integrates a 2.1Vrms level output, which can drive headphones with a resistance of up to 320 ohms.
The dynamic range has reached 112dB.
Without output coupling capacitors, there is no need to worry about finding expensive coupling capacitors.
-----------------------------------------------------------------------------------------------------------------------------
