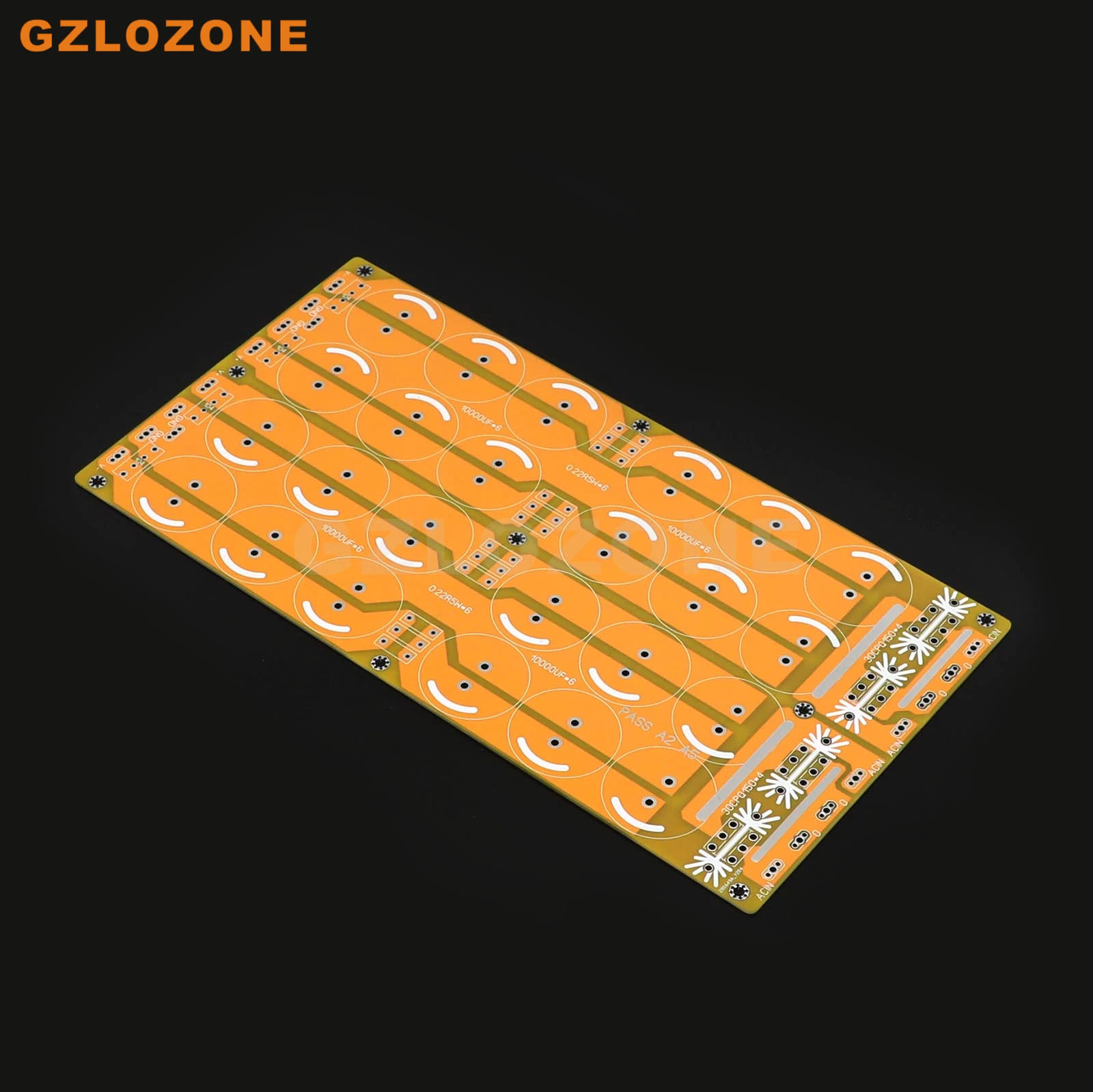

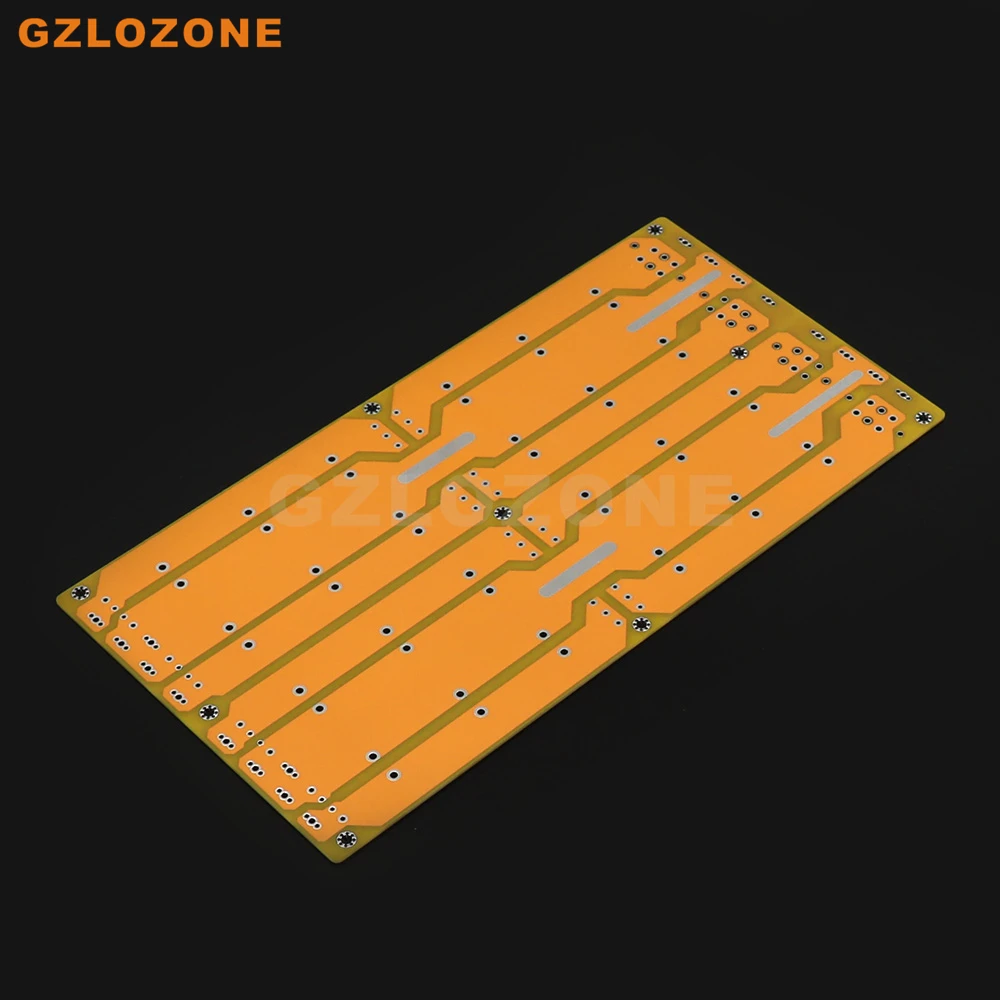

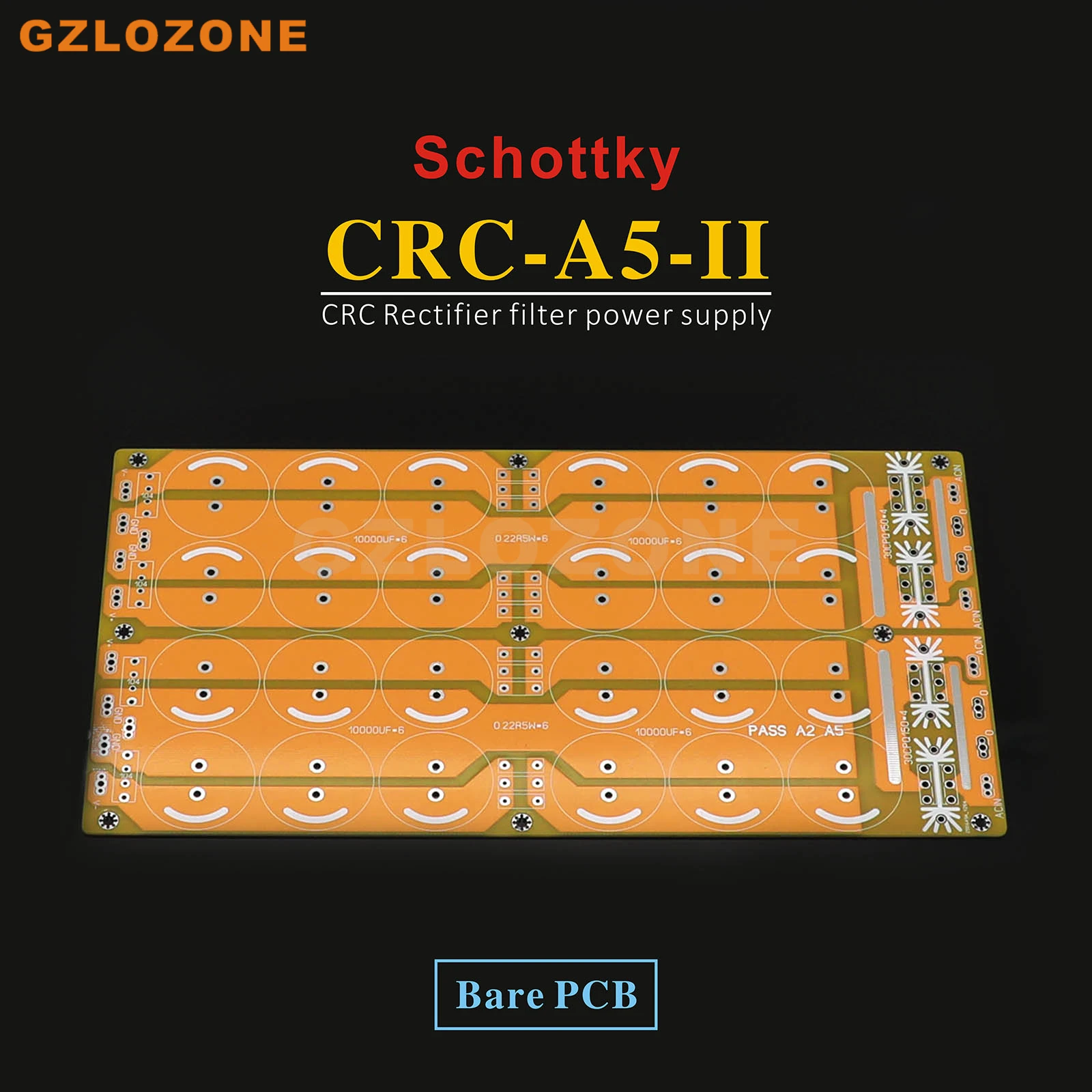

CRC-A5-II HIFI Pure Class A Amplifier Schottky CRC Rectifier Filter Power Supply Bare PCB For PASS A3/A5

Introduction:

This rectifier power supply board is suitable for pure Class A power amplifiers with independent power supply on the left and right sides. The left and right power supplies of the PCB are completely independent, with a mirror image design and thick wiring, which can withstand dozens of amperes of large current.

The rectifier part uses a high-current Schottky for rectification. Each side of the positive and negative power supplies share 4 PCS tubes, and the entire board has 8 PCS high-current Schottky tubes. The large current capacity is very sufficient.

PCB Size: 280mm*145mm

Mounting capacitor diameter: 35mm

Applicable rectifier tube model: 30CPQ150 or MBR60200PT

Number of installed capacitors: 24 PCS

NOTE: This is the Bare PCB. You need to match all the parts yourself.
