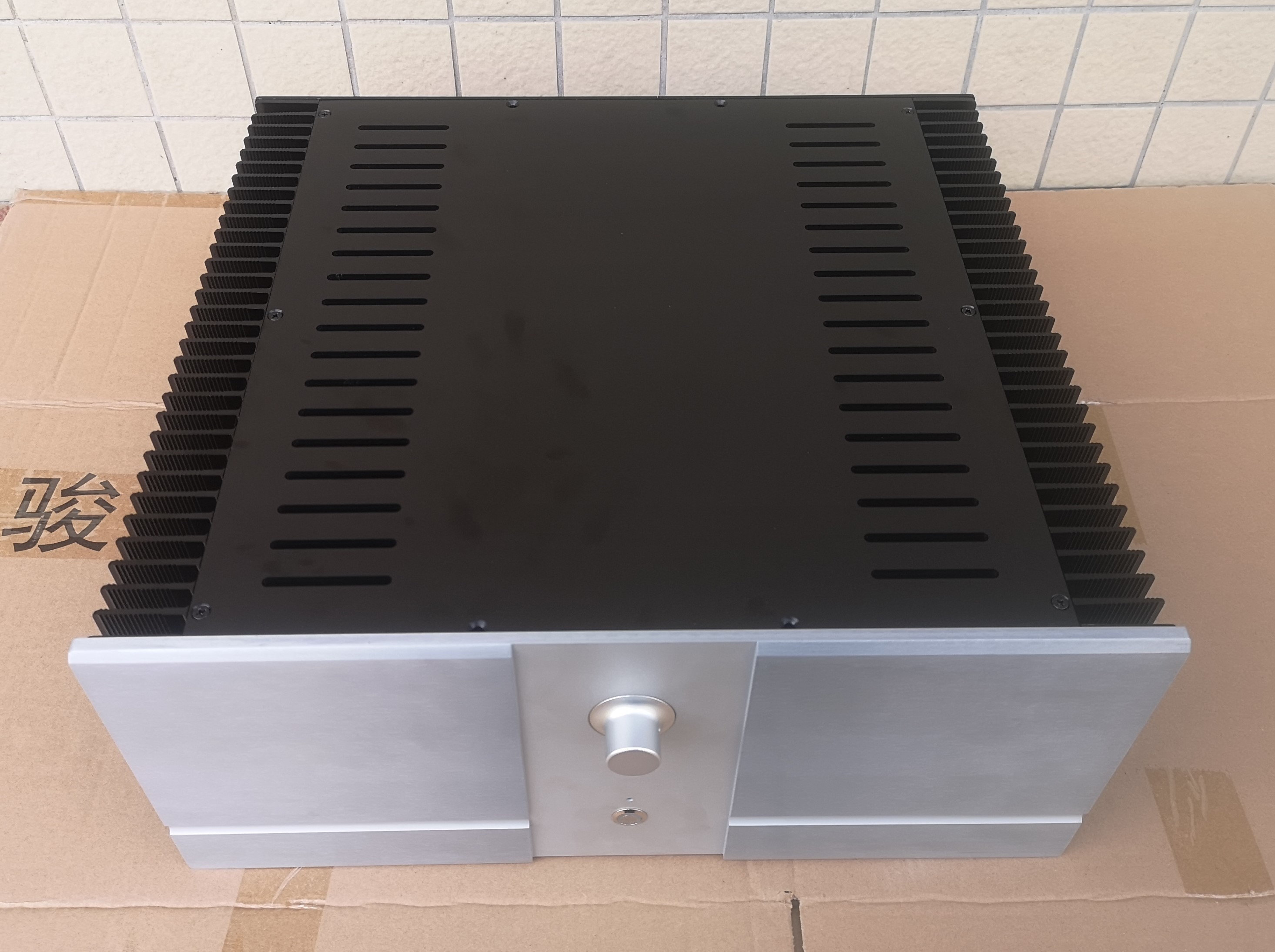

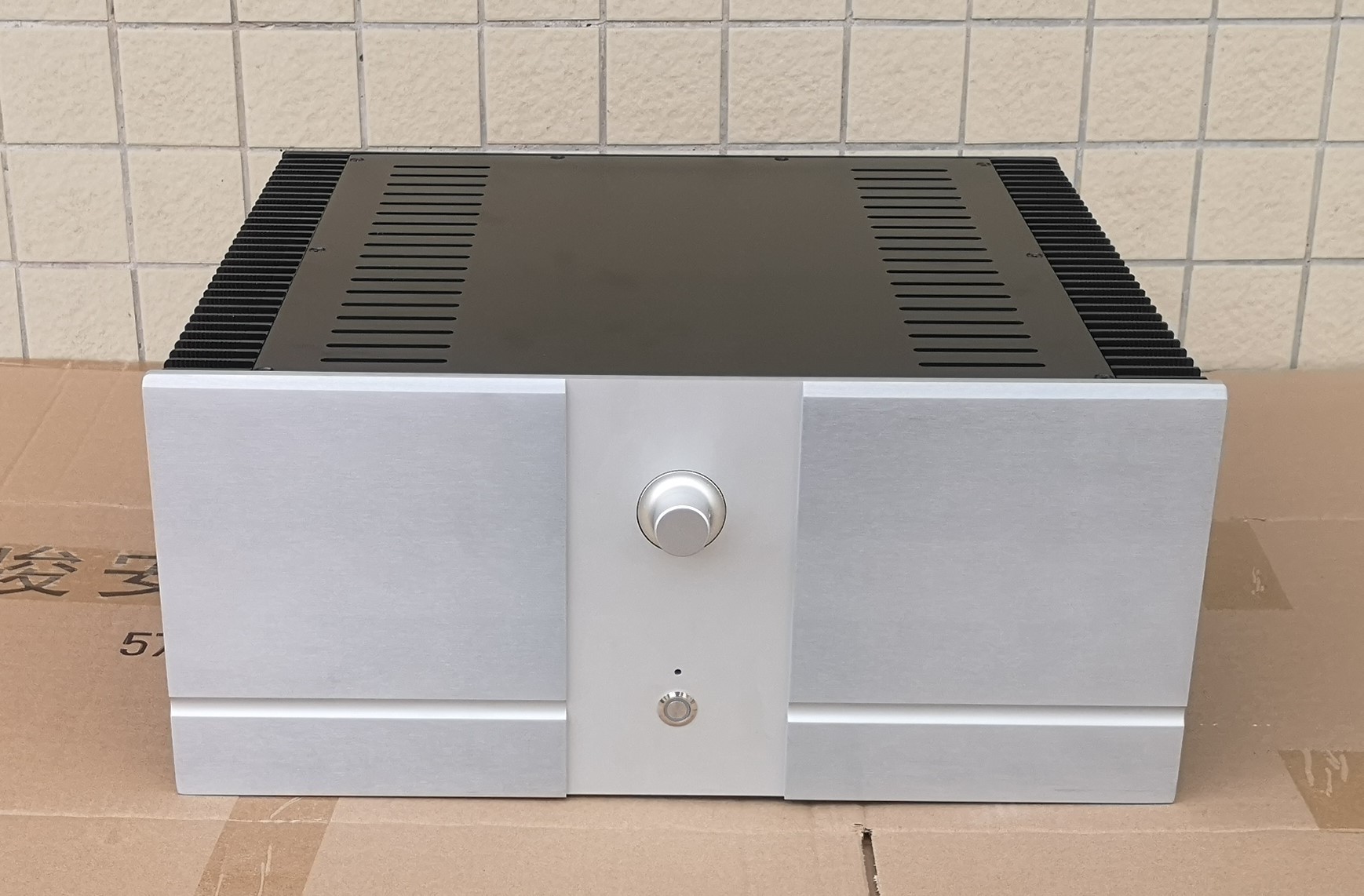

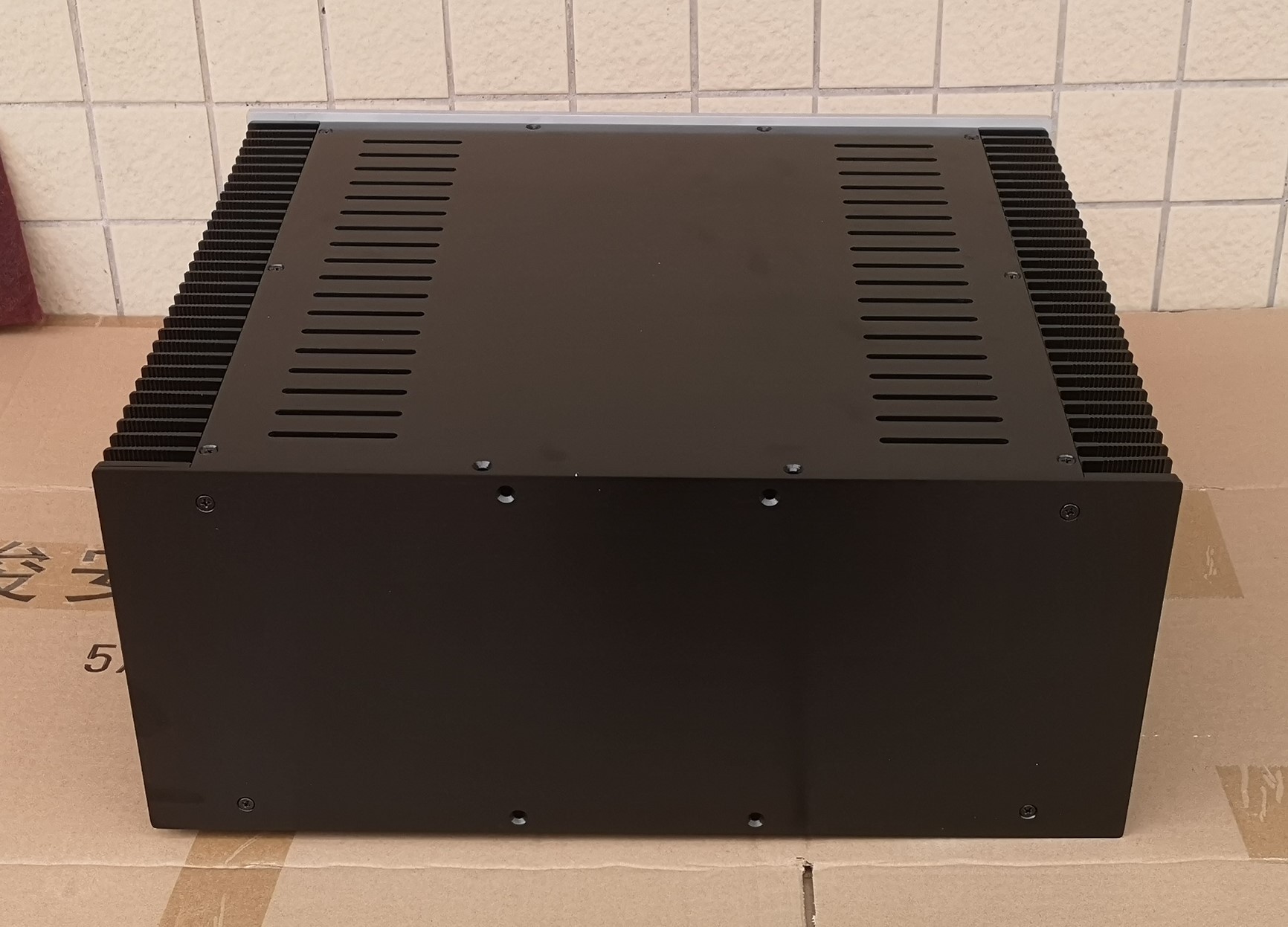

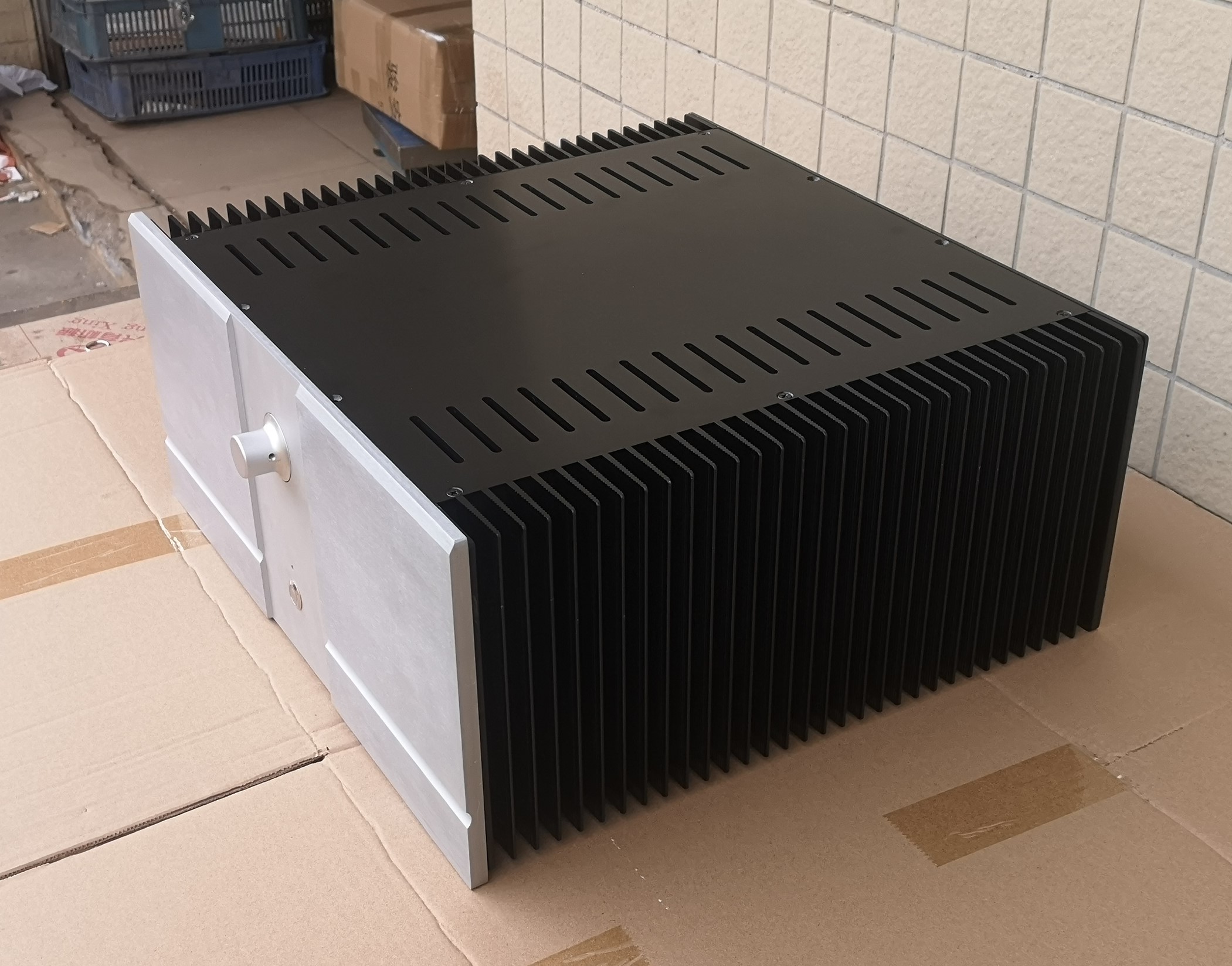

DIY Class A Power amp Aluminum chassis amp case. amp box 452*200*413 (#8667169673692)

0.0 (0 Reviews)
$388.00 $325.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
  • Description
Size:

External dimension:      452*200*413mm  （W*H*D)

Internal size:              350*182*400mm   （W*H*D)


The thickness of the front panel is 10mm, and the left and right blocks dissipate heat

Top Cover thickness 4mm

Bottom thickness 4mm

The thickness of the rear panel is 3mm

Radiator size 400*50*190mm

Substrate thickness 10mm

Each one heatsink weighs 3.8kg





this case back panel default is blank. if you need cut holes. Please contact us.


Package include:     case   X 1 set               screws   X 1 set          Power switch  X 1           knob   X 1


For transport safety. The chassis is ship in disassembled.
