Works voltage: AC100V-120V or AC220V- 240V two kind for choose
Output Power: 75W +75W at 8ohm load
Size: Machine size: W:430mm D: 300mm H:70mm (excluding machine feet and various protruding positions)
Package weight: about 9.3kg

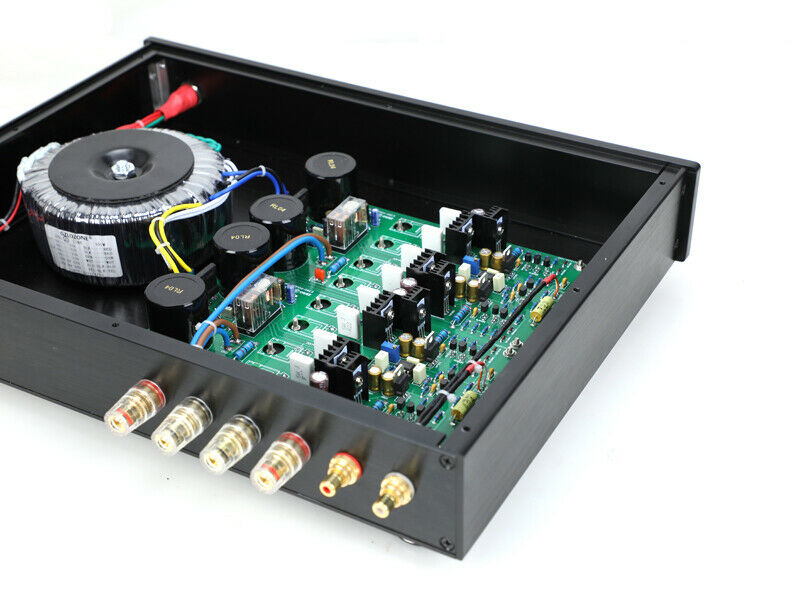

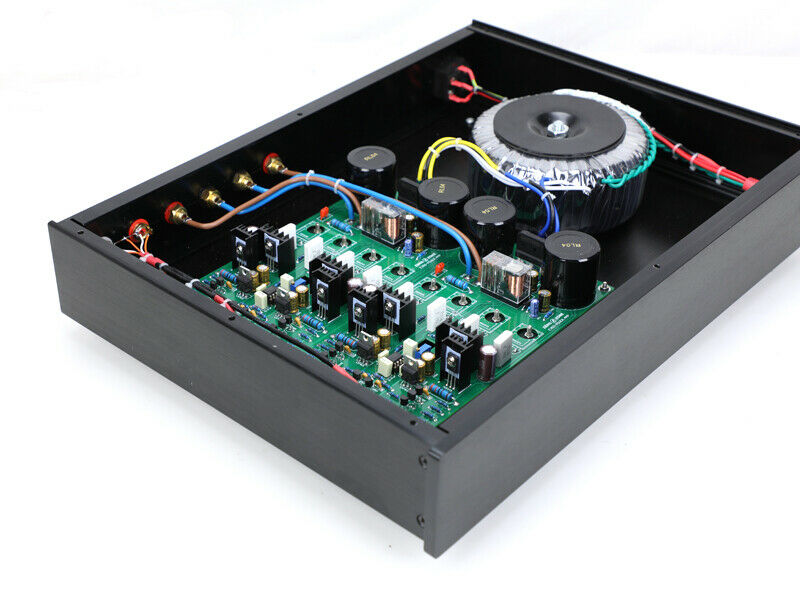

Amplifier part:
Use Toshiba C5200-A1943A power transistors, two pairs of transistors each channel.
Use Toshiba C2240-A970 small signal amplifier transistor.
Independent power supply for each channel.
Each channel has an independent protection circuit.
Use 300W copper Toroid transformer
Output power per channel: 75W at 8 ohms
Refer to the amplifier of the Accuphase E350 power amplifier circuit.
Material：

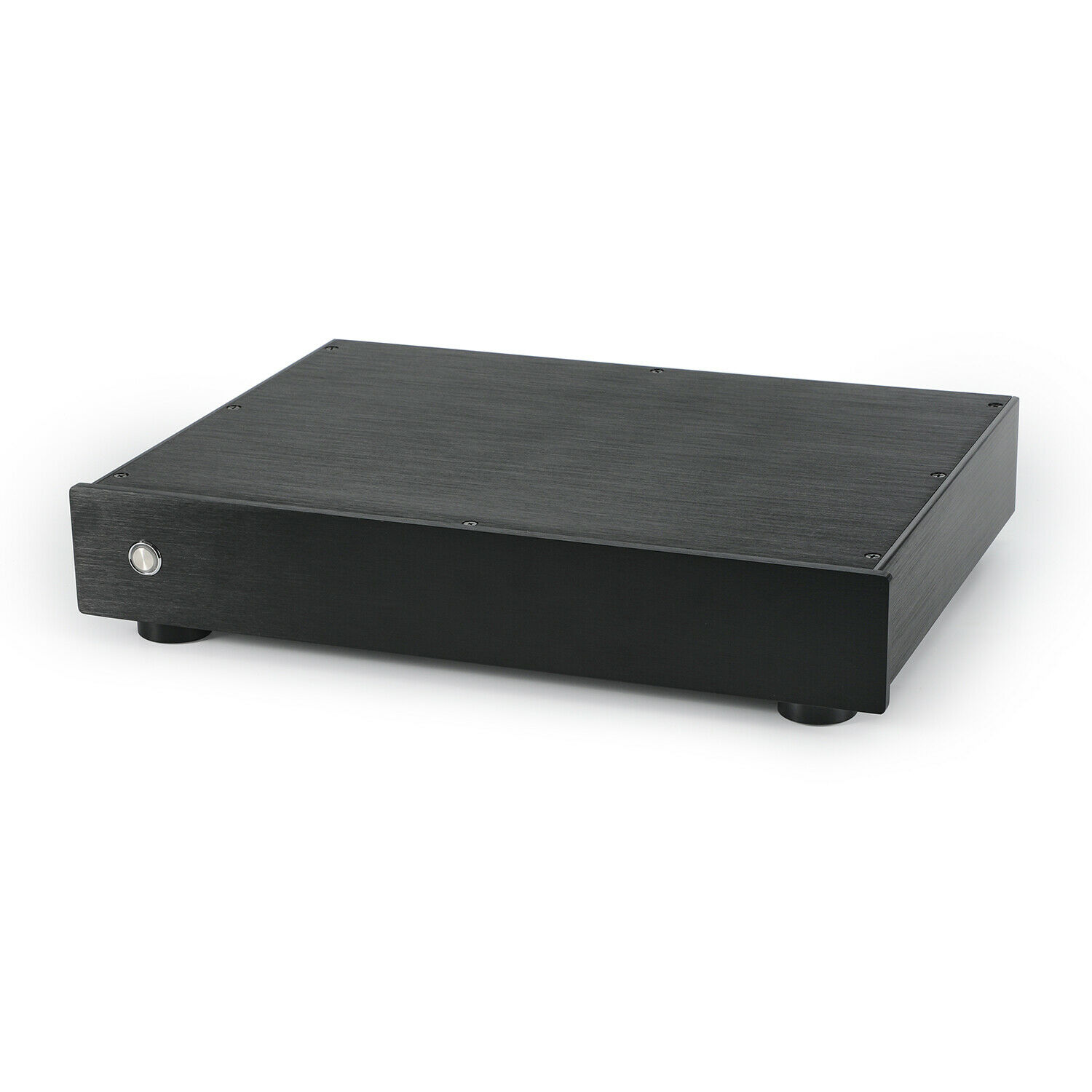

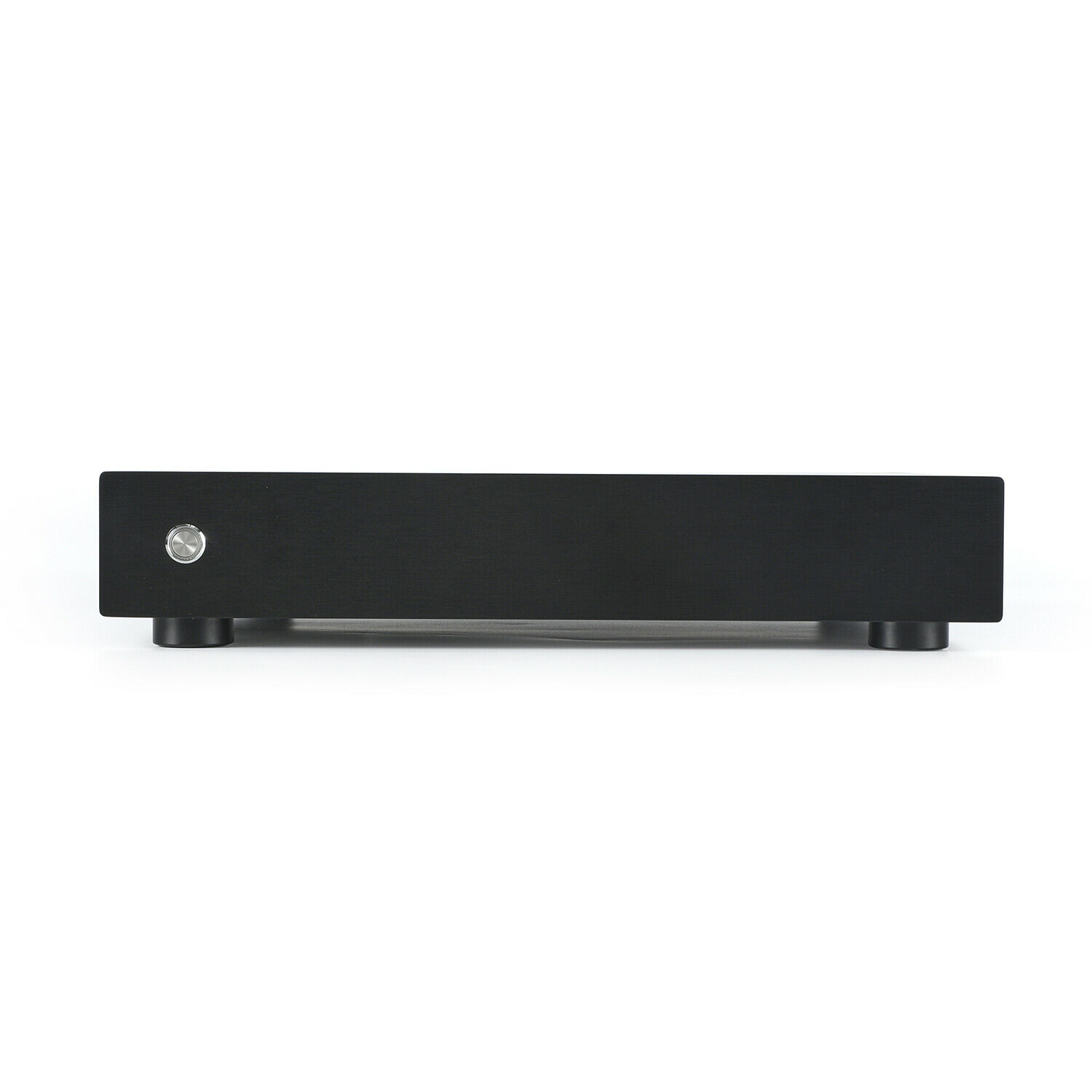

*Full aluminum chassis.
*Full aluminum feets + knobs

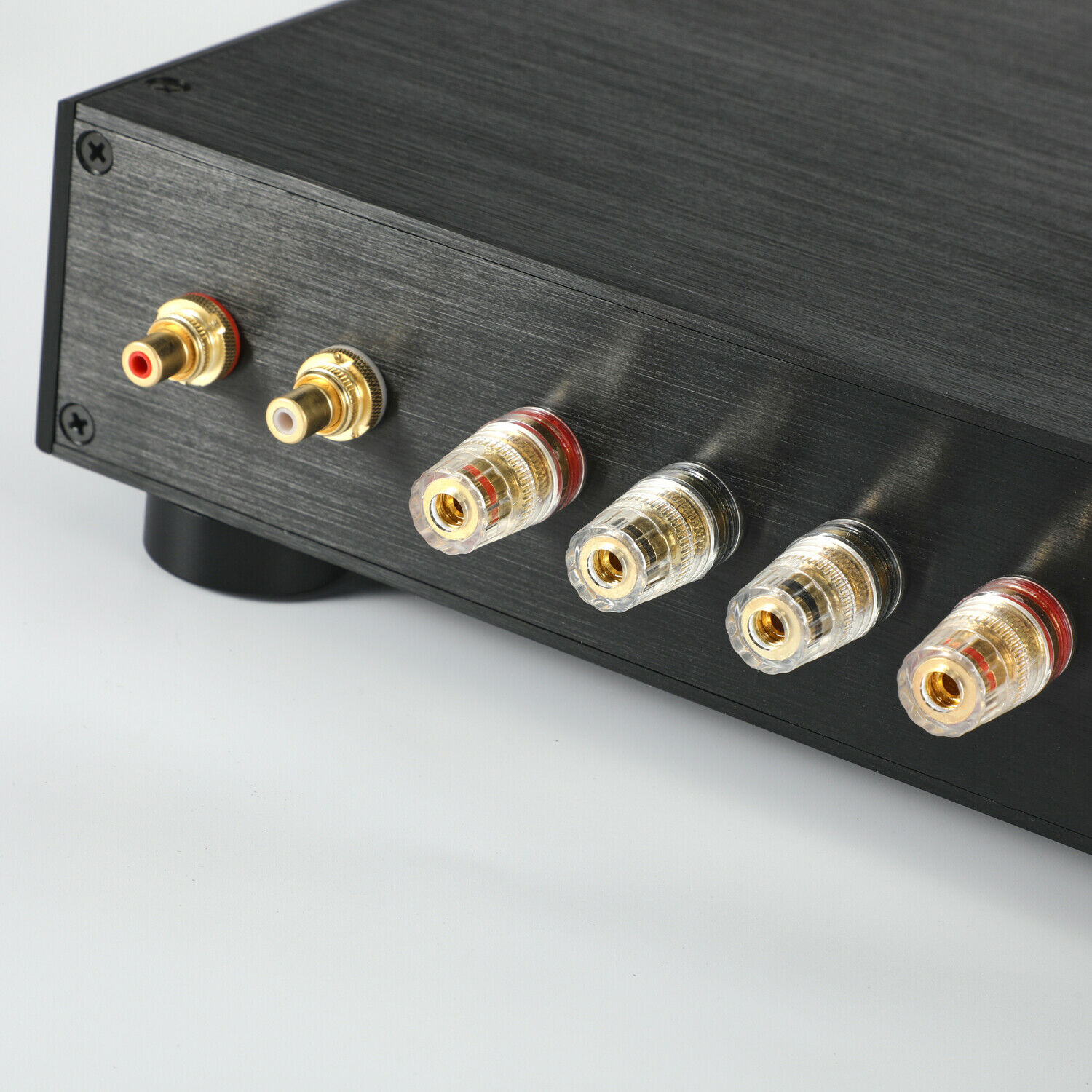

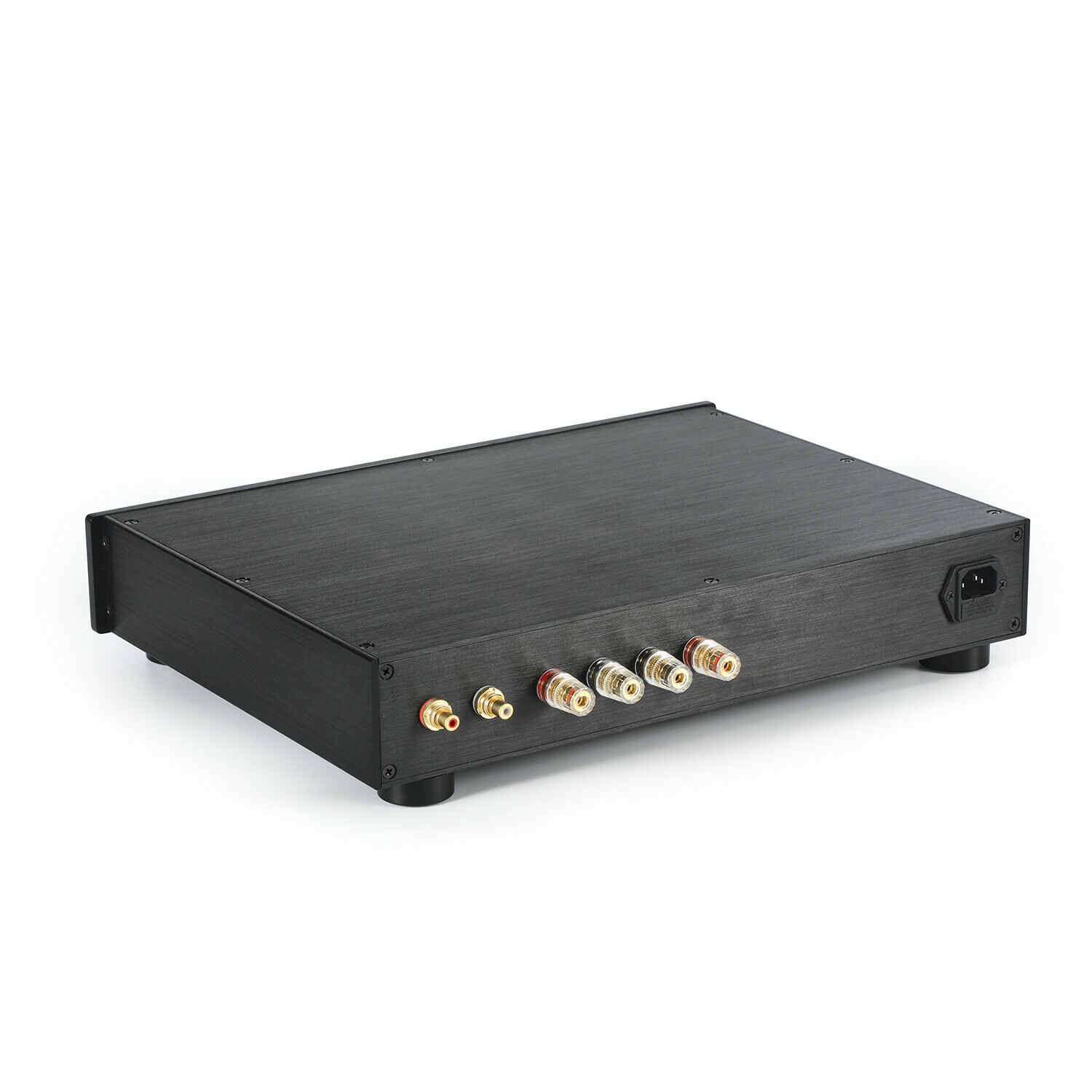

*Tai Wan Gold-plated RCA+ Speaker posts.
*High current stainless steel switch
*The high-power signal line in the machine uses UK copper wire, and the small signal line uses Japan's CANARE.
Overall sound:
The sound performance are very excellent , low frequency is surging and solid, the mid frequency is positive, and the high frequency band is a bit sweet; the box control ability is strong;
Package include: Finished power amplifier X 1
(NO IEC type mains power lead included)
