Finished Hood 1969 Pure Class A Power amplifier 15W+15W Hifi VU header AMP

0.0 (0 Reviews)
$0.00 $195.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Works voltage:
    AC115V
    AC230V
    Please select the information you wantX
Quantity
-
+
  • Description
Features
  • Adopting single-ended output circuit, low harmonic distortion, large static current of Class A, and equipped with active electronic filtering, the background is very quiet without any noise.
  • Gold-sealed high-power transistors are used as electronic filters and power output, the sound quality is warmer and more charming, delicate and full, which is a ideal choice to replace vacuum tube amplifier.
  • Pure class A output, each channel can output 10W, equivalent to 40W of class AB and 80W of digital amplifier. Enough to drive most home desktop/bookshelf/indoor/floor-standing speakers.
  • High-end components and material are used:

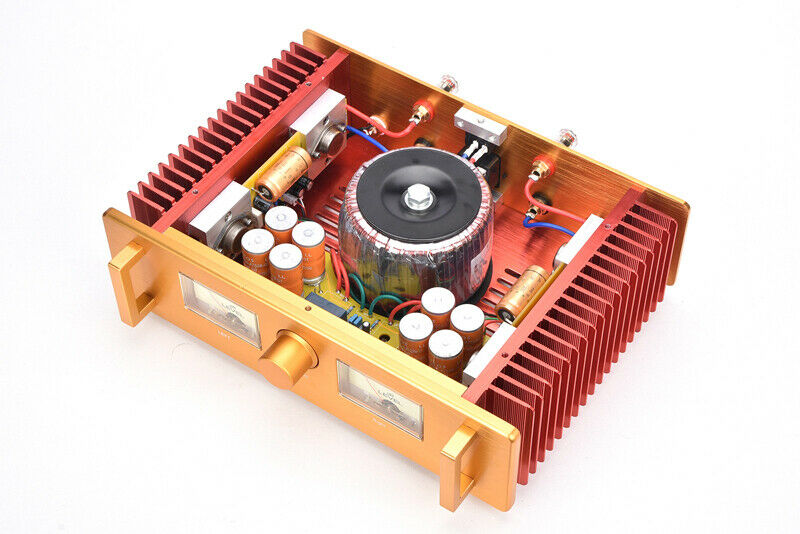

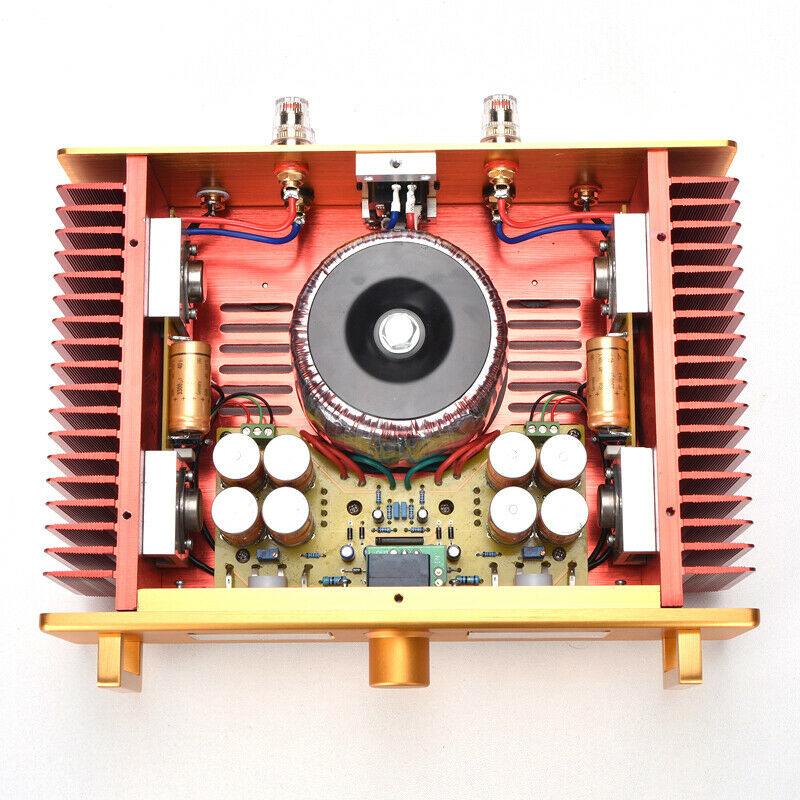

Adopting 130W A-core non-breakpoint toroidal transformer, oxygen-free copper enameled wire winding to ensure low magnetic flux leakage, high efficiency and strong power.

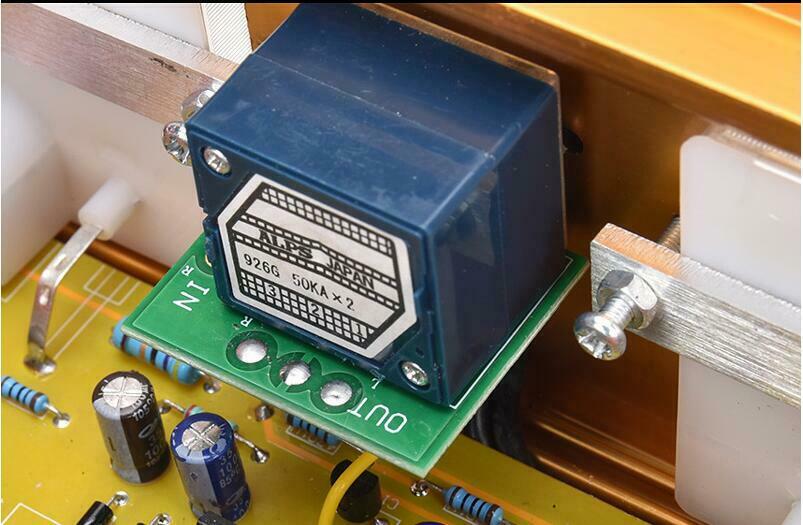

Japan ALPS27 sealed volume potentiometer, Siemens high-end series capacitors and German ROE capacitors

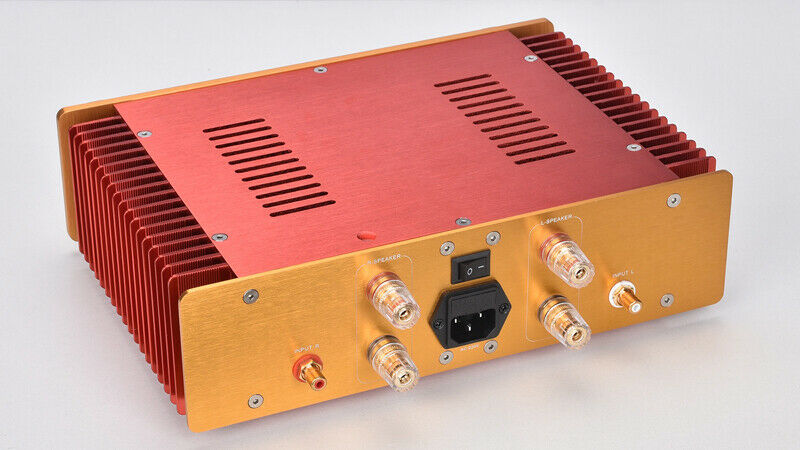

Pure copper input and output terminals, reliable contact and ultra-low loss for better transmission, resistant to oxidation and durable.
CNC machined all-aluminum external heat-dissipating chassis, laser laser engraving font, not easy to aging or deformation.

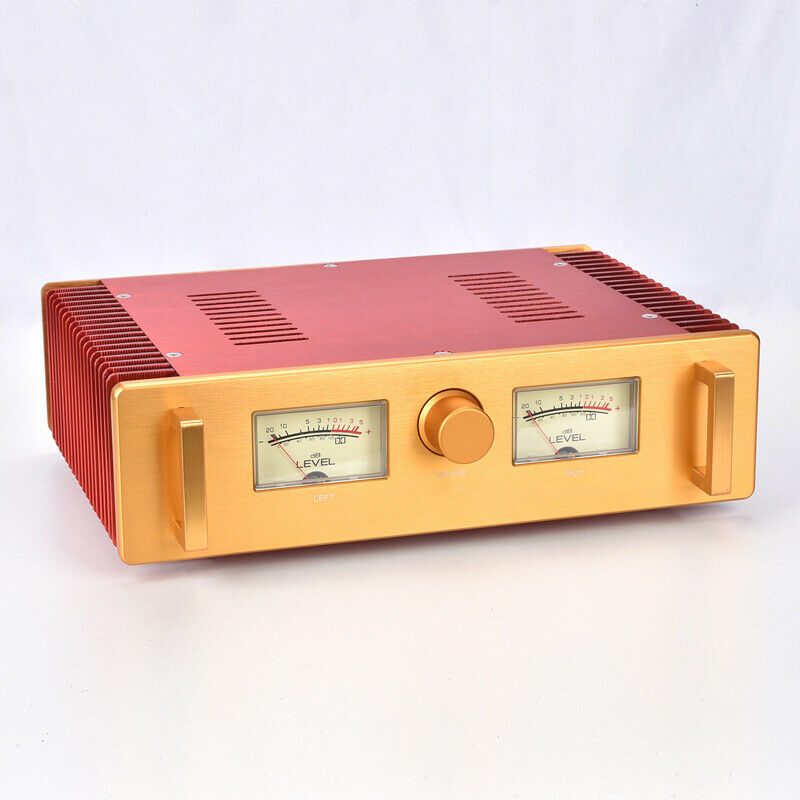

Luxury VU meter, makes music more dynamic.
Parameters
  • Audio input: stereo RCA
  • Audio output: banana speaker jacks
  • Frequency range: 16HZ-25KHZ (+/- 3dB)
  • Total harmonic distortion: < 0. 01% (1KHz 1W)
  • Signal to noise ratio: >115dB
  • Power consumption: 65W*2
  • Rated output power: 10W*2 (Class A)
  • Input impedance: 47K
  • Output impedance: 4Ω / 8Ω
  • Working voltage: AC 100V(115V) / 220V(235V) 50-60Hz
  • Dimensions(L*H*W): 300 x 90 x 212mm / 11.81*3.54*8.34in
  • Net weight: 6KG / 13.23LB
  • Package weight: 8KG / 17.64LB
