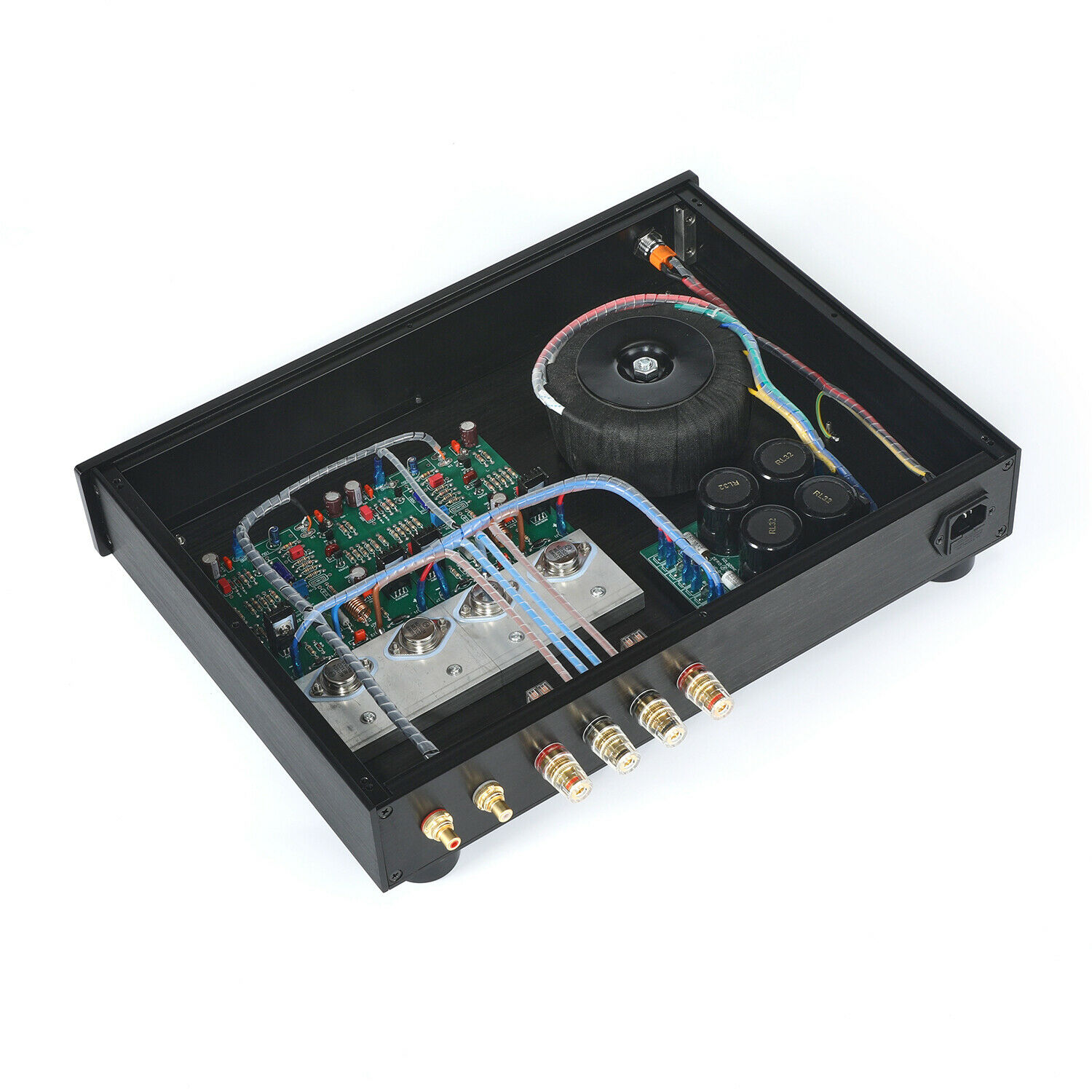

Finished power amplifier base on NAIM NAP250 amp circuit 80W +80W with speaker protection
Works voltage: AC100V-120V or AC220V- 240V two kind for choose
Output power: 80W +80W at 8ohm load
THD+N=0.001%-0.03%（20HZ-20KHZ 5W-30W 8OHM Audio Precision 2 TEST）
Size: Machine size: W:430mm D: 300mm H:70mm (excluding machine feet and various protruding positions)
Package weight: about 8.5kg

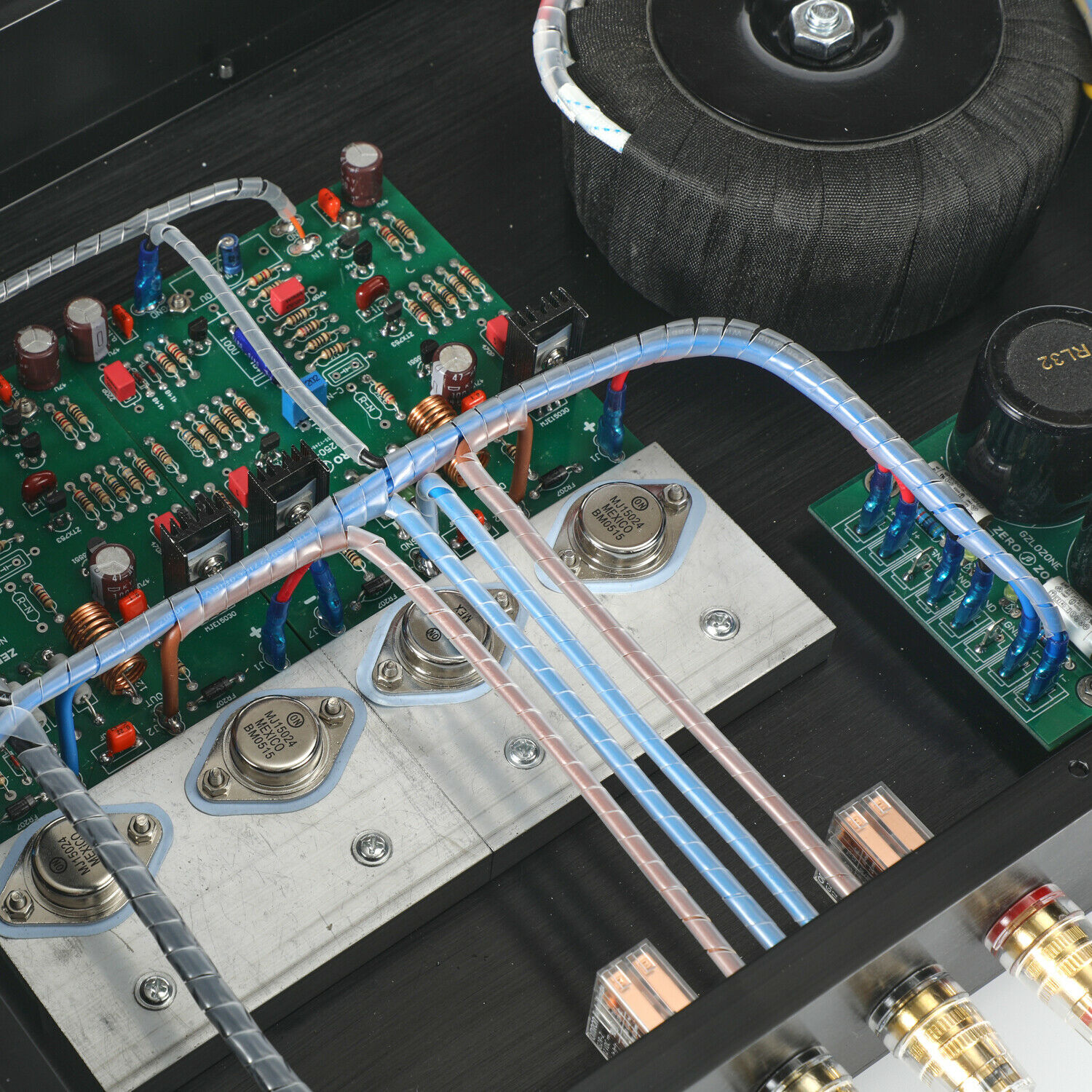

Use ON MJ15024 power transistors, one pair of transistors each channel.
with independent protection circuit.

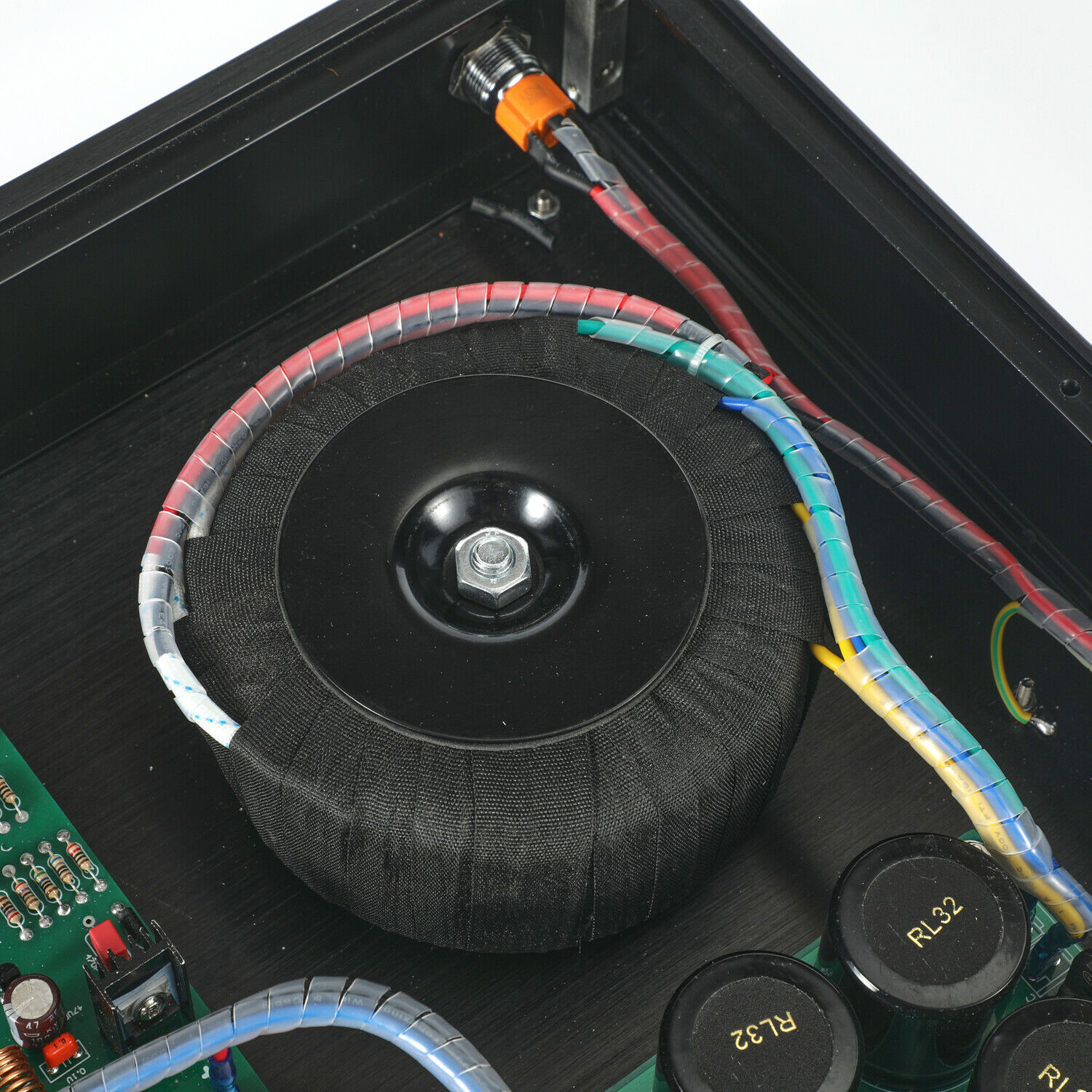

Use 200W copper Toroid transformer
Output power per channel: 80W at 8 ohms
Base On the famouse NAP250 power amplifier circuit.
Material：
*Full aluminum chassis.
*Full aluminum feets + knobs

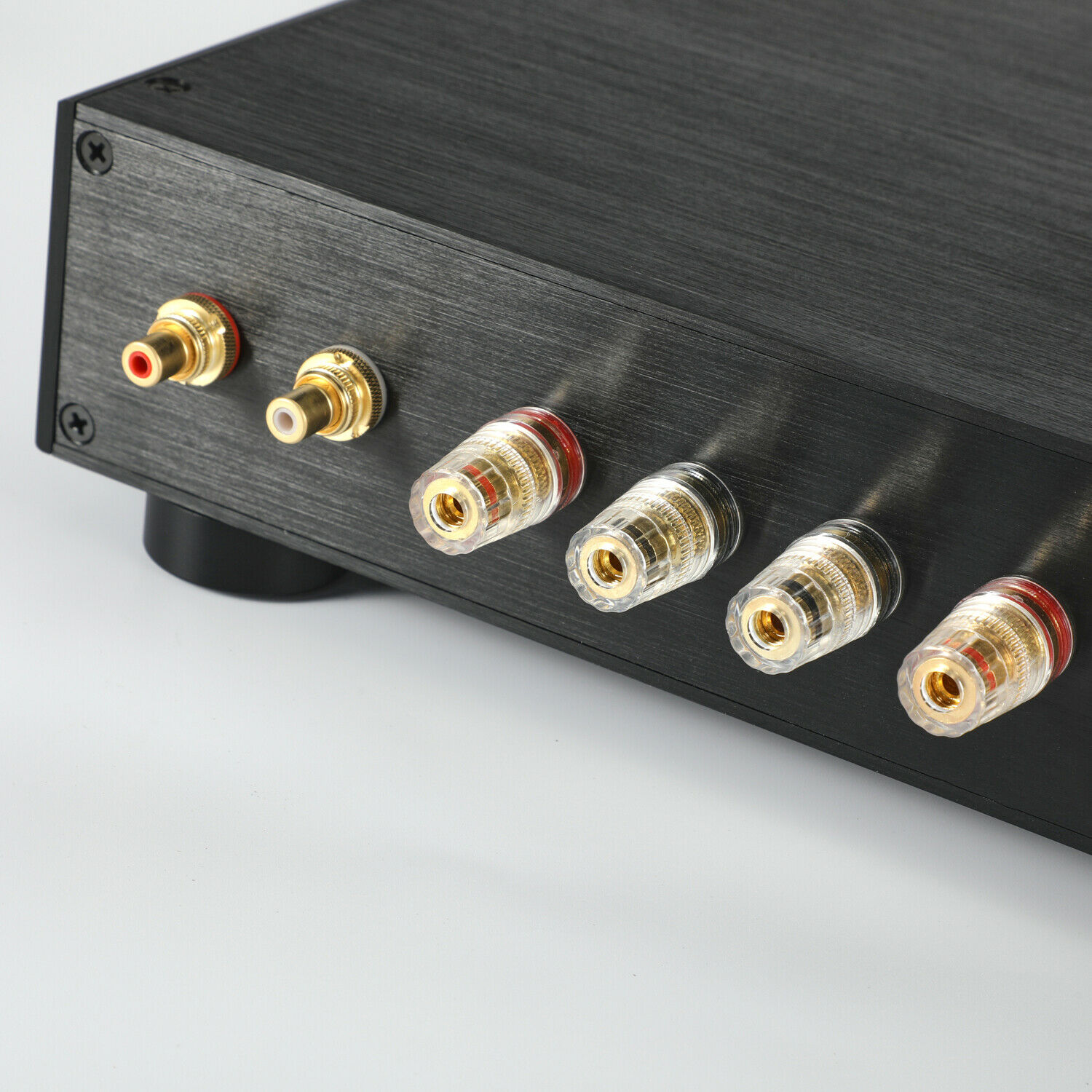

*Tai Wan Gold-plated RCA+ Speaker posts.
*High current stainless steel switch
*The high-power signal line in the machine uses UK copper wire, and the small signal line uses Japan's CANARE.
Package include: amplifier X 1
(NO IEC type mains power lead included)
