Size:
External dimension: 300*95*311mm （W*H*D)
Internal size: 220*82*300mm （W*H*D)
The tooth length of the radiator is 33mm,
The radiator wall thickness is 7mm,
The length of the radiator is 300mm,
The radiator height is 85mm,
The thickness of the top and bottom covers is 2.5mm;
The front panel thickness is 7mm;
The thickness of the rear plate is 4mm;
The equipped knob is made of solid aluminum precision machine;

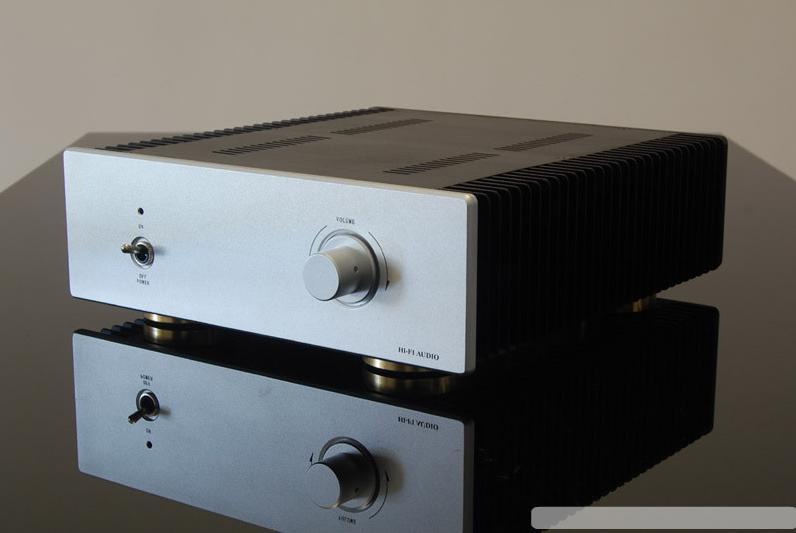

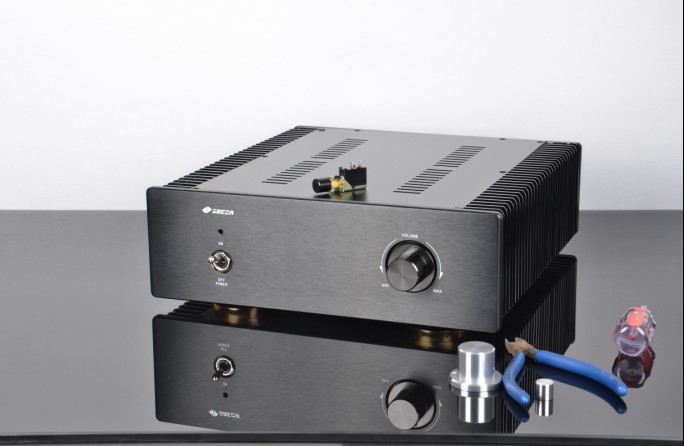

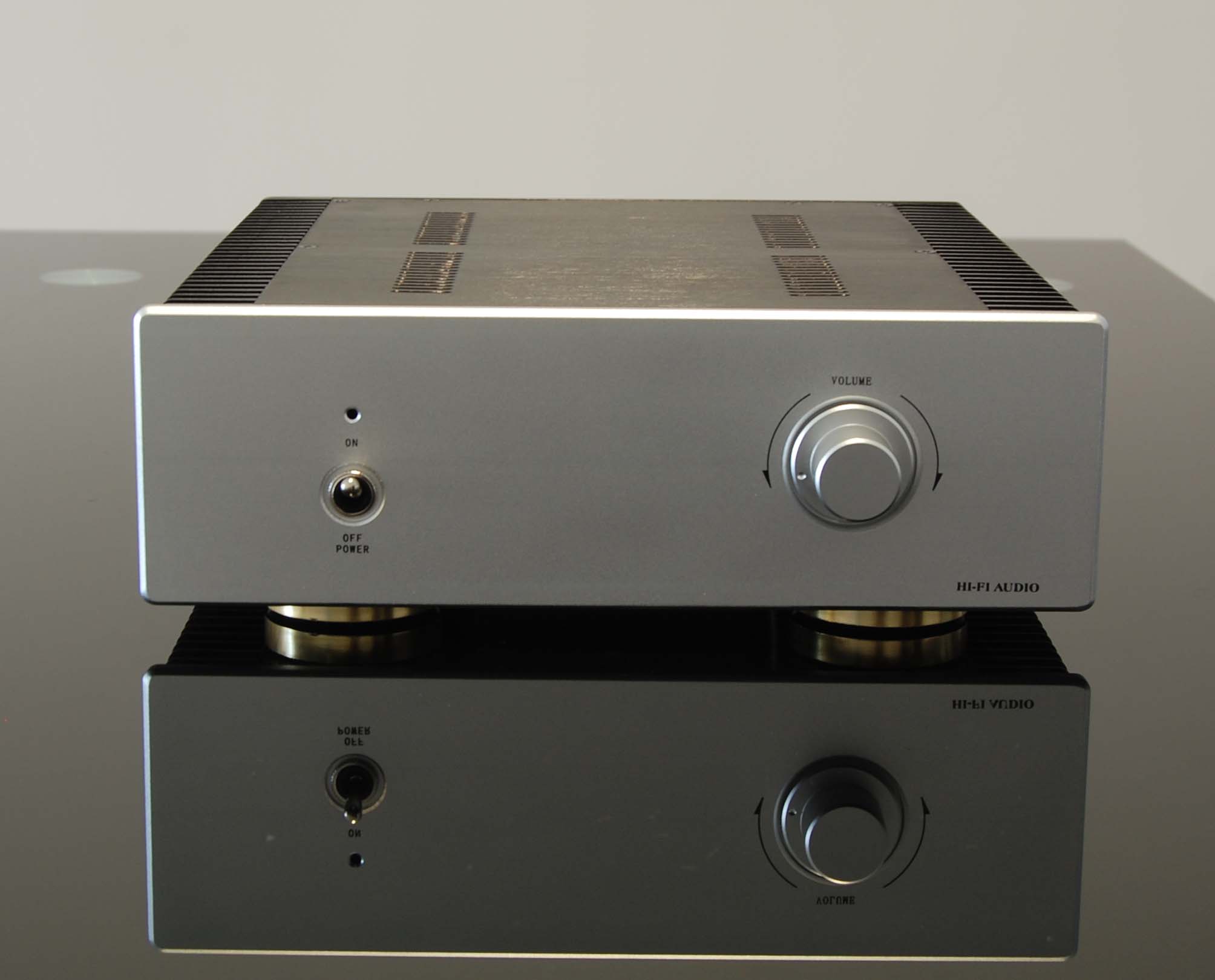

At present, many friends in the hifi group are playing with small clall A amp, among which the typical circuit is 1969. Although the power is not large, the sound is extraordinary, so it is sought after by many fans. But fans are worried about the chassis. In order to make it easier for fans to have a good time, this shop has specially launched this all-aluminum external radiator chassis, which is enough to meet the needs of small Class A circuits within 20W, and can also be used as AB power amplifier needs, we hope you all have fun!
The radiator used in the chassis is integrated for heat dissipation, not spliced together, and the heat dissipation effect is remarkable;
The chassis six sides of the chassis can be disassembled and assembled, which is extremely flexible and provides more DIY space for DIYers.

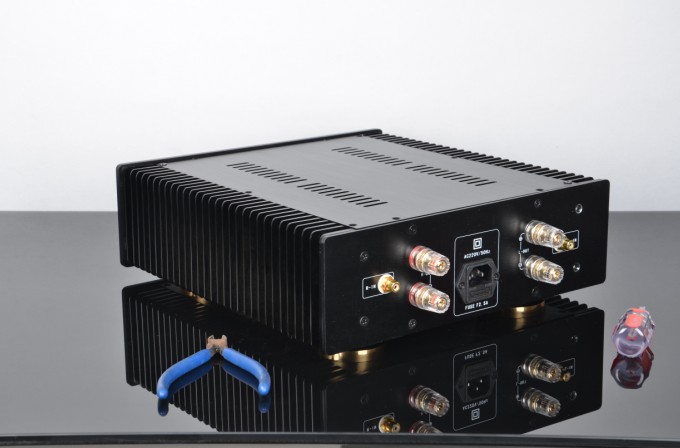

Package include:
case X 1 set
knob X1pcs
power switch X 1pcs
RCA X 2pcs
sepaker terminals X 4pcs
feets X 4pcs
AC socket X 1pcs
screws X 1 set
Buyer must read: In order to ensure the safety of the chassis during transportation, we disassembly this case when we shipped it, and the buyer needs to assemble it by himself. !!!
