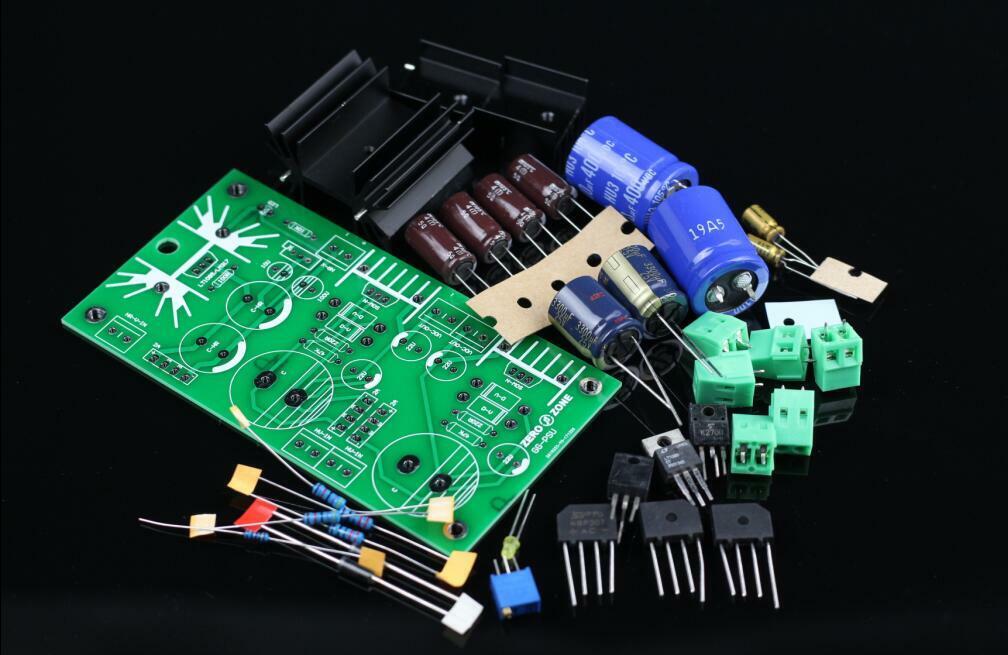

DIY Tube Preamp Power Supply PCB / Power Supply Kit / Power Supply Board DC200V + DC200V + DC12.6V (6.3V)

Name: DIY Tube Preamp Power Supply PCB / Power Supply Kit / Power Supply Board DC200V + DC200V + DC12.6V (6.3V)
Brand: FYFAUDIO
SKU: LPS-K/B202213
Price: 7.5 USD
Availability: InStock

0.0 (0 Reviews)

$7.50

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

DIY Tube Preamp Power Supply PCB / Power Supply Kit / Power Supply Board DC200V + DC200V + DC12.6V (6.3V)

Note:

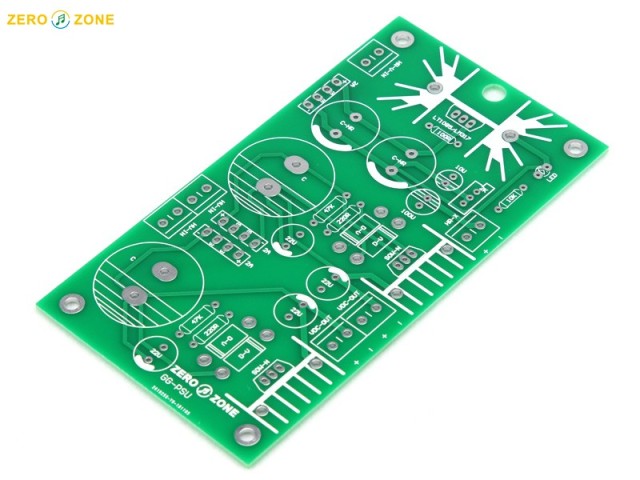

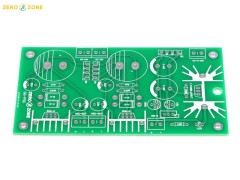

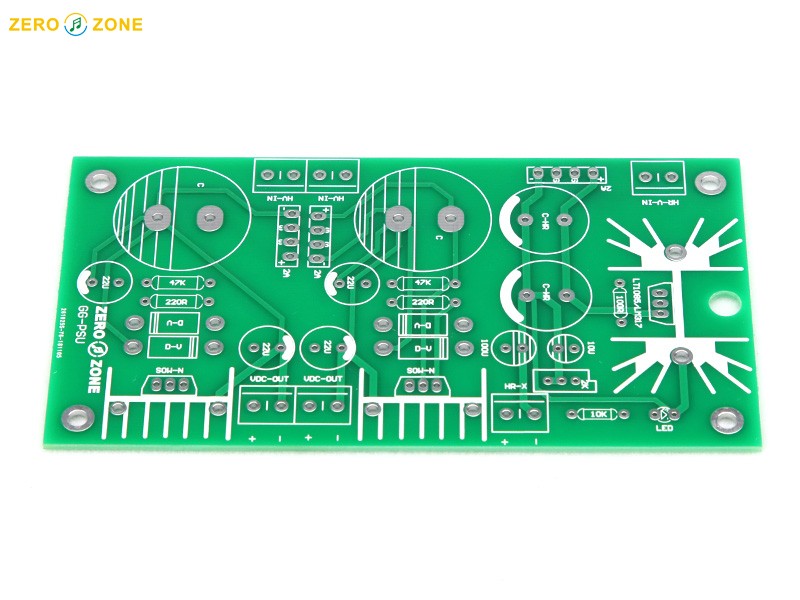

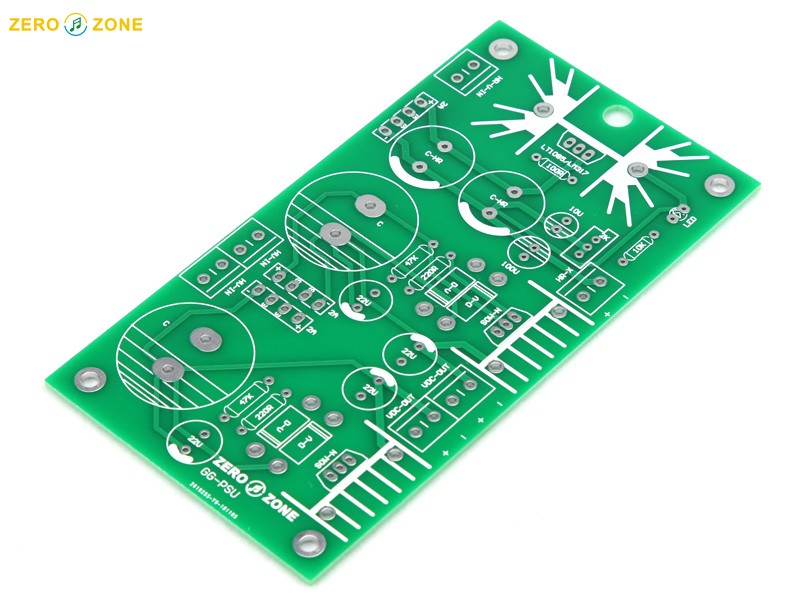

Power Supply PCB: This link is for one bare PCB. not include any Components.

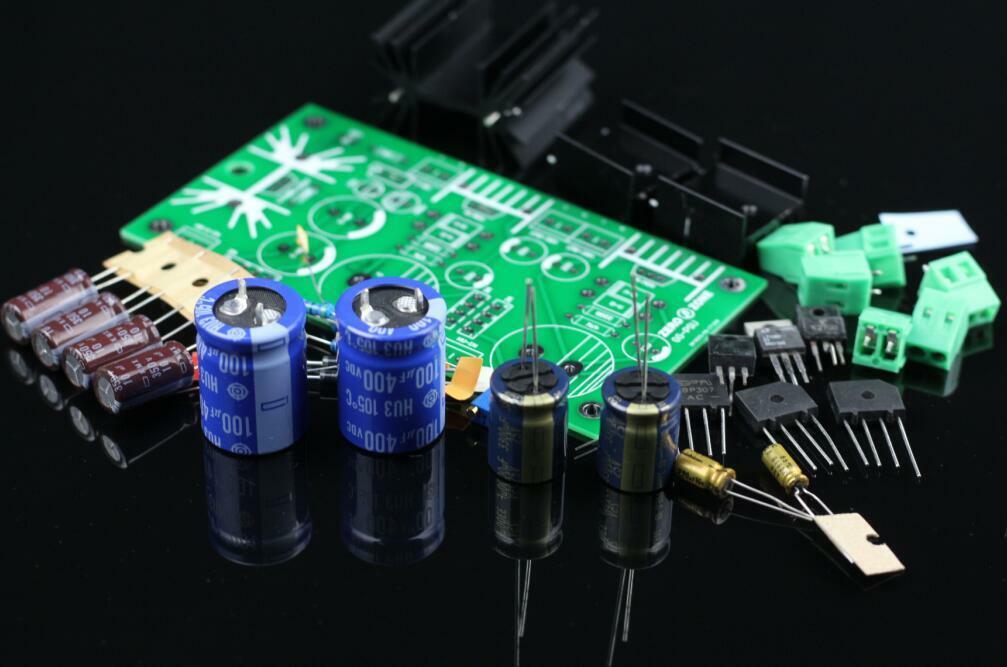

Power Supply Kit: This is a DIY kit. all the Components will need yourself to solder it.

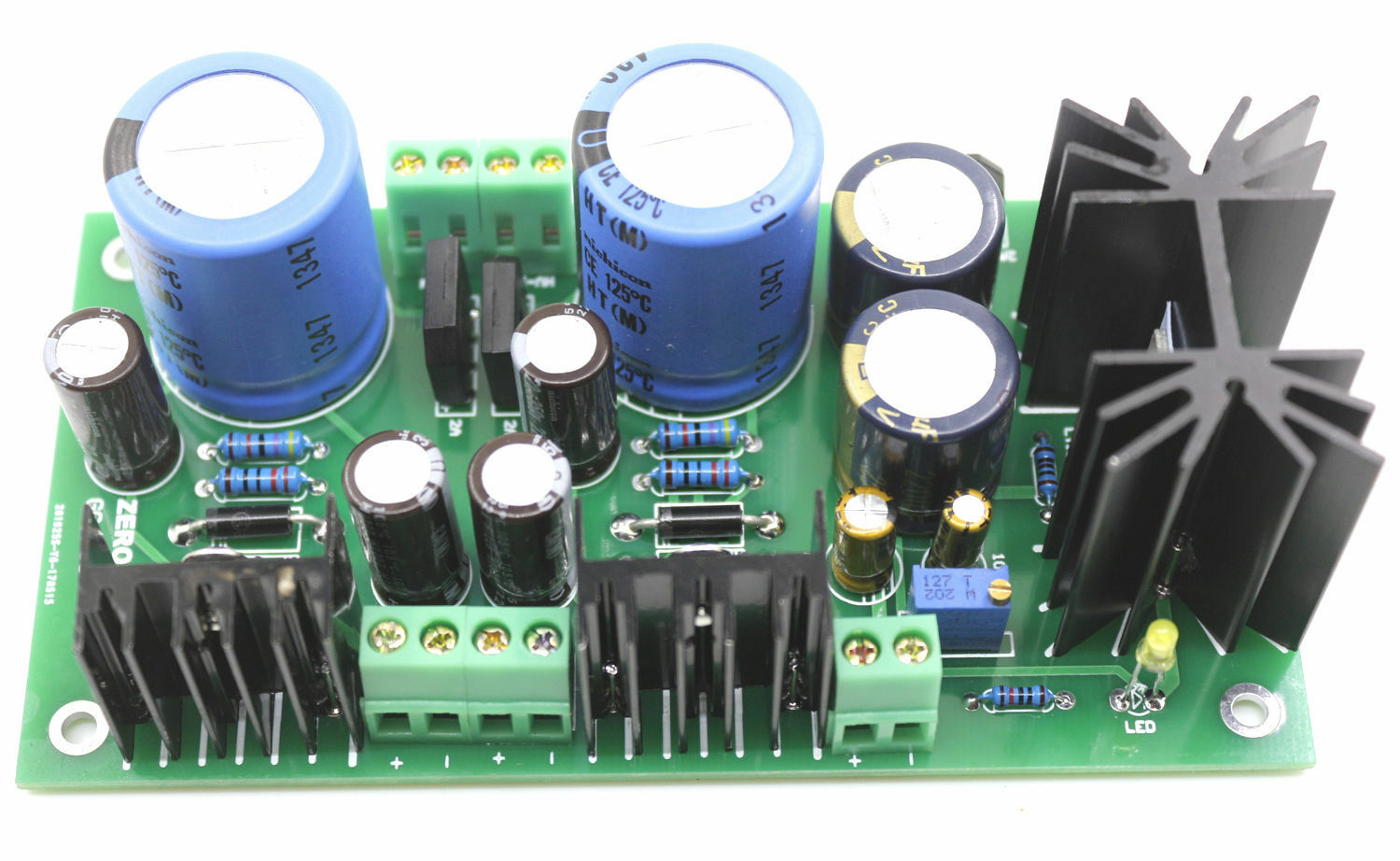

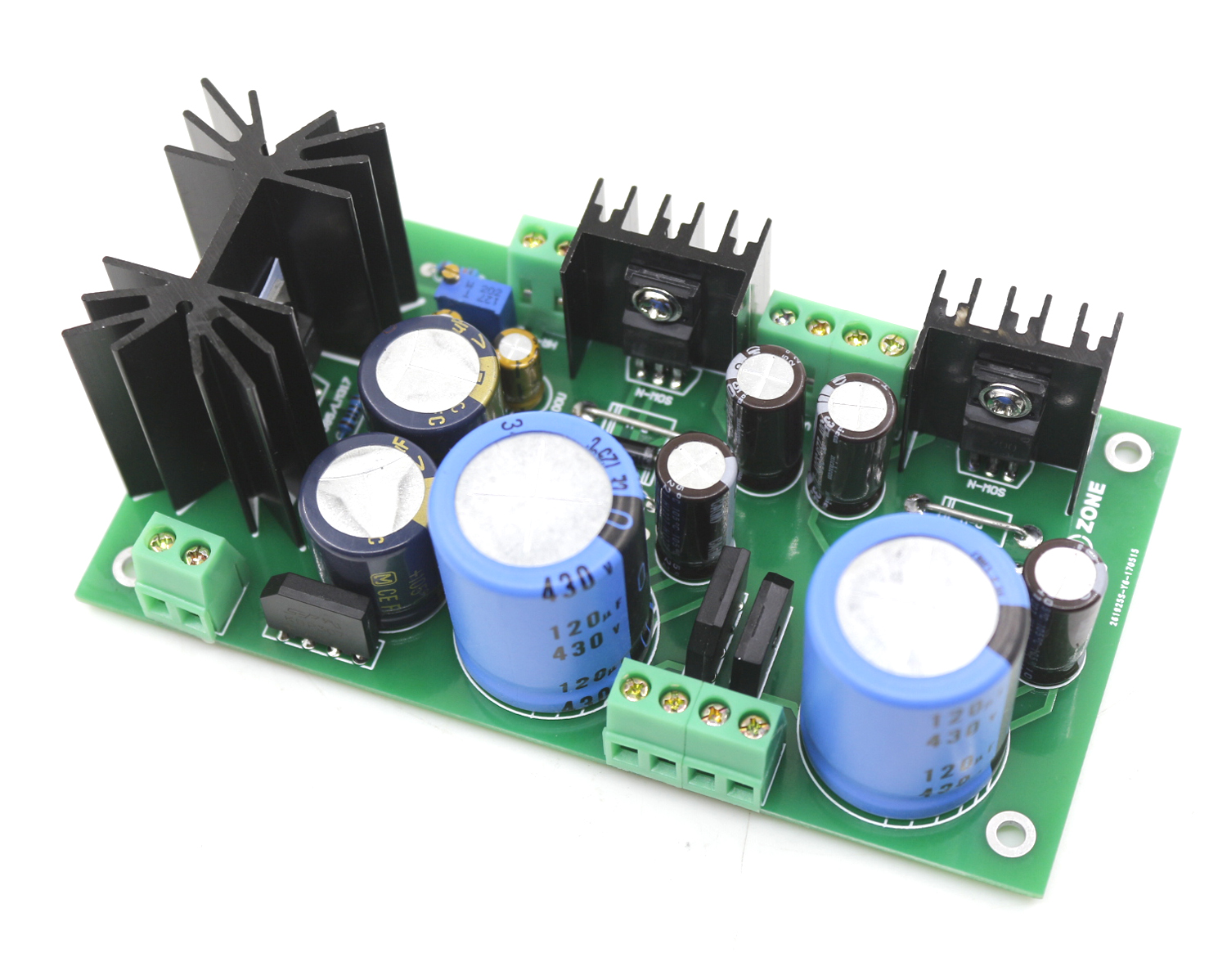

Power Supply Board: This is a assembeld board.

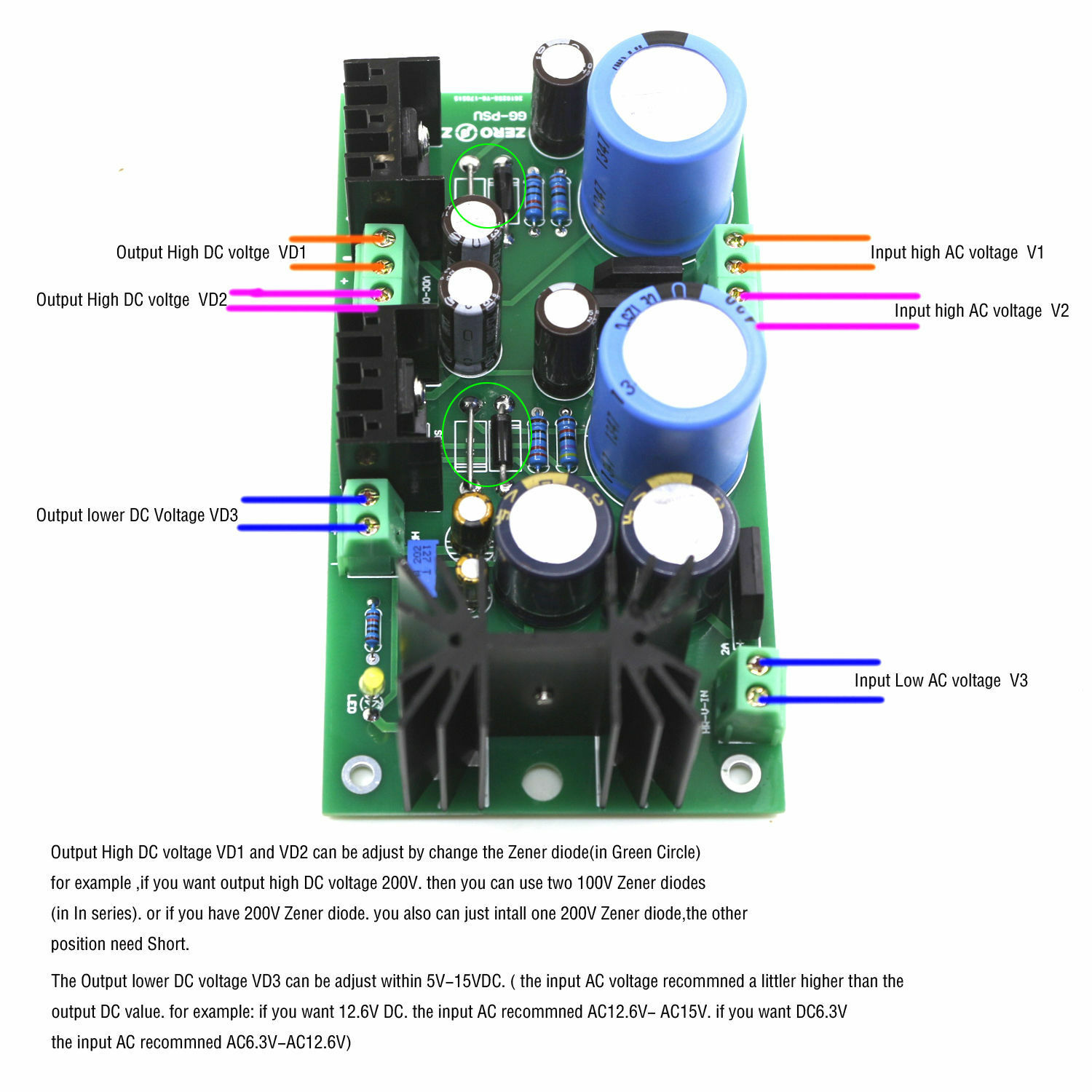

Input voltage:
0-AC220V 0-AC220V 0-AC12.6V
(High votlage 200V-265V /low voltage 12V-15V all ok )

Output voltage:
0-DC200V
0-DC200V
0-DC12.6V ( Can be adjust, if you need DC6.3V, then input AC 7-9V）
(Two 200V can connect as +DC200V 0 -DC200V)
(The high output votlage also can be adjust via change the Zener diode, if you need other voltge. can contact us）

Description:
Power supply PCB Size: 130*70mm
Thickness: 1.6mm,
Copper thickness 50um.

The LT1085 IC is used.
(This kit included 2pcs 200V Zener diodes. on the PCB each high voltage has 2 position for install Zener diodes,they are Series connection. if you just need output DC200V. so just installed this one 200V Zener diodes. another one shorted. for example. if you need 280VDC output, can install 2pcs 140V Zener diodes, or 1pcs 150V and 1pcs 130V Zener diodes also ok. )Z)ener diodesZener diodes
