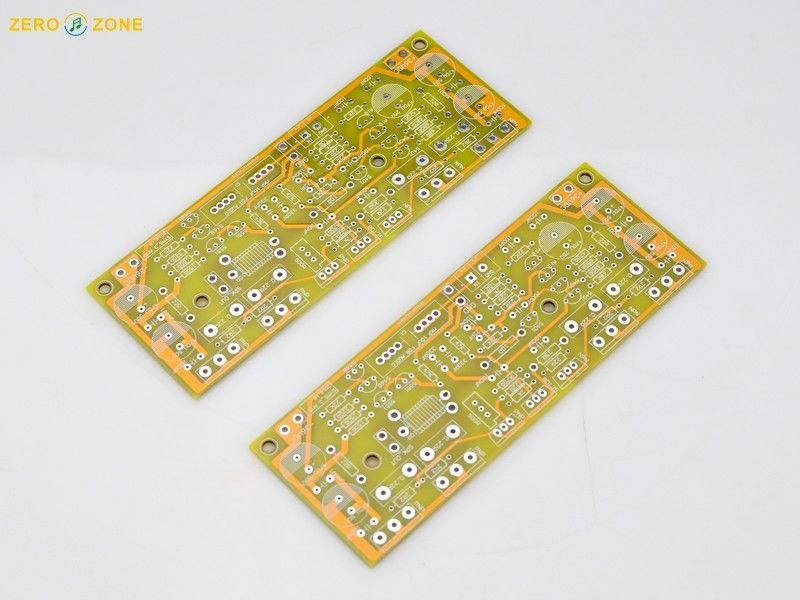

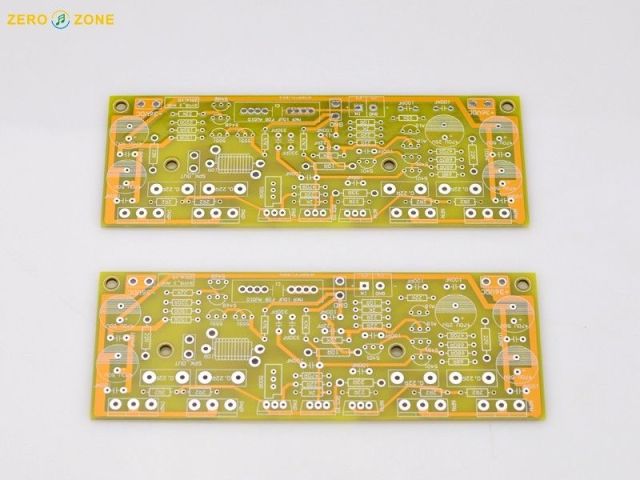

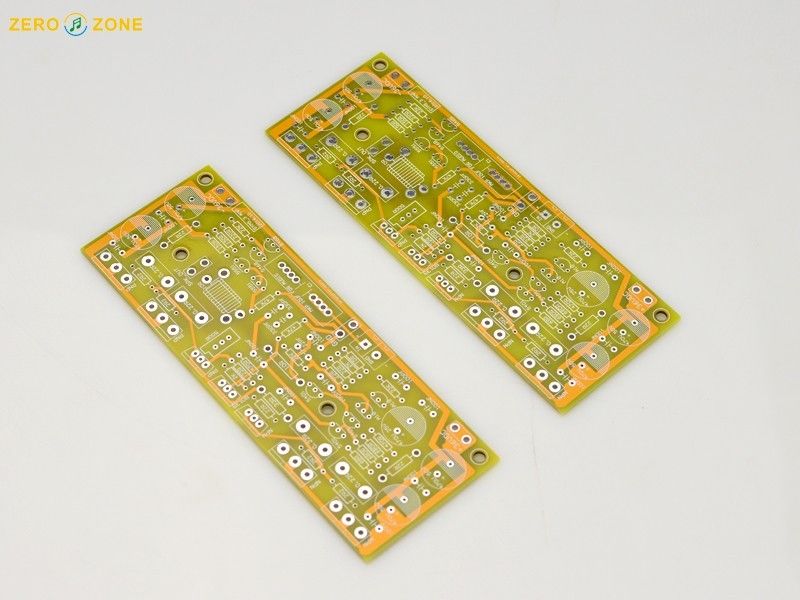

One Pair Classic Symasym 5-3 Discrete Power Amplifier Bare PCB

This is price is for one pair Bare PCB. (2 PCBs)

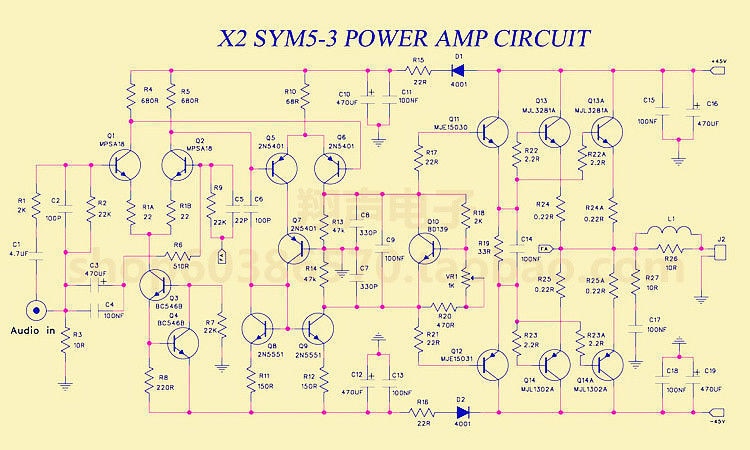

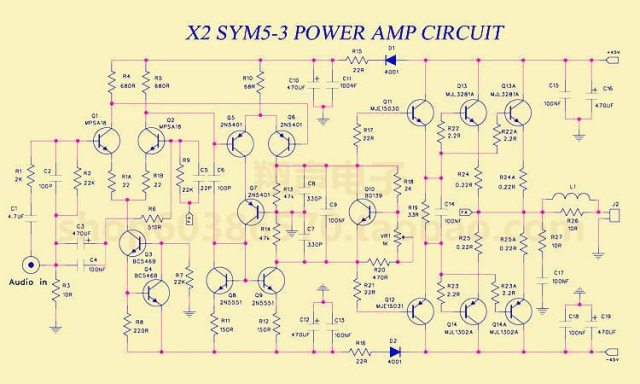

  Audio Amplifier Symasym 5-3 on diyaudio forum is a very well-known line, so far the circuit post traffic is still very active, the sound quality very good, the power 100W +100W very suitable for home use, the circuit work in the Class AB , Performance is very stable.

Status: Class AB
Output power: 100W  +100W  (8Ω)        < V = ± 45v>
Operating voltage: DC+ - 20V ----- + - 45V
Distortion: THD is 0.002% into 1 kilohertz and full power
                 THD is 0.005% into 10 kilohertz and full power

PCB Size: FR4 138X50X1.6MM


Debugging instructions：  test any one of the White cement resistance voltage as V1.

( usually the V1 adjust at about  15-22mv will be good)



We can provide the BOM via email.
