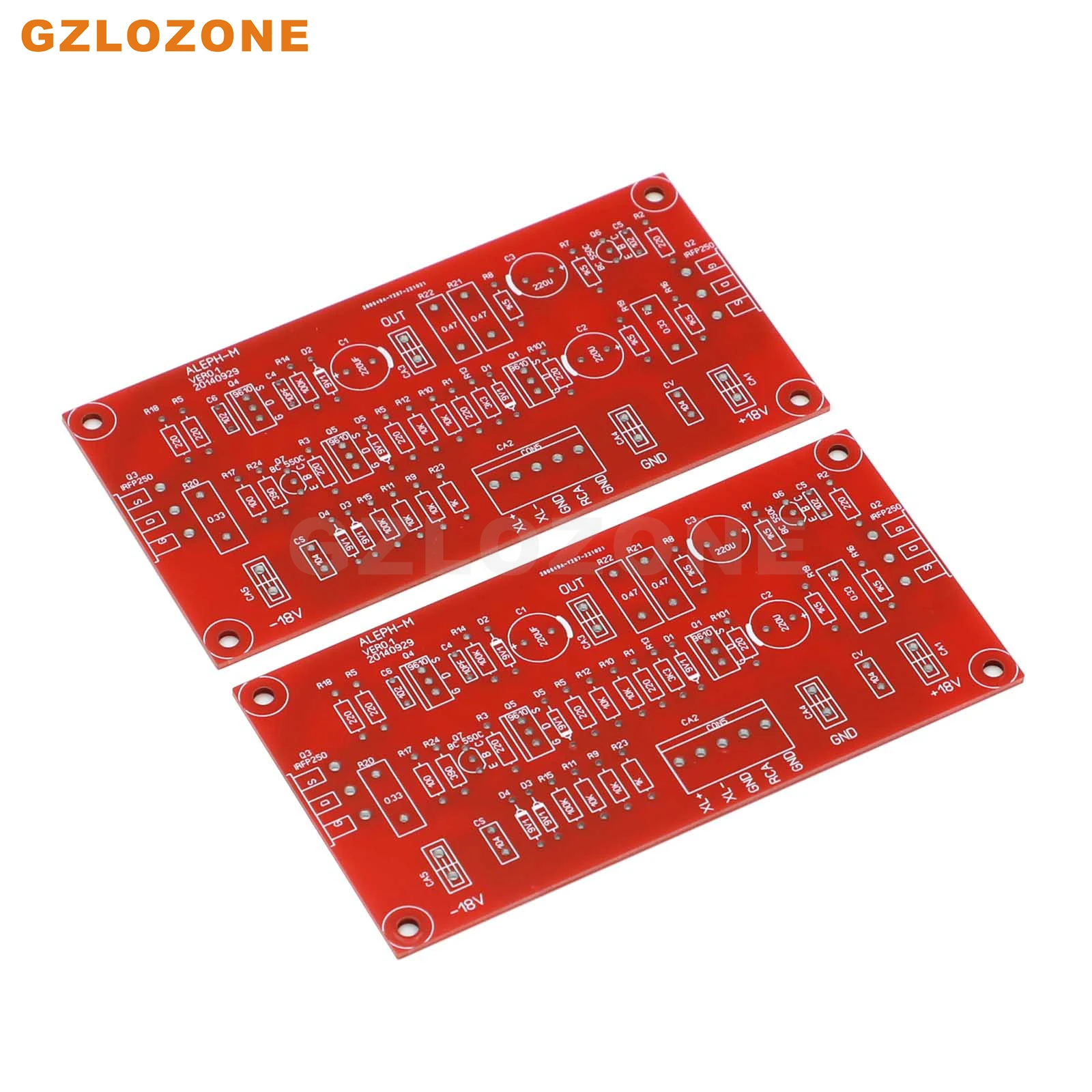

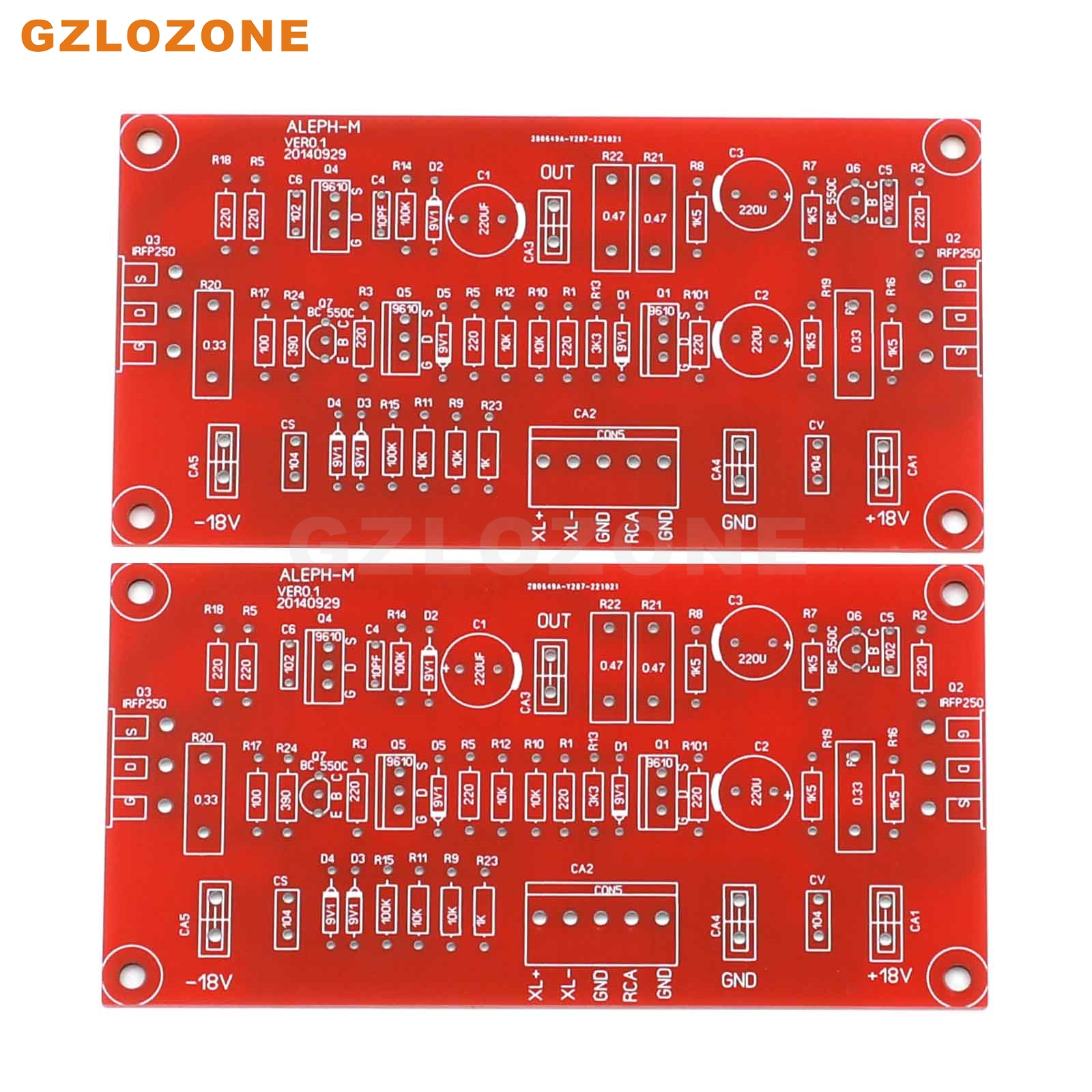

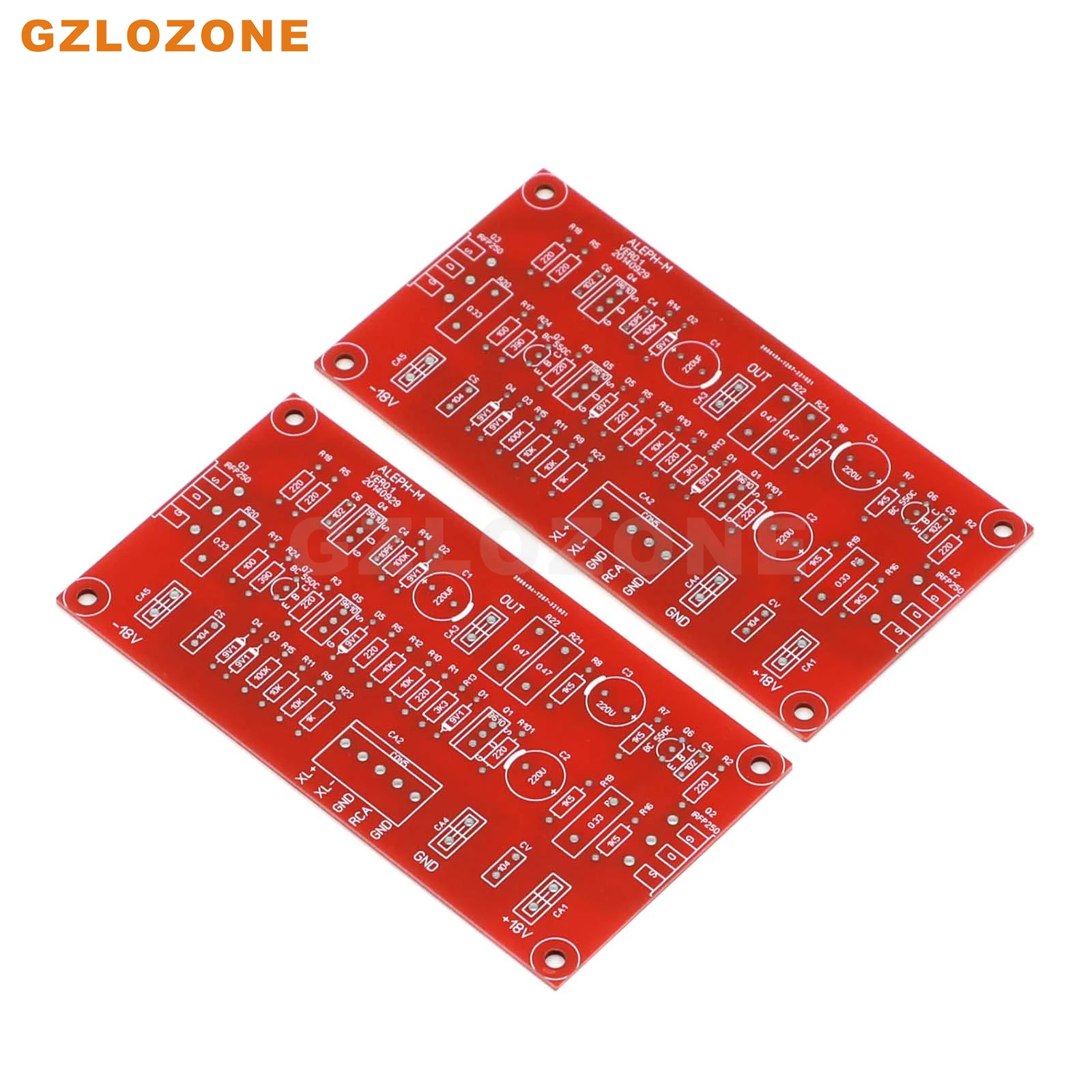

One Pair Stereo PASS ALEPH-M 16W Pure Class A Power Amplifier Bare PCB

Introduction:

Pass aleph-M amp board is a Pure class A power amplifier board, The finished product output power 16W 8R suitable for pushing all kinds of bookshelf boxes and antique boxes. The sound is sweet and close to the Tube amp machine. This circuit has few components. It can turn on the sound without debugging as long as it is installed as required.

This circuit is a reduced version of Pass 5 and A2. It use pair of power tub transistor,wtithout A2's Big chassis and the matching problem of output transistors. The voltage is also reduced to +/-18V and the power supply output is 16W.

Works Voltage: +/-18VDC

Input: Support Unbalanced and balanced input.

Output Power: 16W each board at 8ohm load.

PCB size: 117mm*60mm

NOTE: This is the Bare PCB. You need to match all the parts yourself.
