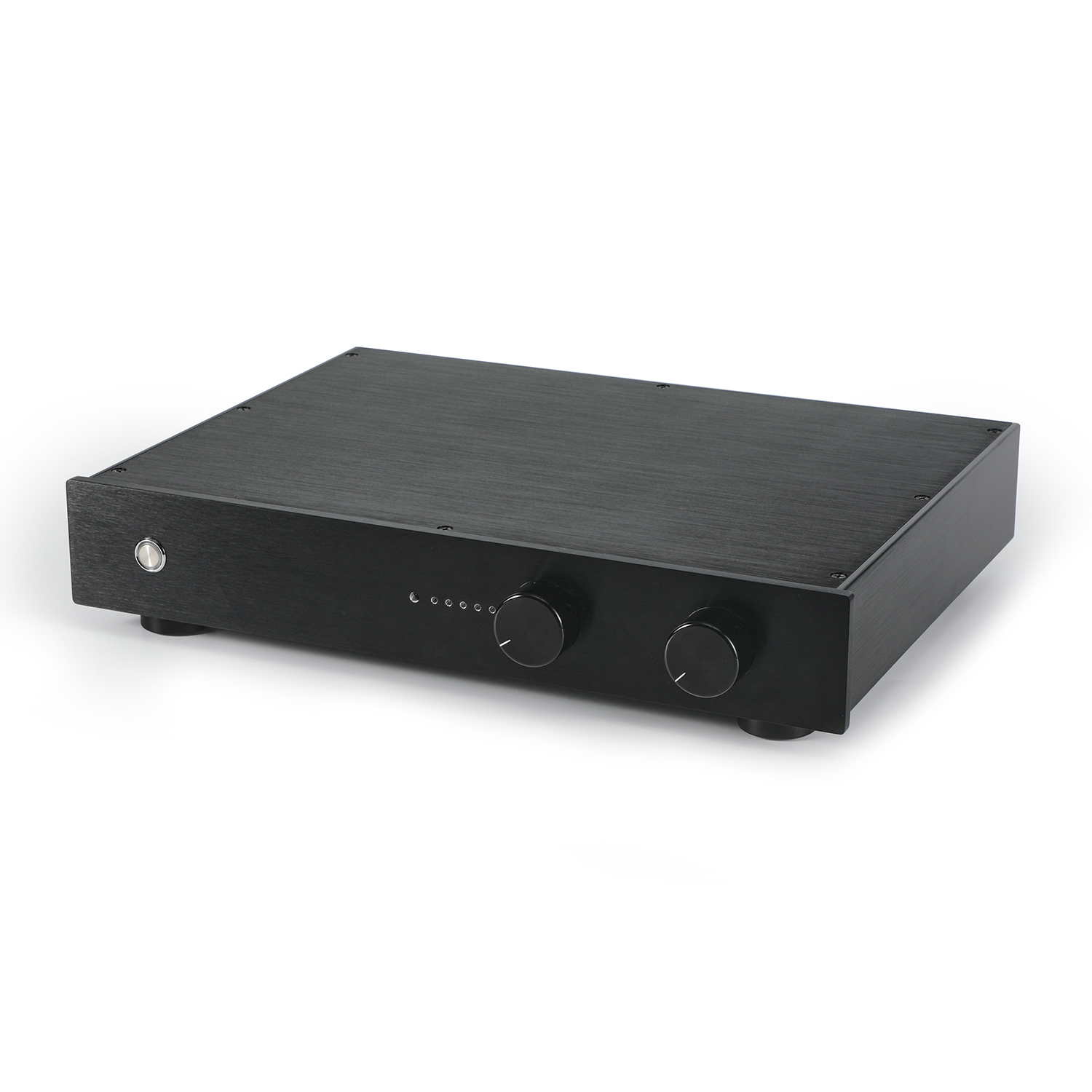

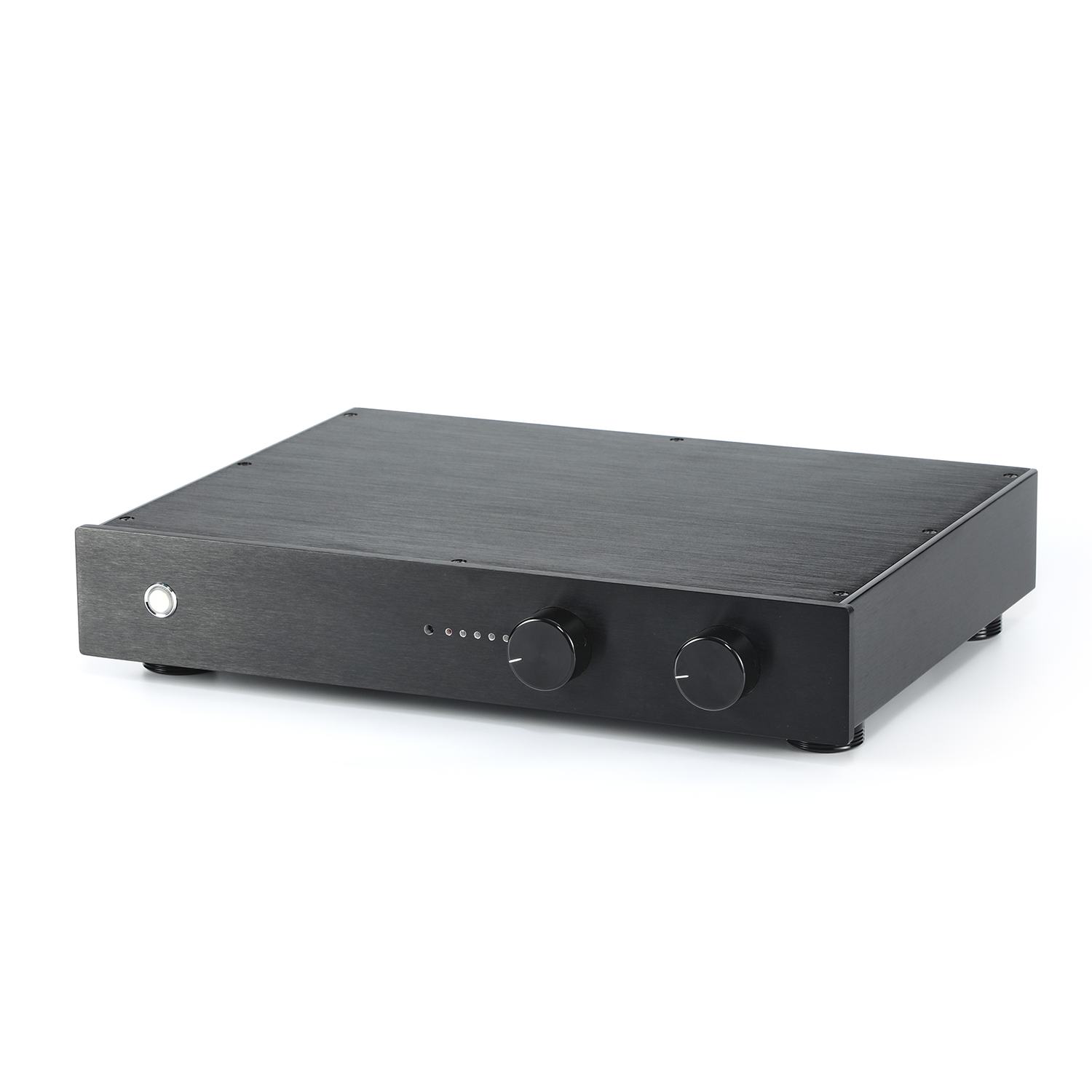

Remote integrated amplifier base on Accuphase E350 amp + C3850 preamp
Works voltage: AC100V-120V or AC220V- 240V two kind for choose
Output power:75W+75W at 8ohm load

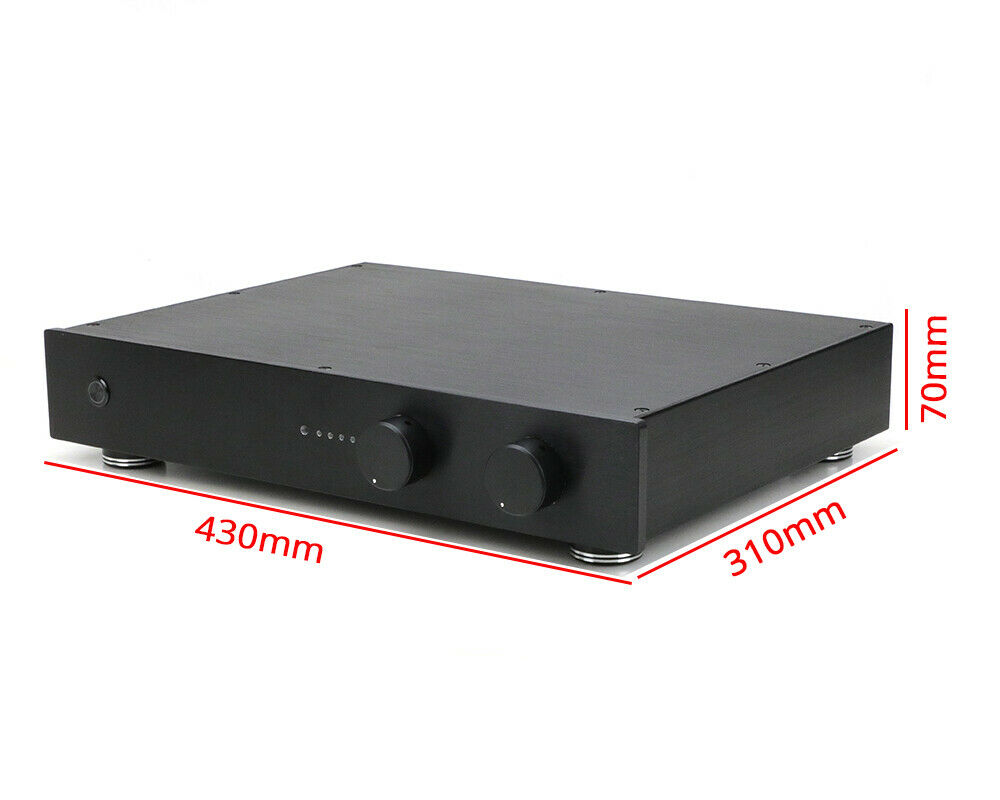

Size: Machine size: W:430mm D: 300mm H:70mm (excluding machine feet and various protruding positions)
Package weight: about 9.5kg

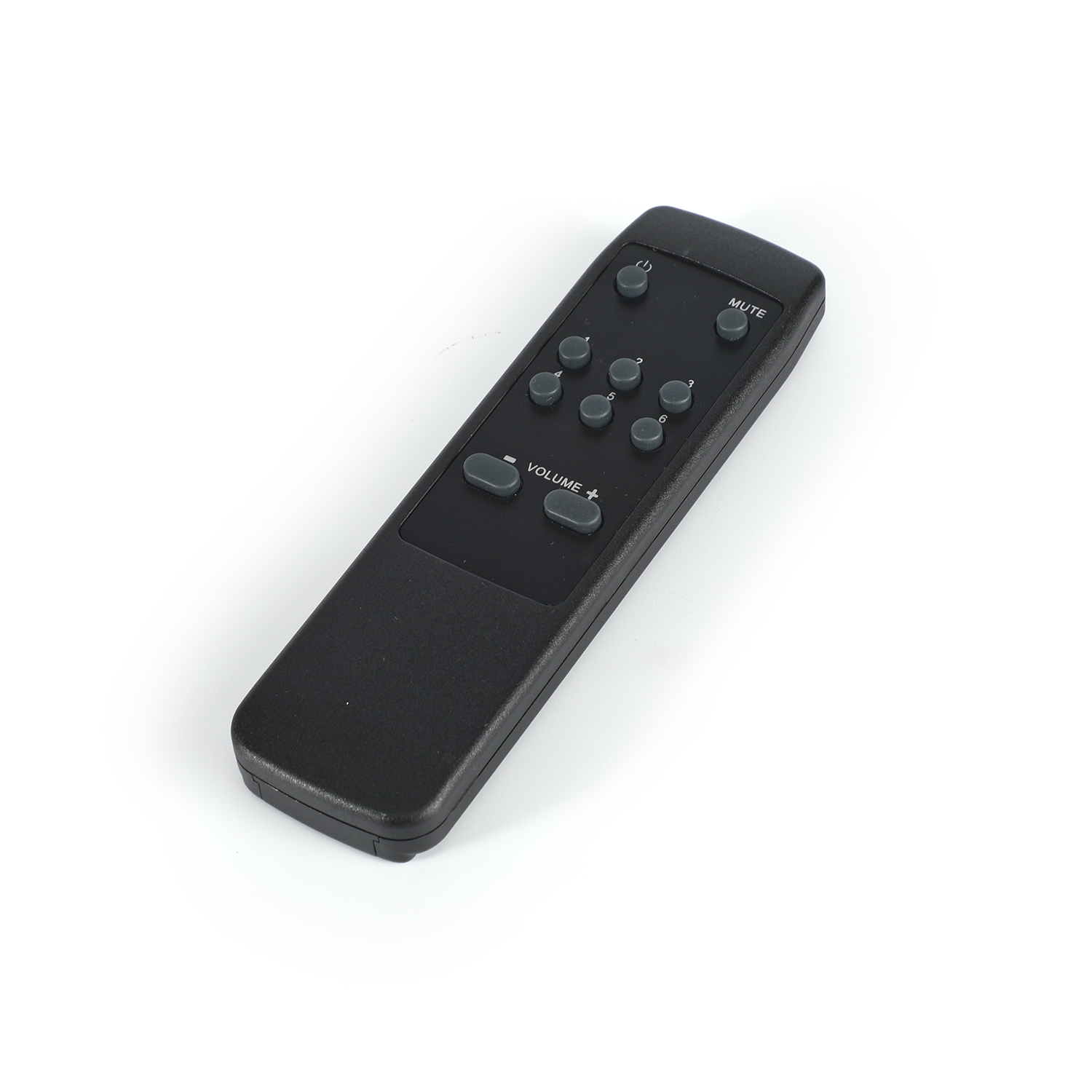

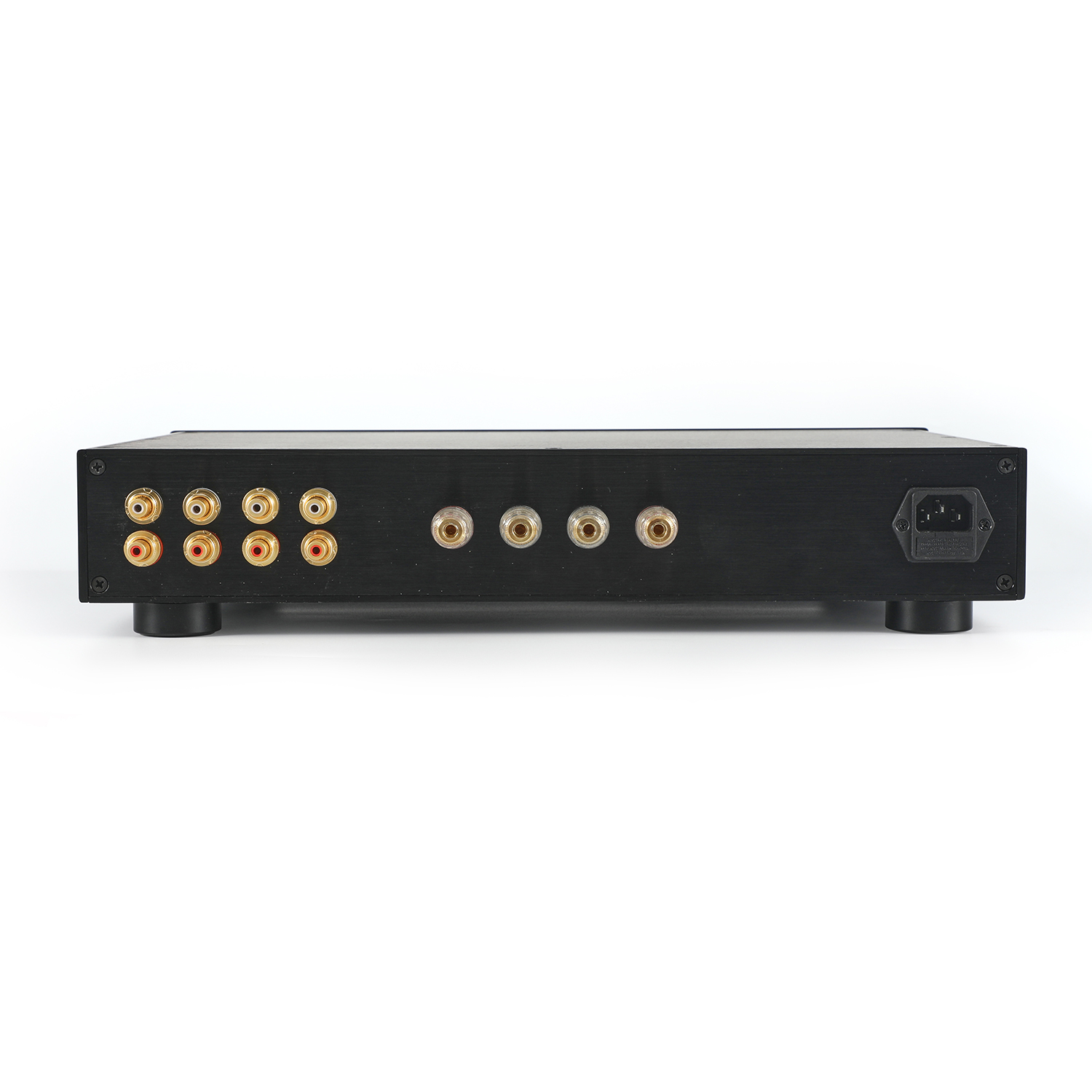

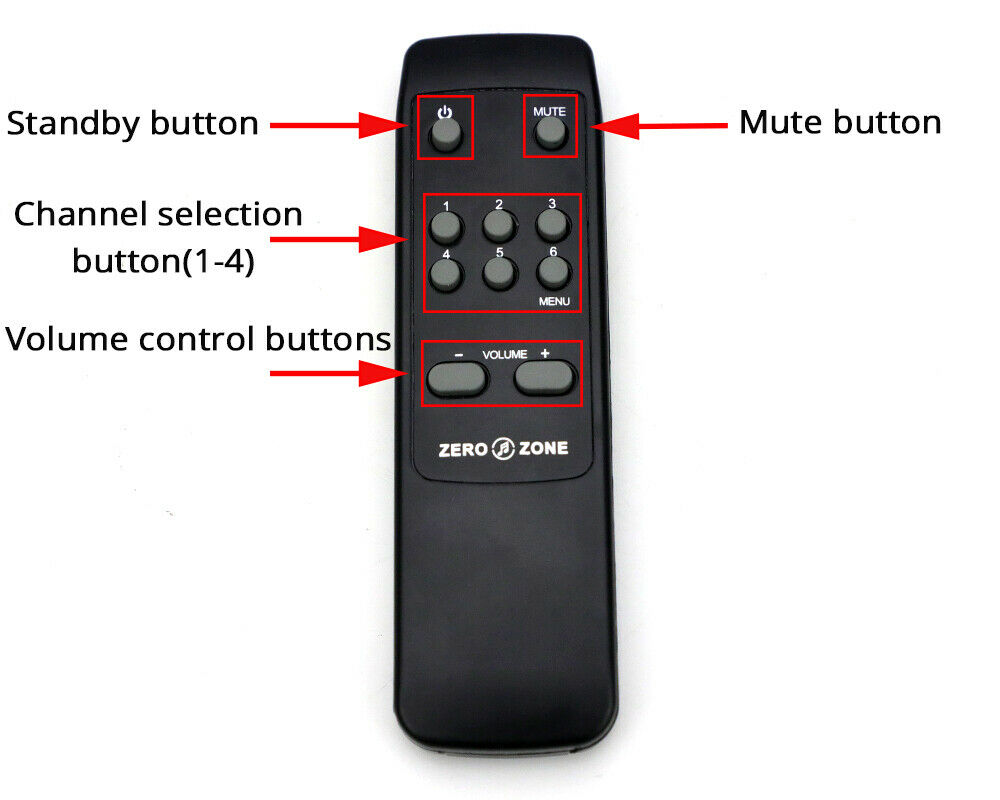

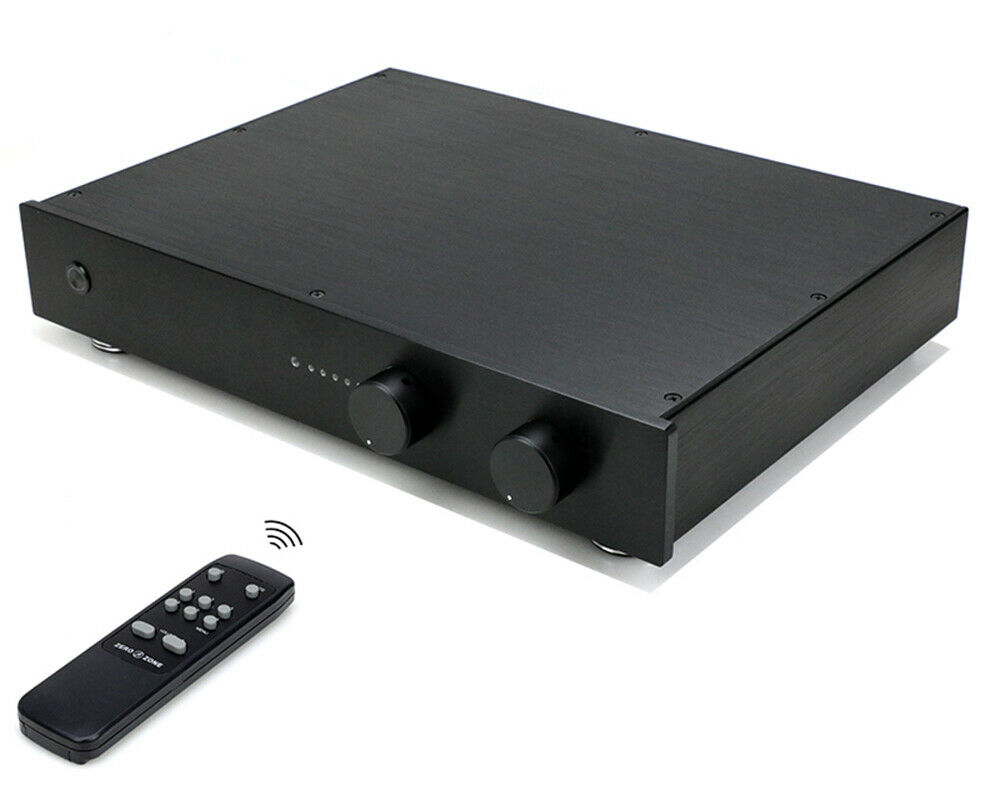

amplifier support 4 way Audio input. support remote control volume. remote power on/off. remote choose input.
This amp with Power-off memory. that means when you power on it. the volume and inputs will keeps the same state as the last shutdown.

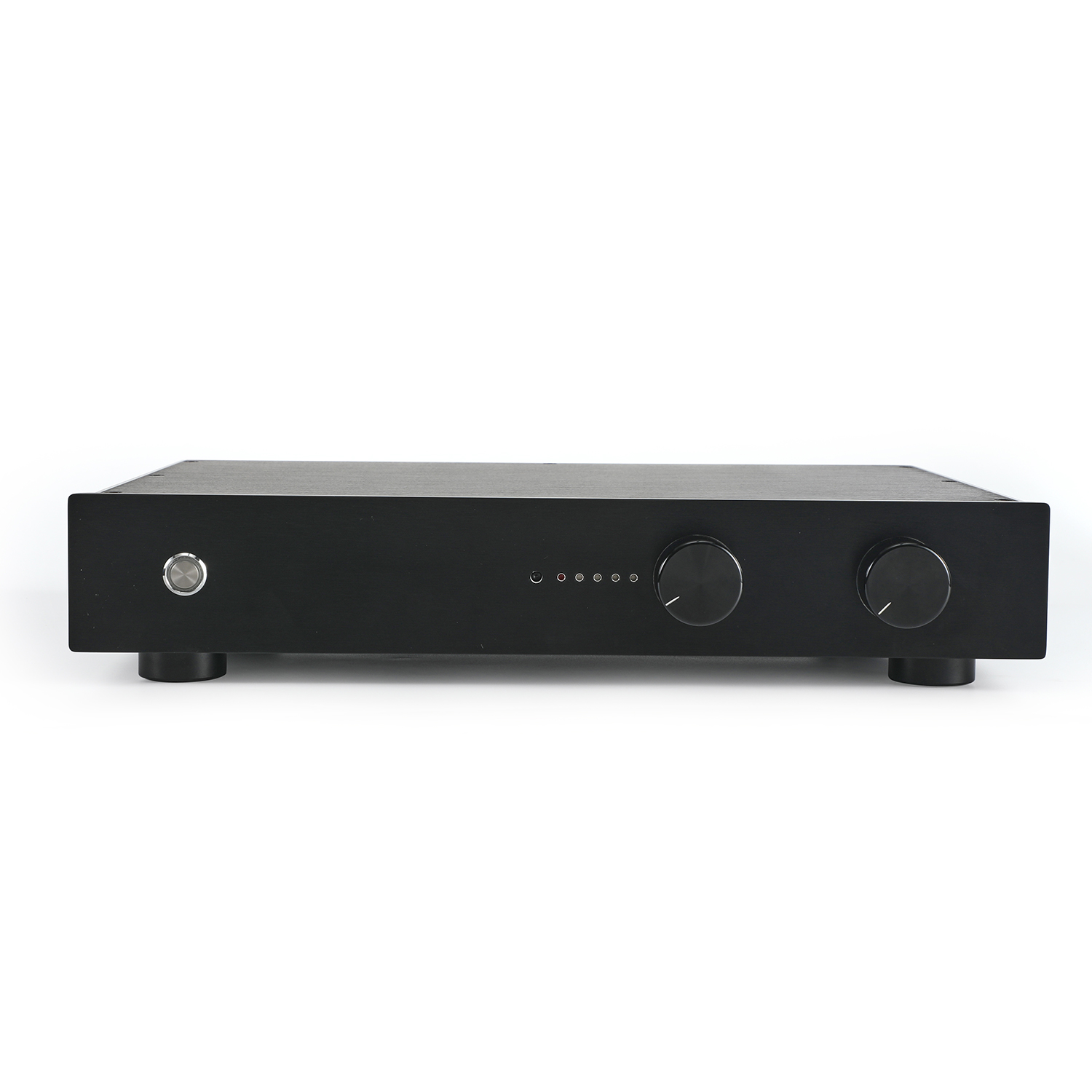

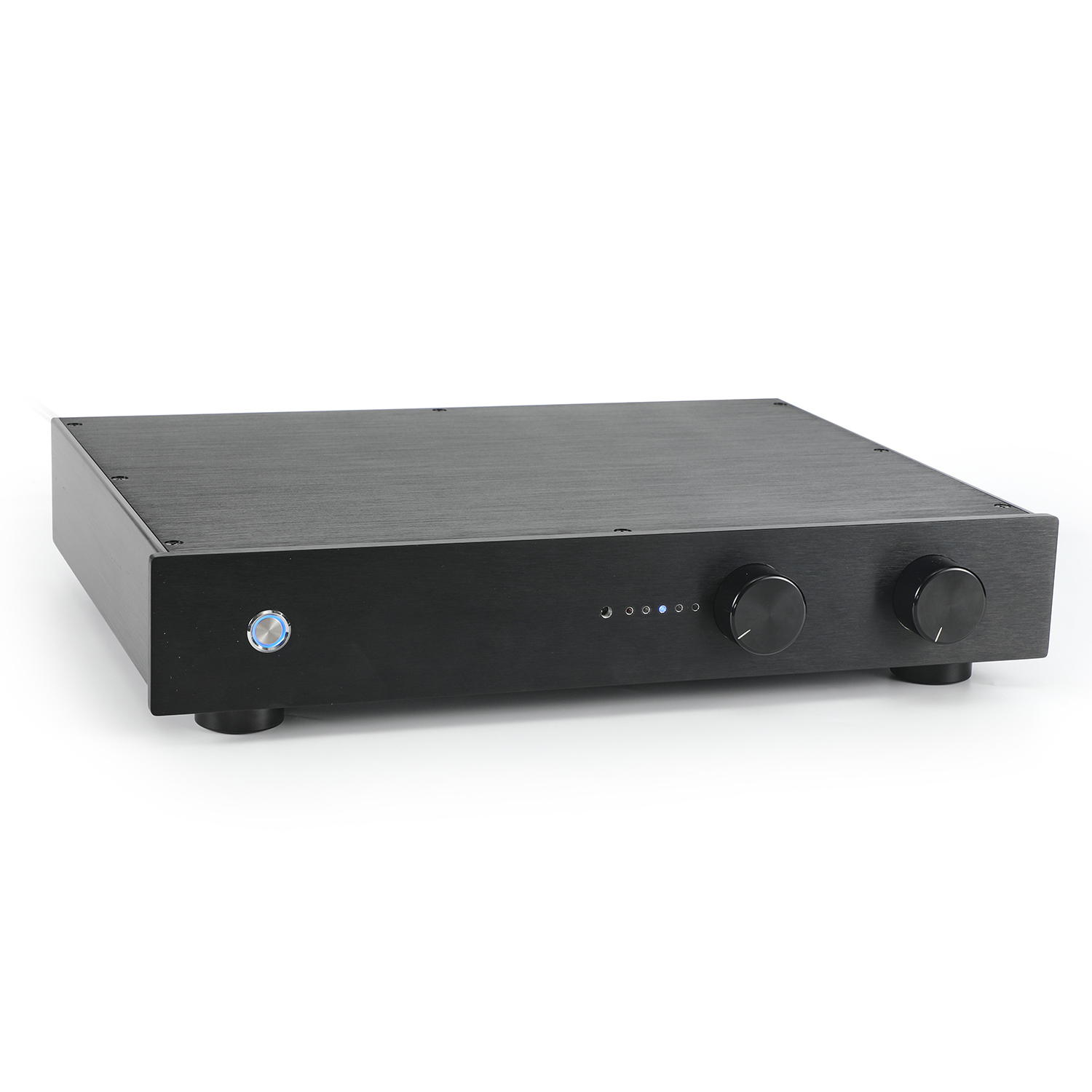

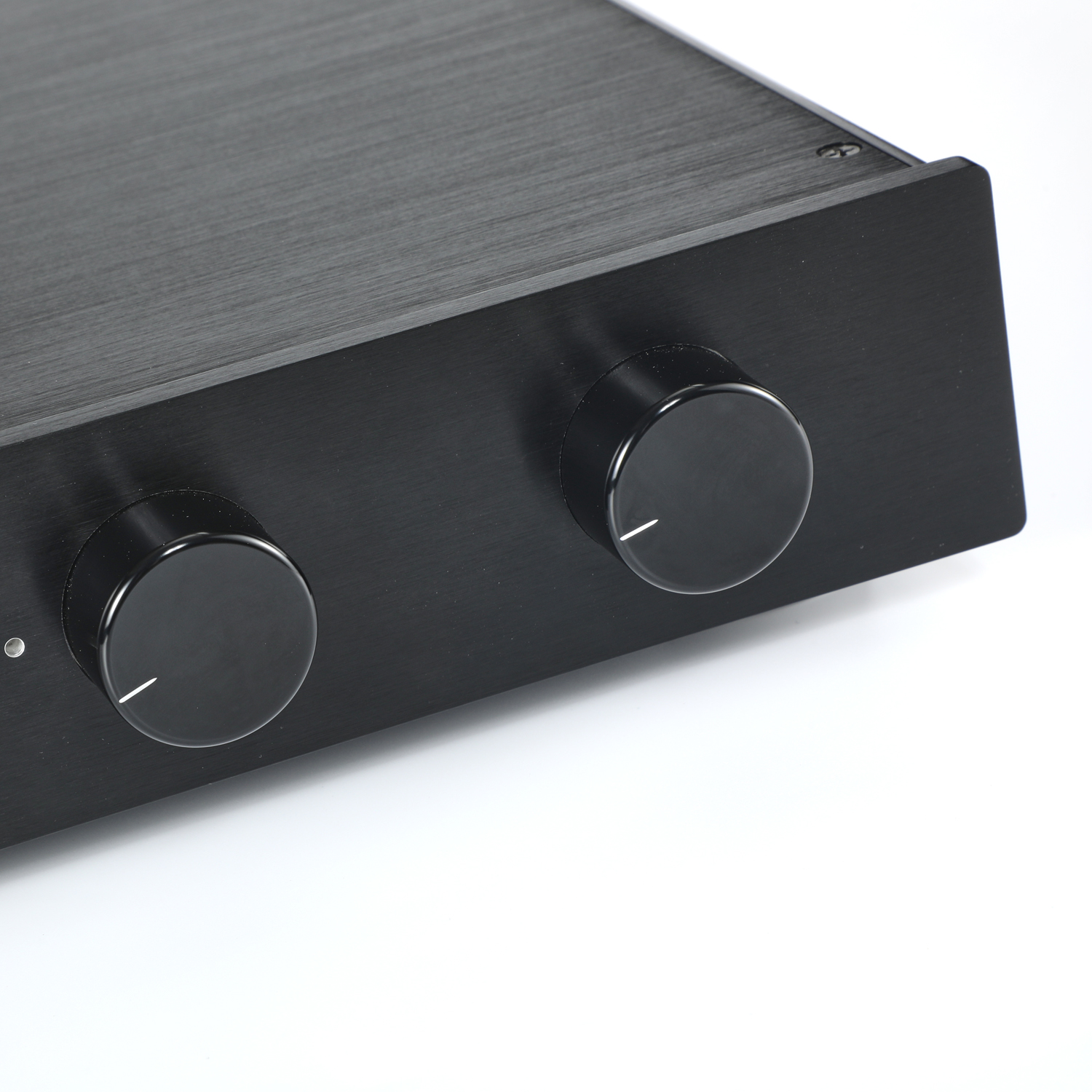

the Front panel Right knob is Manual volume adjustment, Rotate the left knob is Manual choose inputs. Press the left knob is Standby
Note: when you power on the amp. first press the left power switch. then need press one time the left one knob. or press the remote Standby Key.

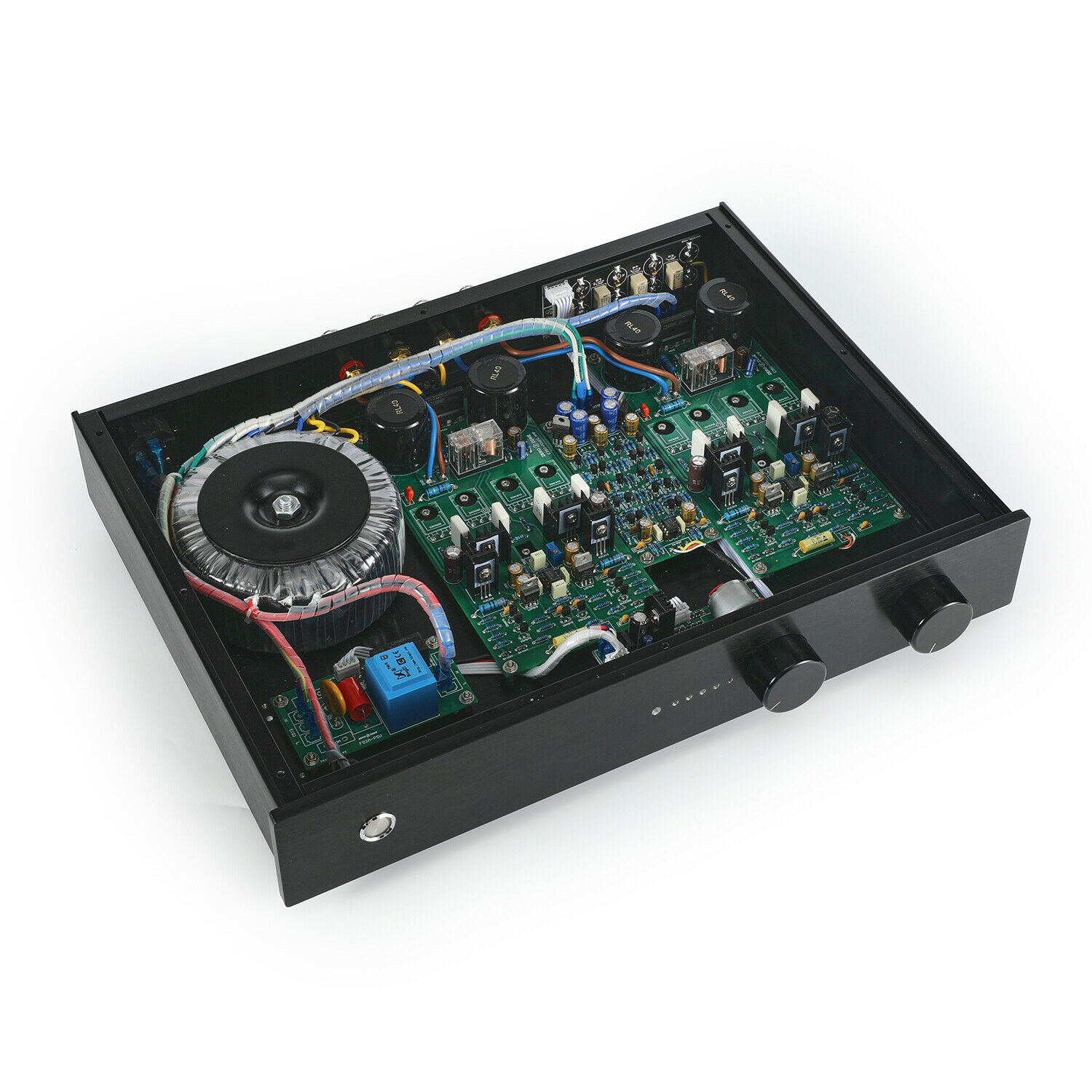

Amplifier part:

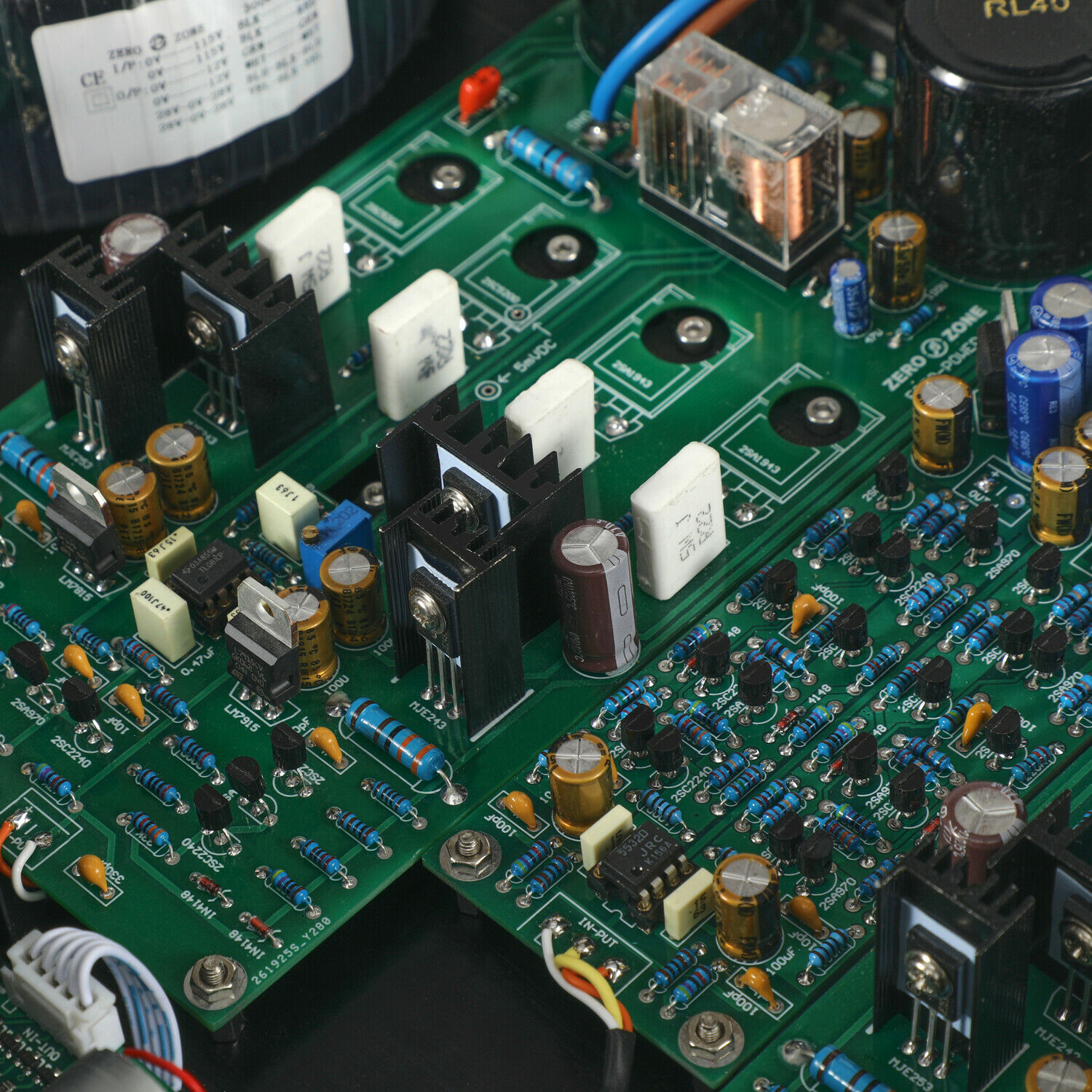

Use Toshiba C5200-A1943A power transistors, two pairs of transistors each channel.
Use Toshiba C2240-A970 small signal amplifier transistor.
Independent power supply for each channel.
Each channel has an independent protection circuit.

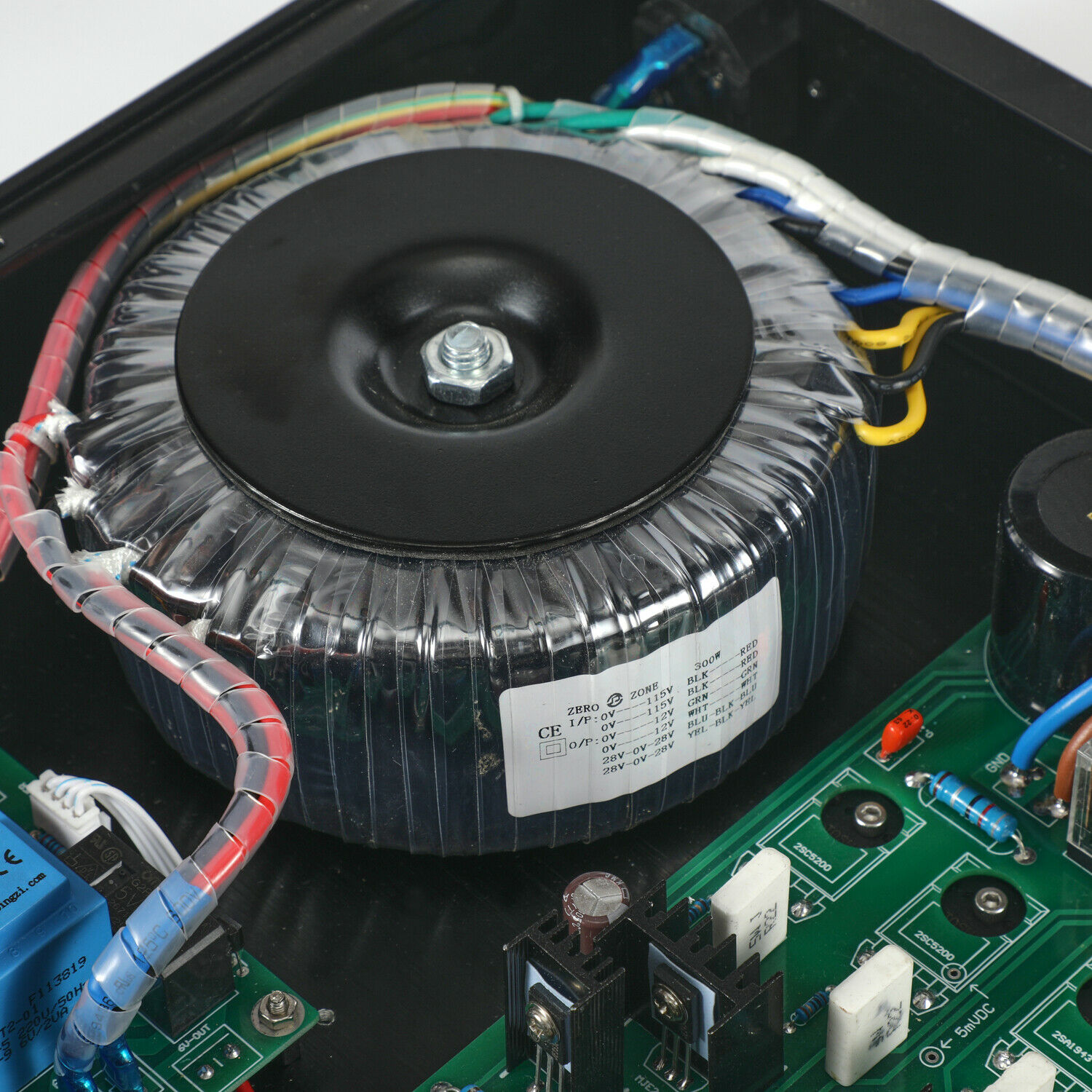

Use 300W copper Toroid transformer
Output power per channel: 75W at 8 ohms
Refer to the amplifier of the Accuphase E350 power amplifier circuit.
Preamplifier section:
Use JRC5532D low noise and beautiful sound op amp.
Use Toshiba C2240-A970 small signal amplifier transistor.
Refer to the amplifier of the Golden Throat C3850 core pre-amplifier circuit.
Material：
*Full aluminum chassis.
*Full aluminum feets + knobs

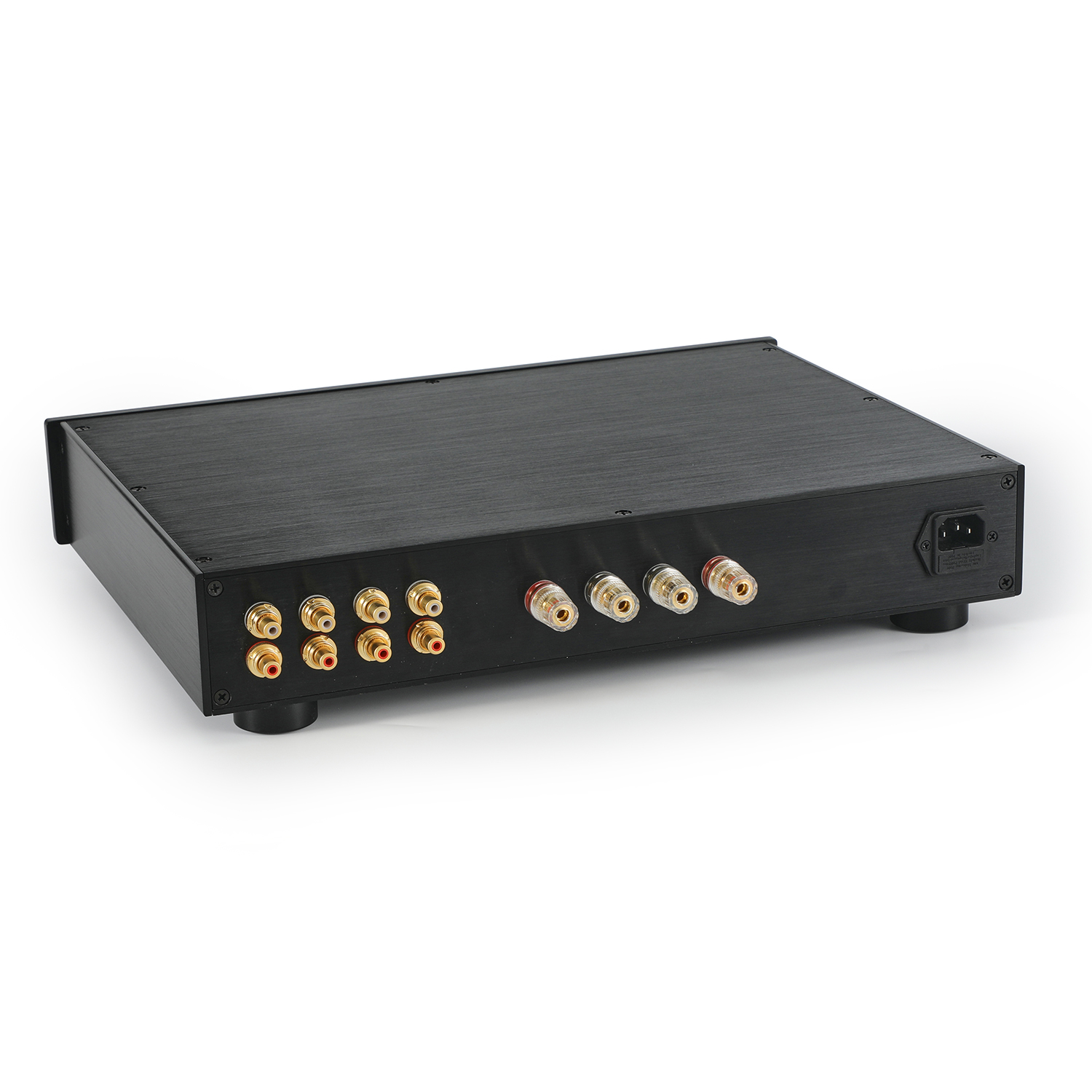

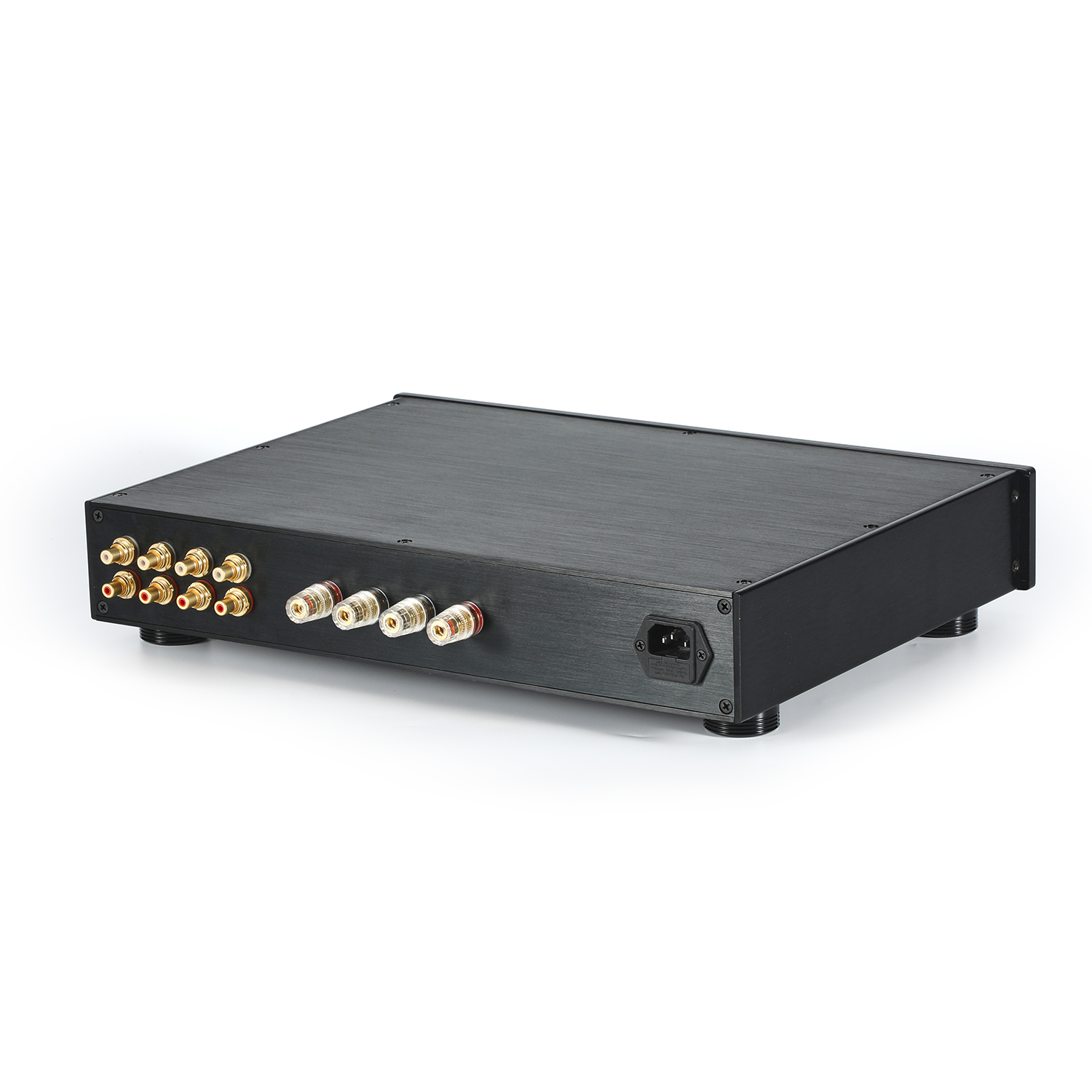

*Tai Wan Gold-plated RCA+ Speaker posts.
*High current stainless steel switch
*The high-power signal line in the machine uses UK copper wire, and the small signal line uses Japan's CANARE.
*Japan original Motor volume potentiometer
Overall sound:
The sound performance are very excellent , low frequency is surging and solid, the mid frequency is positive, and the high frequency band is a bit sweet; the box control ability is strong;
Package include: amplifier X 1 Remote X 1 (default is not include battery)
(NO IEC type mains power lead included)
Every amp has been professionally tested in perfect working order before shipping! To maintain a stable & reliable high quality, there’s no huge stock keeping and handling time may take longer occasionally. Thank you.
