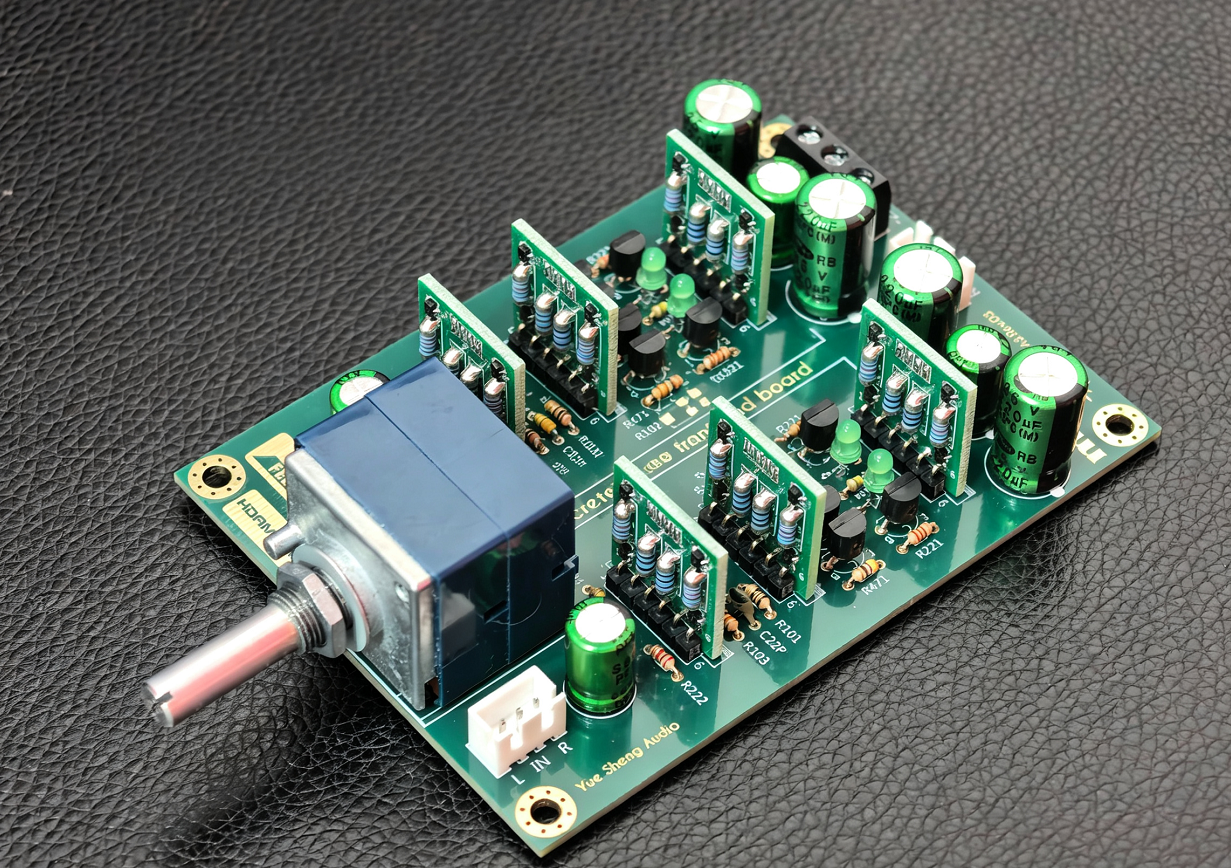

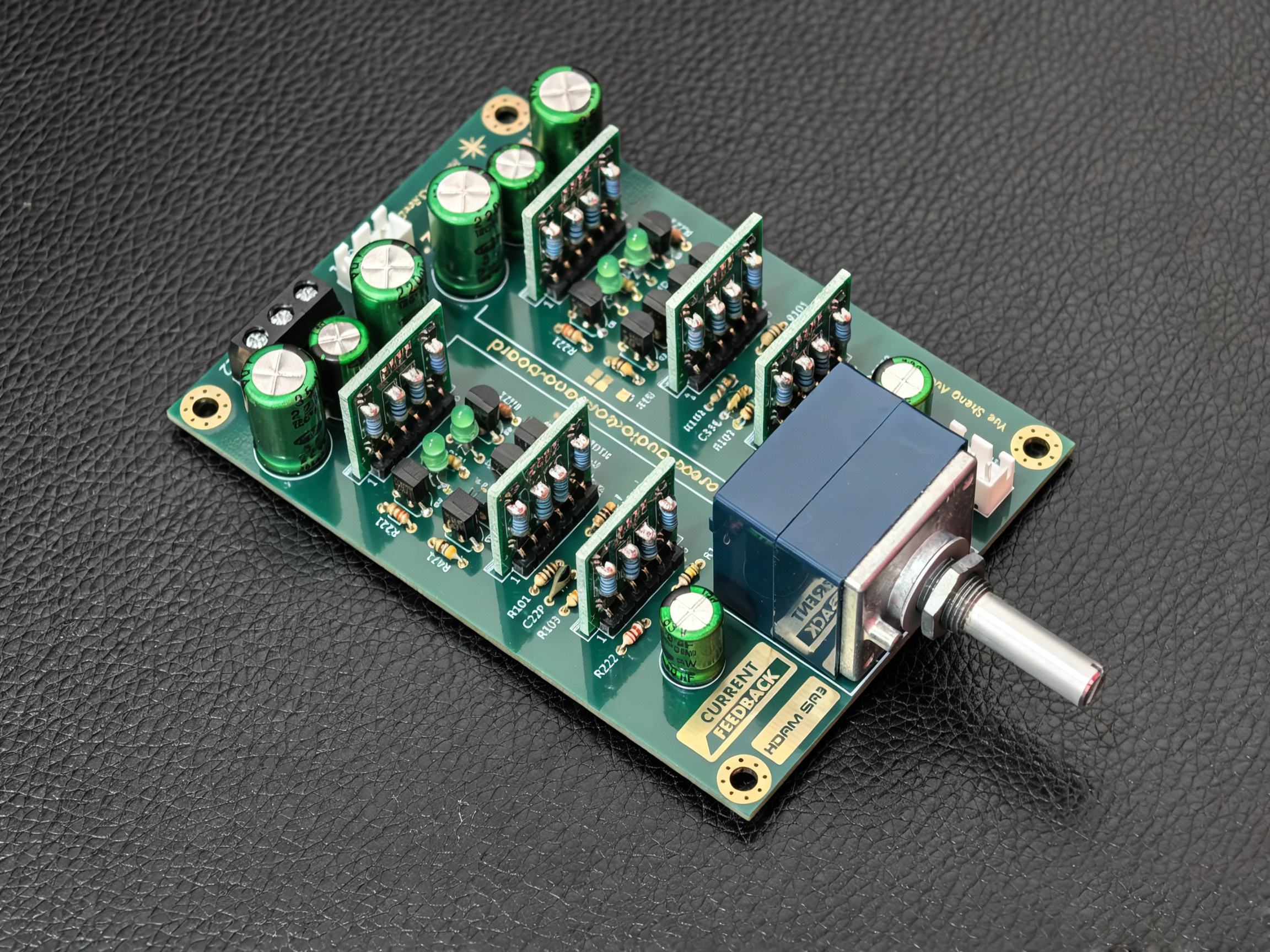

【Standard version】 Fully Discrete Preamplifier board Current Feedback preamp board base on Marantz HDAM-SA3

Name: 【Standard version】 Fully Discrete Preamplifier board Current Feedback preamp board base on Marantz HDAM-SA3
Brand: FYFAUDIO
SKU: 跃升音响-马兰士HDAM-SA3发烧分立管前级 玩家版 含电位器 R296
Price: 62 USD
Availability: InStock

HDAM‑SA3（Hyper‑Dynamic Amplifier Module‑SA3) The third generation fully discrete current feedback amplifier module from Marantz is an upgraded version of HDAM-SA1/SA2, widely used in mid to high end and flagship models such as PM-8004, PM-12SE, MODEL30, PM-10, etc.

>Core: Fully discrete components, no integrated operational amplifiers, current feedback architecture

0.0 (0 Reviews)

~~$78.00~~ $62.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

The unique HDAM-SA3 circuit of Marantz can provide the amplifier with a wider dynamic range and lower distortion output. Combined with advanced current feedback technology, even when reproducing large dynamic music segments, there will be no distortion while displaying strong bass impact, and clear, precise original sound and outstanding vocals can always be reproduced!

The only original style on the entire website, using imported discrete transistors and current feedback technology throughout the entire version. The modules are buffered, amplified, and filtered in three stages.
Gain: 5 times

preamp board works voltage: +/-DC12V to 22V regulated

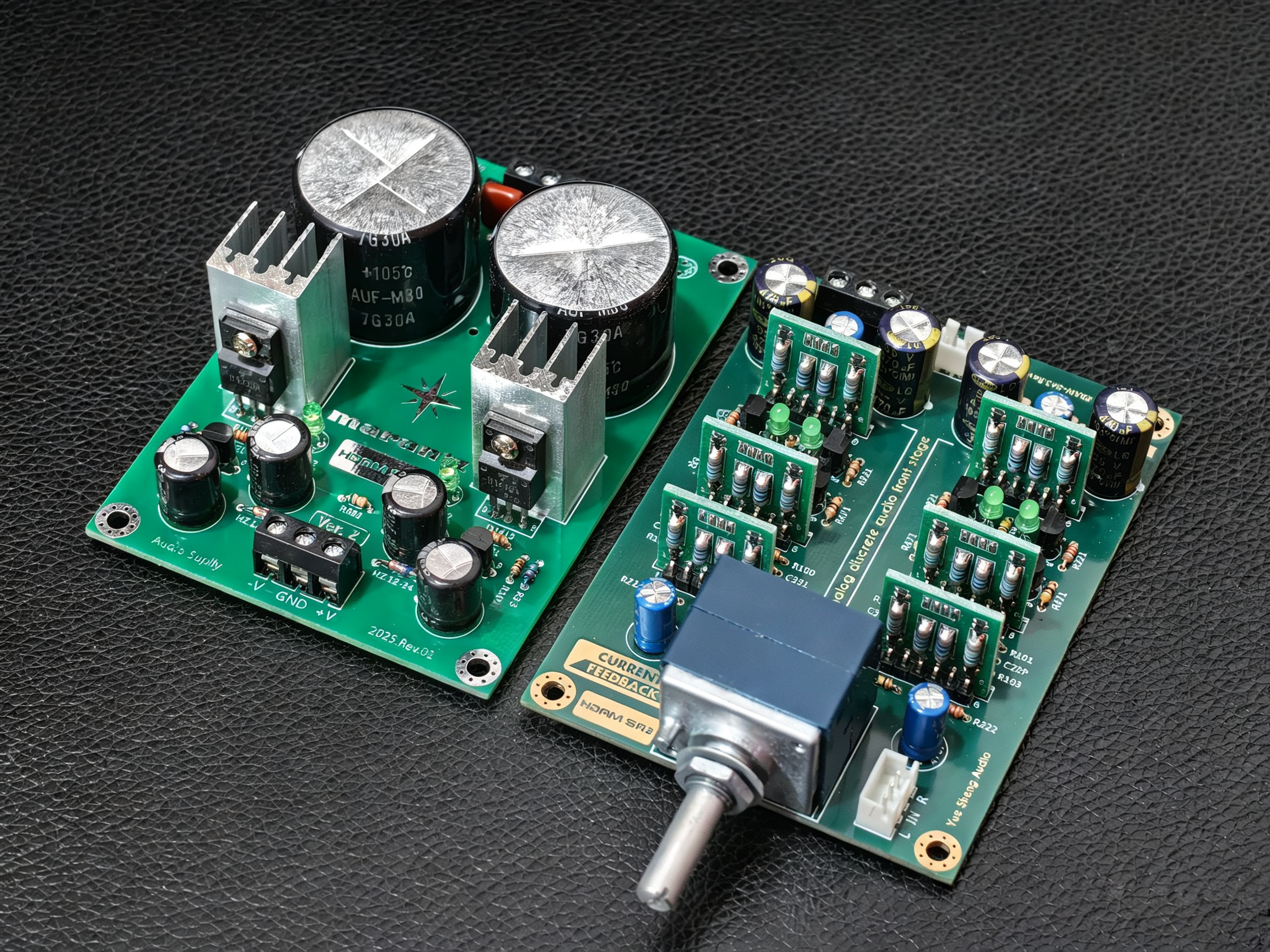

if you buy it with our power supply board. the Power board recommend Dual AC20- 25V
PCB Size:10cm*7cm
Adopting 4-layer gold-plated PCB

The HDAM-SA3, a separate circuit board independently developed by Marantz, replaces ordinary integrated operational amplifiers. HDAM-SA3 adopts separate independent components and shorter left and right mirror signal paths, which performs significantly better than conventional integrated operational amplifiers, achieving excellent voltage conversion rates and noise levels, allowing the amplifier to produce more dynamic, accurate, and delicate sound.
