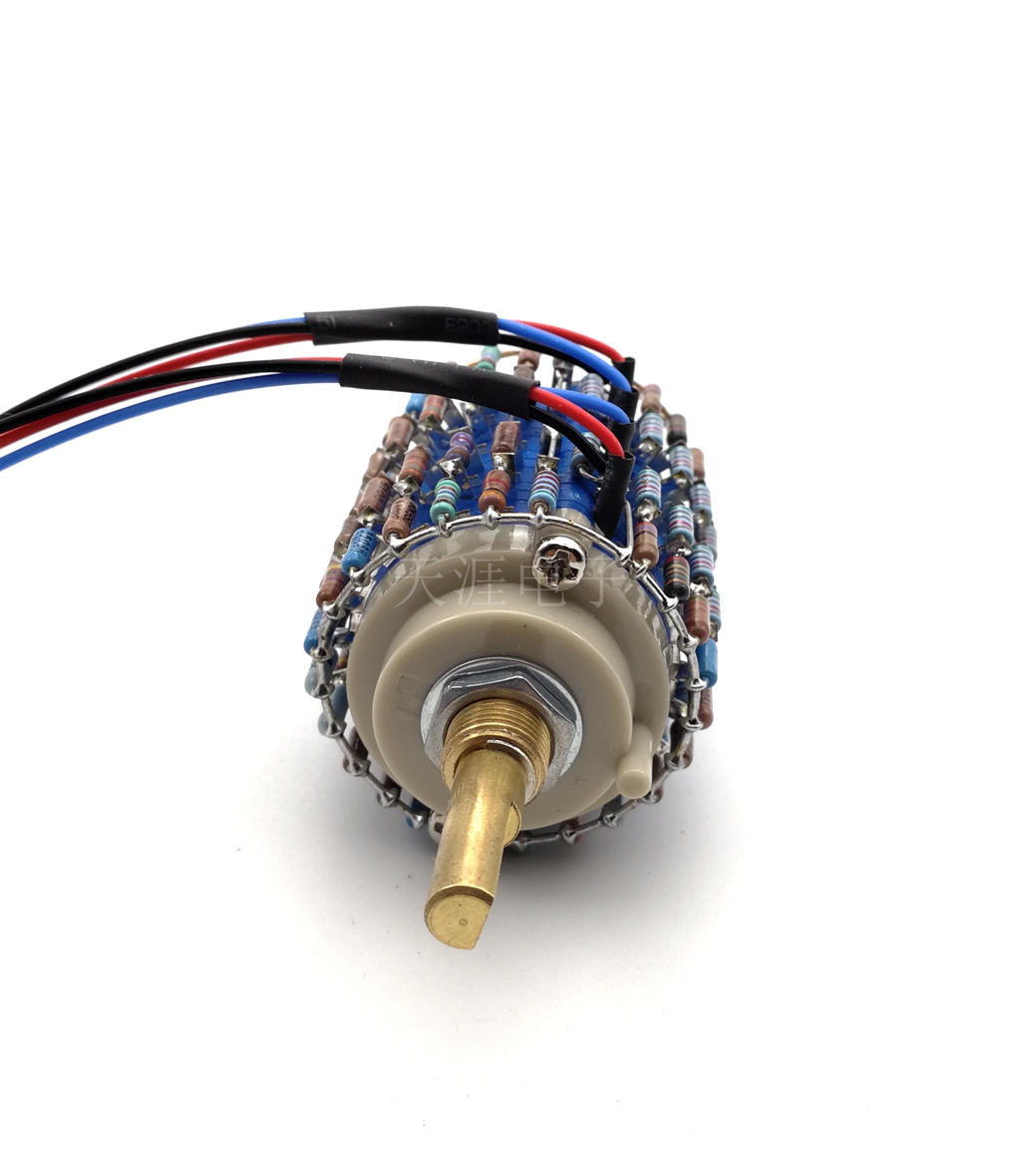

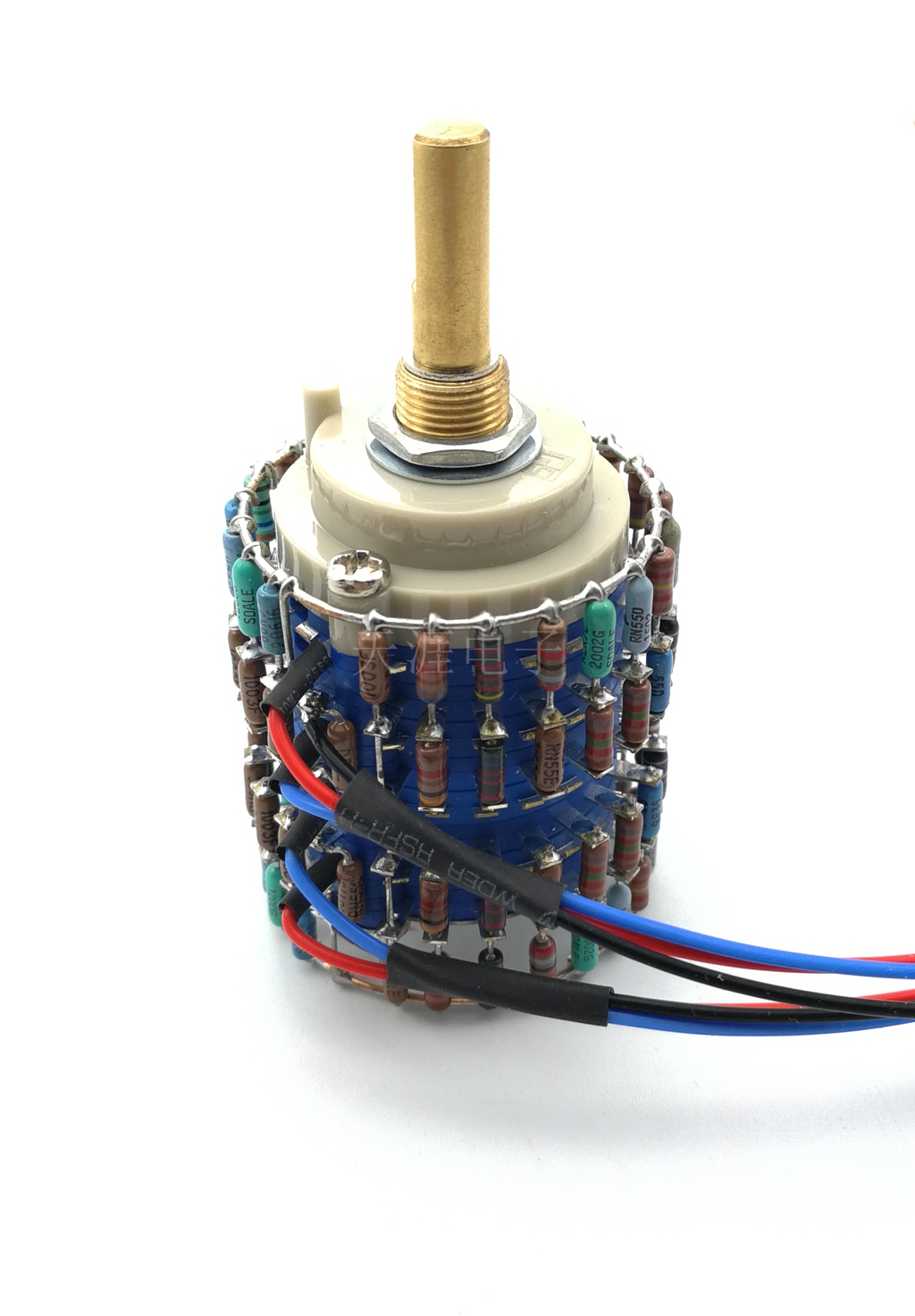

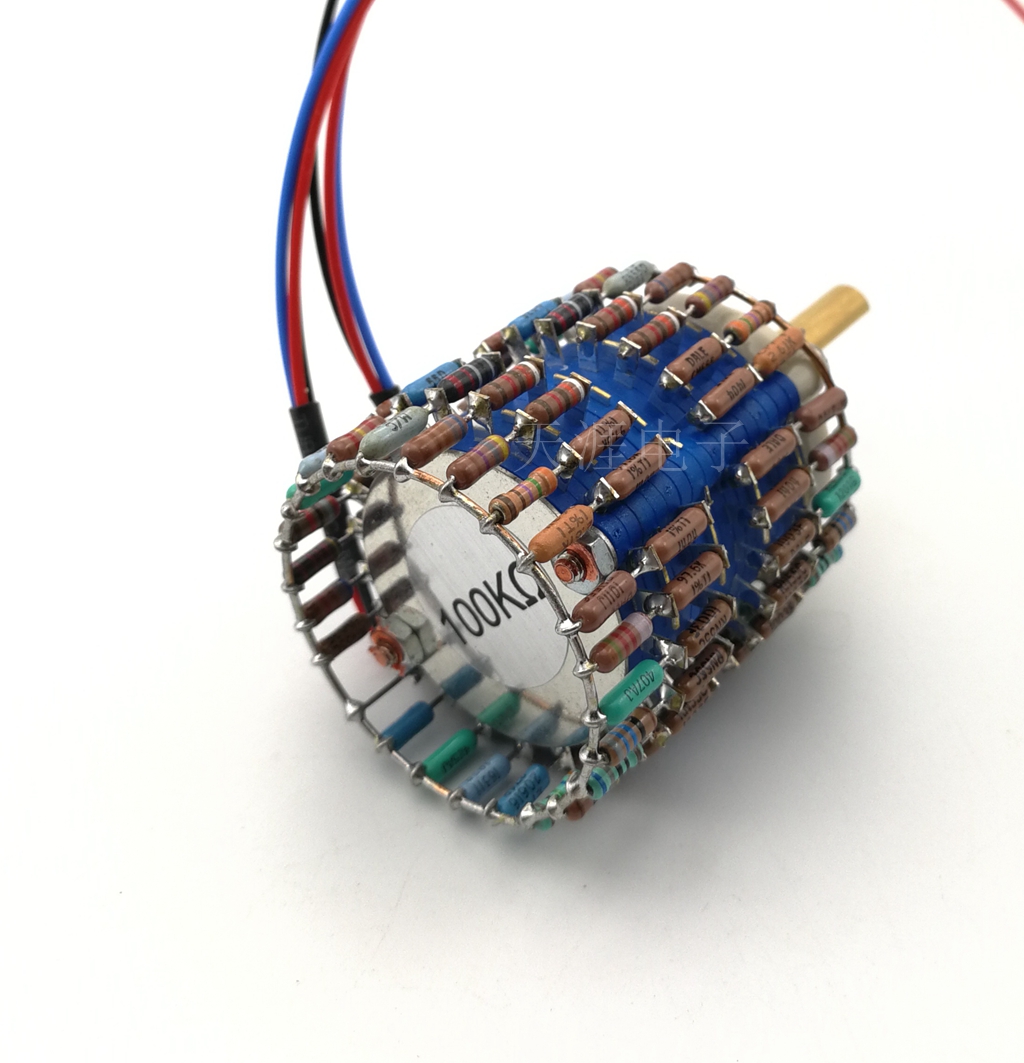

Stereo Volume potentiometer
Product introduction:
Switch: 24 Steps silver plated sealed switch frame of copper shaft made in Taiwan, which is switched on and off first, no noise, good hand feeling and fine manufacturing process.
Resistance: American Vishay Dale variegated resistance (brown, color ring, and other colors are mixed to only ensure the resistance demand, non-uniform series resistance), high precision and high quality.
Product size:

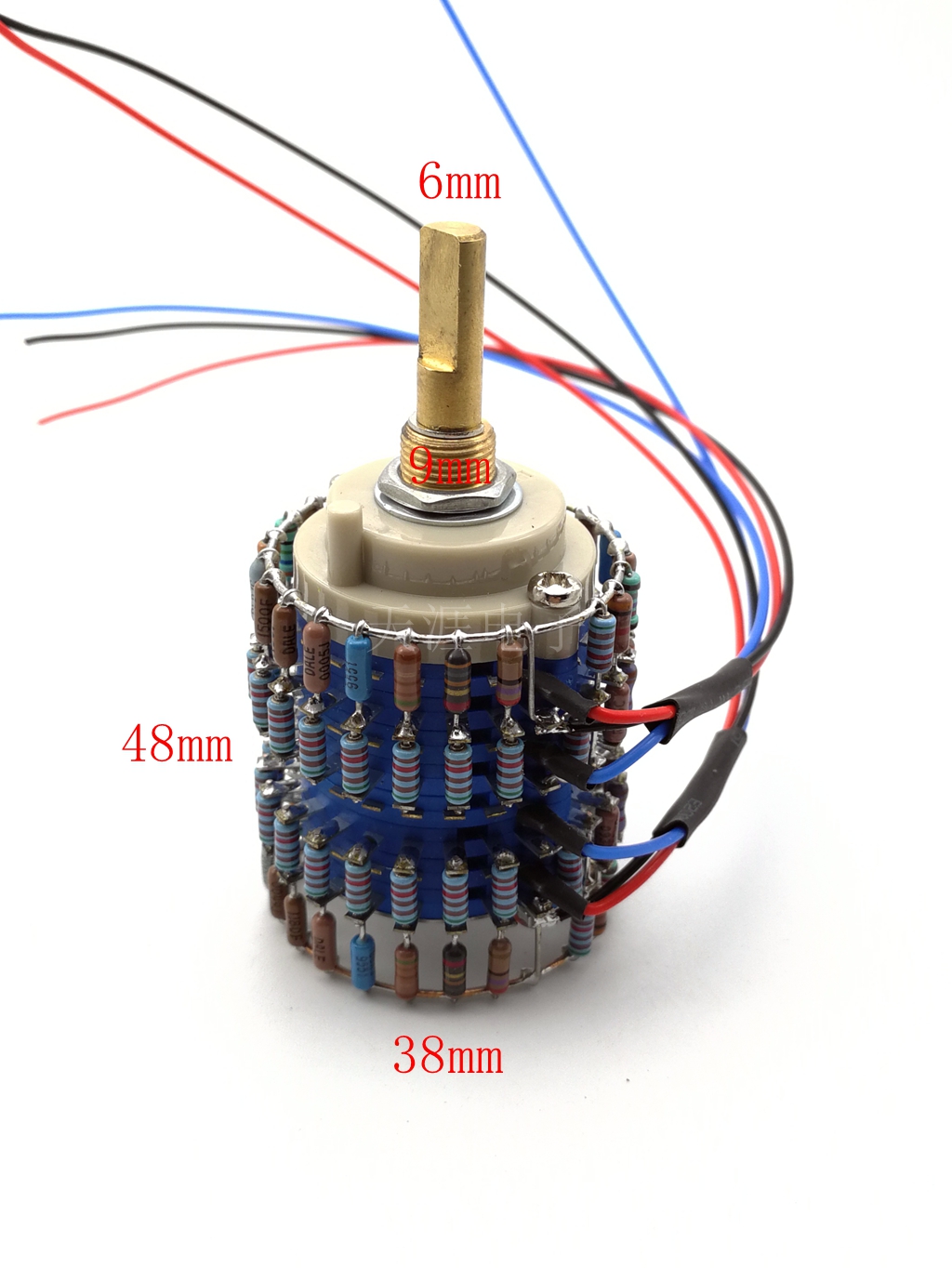

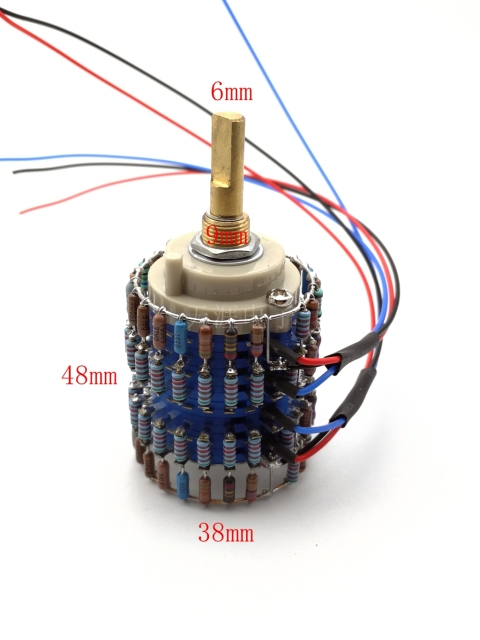

38mm * 48mm (length), handle length: 1.2cm, diameter of fixing screw hole is 9mm, diameter of positioning protrusion is 3mm, and the center of positioning protrusion is 12mm from the center of handle
Attenuation: - 65dB ~ 0dB, mute gear, common volume area step 2dB. Exponential type, suitable for general power amplifier volume control
Product resistance: 10K, 50K, 100K, 250K,
