Super Hiend 19V 5A Linear Power Supply For Intel NUC With Overvoltage Protection

Name: Super Hiend 19V 5A Linear Power Supply For Intel NUC With Overvoltage Protection
Brand: FYFAUDIO
SKU: 灵动--标配19V 电源 115V / Silver Front / Red
Price: 135 USD
Availability: InStock

4.9 (7 Reviews)

$135.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity

Description

Super Hiend 19V 5A Linear Power Supply For Intel NUC With Overvoltage Protection

Details

Input voltage:AC115V or AC230V for choose

Output voltage: DC19V 5A (suitable for intel NUC or other DC19V device that current Less 5A)

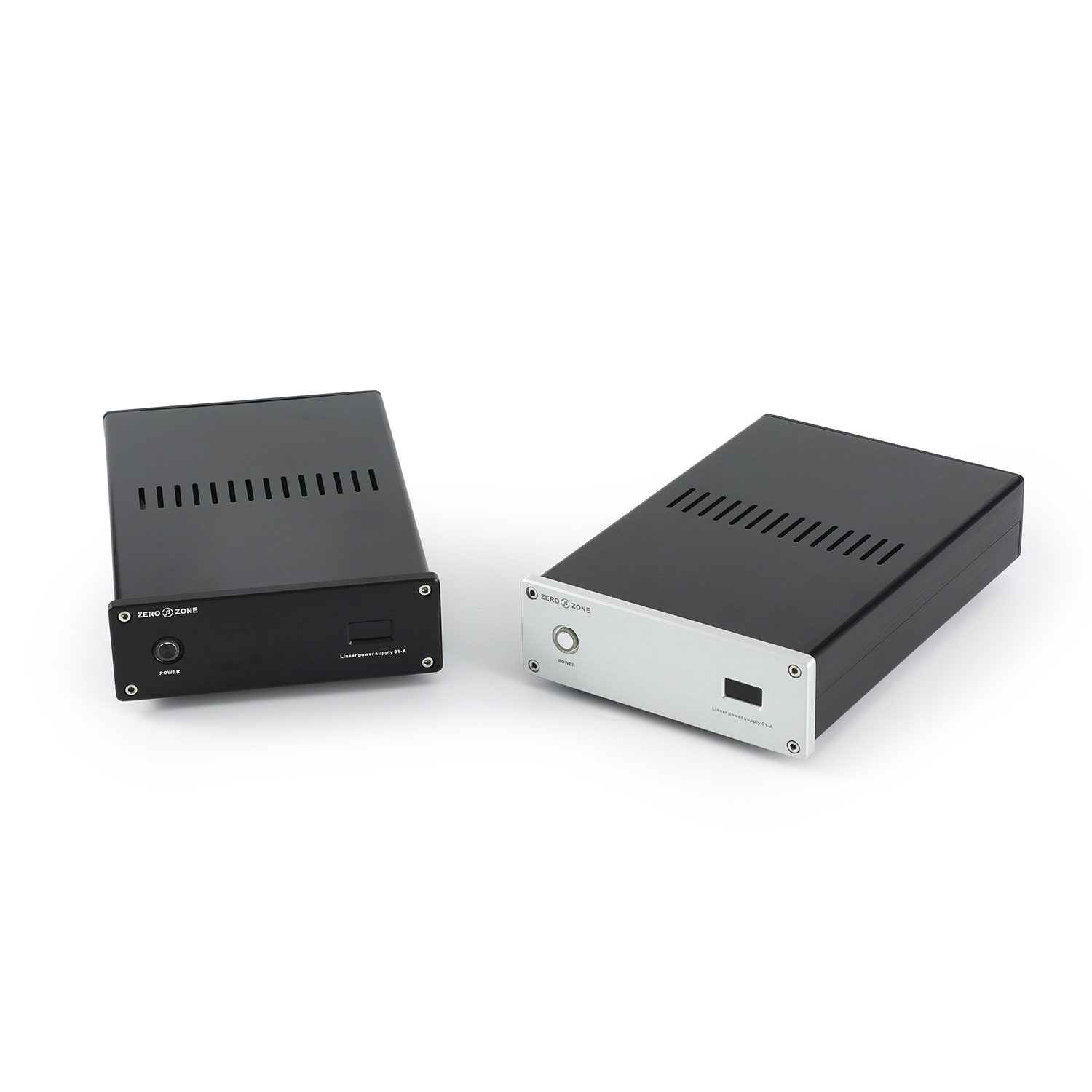

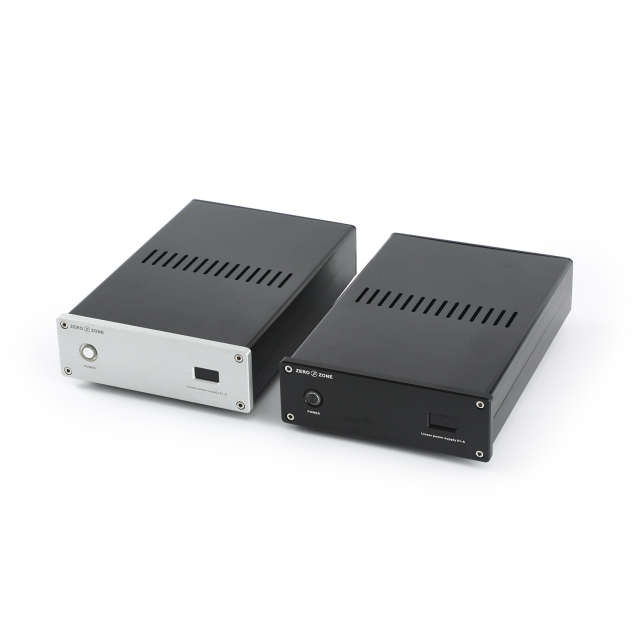

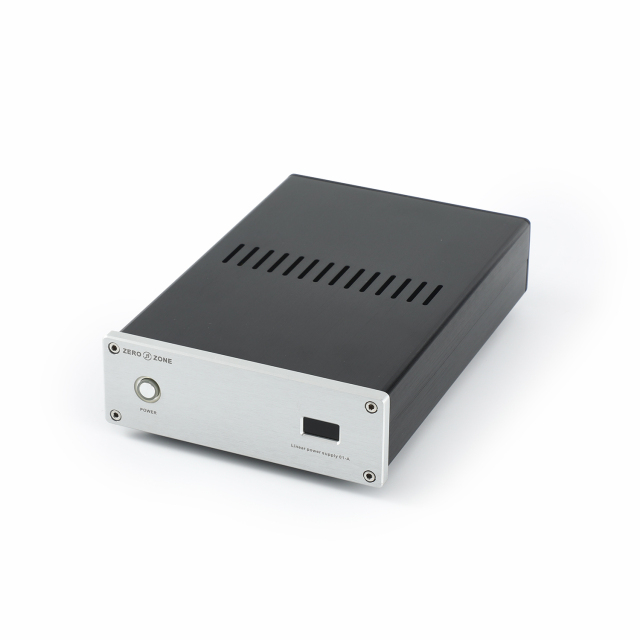

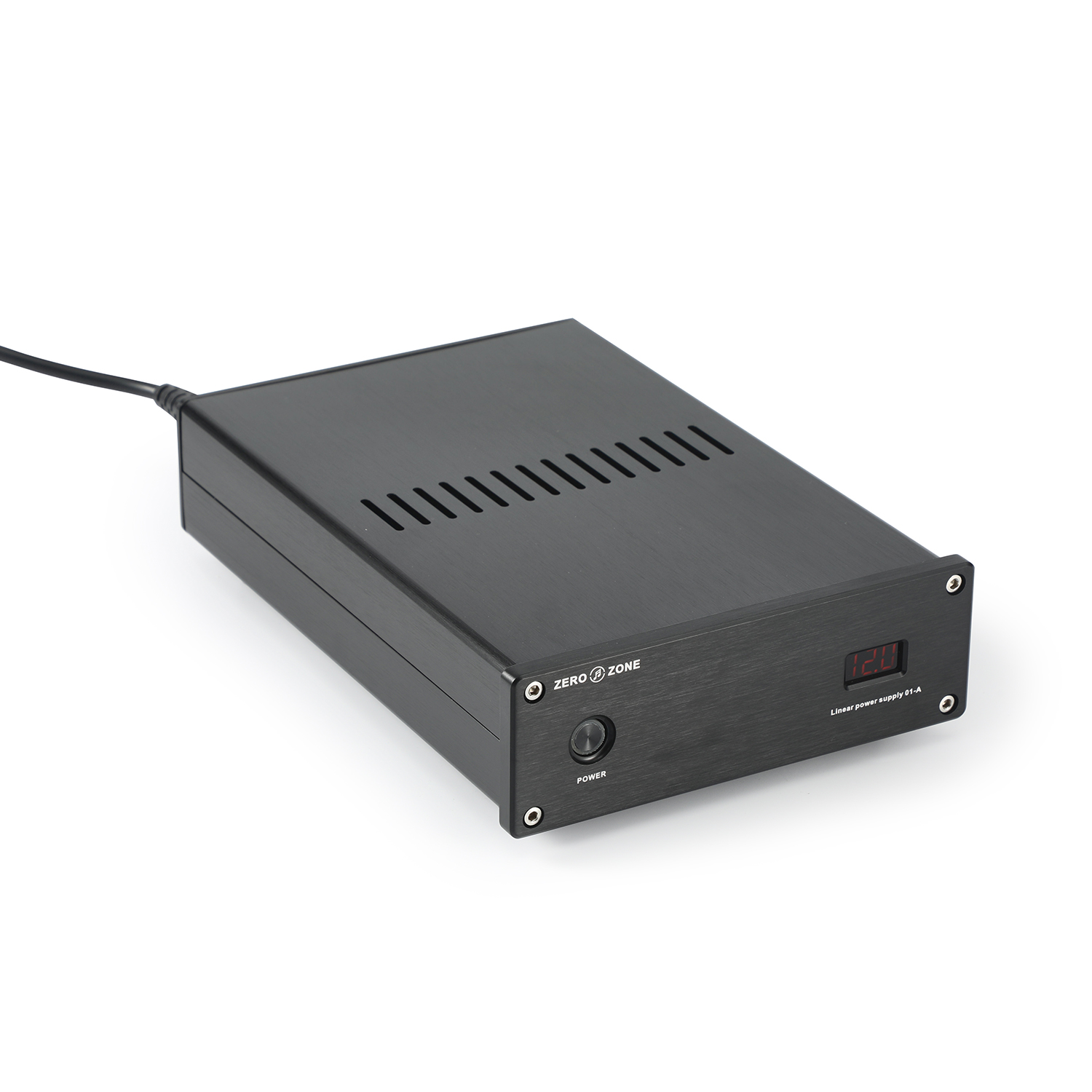

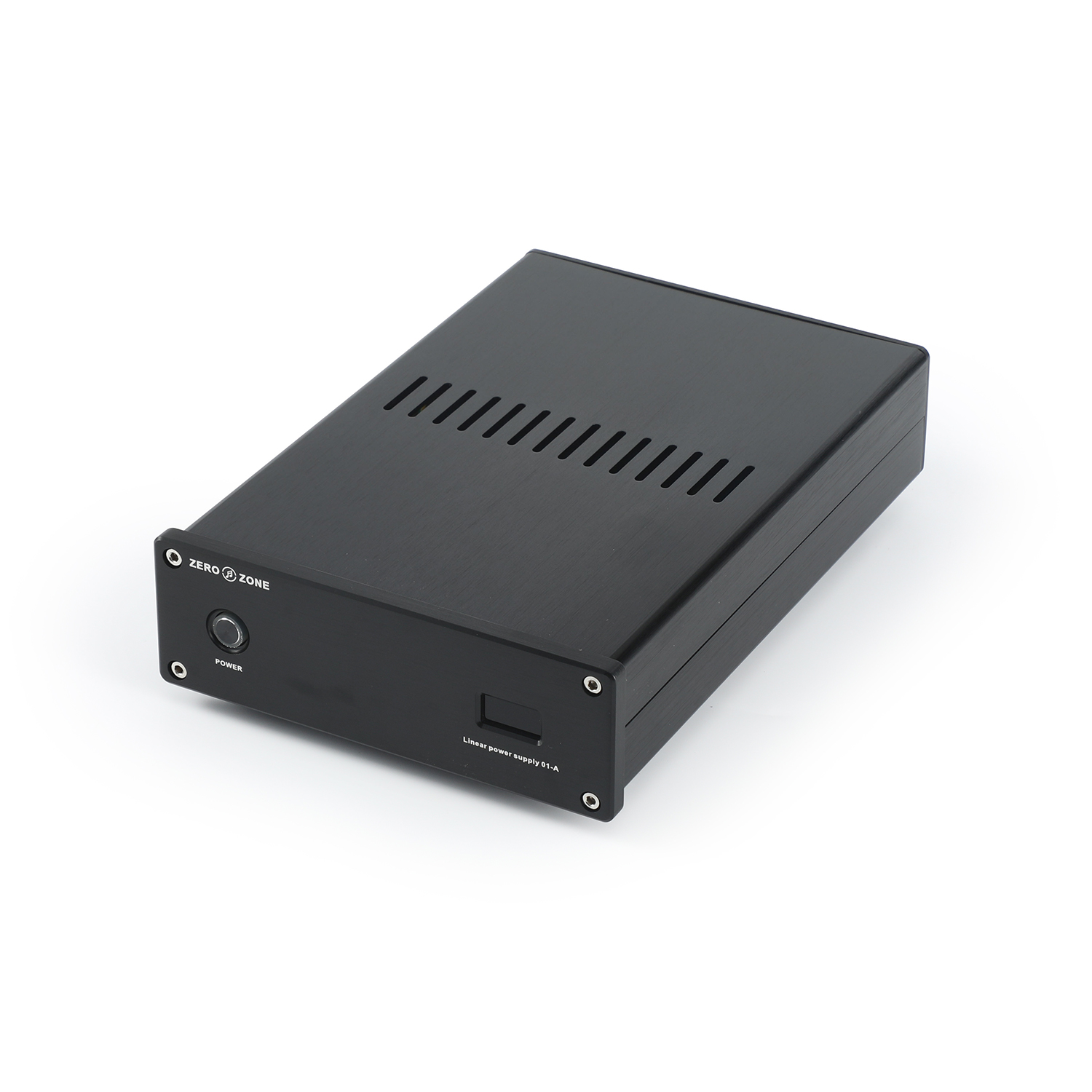

Front panel: black or Silver for choose

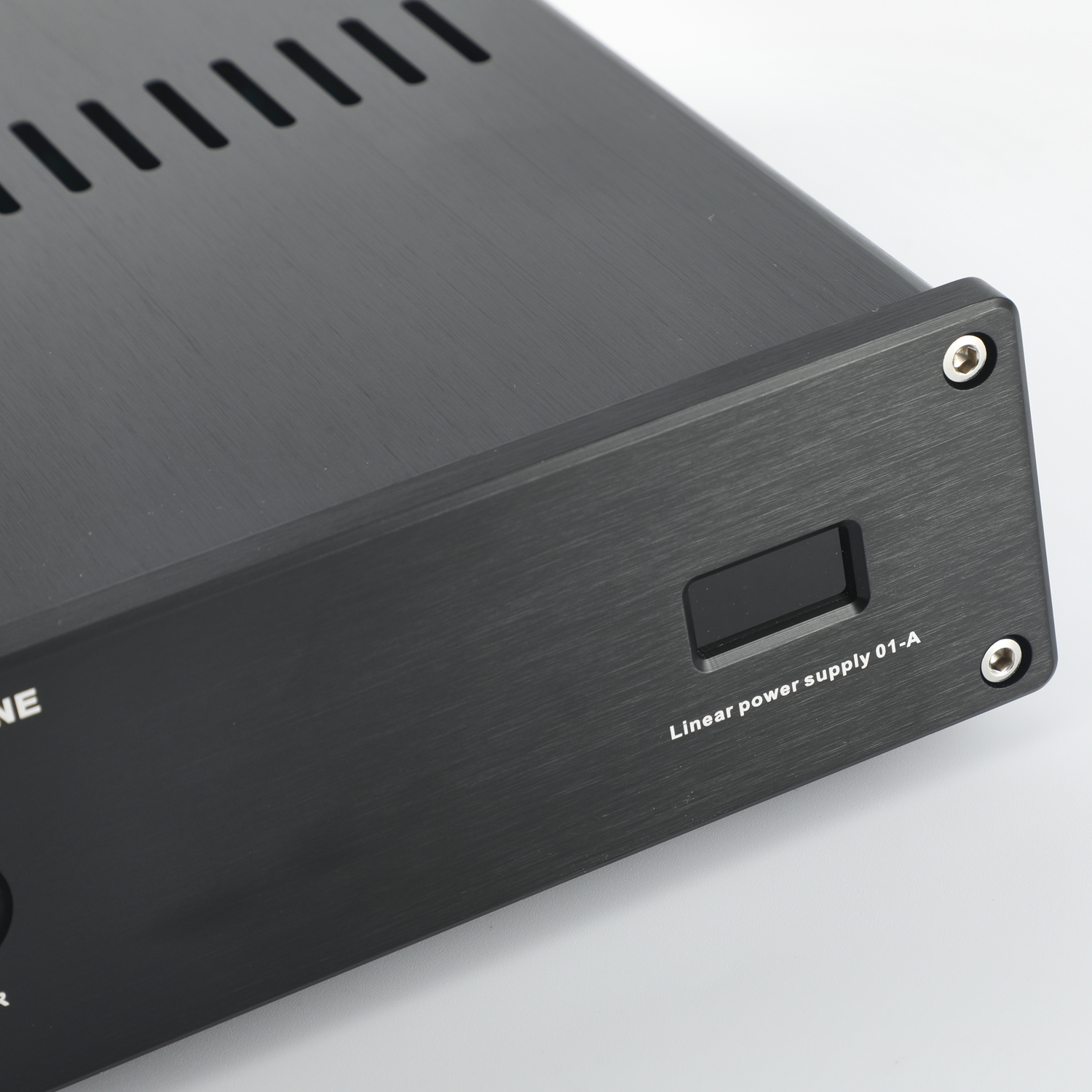

Voltage display color: Red or Green for choose

Dimensions: 170mm Width X 70mm high X 260mm deep

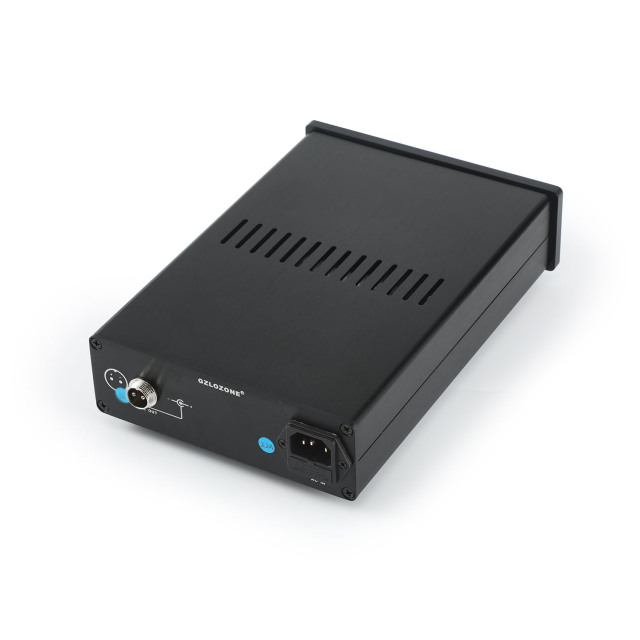

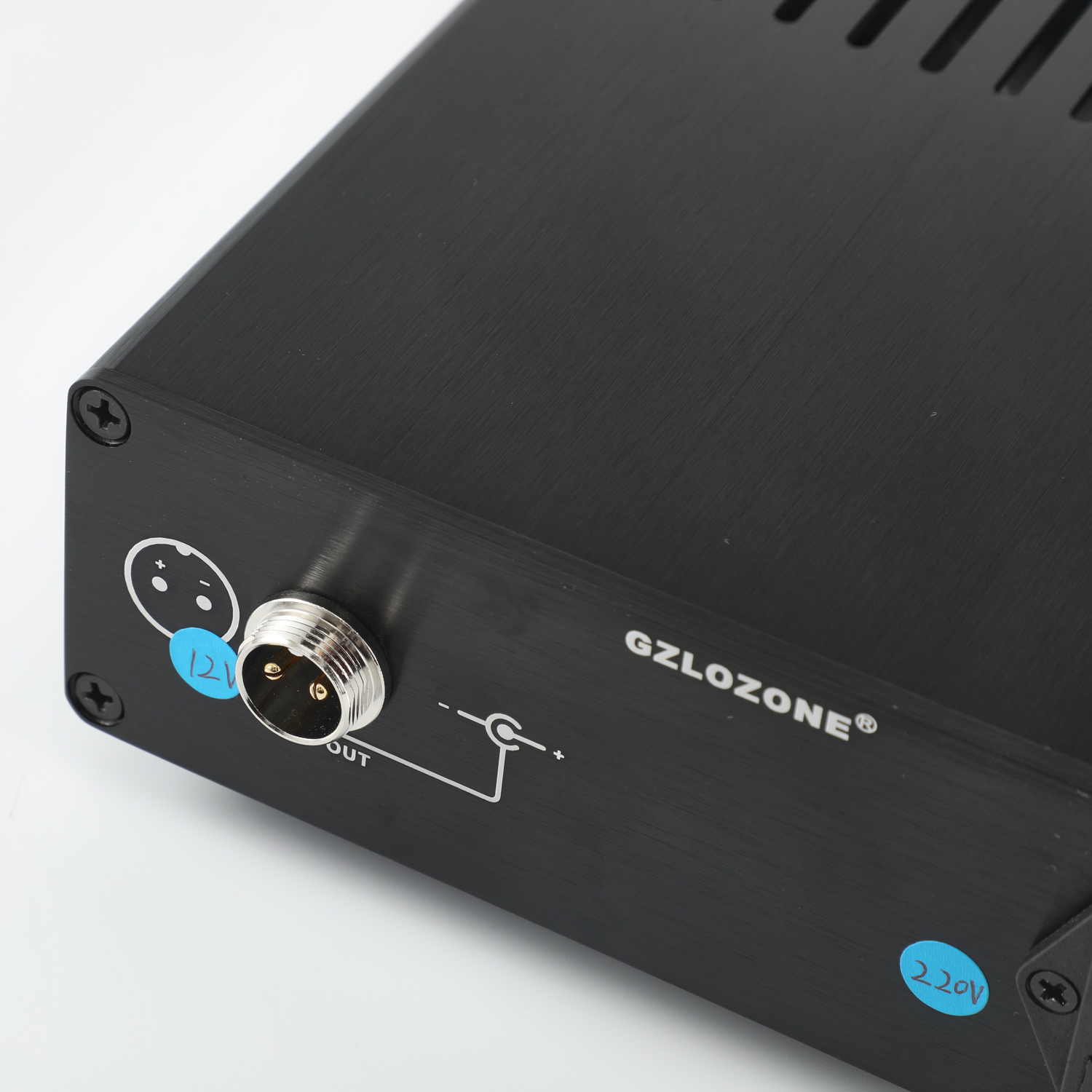

Output port: GX16 (2pin) port (pin 1: + Pin 2 -)

Package Weight: about 3.2kg

DC Head Size: Outer diameter 5.5mm, internal diameter 2.5mm ( compatible with 5.5*2.1mm socket )

Power Polarity: inner"+" external"-"

Note: as this Power supply with the overvoltage protection. the output Protection voltage value is fixed at about DC19.5V. if you want Fine tuning output voltage. Please don't adjust the output voltage more higher than DC19.5V or will Starting overpressure protection function!!!

Package include:
Finished linear Power supply X 1

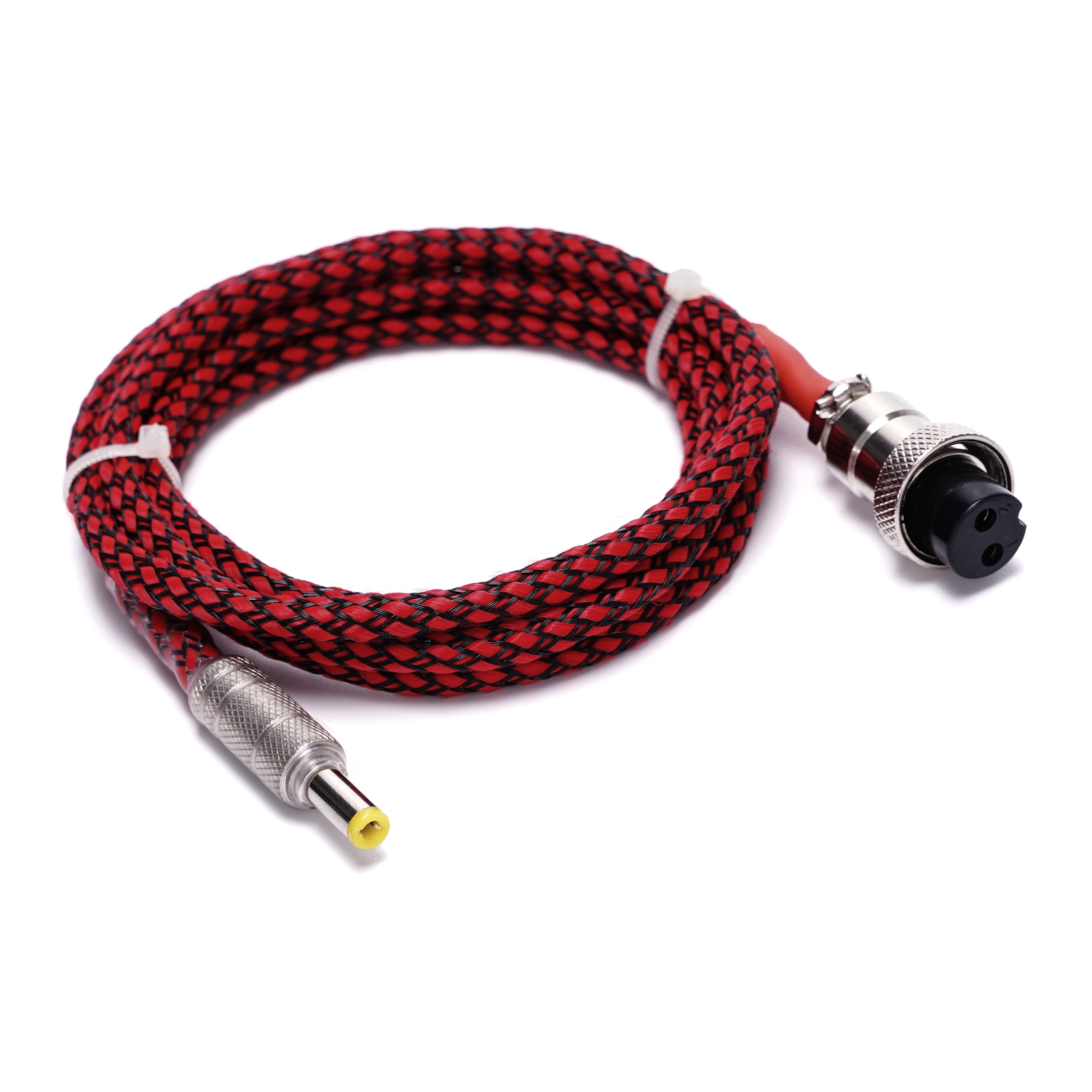

1.2M output DC cable X 1 (5.5*2.5mm)

Default is also not include the AC input power cable. Please prepare by yourself ！！！

Zero-Zone 2020 Model Benchmark Series Linear Voltage (Smart Version)

To play HiFi first, play "Power", a good set of power processing will make your system produce a "quality" flyby!

The linear power supply replaces the switching power supply configured for all kinds of digital audio, and the effect that comes out, I believe players who have used or experienced line power supply know well that the improvement is not a little bit.

As the level and price of digital audio products are getting higher and higher, the lack of security protection in traditional line power has also been significantly amplified.

The 2020 benchmark series linear power supply is designed by listening to the feedback of players and combining the actual situation in the process of designing and selling linear power supply by the zero-zone team for many years;

The main highlights of the smart version:

Large current in small size

In the zero-zone common specification chassis (170*250*60MM), from the early continuous 2A working current to the current continuous 5A . stable and safe working current, it was an important technological breakthrough.

Low noise, low resistance, large dynamic

Low noise: within the rated working current (within 5A), 20Hz-20KHz (audio range) ripple is only 1uV, only 4.8mV peak measured at 1MHz;

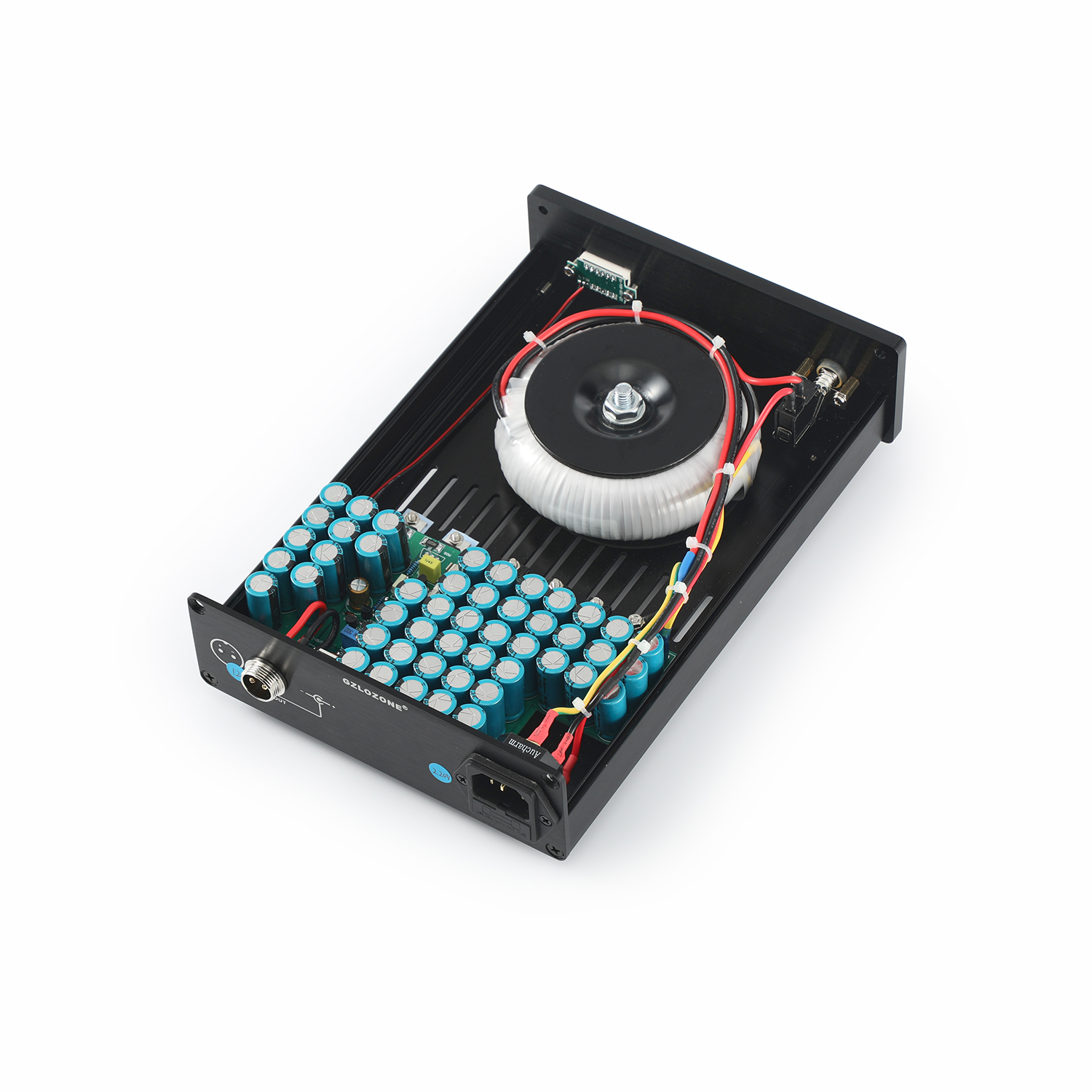

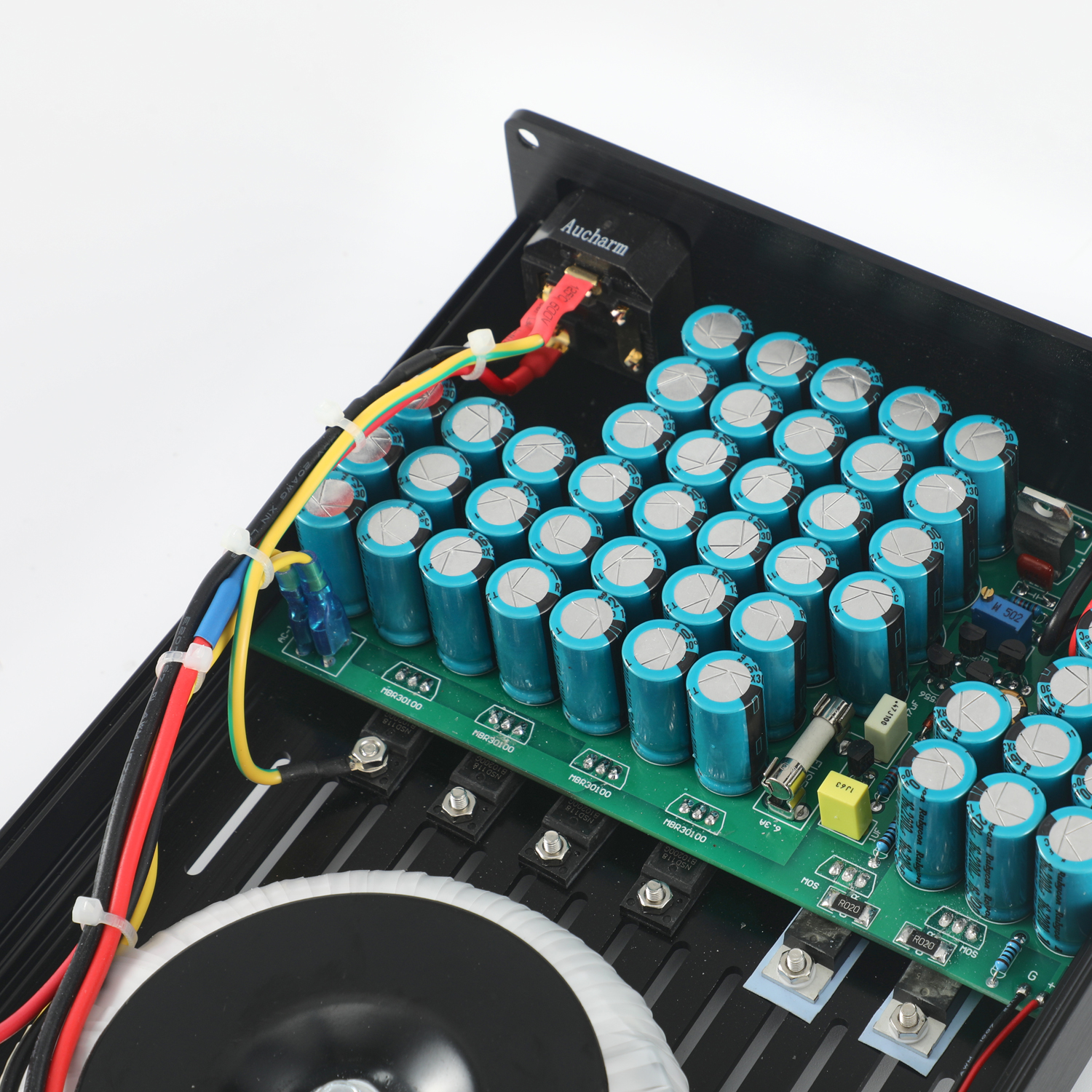

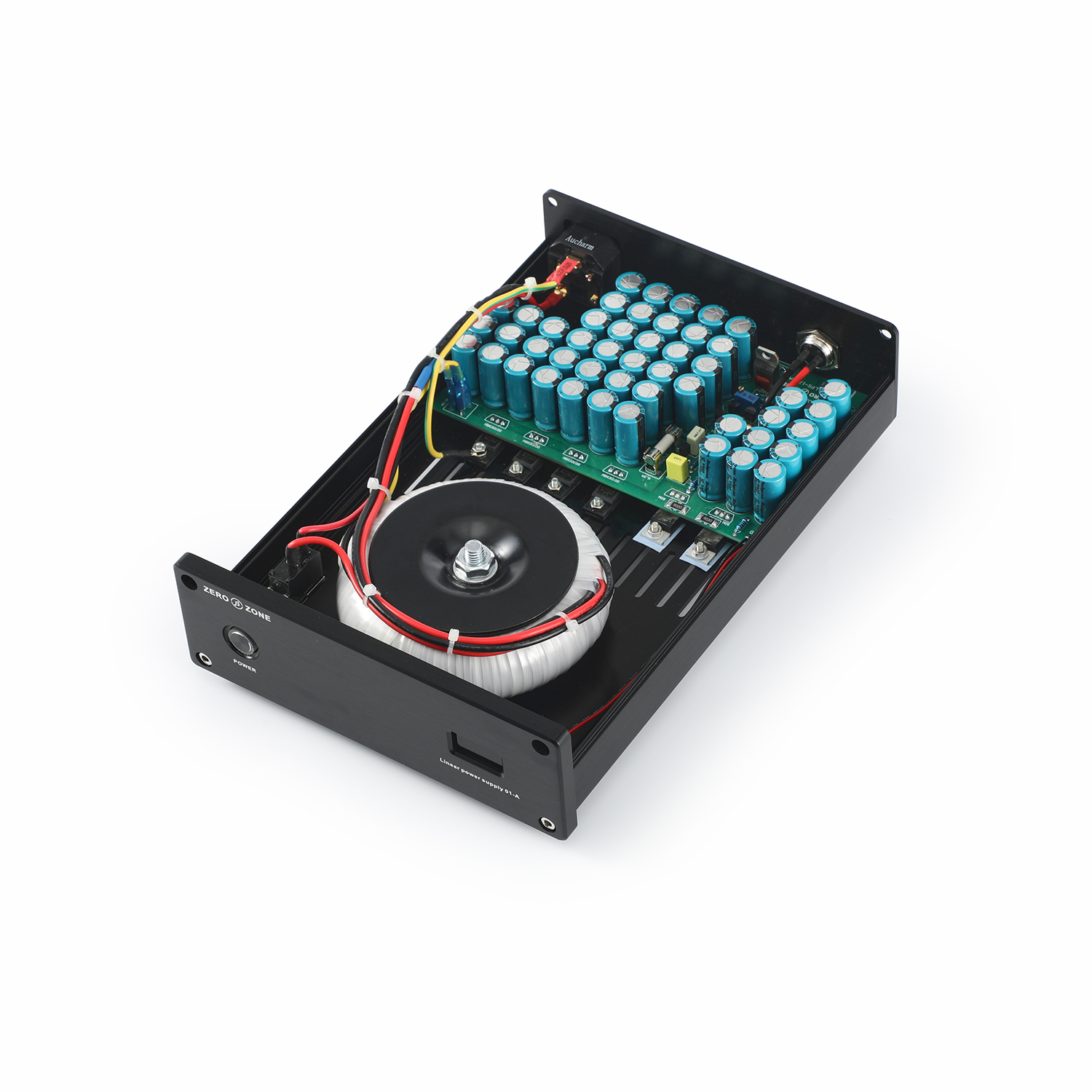

Low impedance: The newly designed linear voltage regulator module cooperates with Schottky rectifier, 46-bit capacitor array, and a transformer with the largest possible power in the chassis space to further reduce the internal resistance of the power supply

Big dynamics: Thanks to the low-impedance configuration: low-impedance linear voltage regulator module + high-power transformer + capacitor array, the response to the power supply energy output is extremely fast.

With overvoltage, overcurrent, short circuit protection

In the application of linear power supply, a very important protection method is over-voltage protection. Over-voltage is the original culprit of equipment damage, and there is no one; one more guarantee is more worry-free. Not to mention there are three kinds of protection!

Voltage regulator

It still continues the traditional zero-zone MOS Transistors in parallel, which has a positive effect on anti-excitation and rich harmonics.

School sound

The benchmark series linear power supply still follows the ZERO-ZONE sound calibration manual

"Price, performance and sense of hearing are equal, and the overall pursuit of harmony"

Every PSU has been professionally tested in perfect working order before shipping! To maintain a stable & reliable high quality, there's no huge stock keeping and handling time may take longer occasionally. Thank you
