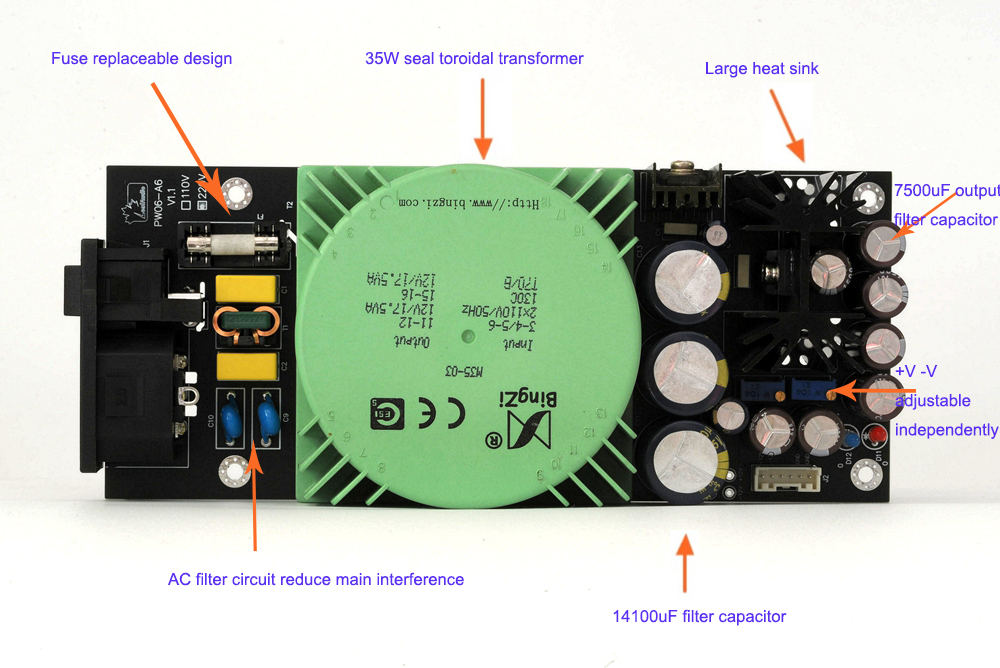

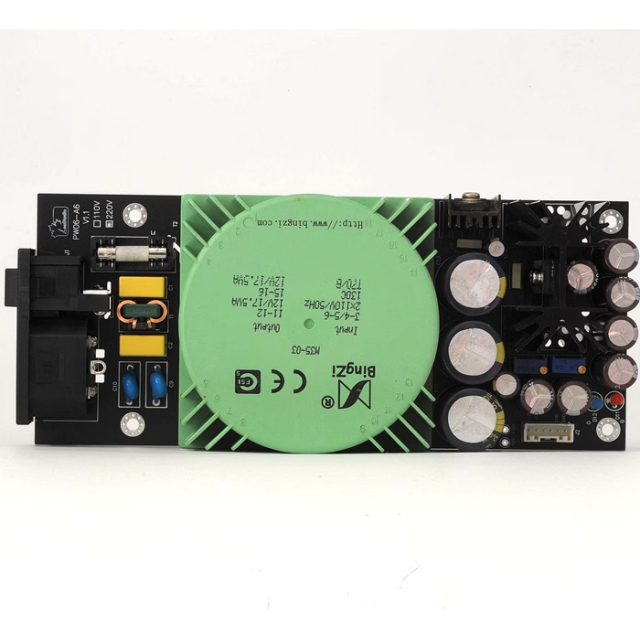

Upgrade Linear Power Supply Board for Eversolo A6 dmp-A6

Note: This linear power supply is specially designed for Eversolo A6 dmp-A6 to upgrade the sound quality.

• Adopt precision low noise operation amplifier servo voltage regulator, large current transistor

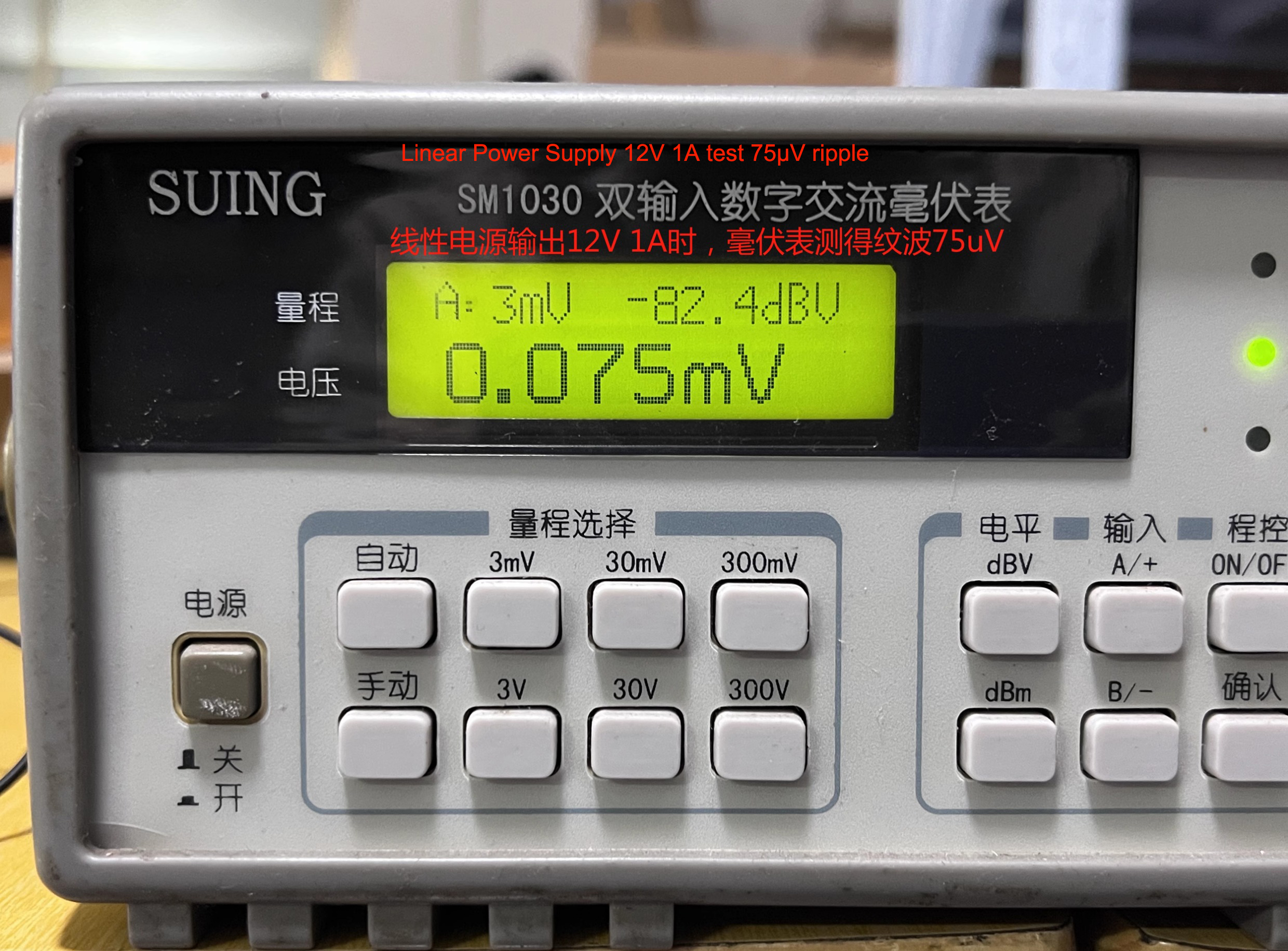

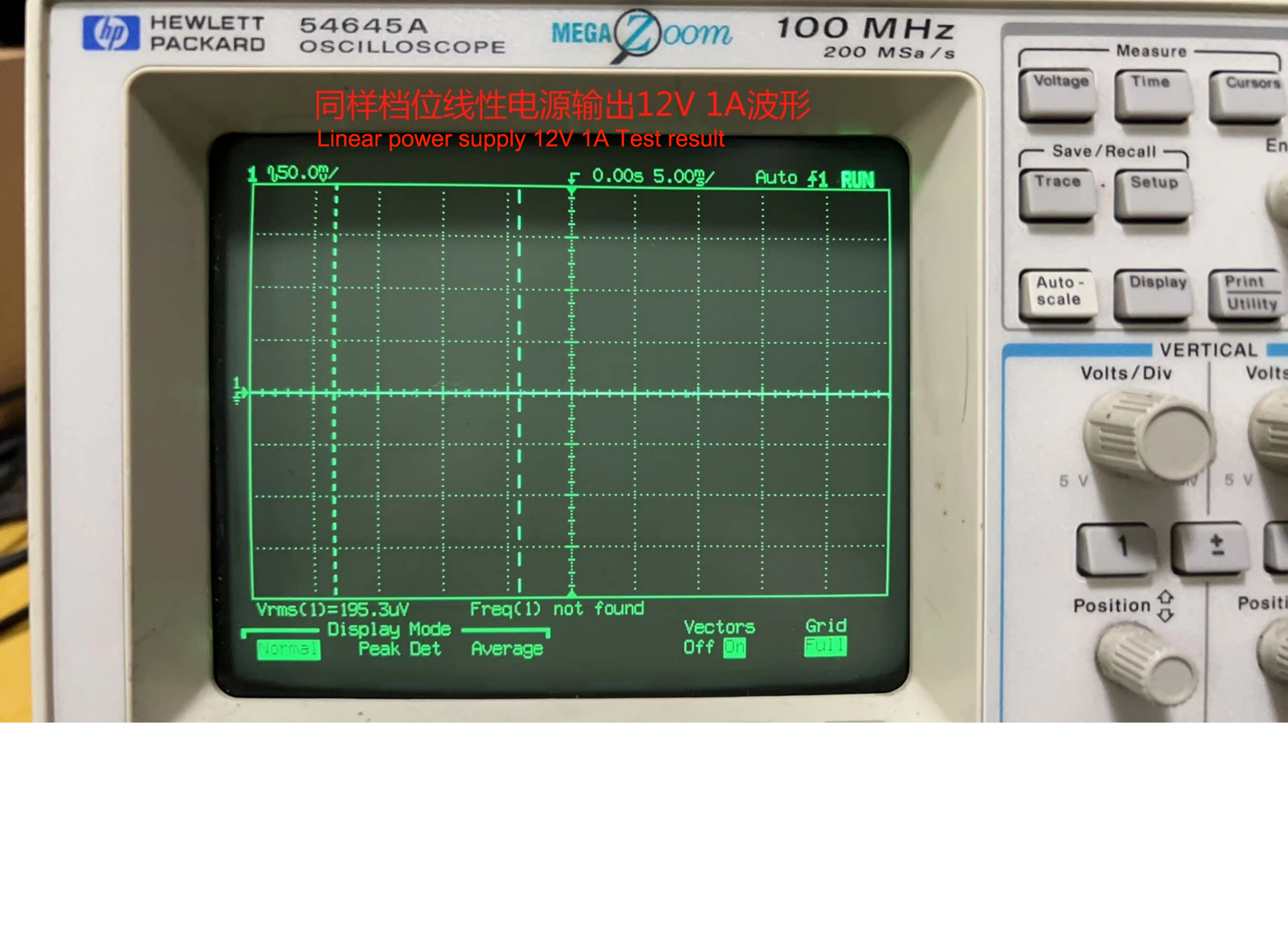

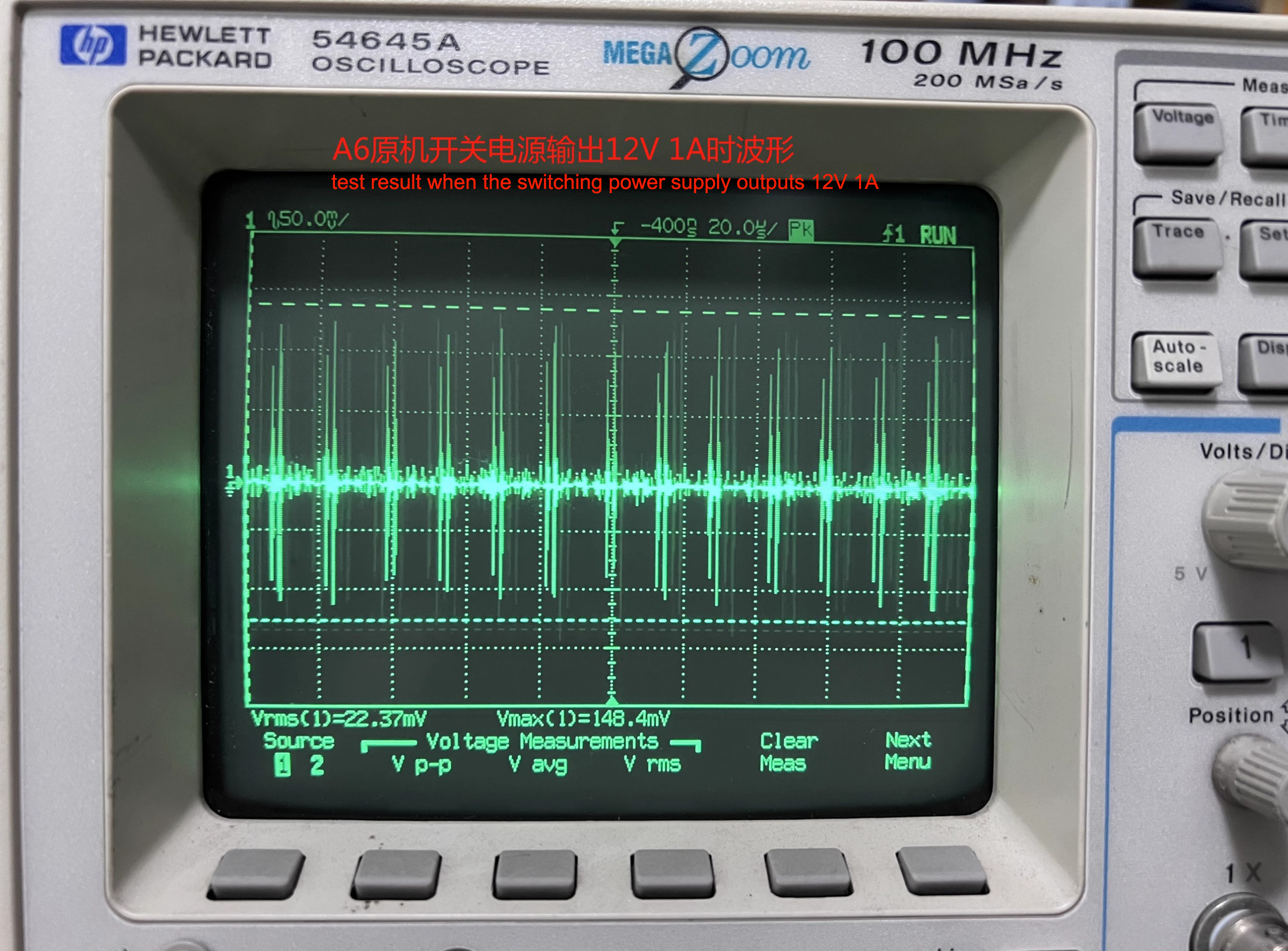

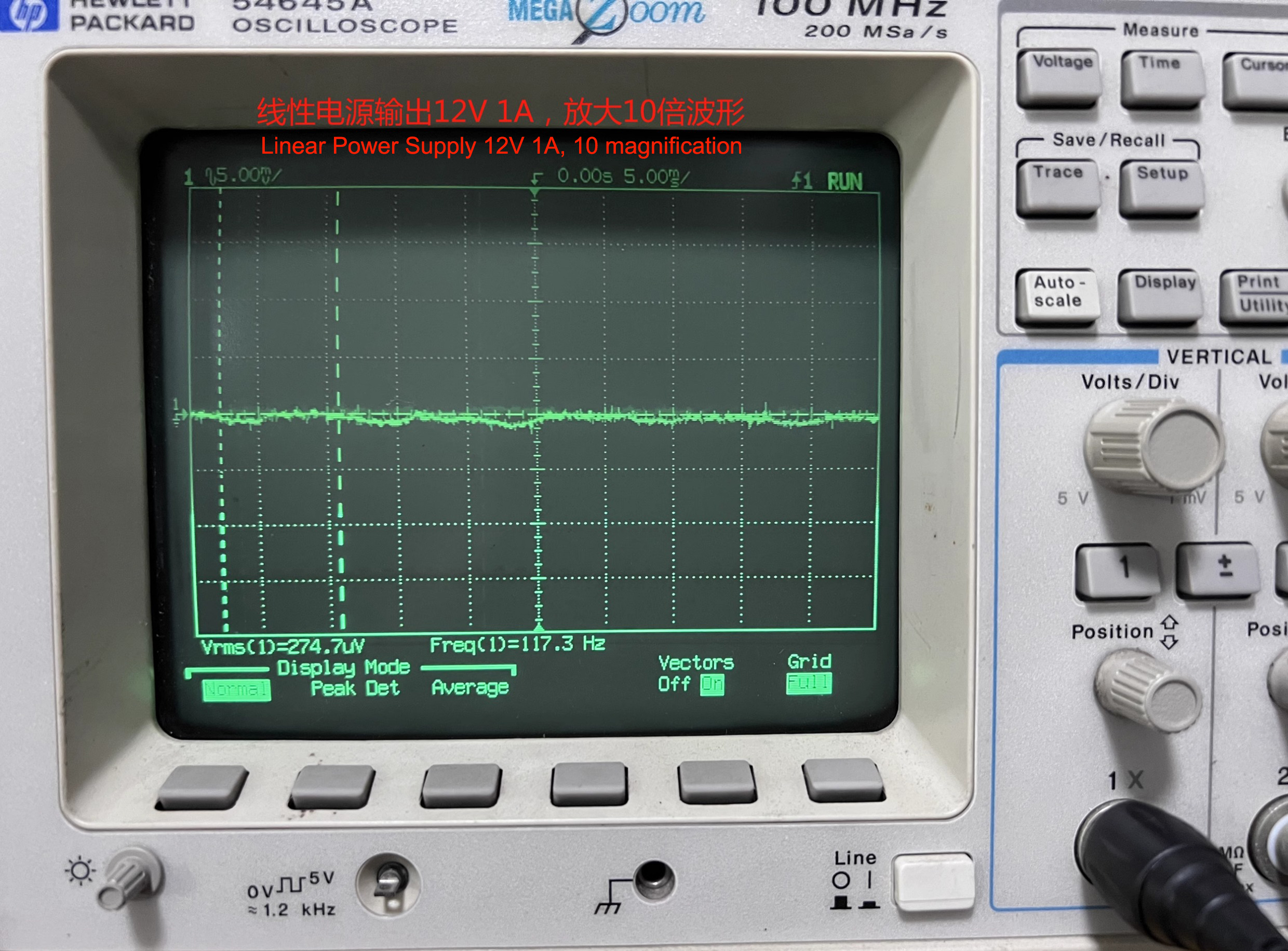

• Lower ripple, Ultra-quiet: The current expansion design greatly reduces the output ripple of the power supply.The ripple is only 80-100uV measured when +12V output 1A current, which is 1/10 of the original switching power supply (the ripple of the original switching power supply is 1.5mV).

Accessories: 6 copper columns

Precautions for replacing the power supply

1. The replacement mustbe performed only after powering off /switching off/ power failure.

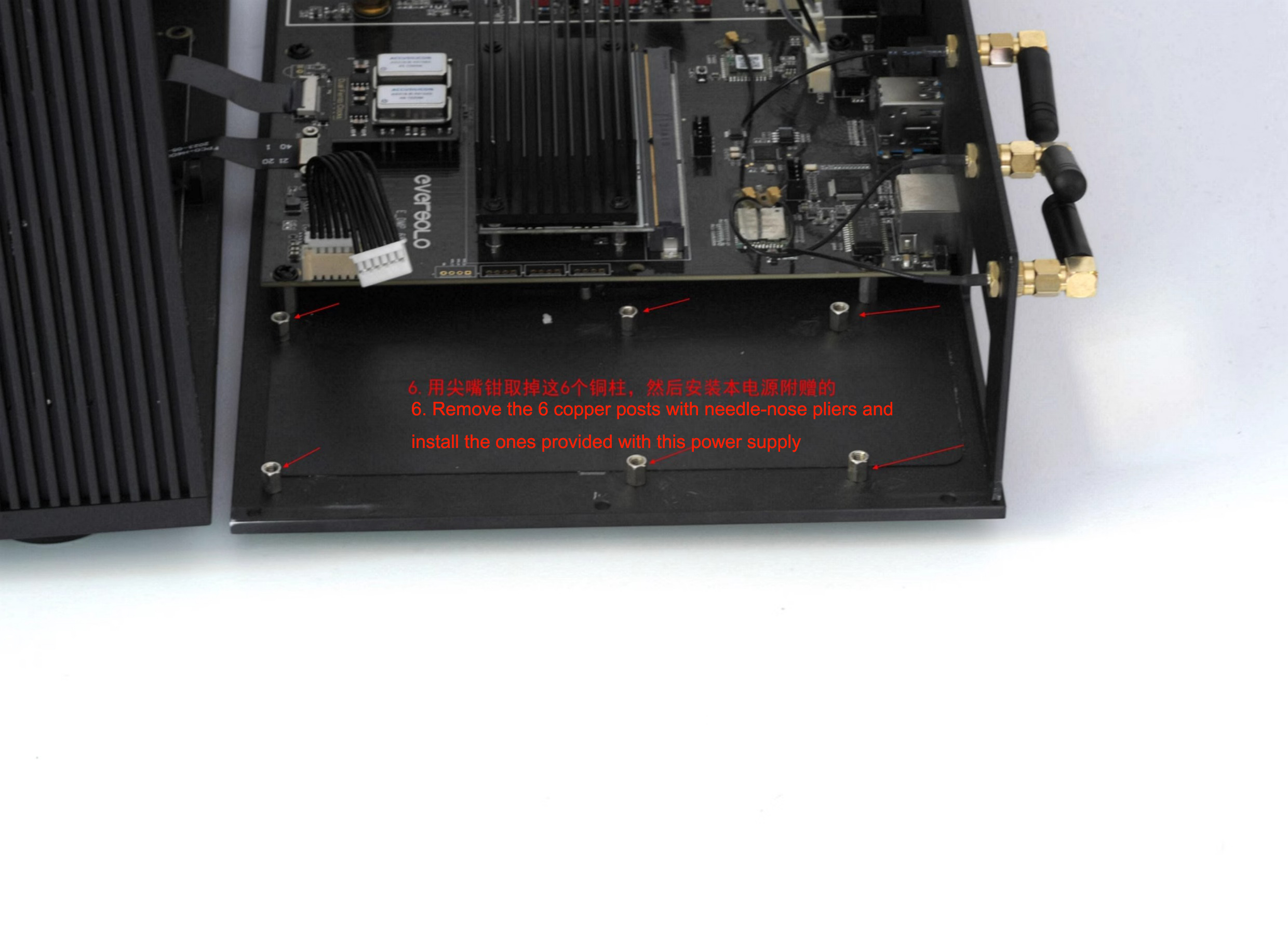

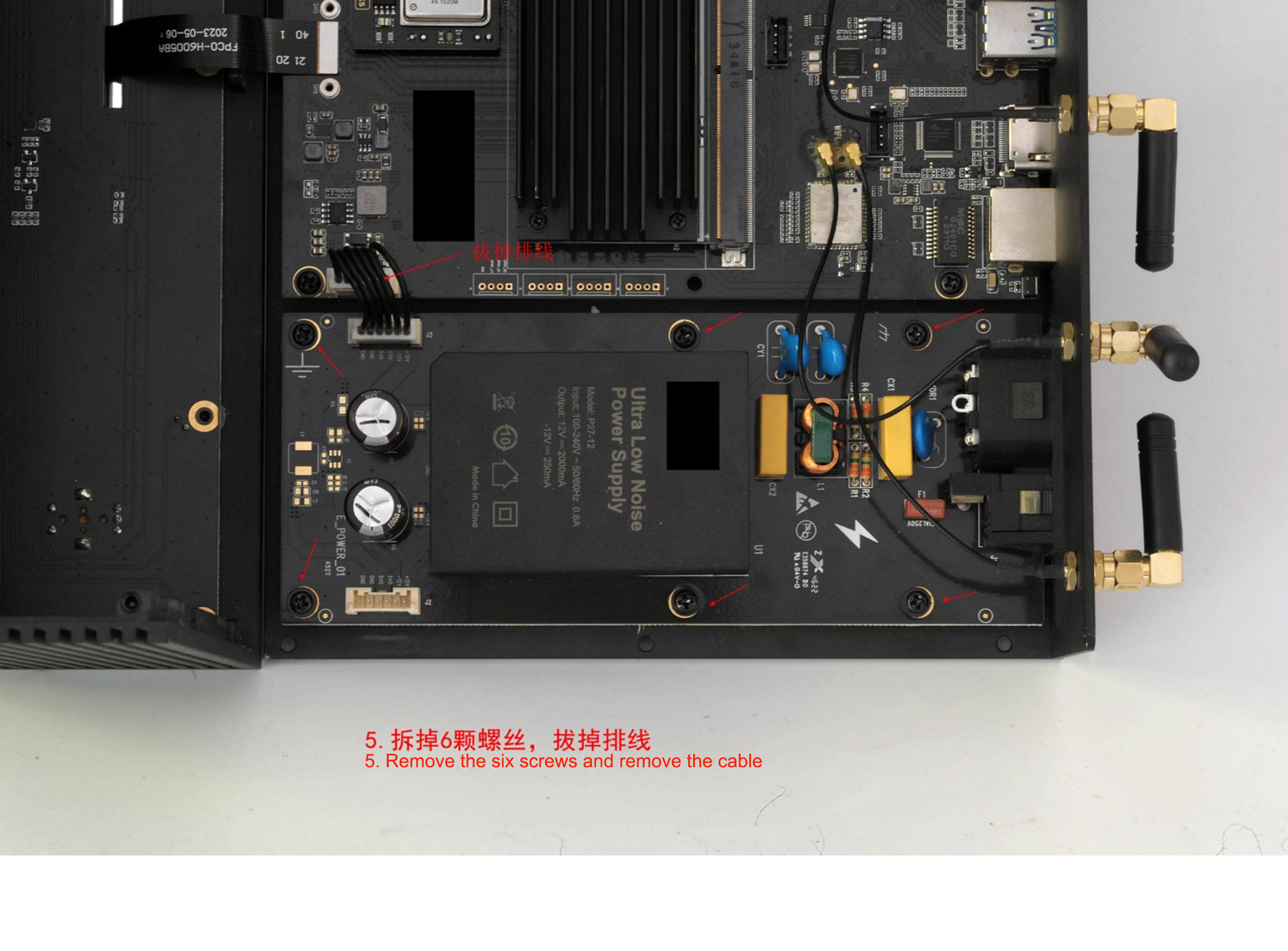

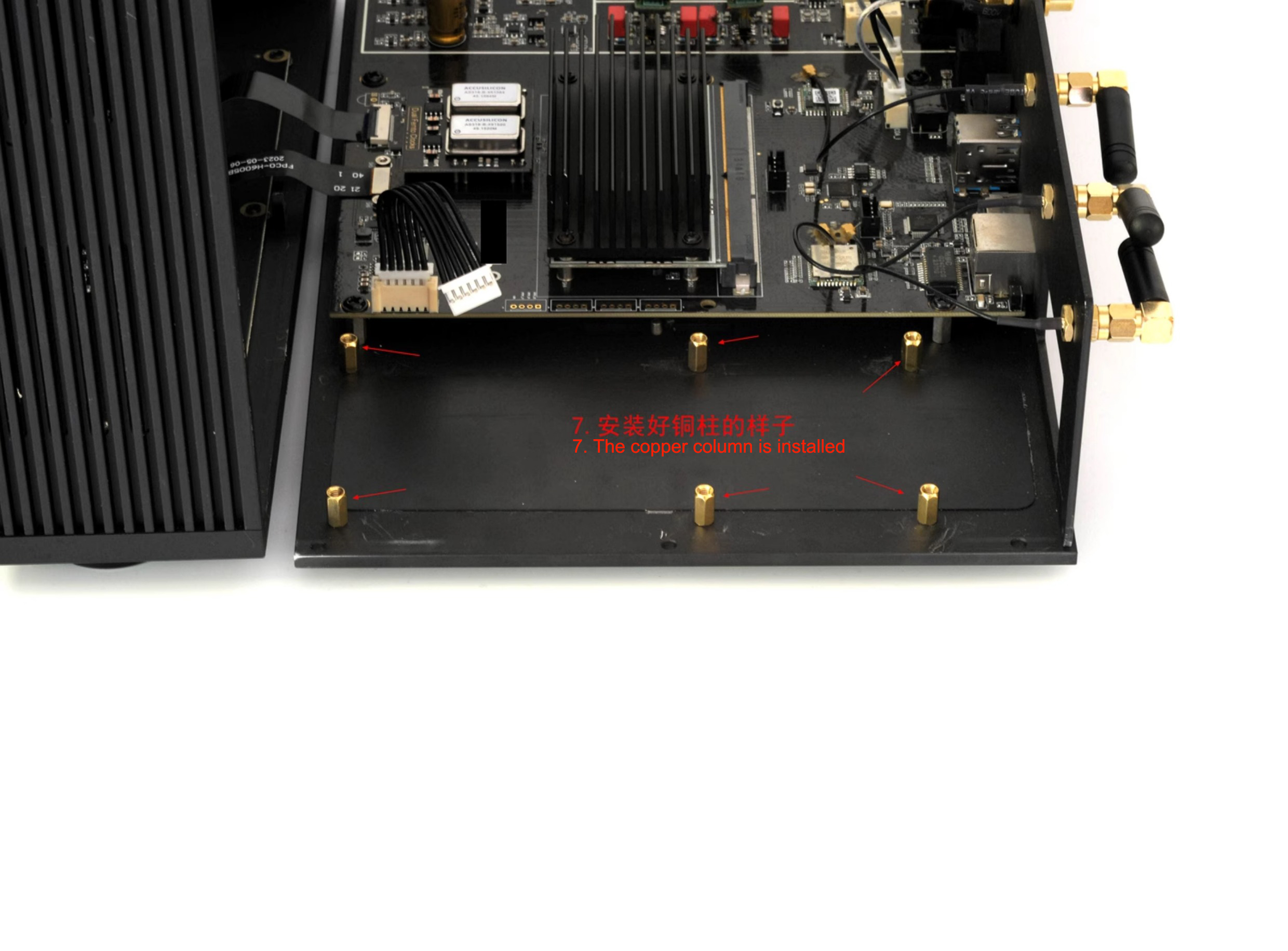

2. Remove the copper column of the original machine and use the copper column included in the package.
3. Screws, wiringofthe original machine can still be used, this power supply only needs to install four screws.
4. It is normal for thispower supplyto get hot after working.

Tools required for power replacement for your reference:

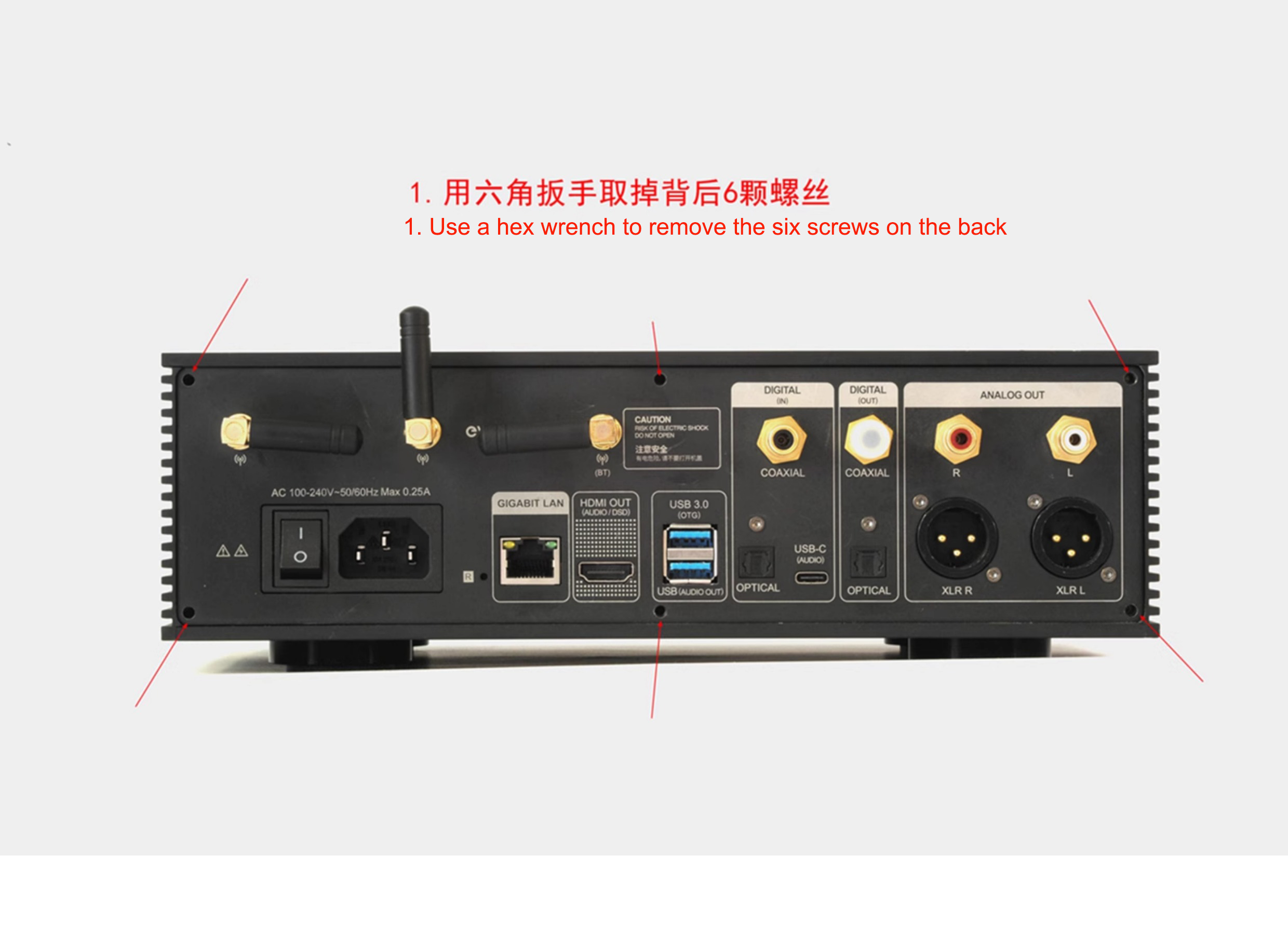

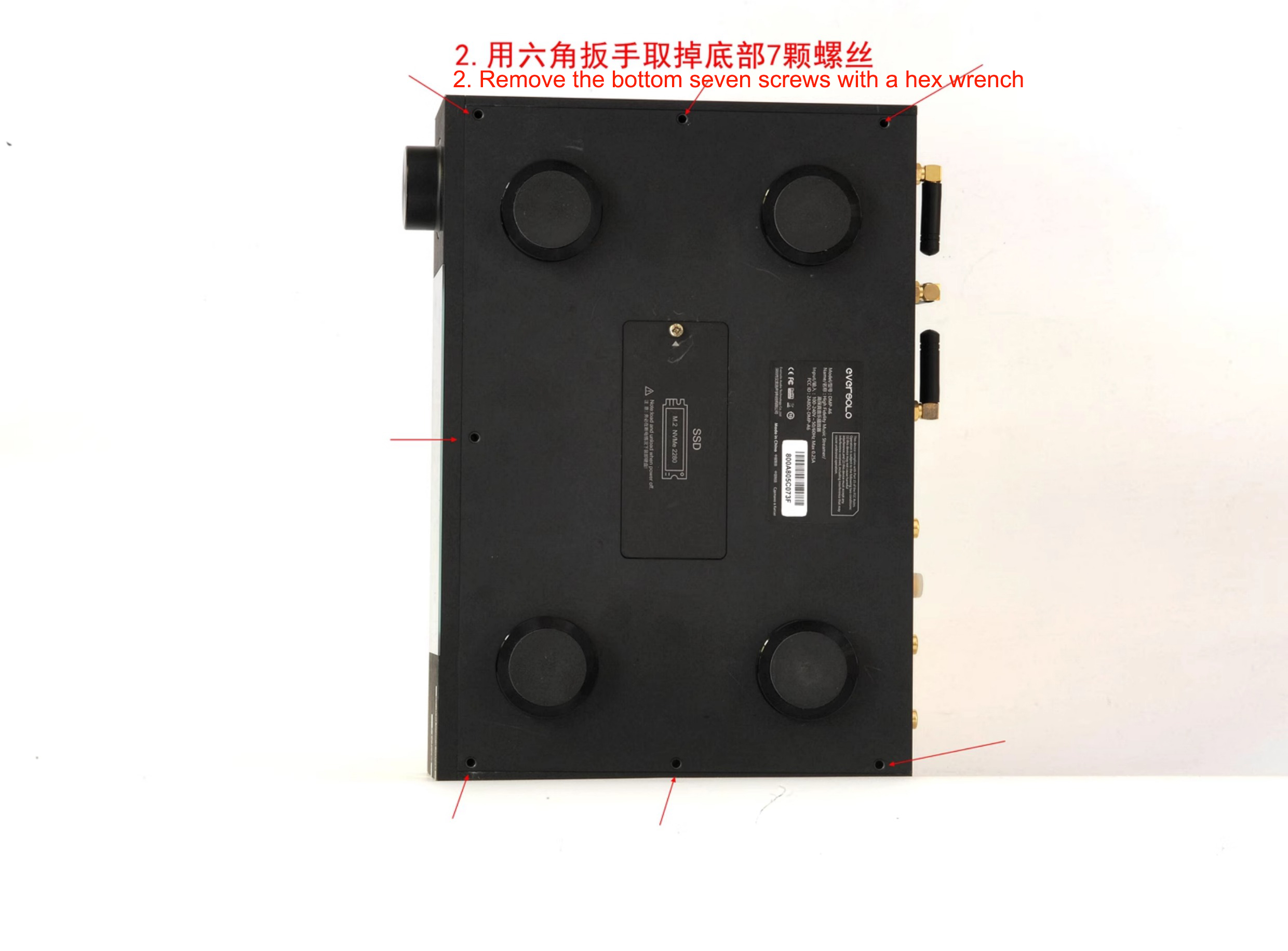

1. 2mm hexagonal wrench (for case removal)

2. Phillips screwdriver (for removing the power board)
3. Needle nose pliers (for removing machine copper column)

Specification:

Input voltage: 220V/110V

Output voltage: ±12V

Max output current: 12V 1.45A

Ripple: 80-100μV @ +12V 1A

Weight: 790g, weight 1kg after packing
