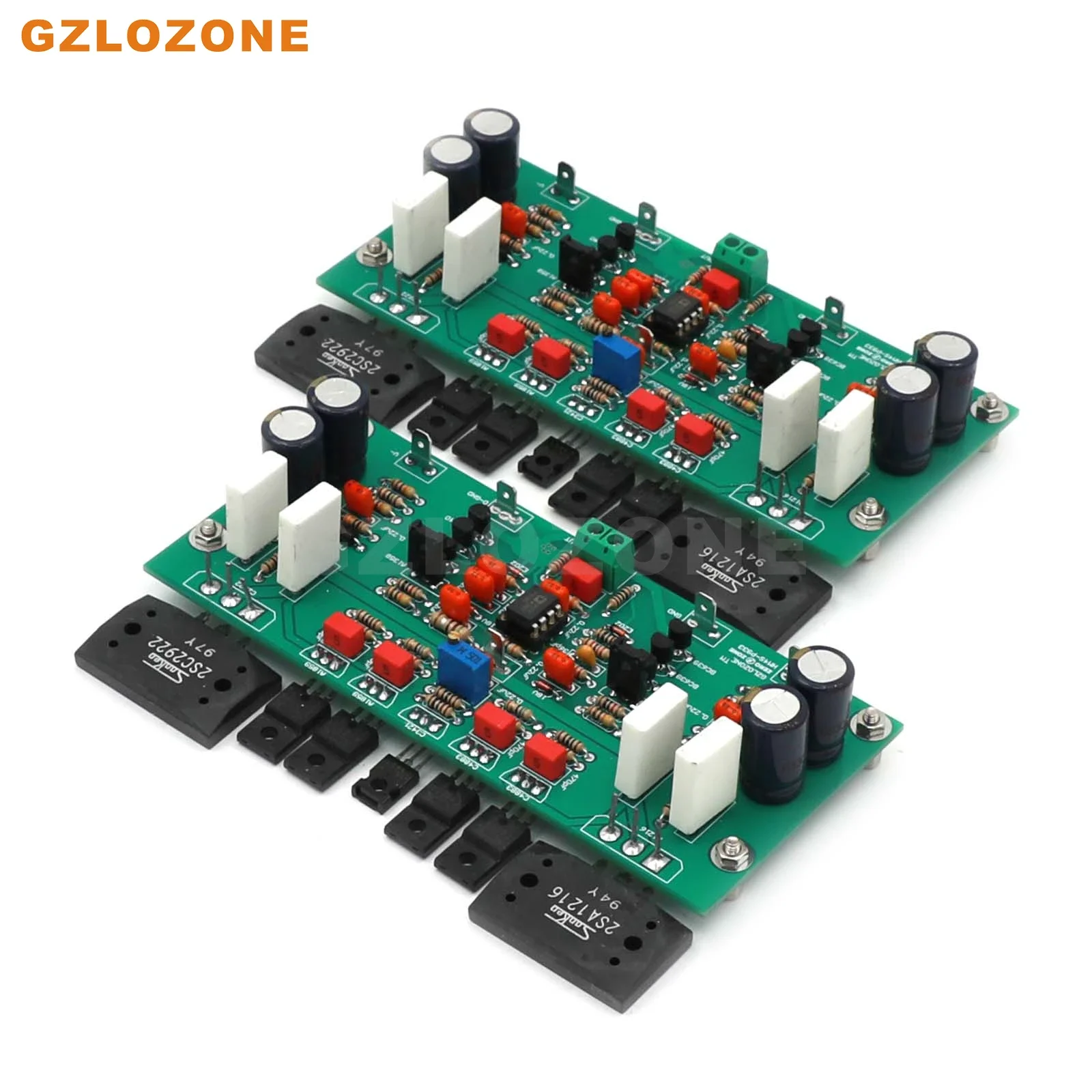

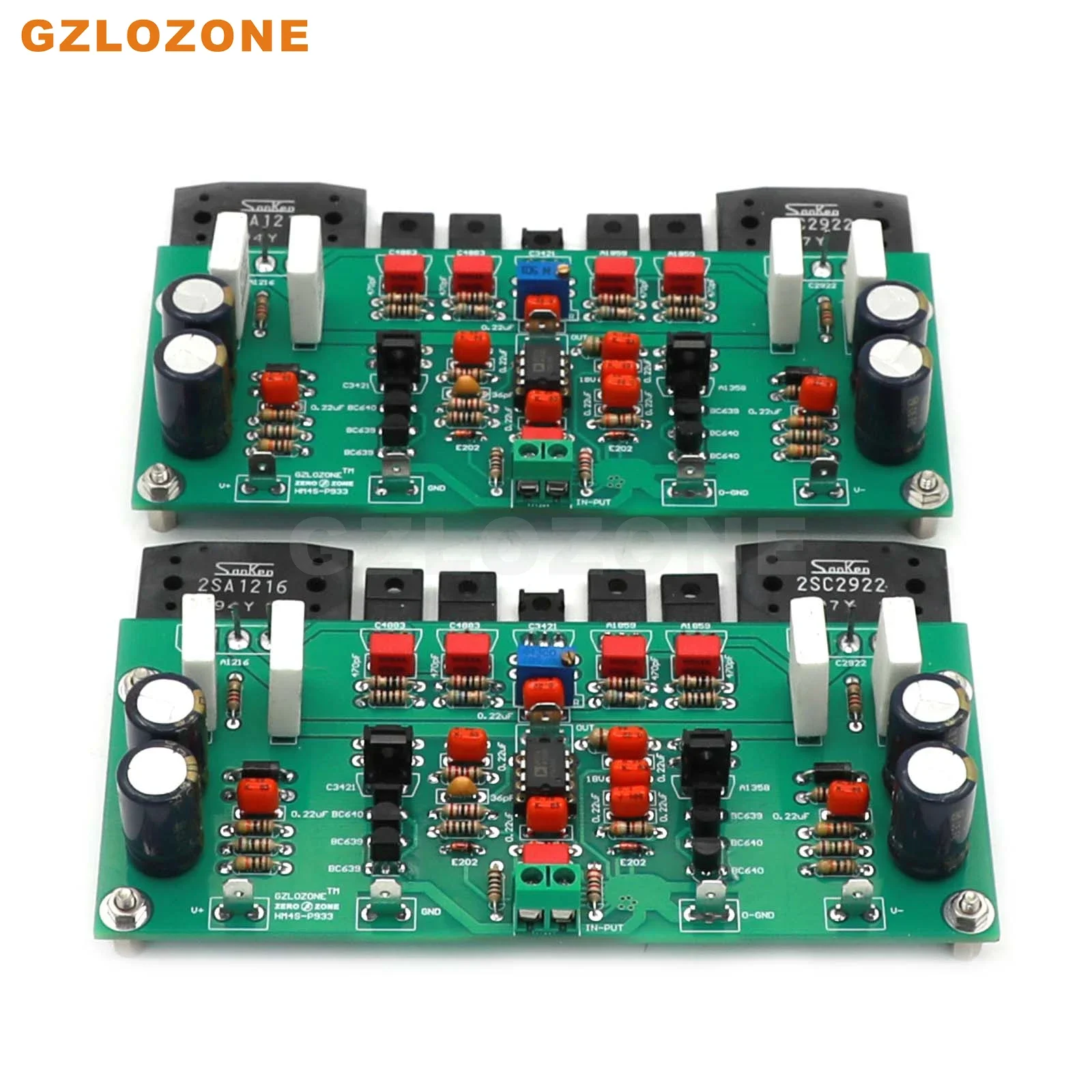

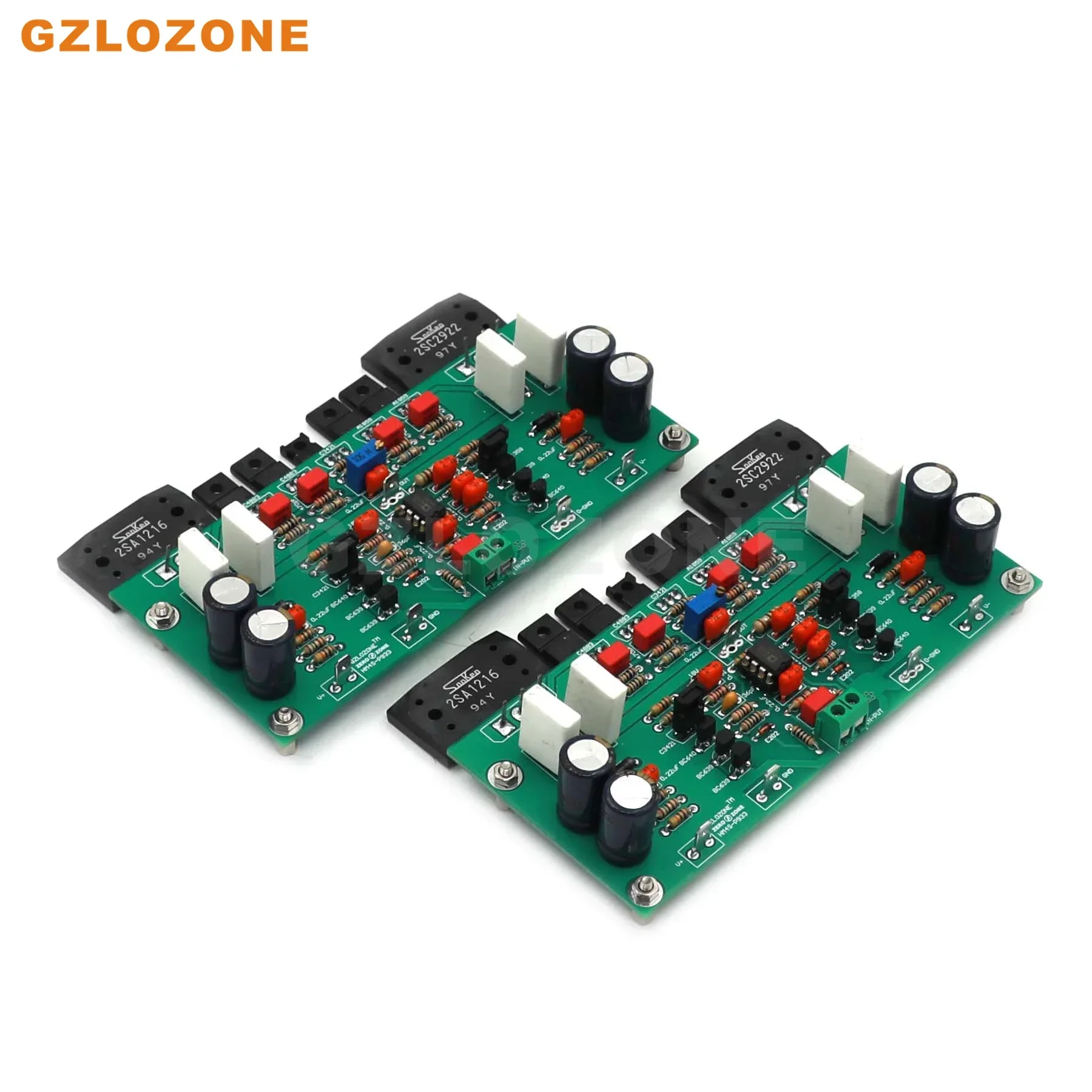

1 Pair HM4S-P933 HIFI 2SA1216 2SC2922 Power Amplifier DIY Kit/Finished Board 150W+150W

The whole series of pure power amplifiers have extremely low output impedance and extremely high damping coefficient. Even the 933 with an output power of only 120W/4 Ω also has low frequency control power. It can cope with some speakers that are difficult to control. When it is matched with the Dynaudio series speakers, it has a very outstanding performance, and has an invincible noble voice.

Commissioning instructions:

Adjust the adjustable resistance to make the power resistance 0.47R have a voltage of 47mV at two points. Different current has different listening sense. Players can taste it carefully (ZERO-ZONE recommends 200MA)

Works voltage: DC +/- 30V to +/-50V

Gain: 24 times

Output power: 50W+50W (8ohm load at +/-30VDC), 150W+150W (8ohm load at +/-50VD)

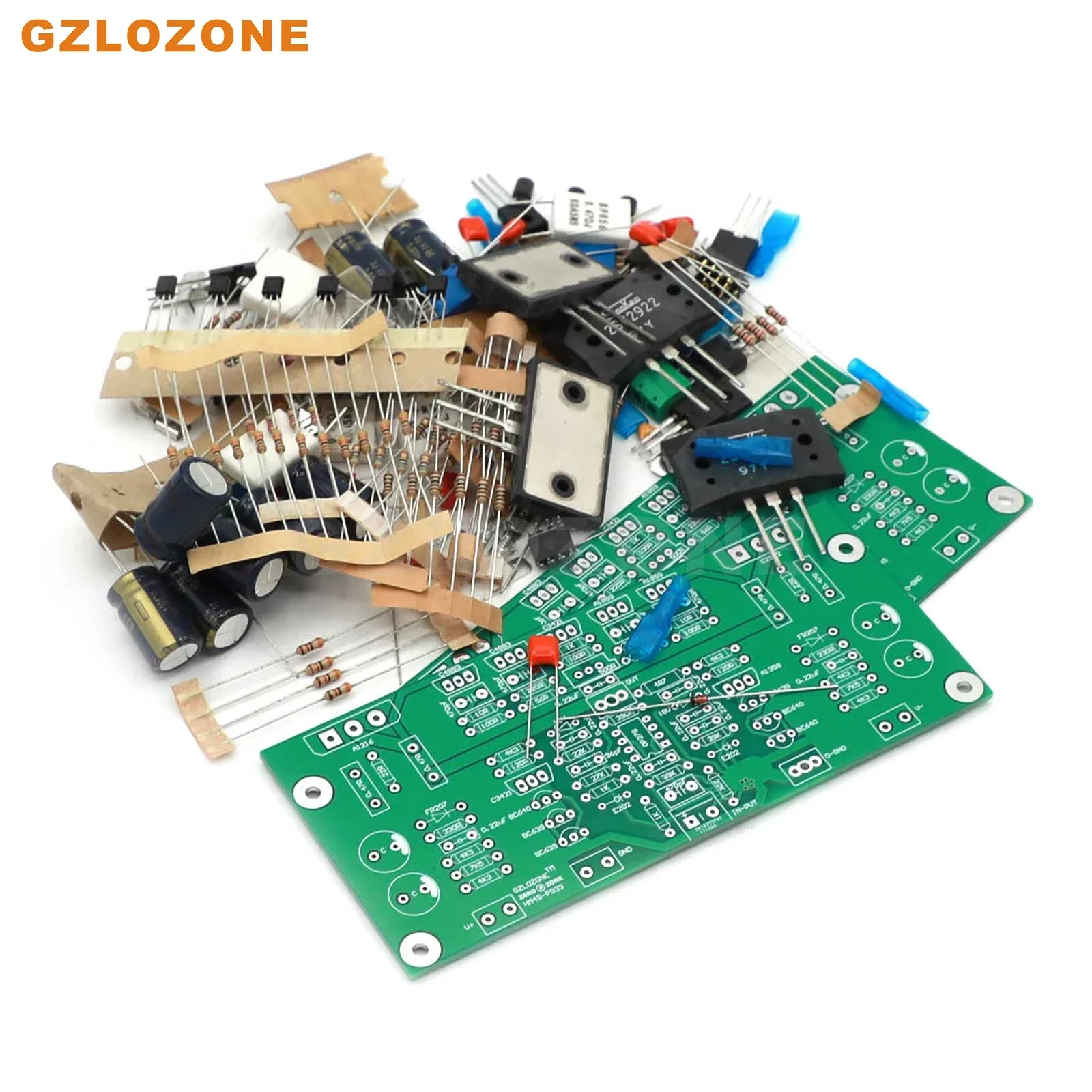

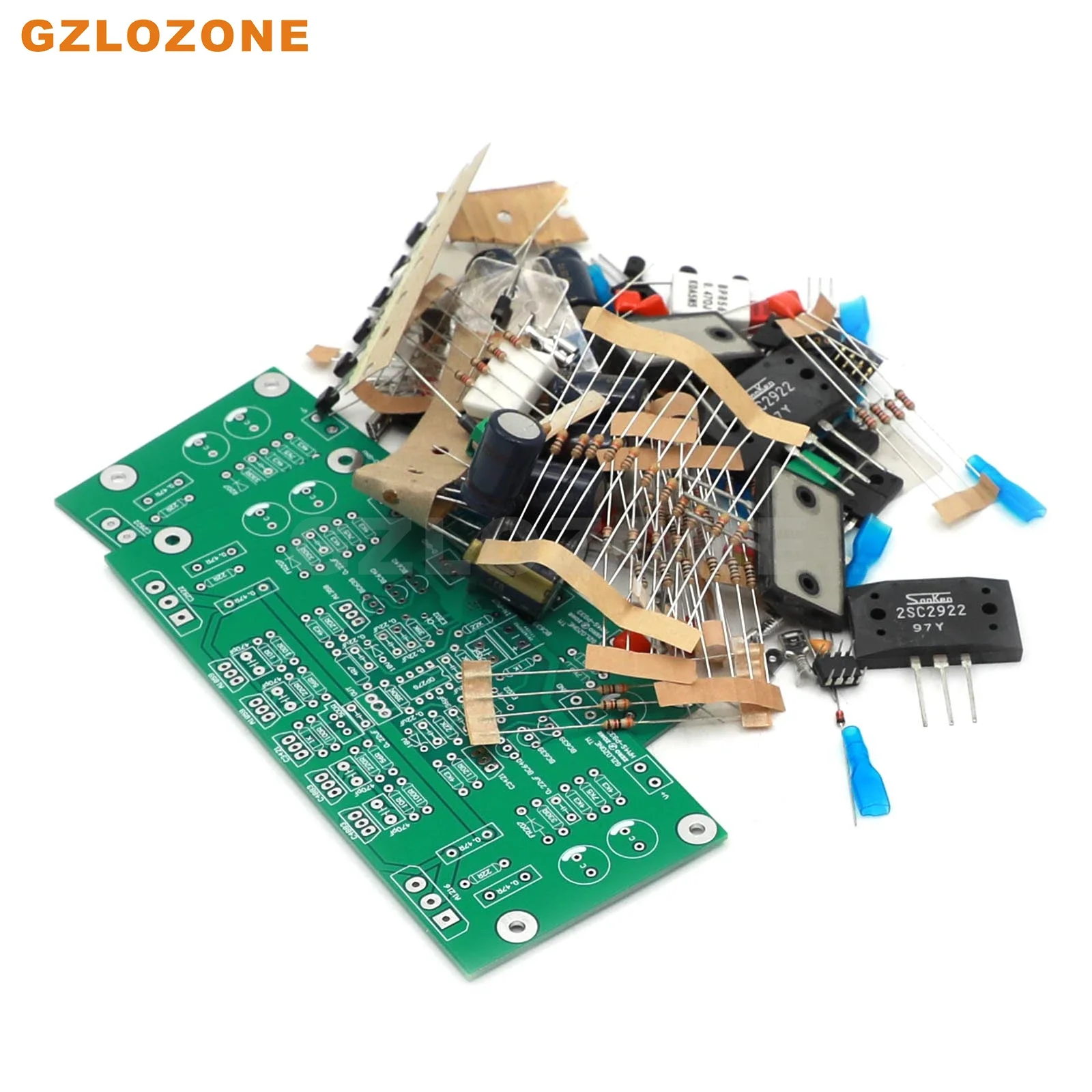

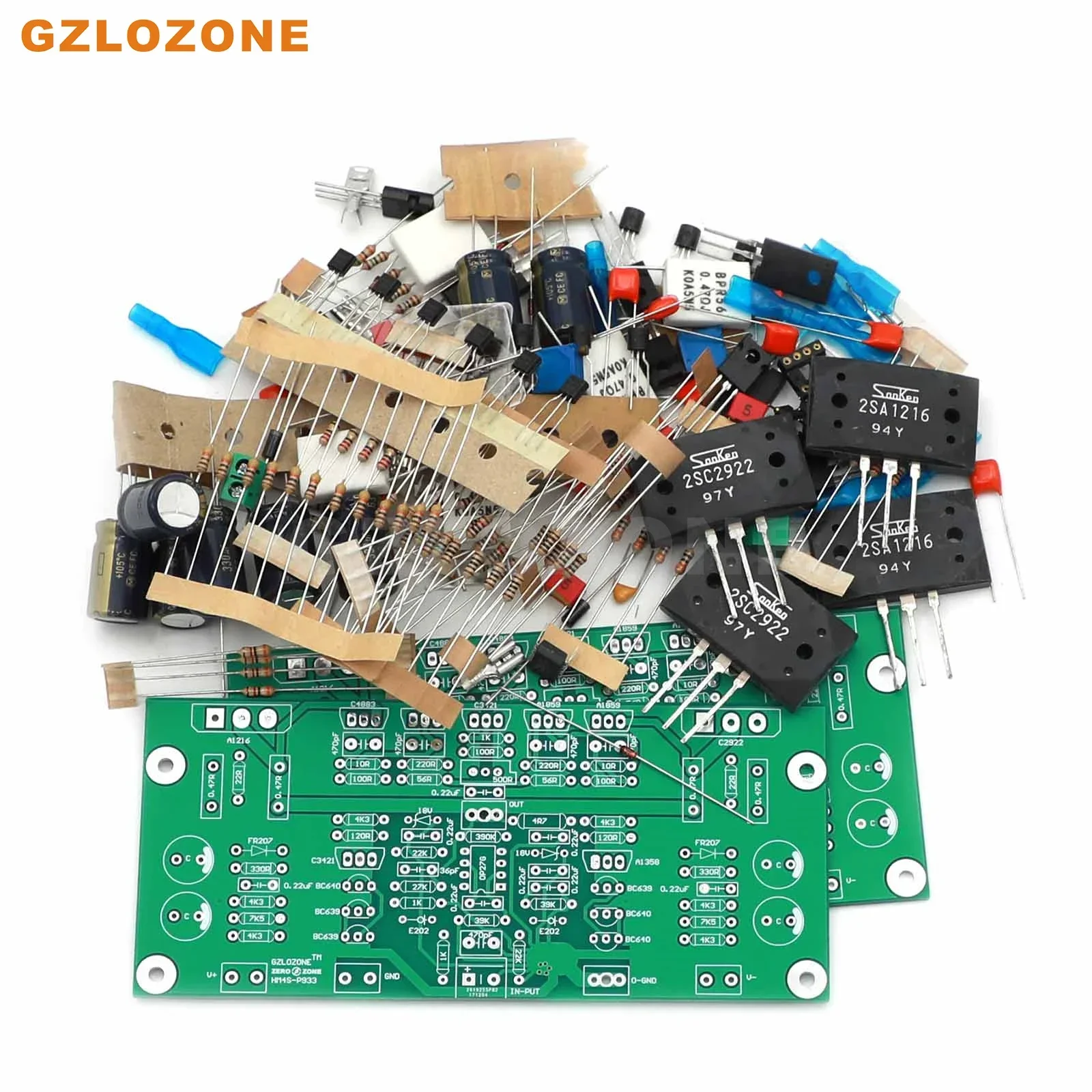

NOTE: We have DIY kit or Finished board (Optional)
