Works voltage: we have AC110V or AC220V for choose
The ALPS Motor potentiometer 50KA or 100KA for choose
The main function:
1: Support 4 way stereo Audio input choose. Manual or remote all can control.
2: Support Voume adjust. Manual or remote all can control.
3: Support One key mute, only remote can conrol it.
4: Support Power on/off (Standby) . Manual or remote all can control.
5: when power off. it will Memorize the state before shutdown
press the Encoder switch is manual Power on/off (Standby) . Rotary encoder to adjust the volume.
Main control board Size: 100mm*50mm (max height about 35mm)
input choose board Size:109mm*42mm
Power Supply board Size:102mm*60mm (max height about 42mm)

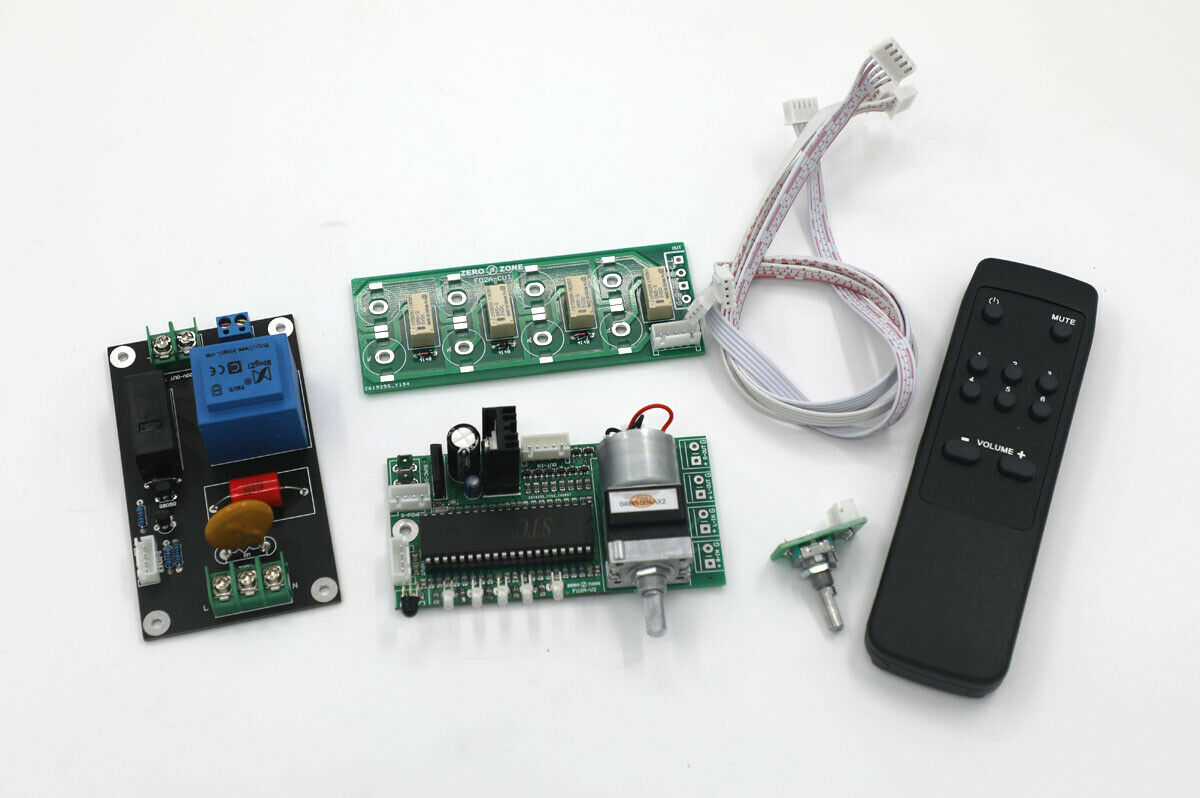

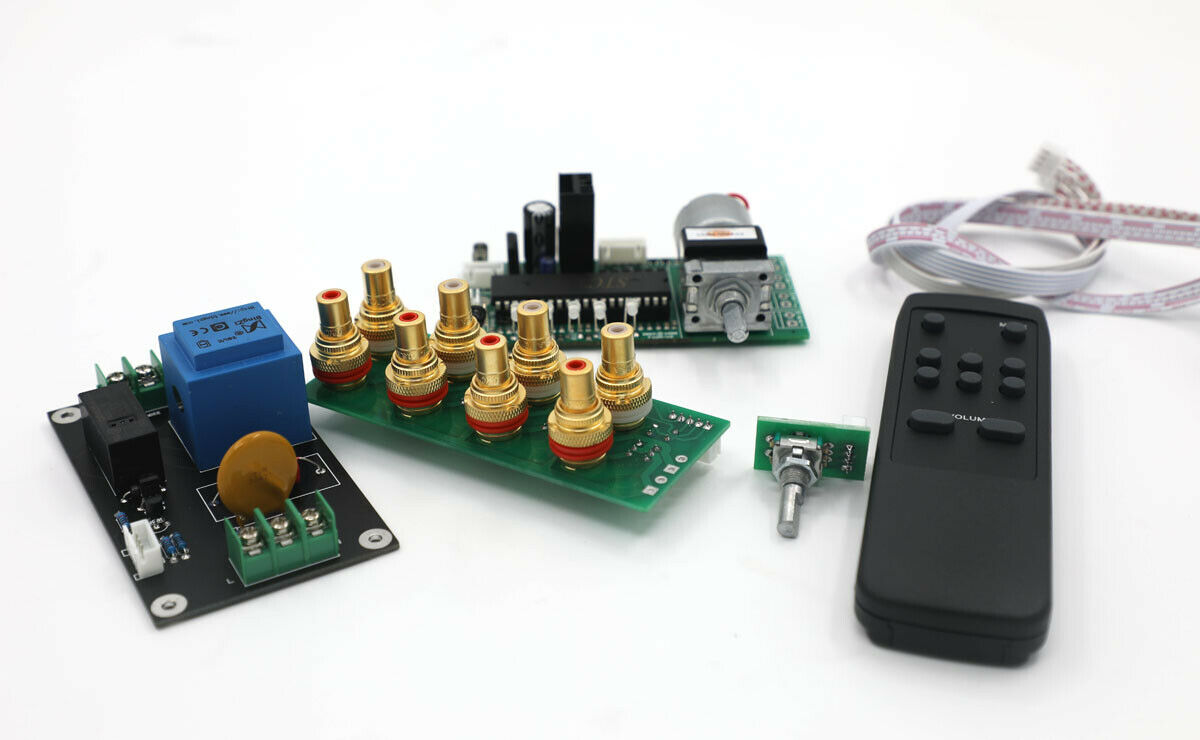

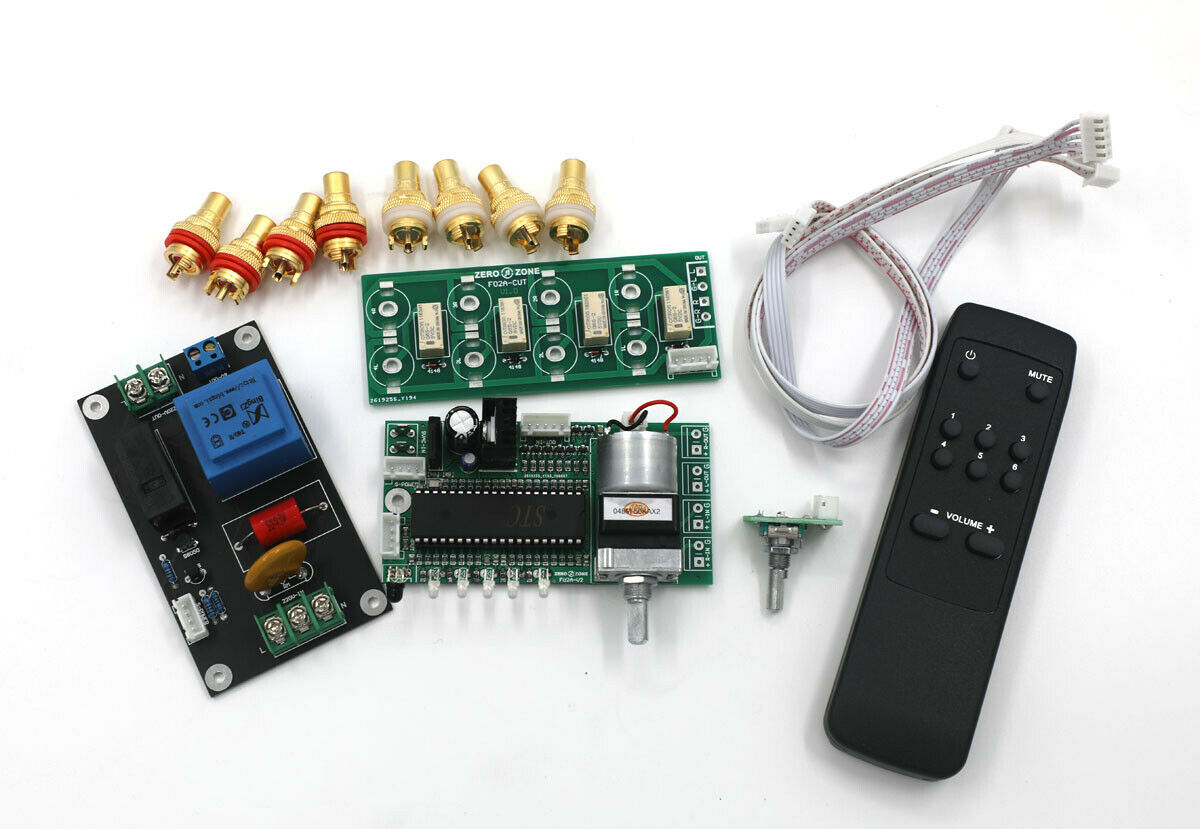

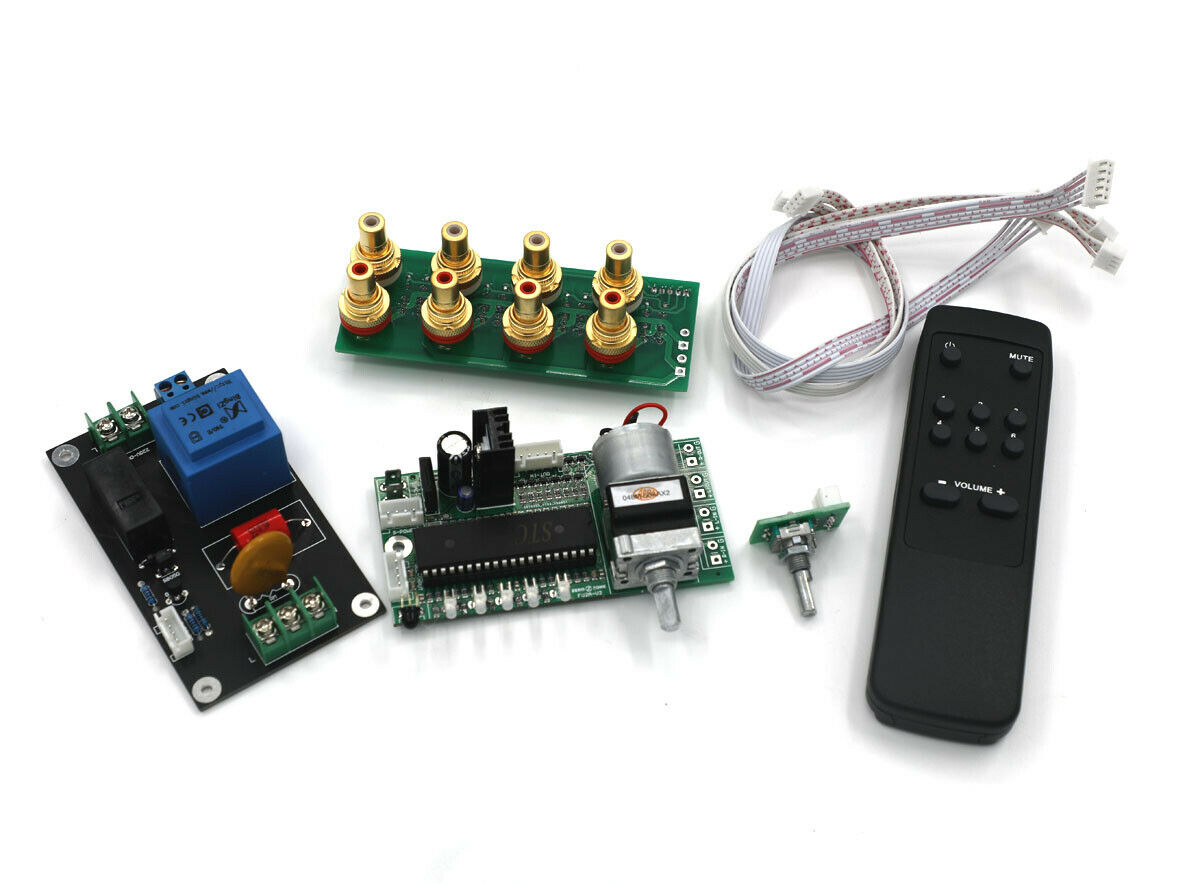

Package included:
1: Main control board X 1
2: input choose board X 1
3: Power supply board X 1
4: Remote control X 1
(no battery included)
5:Encoder switch X 1
6: 4pin cable X 2 5Pin cable X 1

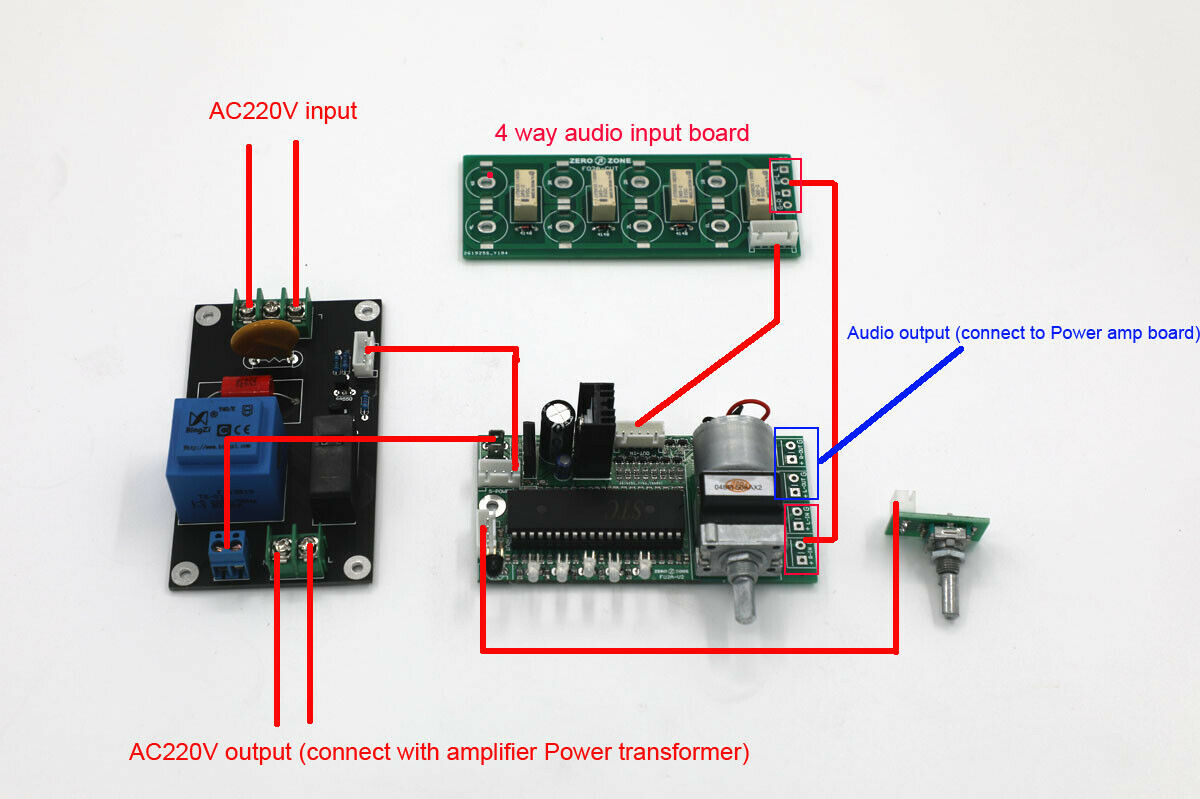

Connect draws:
Cutout draws

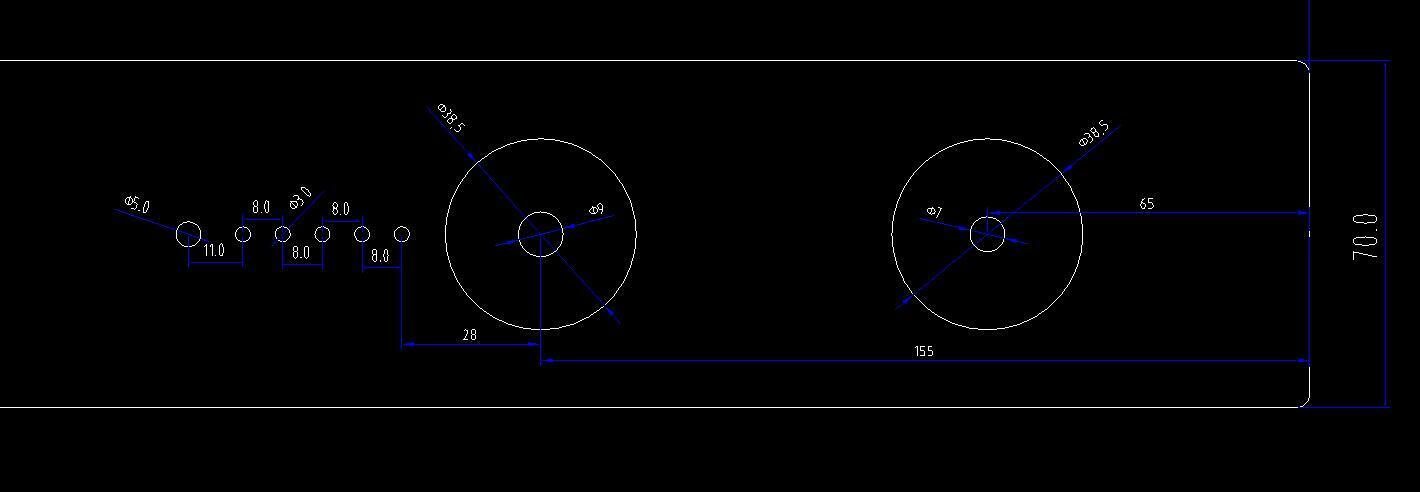

Front panel:

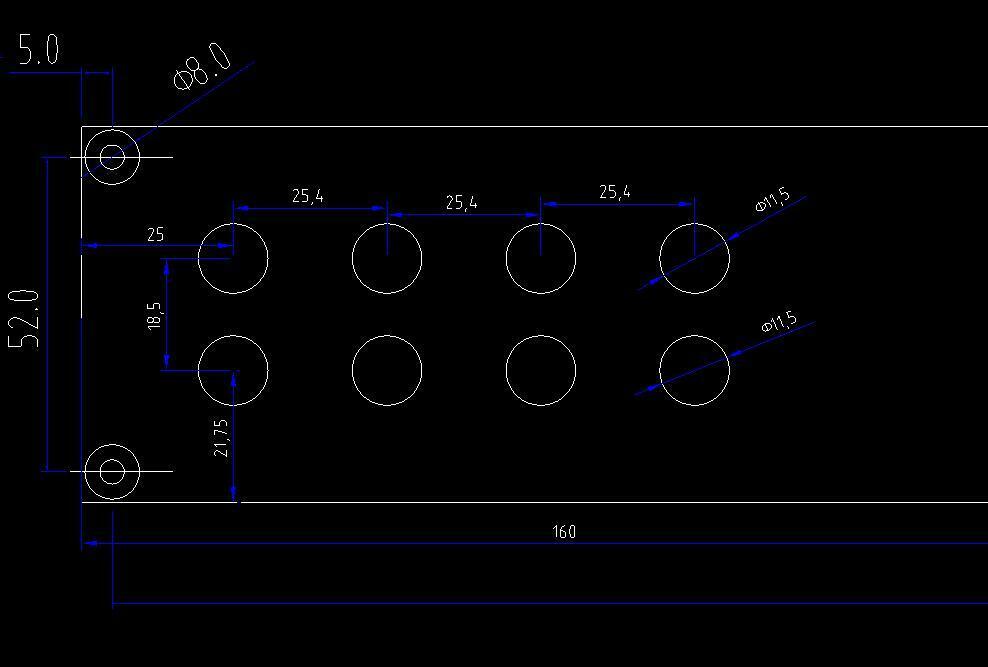

Back panel:
