Battery powered Hi End Digital Audio Player Digital Interface Bluetooth USB 5.1 Fiber SPDIF AES I2S PCM

Battery powered Hi End Digital Audio Player Digital Interface Bluetooth USB 5.1 Fiber SPDIF AES I2S PCM


This Hi-End USB Bluetooth digital audio sound card/interface uses the pure battery power.

Why we choose the battery as the power??

In a high-end audio system, the most crucial aspect is the power supply, and the best power source is a battery.

By converting AC to DC, Battery power ensures each component receives clean power, solving the issue of traditional AC power being heavily influenced by the environment, resulting in more stable and quieter sound.

Ultra-low noise power supply, significantly reducing interference for purer, more stable signals.

Battery power results in minimal noise ripple.

Since this product does not require signal amplification and consumes only 300mA, there will be no issues with transient or dynamic range deficiencies, and it can operate continuously for 40 hours.

Charging protection function: Yes

Overcharging and over-discharging protection: Yes

With multiple interfaces for versatile use.

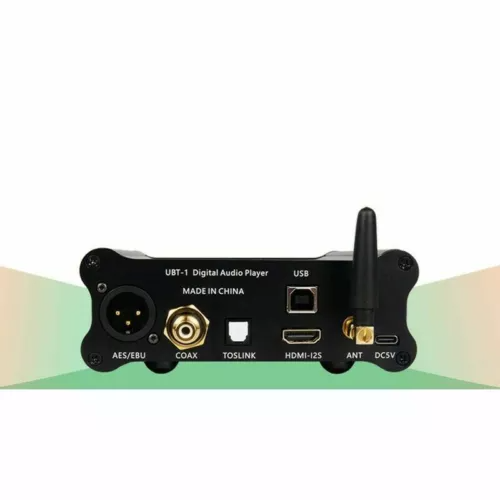

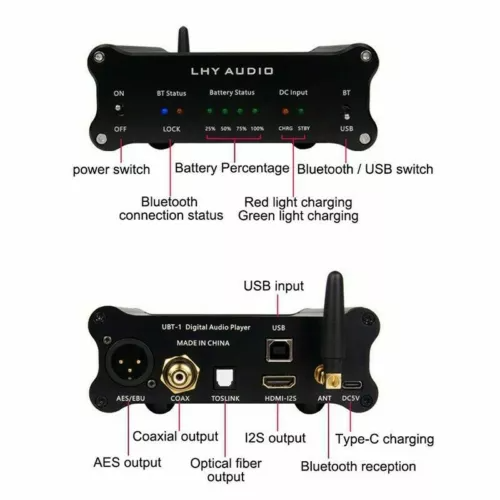

Various output interfaces: AES/RCA Coaxial/Optical/HDMI (I2S)

Input methods: Bluetooth/USB

AES/Coaxial outputs are digitally isolated for independent output, I2S is independently outputted through an LVDS chip, reducing interference for more accurate and pure signal output.

Support adjust the I2S wiring sequence according to your equipment through the built-in  I2S switch. We can also set it for you before ship if you need the service.

Bluetooth 5.1

Bluetooth signal output up to 96kHz

5.1 OCC5125 Bluetooth receiver, more stable than the previous CSR8675 generation, supporting high-quality reception of LDAC and APTX-HD. It uses a high-speed buffer receiver and switching chip to ensure the transmission of high-purity signals. (Android phones with version 8.0 or higher support LDAC technology, but iPhones do not.)

High-end audio components

Parameter:

Product Model: UBT-1

Input Interfaces: USB-B, Bluetooth 5.1

Output Interfaces: RCA Coaxial, AES, Optical (OPT), HDMI (I2S)

Bluetooth Module: QCC5125

Bluetooth Name: LHY-BT

Bluetooth Support: SBC/AAC/APTX/APTX-LL/APTX-HD/LDAC

I2S (HDMI) Support: 384K/32BIT/DSD64, DSD128/DSD256; Compatible with various interfaces

Bluetooth Input Signal for Optical/Coaxial/AES: 96KHz/24bit

USB Input Signal for Optical/Coaxial/AES: 192KHz/24bit

USB Digital Interface: Amanero Combo384 USB interface

Power Supply: Internal battery, rechargeable with Type-C Android charging cable

Dimensions: 158mm deep x 135mm wide x 48mm high

Net Weight: Approximately 700g
