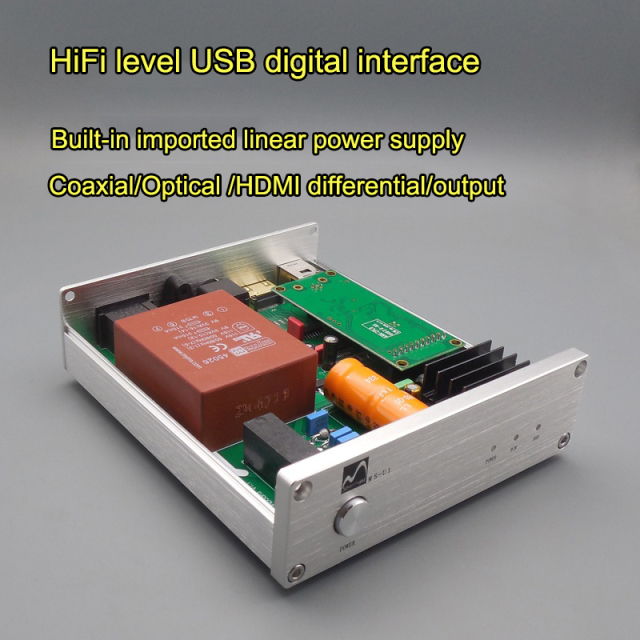

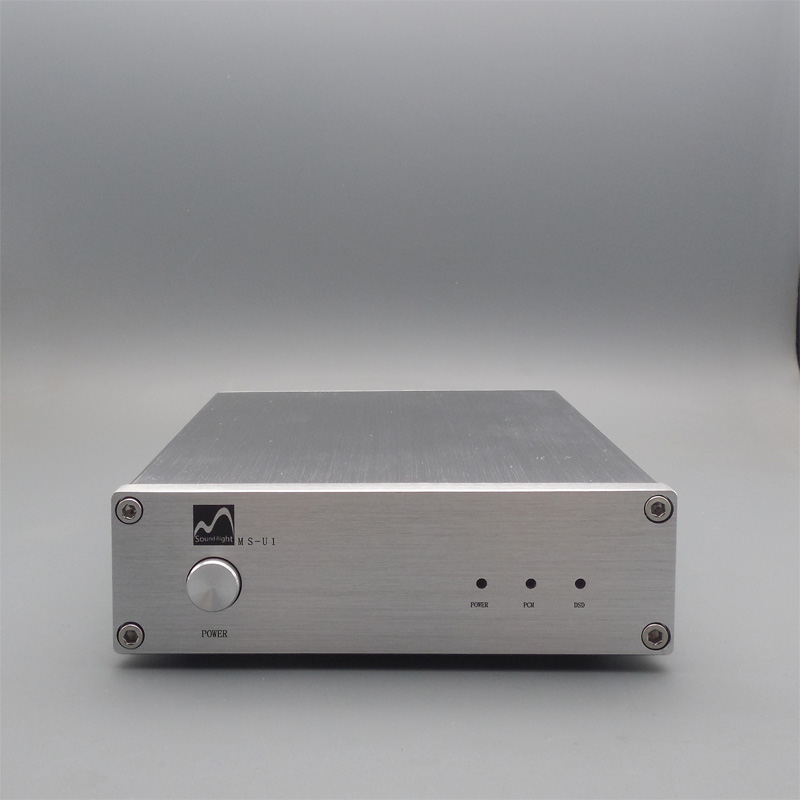

HIFI Audio-grade Italian USB digital interface to coaxial optical IIS output Daphile Computer Decoder

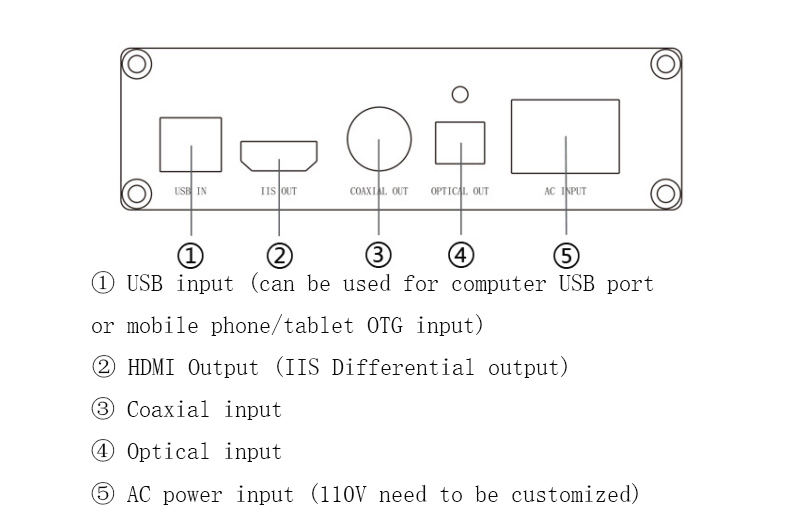

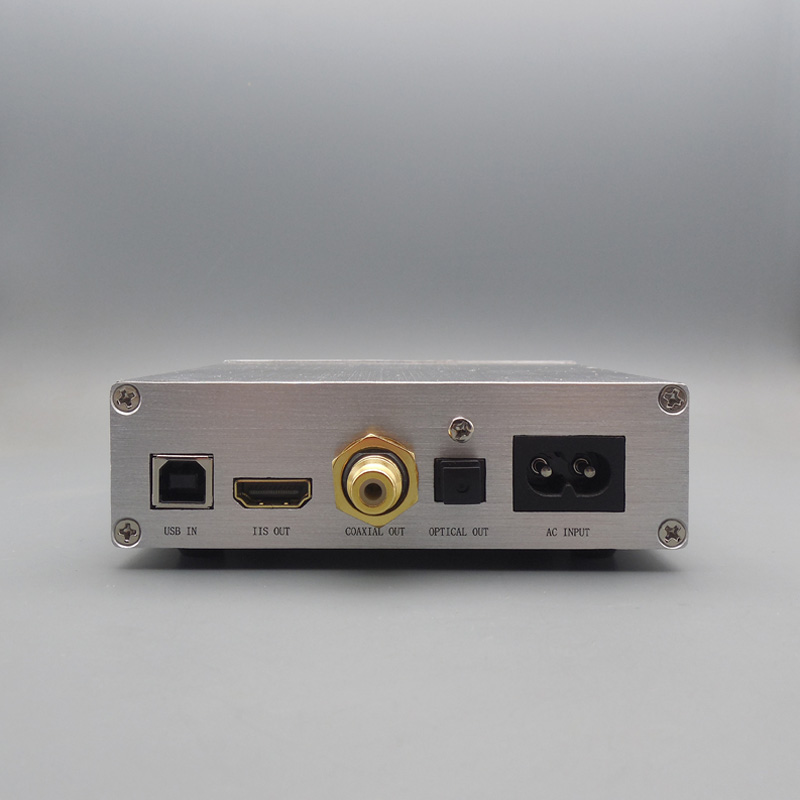

This product converts computer USB audio or mobile OTG signal into digital coaxial, optical, HDMI(IIS) Differential) output, need to connect to decoders and devices with digital audio input to work. Android phone or iPhone is not required to install the driver to use, but if there si a WIMDOS system, you can download the driver at the website:

https://www.amanero.com/drivers.htm

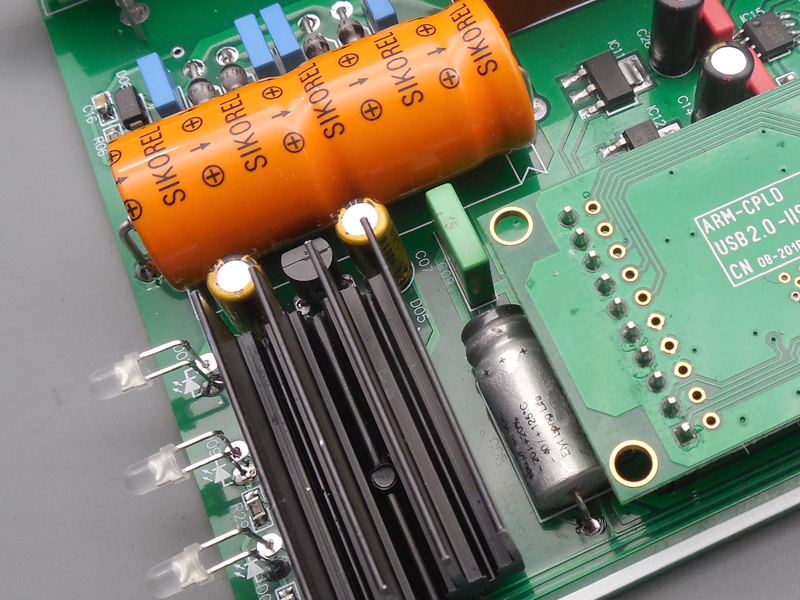

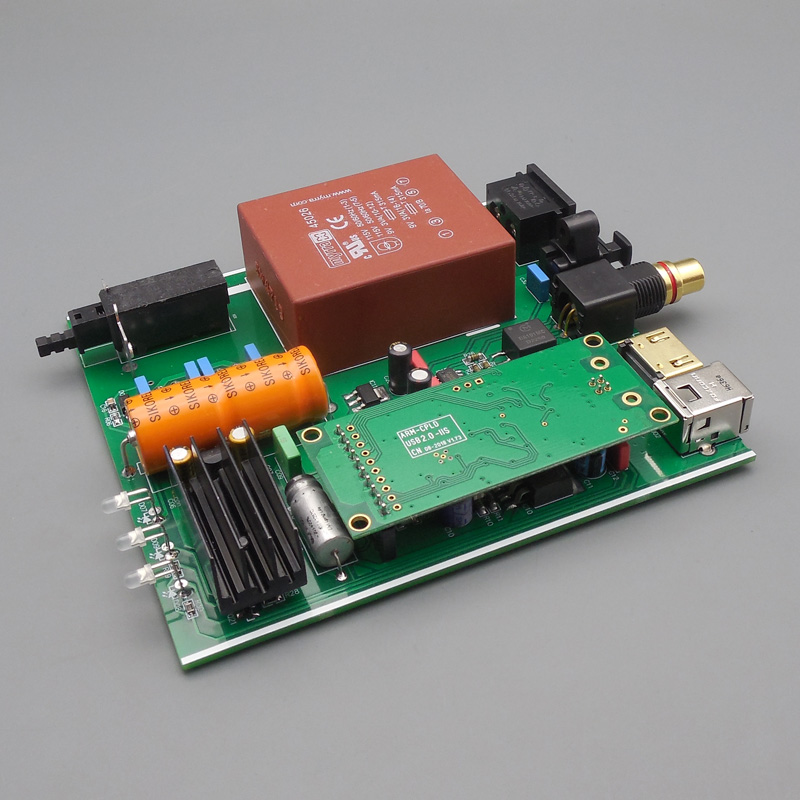

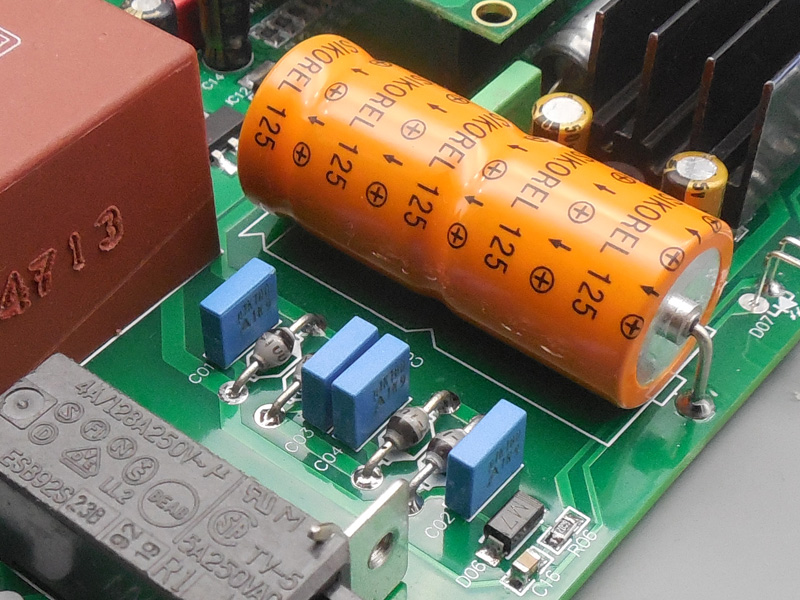

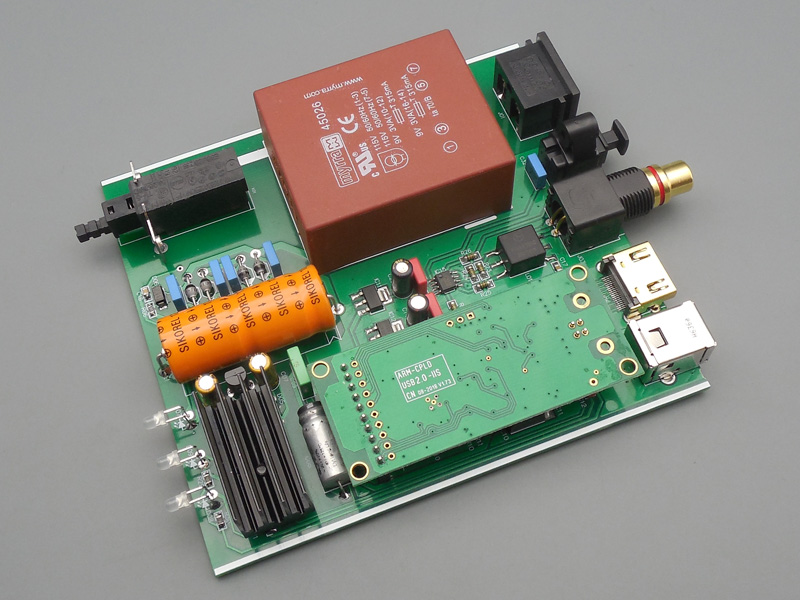

The item has strengthened the power supply part. ① Use the linear power supply with built-in transformer (note: The transformer shows some scratches due to improper transportation. However, the function is not affected) instead of the external switching power supply scheme as the power, ②The stabilizing section adopts a primary overall stabilizing voltage, and then multiple independent power supply scheme, even the USB digital interface also uses the internal machine power supply, which further reduce the interference of computer power supply noise on signals. The device is also selected a variety of brand-name HiFI materials to ensure the sound quality.


Parameter
Coaxial: 44.1-192kHz / 16-24bit (PCM)
Optical: 44.1-192kHz / 16-24bit (PCM)

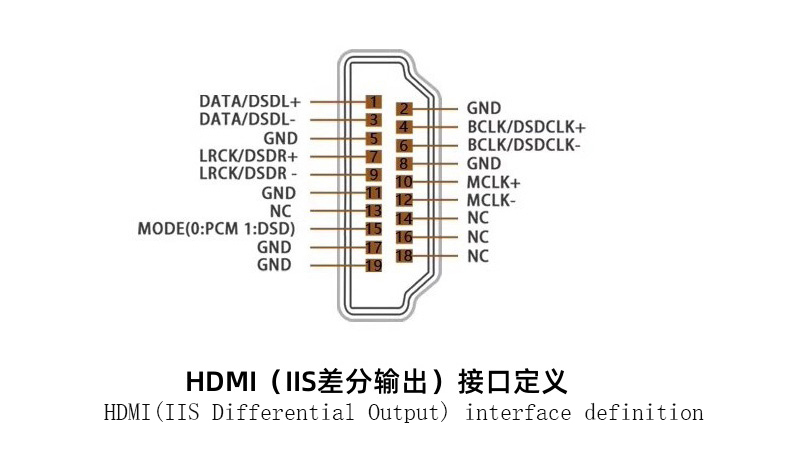

HDMI: DSD64-DSD512 / PCM 44.1-192kHz / 16-24bit
Source: AC 220V (110V need to be customized)
Size: Width 115X height 40 X Depth 145MM (including terminals)
Gross weight: 0.8KG
System list: Machine X1 Power cable X1 USB cable X1
