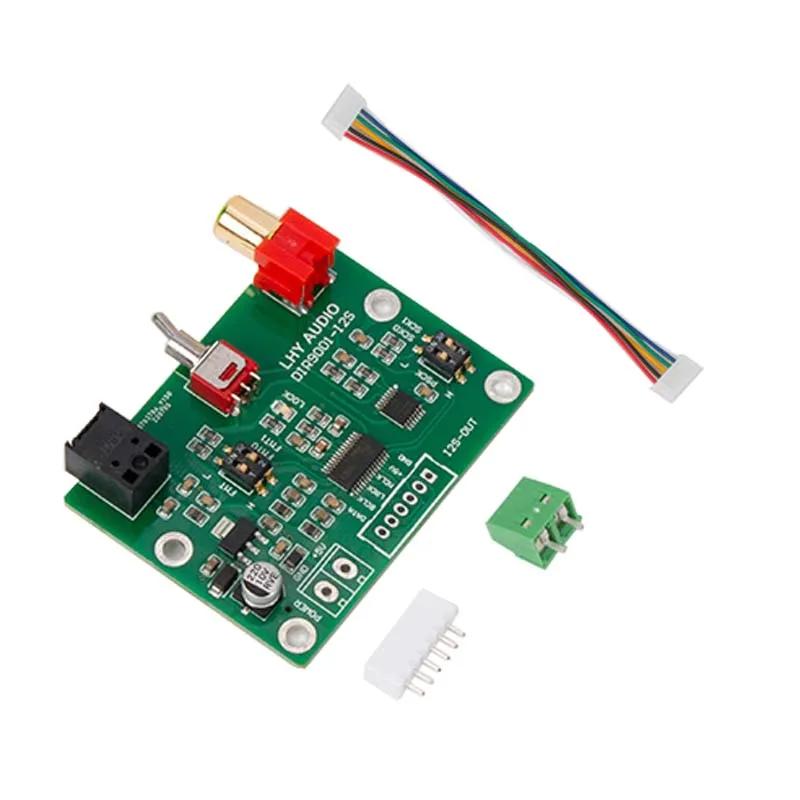

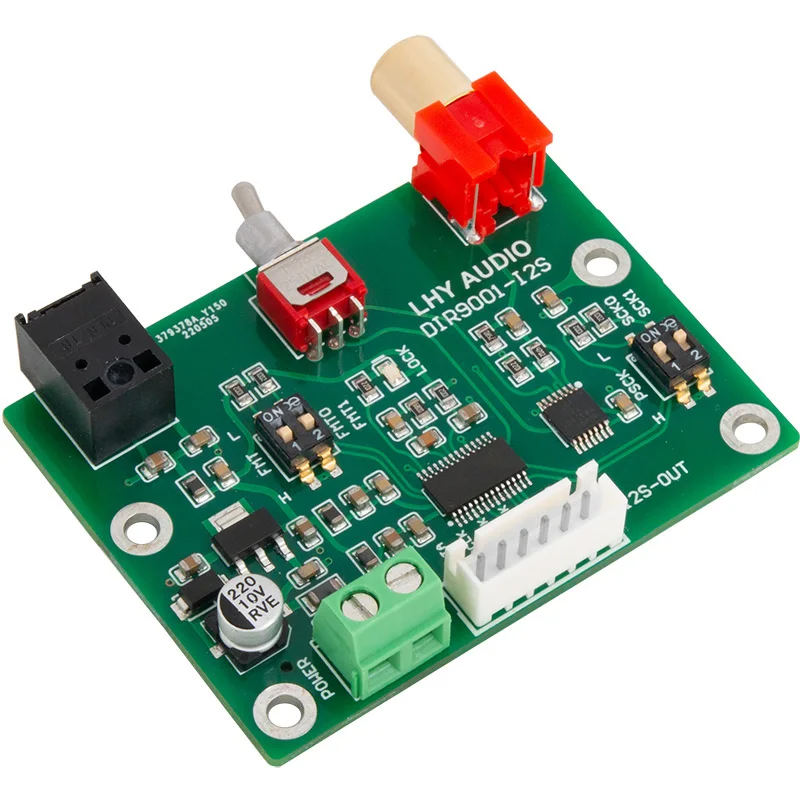

DIR9001 Module Coaxial Optical Fiber Receiving SPDIF To I2S Output 24bit 96khz For HiFi AmpDAC
(0 Reviews)
DIR9001 Module Coaxial Optical Fiber Receiving SPDIF To I2S Output 24bit 96khz For HiFi AmpDAC
Conversion board information:
The highest sampling rate: 24Bit---96kHz
The system clock frequency can be adjusted to 128, 256, 384, 512 fs, (256fs by default)
Input interface: coaxial RCA, optical (you can switch between coaxial and optical signals with the on-board DIP switch)
Output interface: standard IIS, left-aligned, right-aligned, the format can be changed by yourself
Supply voltage: 5V
|

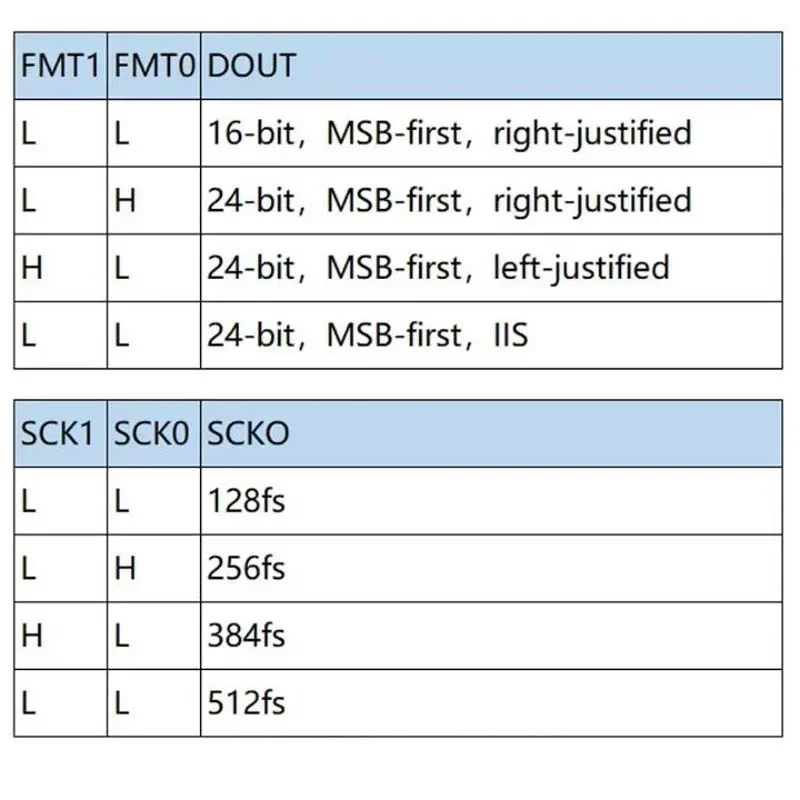

FMT1 |
FMT0 |
DOUT |
SCK1 |
SCK0 |
SCKO |
|
|
L |
L |
16-bit,MSB-first,right-justified |
L |
L |
128fs |
|
|
L |
H |
24-bit,MSB-first,right-justified |
L |
H |
256fs |
|
|
H |
L |
24-bit,MSB-first,left-justified |
H |
L |
384fs |
|
|
L |
L |
24-bit,MSB-first,IIS |
L |
L |
512fs |
✨ Spdif coaxial i2s converter: spdif converter is designed to provide high quality coaxial cable, one side transmits signal from optical fiber to the other side. ✨ I2s optical output: connects a tv signal to a tv or projector with a hdmi input, and the optical fiber output can be connected to a tv. ✨ Touch sensitive: the lcd screen is made of high-quality optical fiber, which can be used with touch sensitive devices. ✨ Seller recommended: any questions, please feel free to contact us, we will provide the best service for you! ✨ Plug & play: no driver or external power supply required, just plug in and enjoy a clear audio experience.
