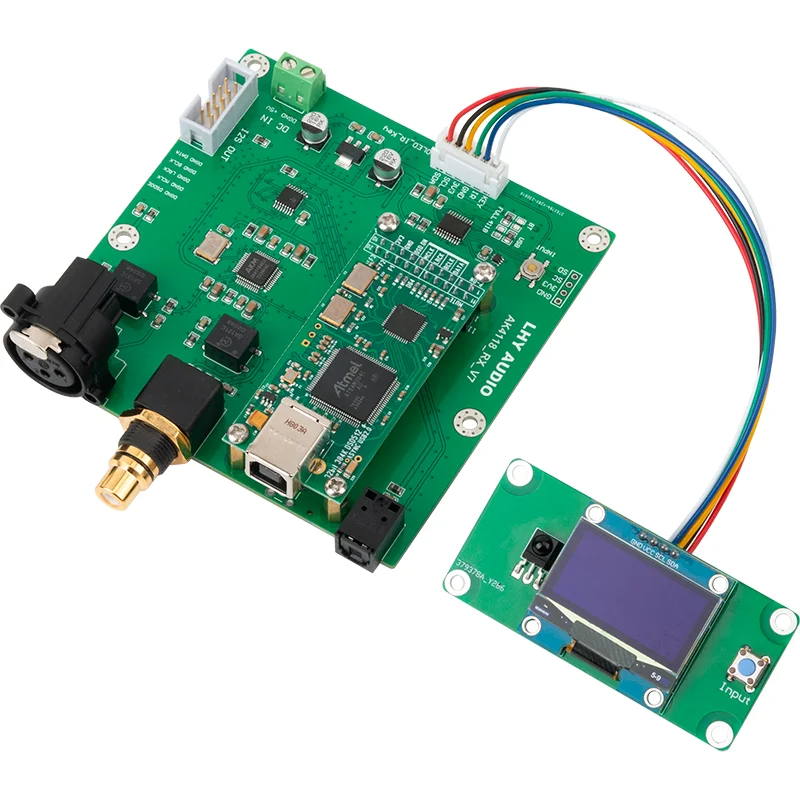

USB / coaxial / Bluetooth / AES / fiber / to IIS support XMOS/Amanero AK4118 receiving board with decoding

Name: USB / coaxial / Bluetooth / AES / fiber / to IIS support XMOS/Amanero AK4118 receiving board with decoding
Brand: FYFAUDIO
SKU: 344
Price: 22.67 USD
Availability: InStock

0.0 (0 Reviews)

$22.67

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Product Introduction

·This product adopts the core design of the audio dedicated mediation chip AK4118, which supports 24bit 192K data reception. As a coaxial signal receiver, AK4118 has the title of "low" in the industry. It is fully optimized through MCU software control, and its performance is far superior to solutions such as wM8805 DIR9001 CS8416.

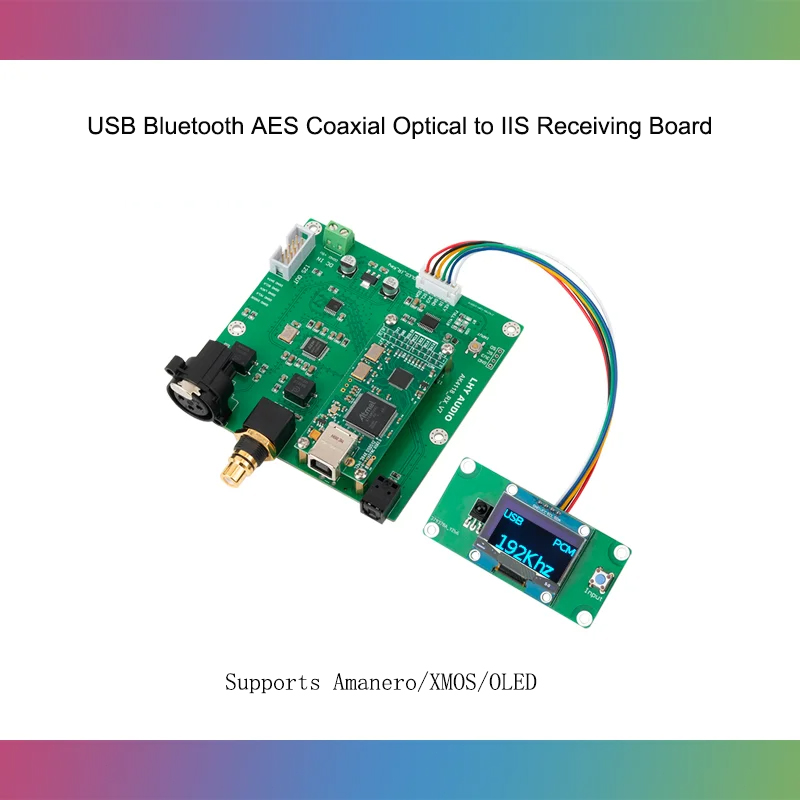

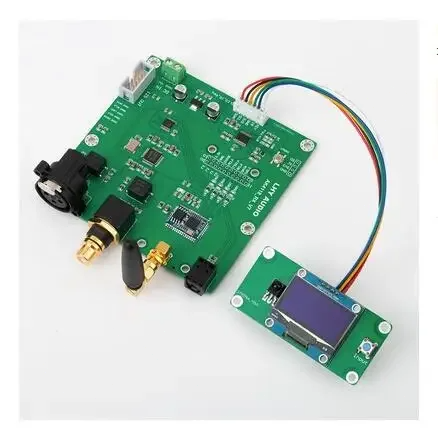

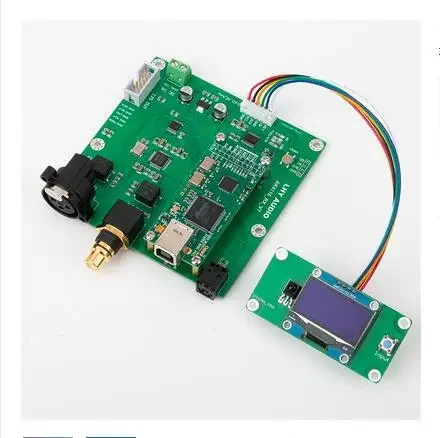

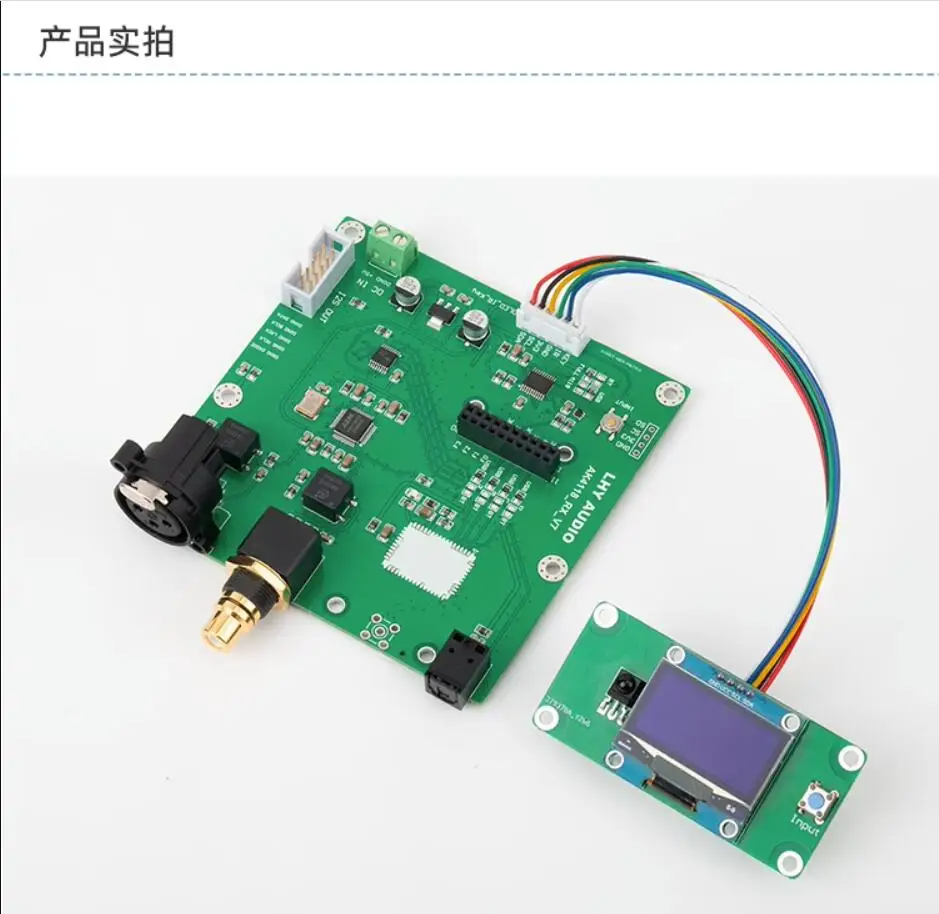

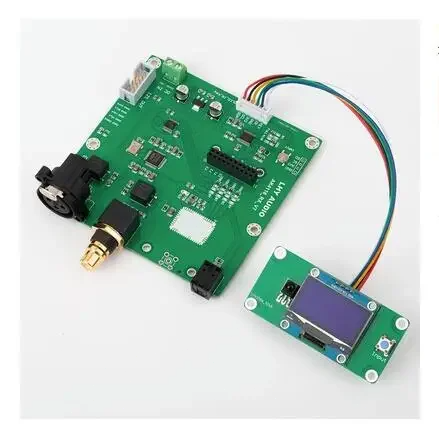

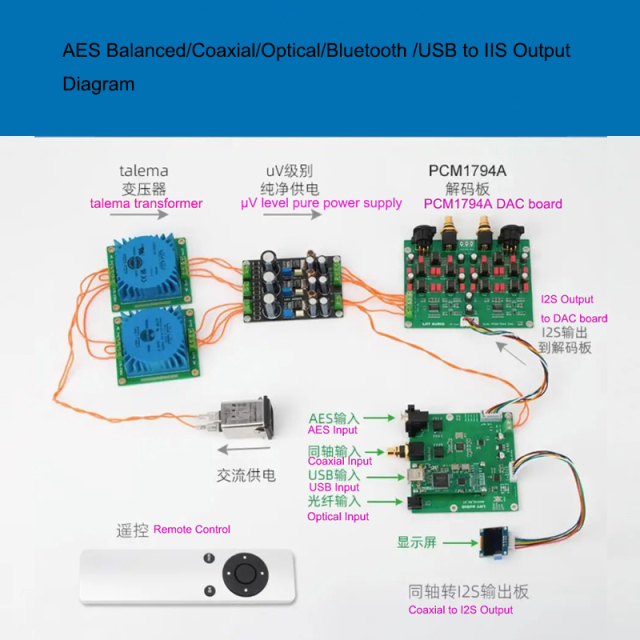

The main function of this board is to convert digital audio SPDIF signals (RCA/fiber optic/AES/EBU/Bluetooth) to IIS output, while also having a IIIS input suitable for xMOs uSB modules and Amanero USB modules (domestic AmanerouSB modules), combined with suitable DAC boards to form a complete DAC decoder.

Features:

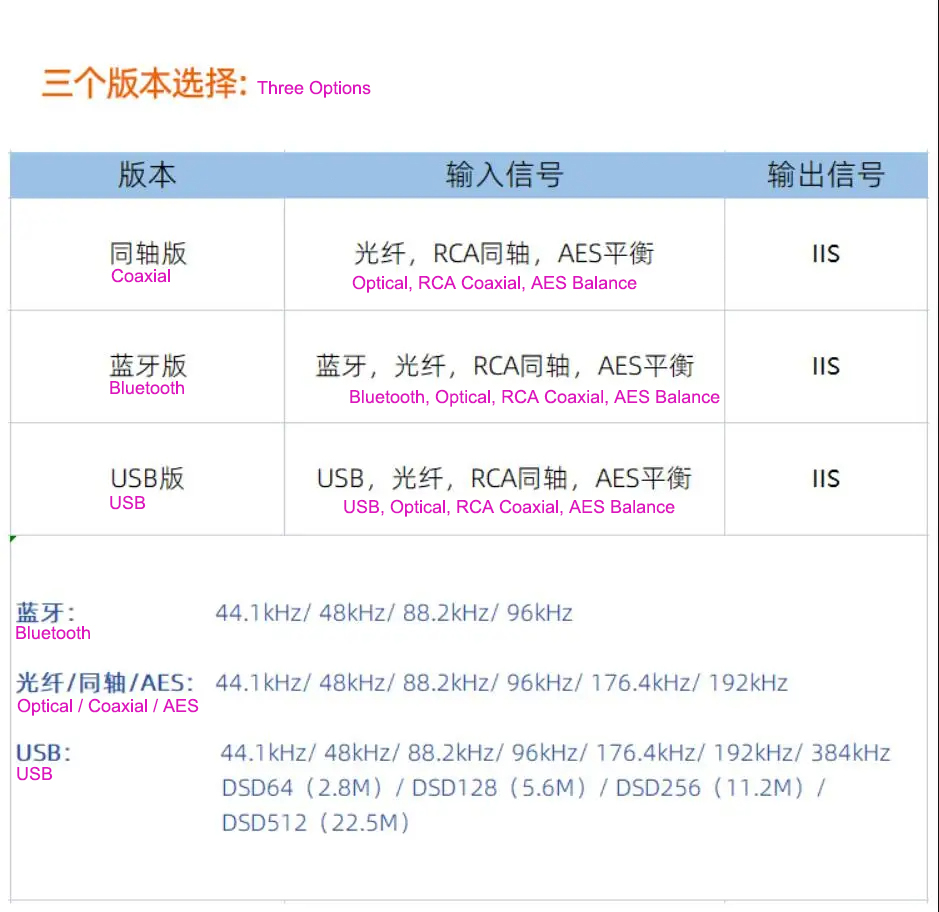

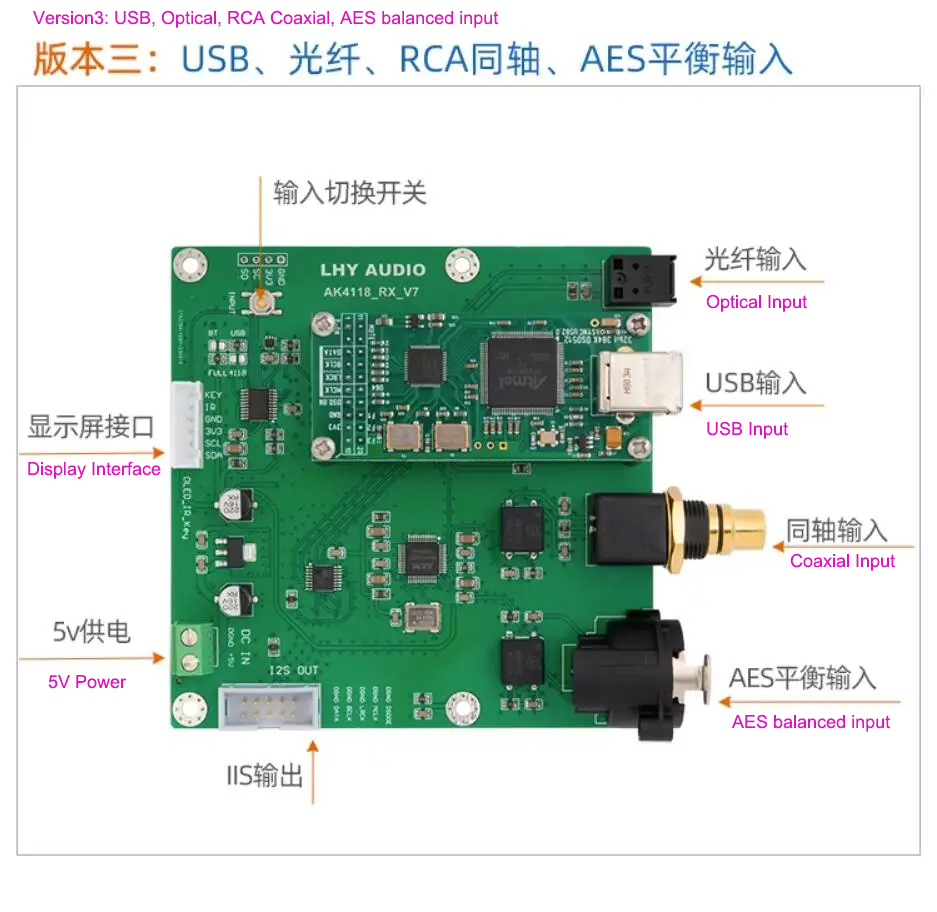

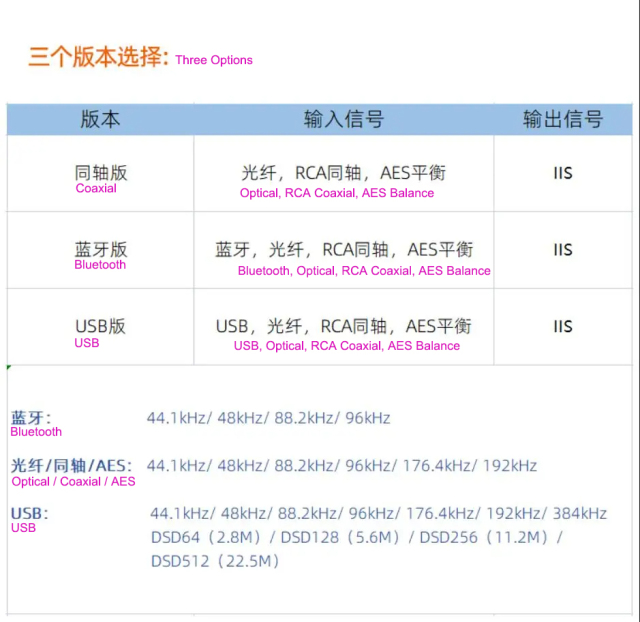

1. Support 4-channel digital audio signal input, and can set a combination of 3-4 channels of input.

2. It can be combined with XMOs USB module and Amanero USB module (domestic Amanero USB module) to achieve sampling frequency display.

3. Use OLED to display the working status.

4. Dual row 20 pin output interface compatible with Amanero USB output interface

5. The output interface has a DSD_OE signal (USB signal input only), which is used in conjunction with the DAC board to achieve PCMDSD switching and mute control.

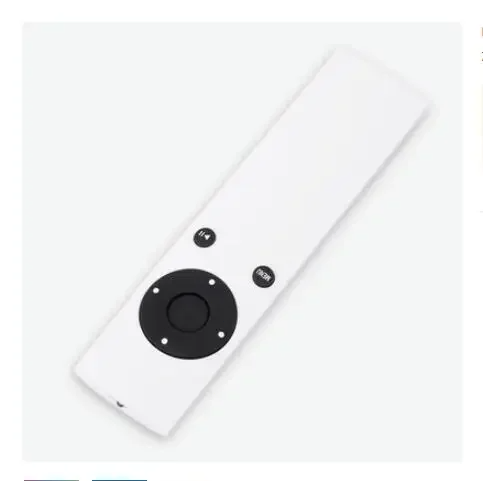

6. Optional button remote control kit (only controls input signal source). 7. All settings are automatically saved.
