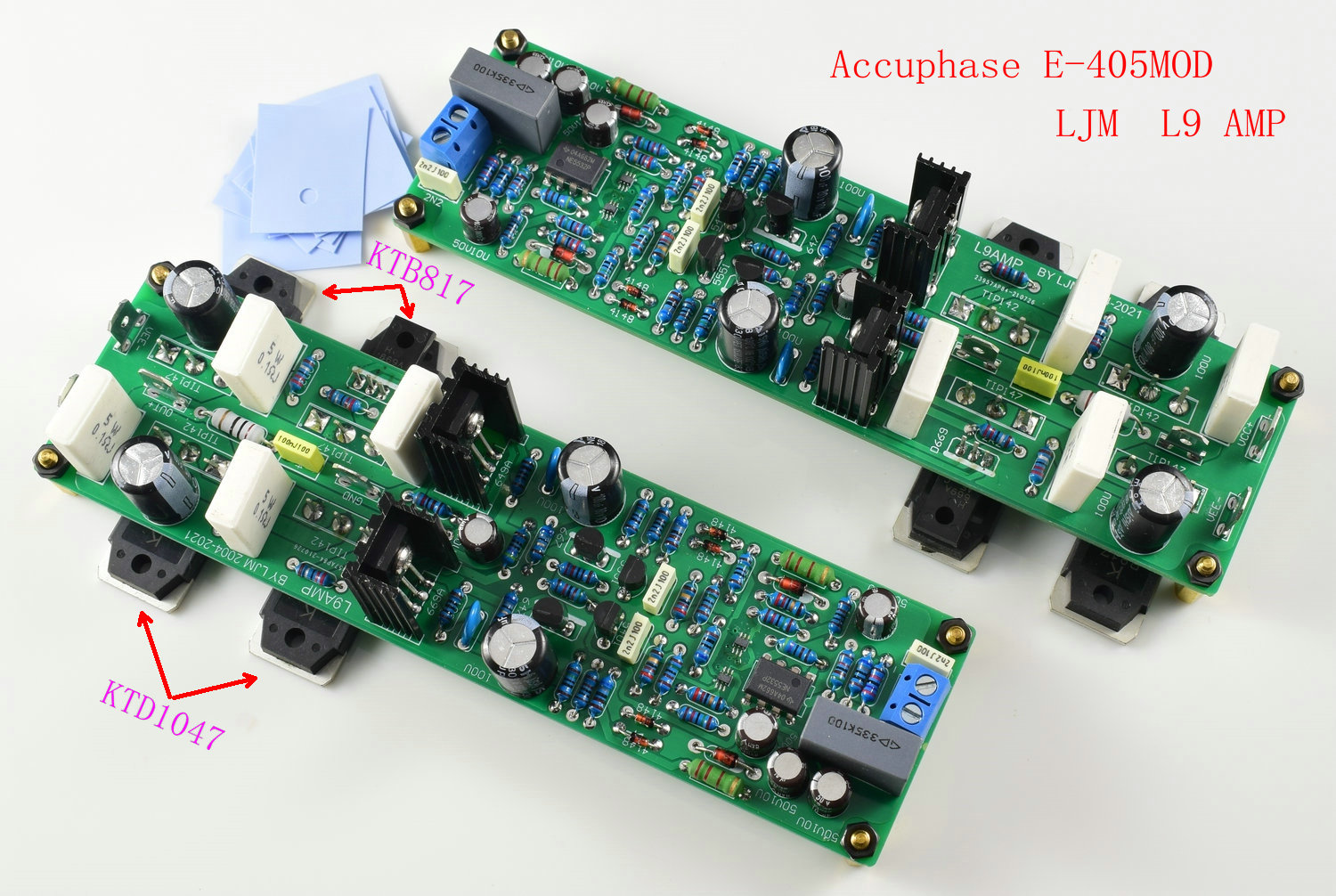

One pair Accuphase E405-MOD Integrated Amplifier Power amplifier board /DIY kit

Accuphase E405-MOD Version amp board max power 150W +150W at 8ohm load
0.0 (0 Reviews)
$0.00 $20.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Type:
    2 channel DIY kit
    2 Channel Assembled board
    1 channel Assembled board
    Please select the information you wantX
Quantity
-
+
  • Description
Twin FET input Transistor.

The imported original Texas Instruments ne5532 is used as the front stage amplifier. DC server circuit.

The output power Transistor are matched with the original KEC ktb817 and ktd1047.

Parameters:

Supply voltage  DC+ - 25V to + - 55v

Maximum output power 150W 8 R

Voltage gain 90

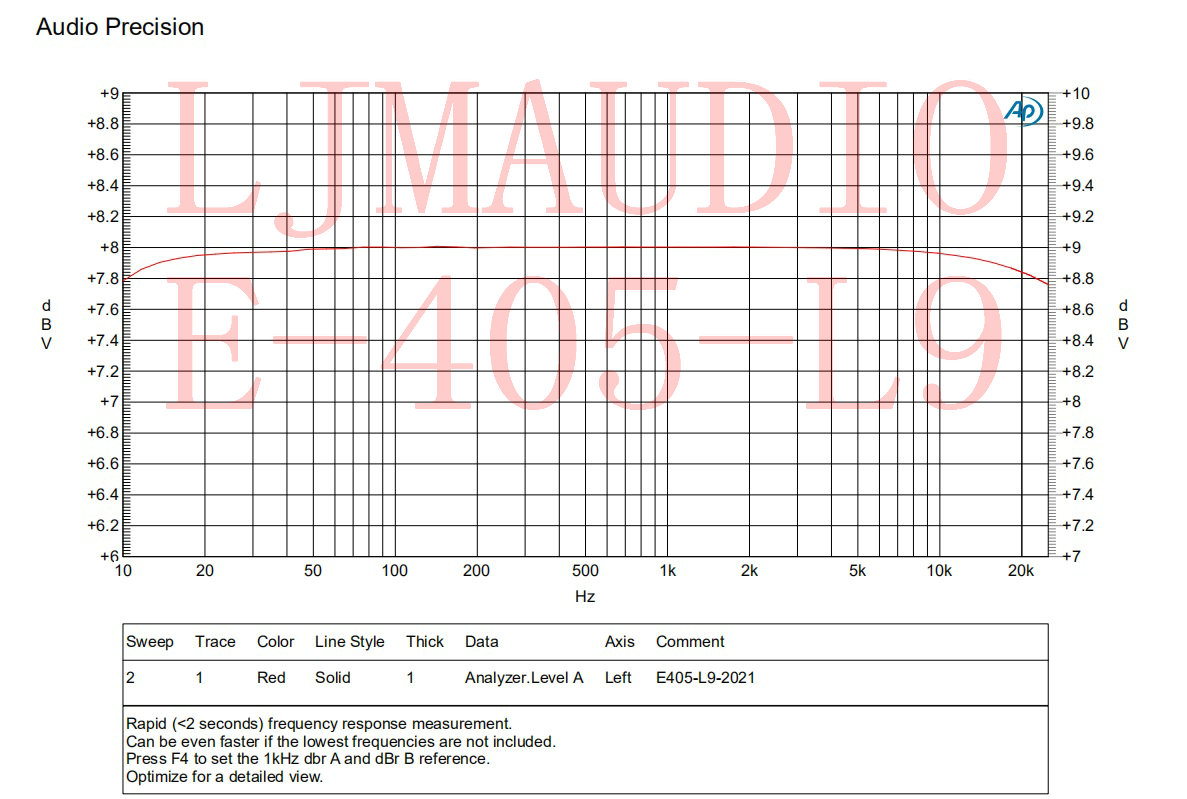

Frequency response: 20Hz -0.05db. 20KHZ -0.15DB。

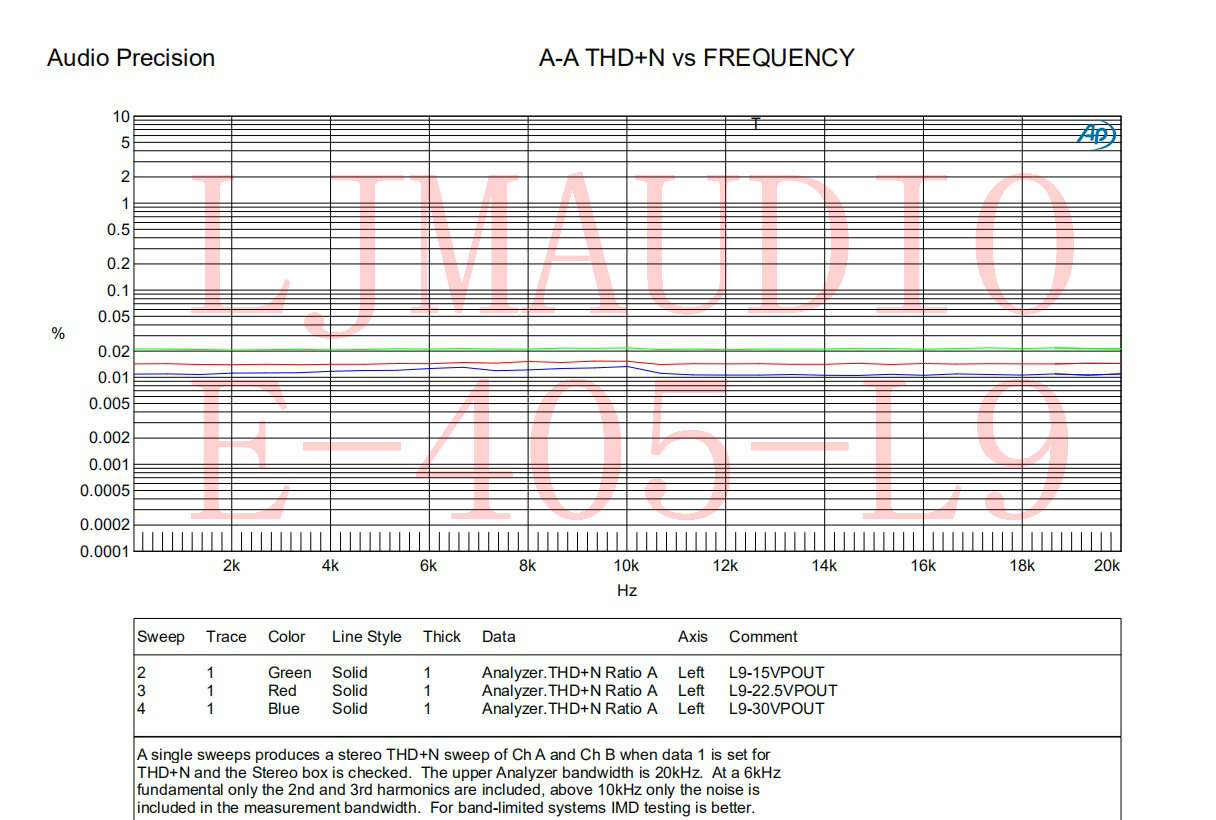

THD+N < 0.02% 50W8R


The DIY kit version will need yourself to solder all parts.   Assembeld board we will solder and test it well before shipping.
