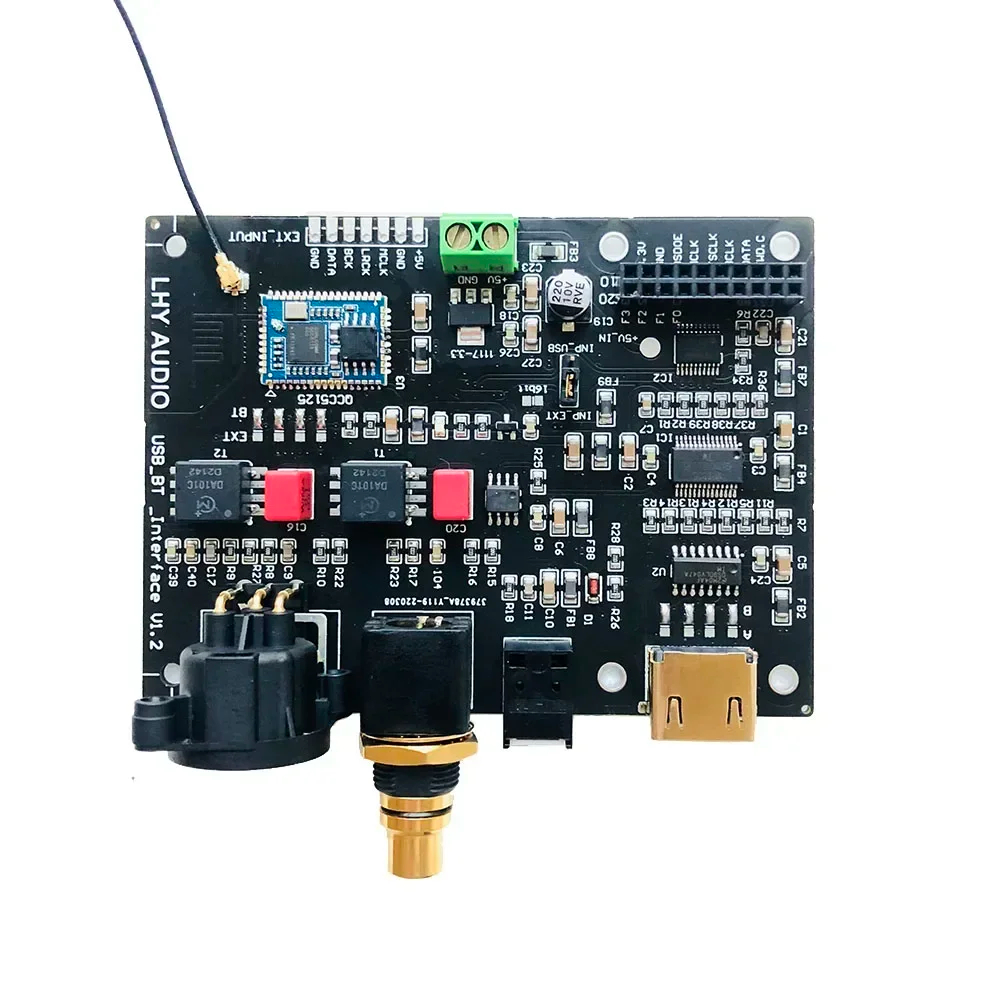

QCC5125 Bluetooth 5.1 Digital Audio Output Board I2S To Coaxial Optical SPDIF AES HDMI USB Interface

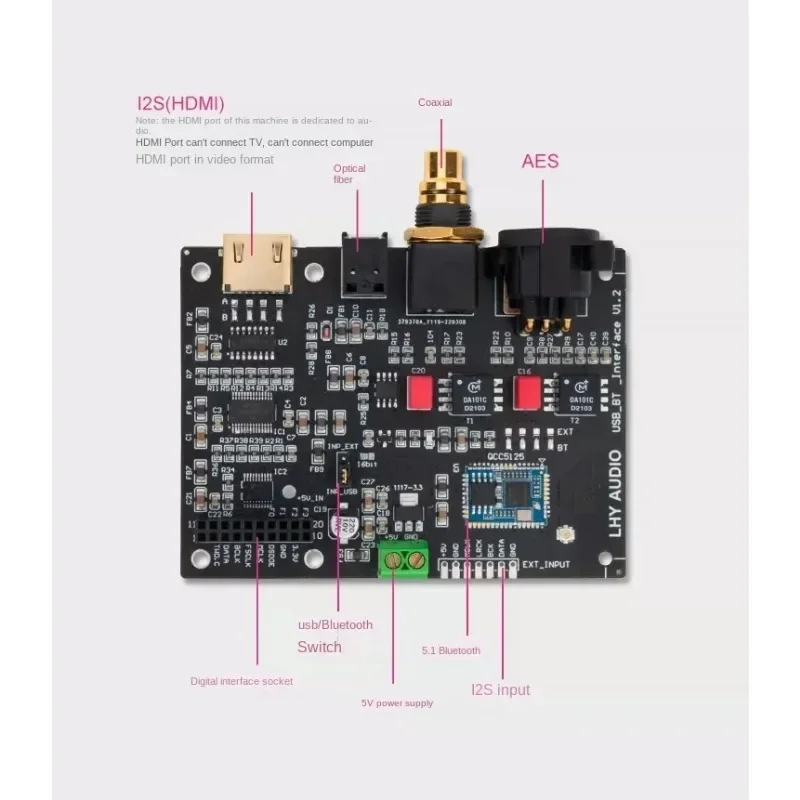

Product Details:

Support Italian Amanero Combo384 USB interface and XMOS USB module, options can be equipped with Italian interface. The Bluetooth receiver uses the QCC5125 5.1 module.

Support PCM2706, CM108, SA9027 and other I2S signal conversion default I2S 4-wire (BCLK, LRCK, DATA, MCLK), support Raspberry, Bluetooth and other non-master clock MCLK output 3-wire BCLK, LRCK, DATA. MCLK is provided by the crystal oscillator clock on the board by default 24.576M, and the clock can be changed as required.

At the same time, external I2S signals can be accessed through the switching function.

Note: The HDMI output terminal of this machine is an audio IIS-HDMI dedicated interface, and it cannot be connected to a TV or HDMI port of a video format such as a computer. Please pay attention to the distinction between!

5 configuration options:

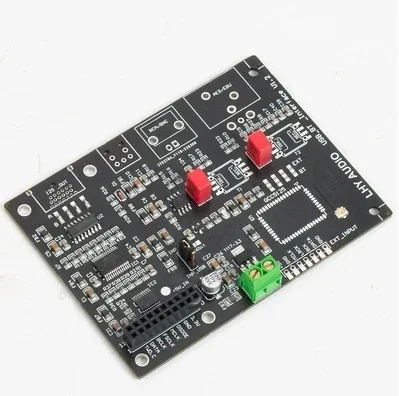

1. IIS to coaxial output board (without output terminal)

2. IIS to coaxial output board (including output terminals)

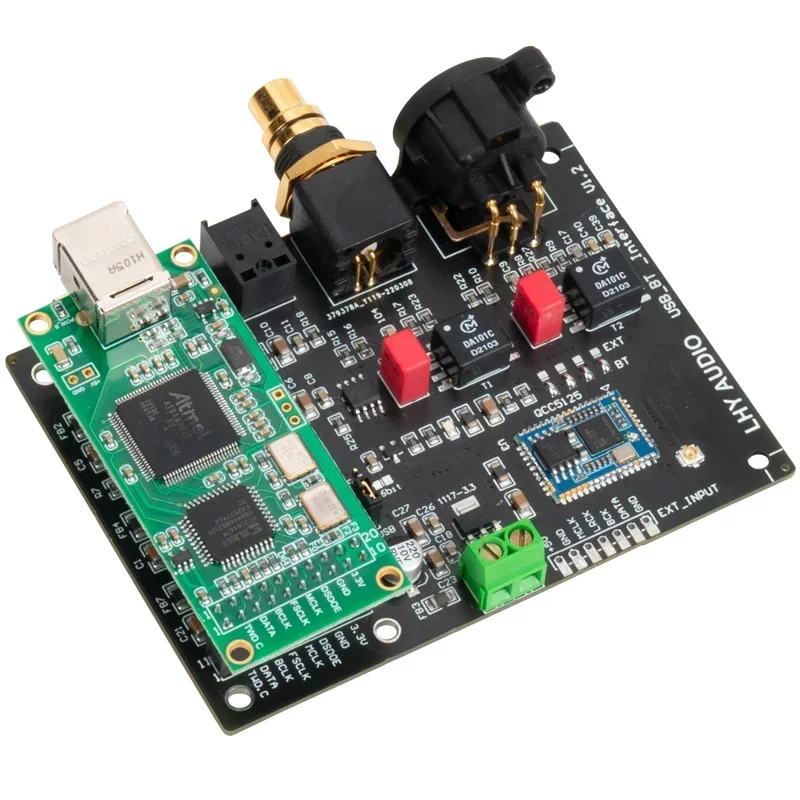

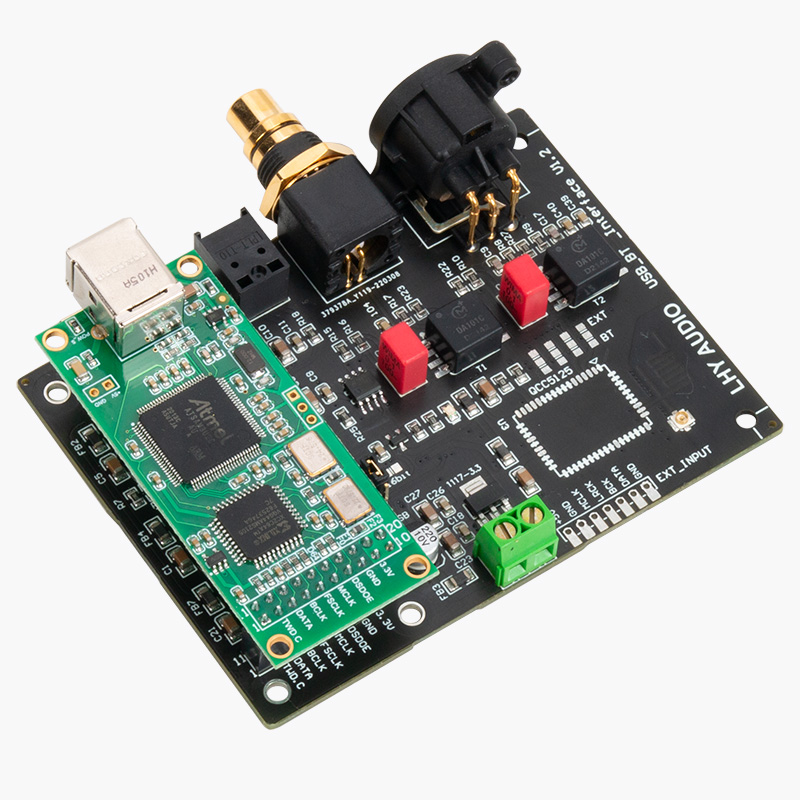

3. Coaxial output board + USB interface

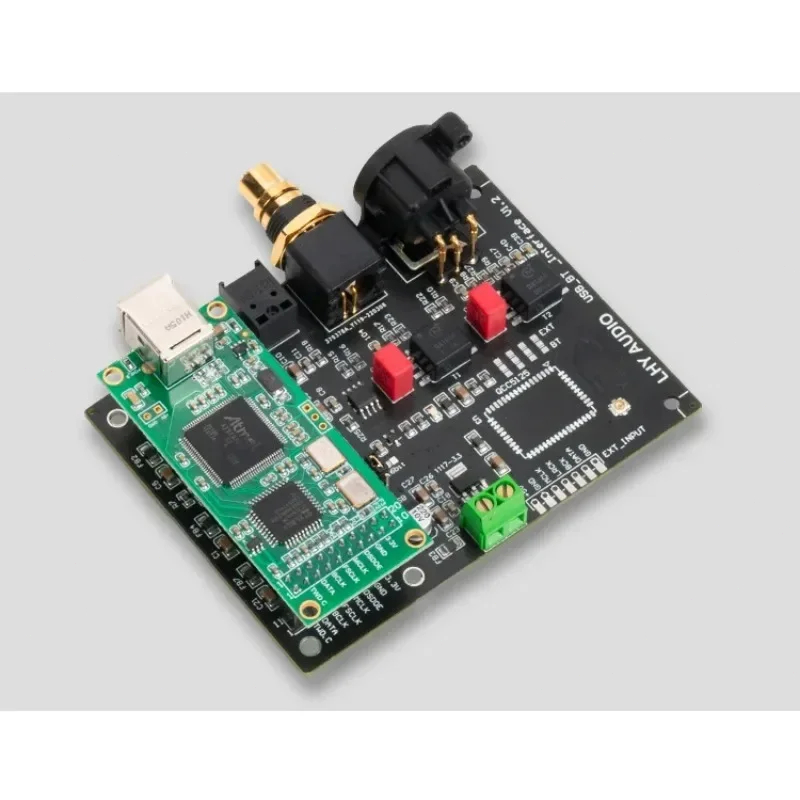

4. Coaxial output board + USB interface + Bluetooth 5.1 QCC5125 receiving module

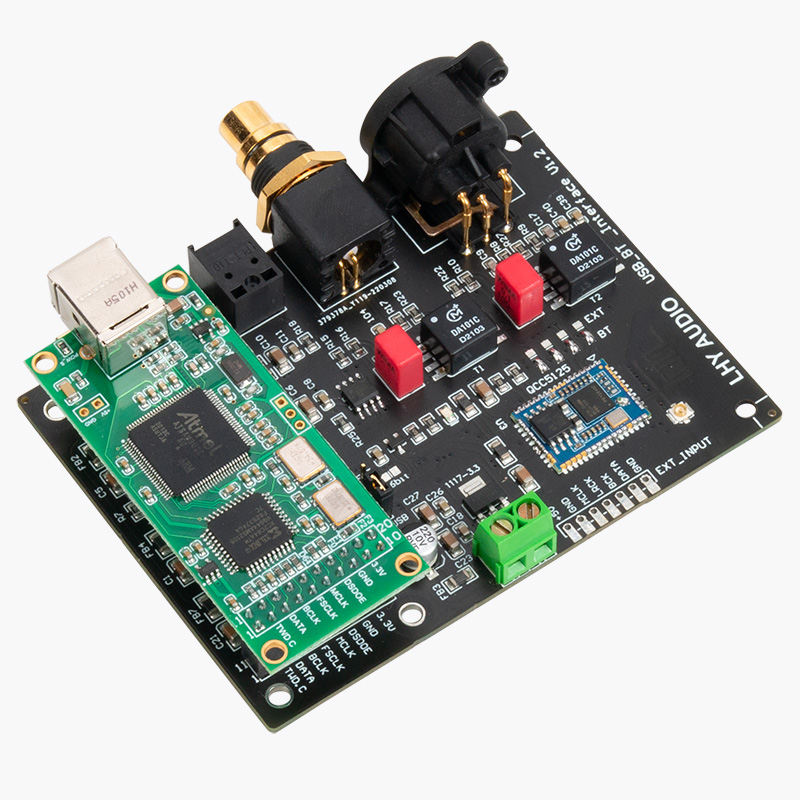

5. Coaxial output board + Bluetooth 5.1 QCC5125 receiving module

Specifications:

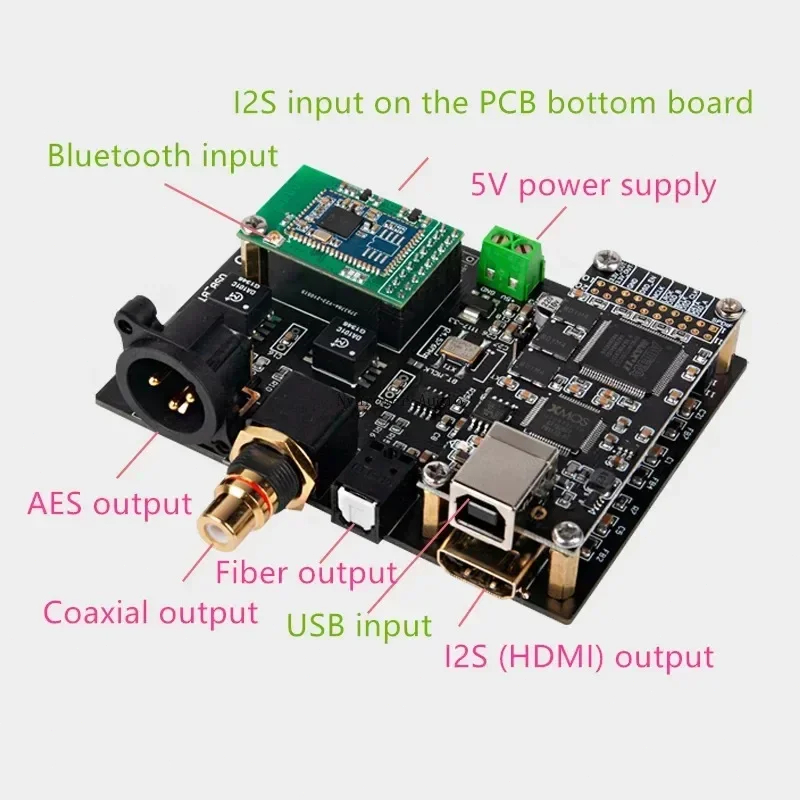

Input interface: I2S, USB, Bluetooth

Output interface: coaxial, AES, optical fiber, HDMI-IIS

Bluetooth module: Qualcomm CCC5125

Bluetooth support: SBC/AAC/APTX/APTX-LL/APTX-HD/LDAC

I2S (HDMI) support: 384K/32BIT, DSD64, DSD128, DSD256

Fiber/Coaxial/AES support: 192K/24bit

USB digital interface: USB Amanero interface

Size: 99*74MM

(5 configuration options)

---------------------------------------------------------------------------------------------

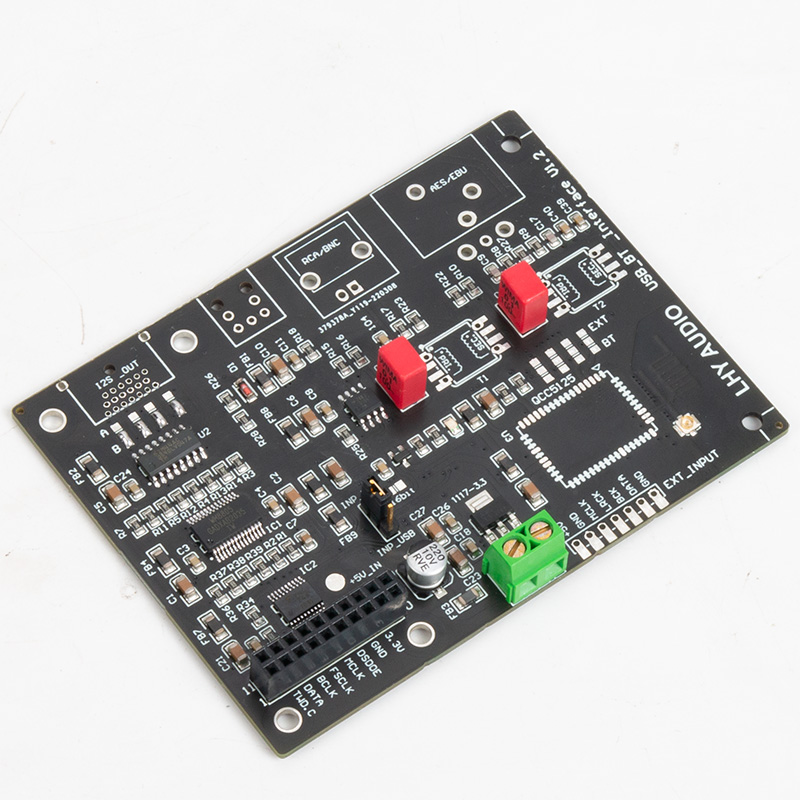

1/ IIS to coaxial output board (without output terminal)

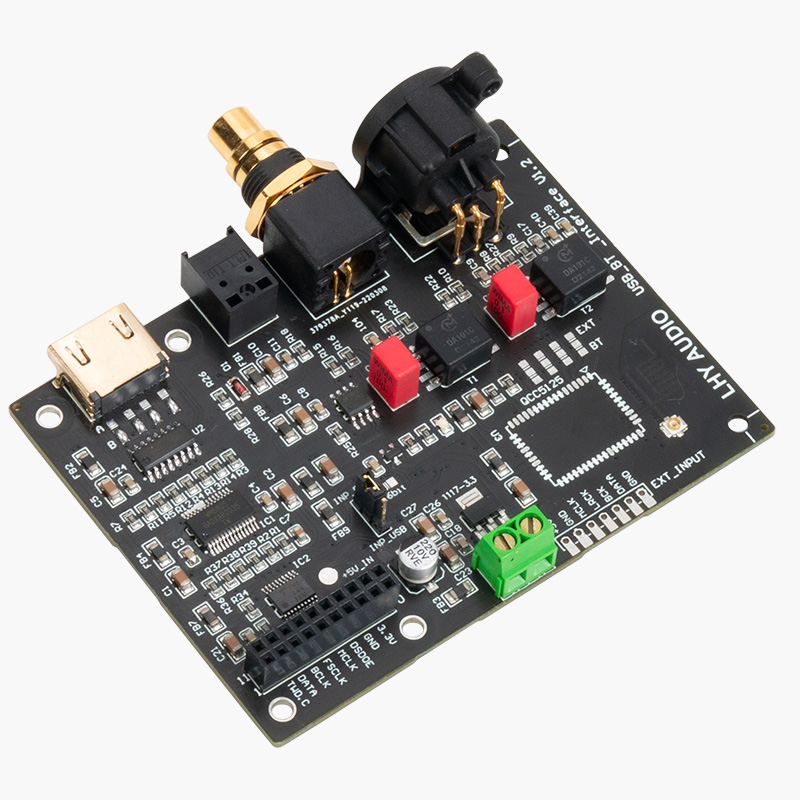

2/    IIS to coaxial output board with output terminal

3/   IIS to coaxial output board finished board + USB interface

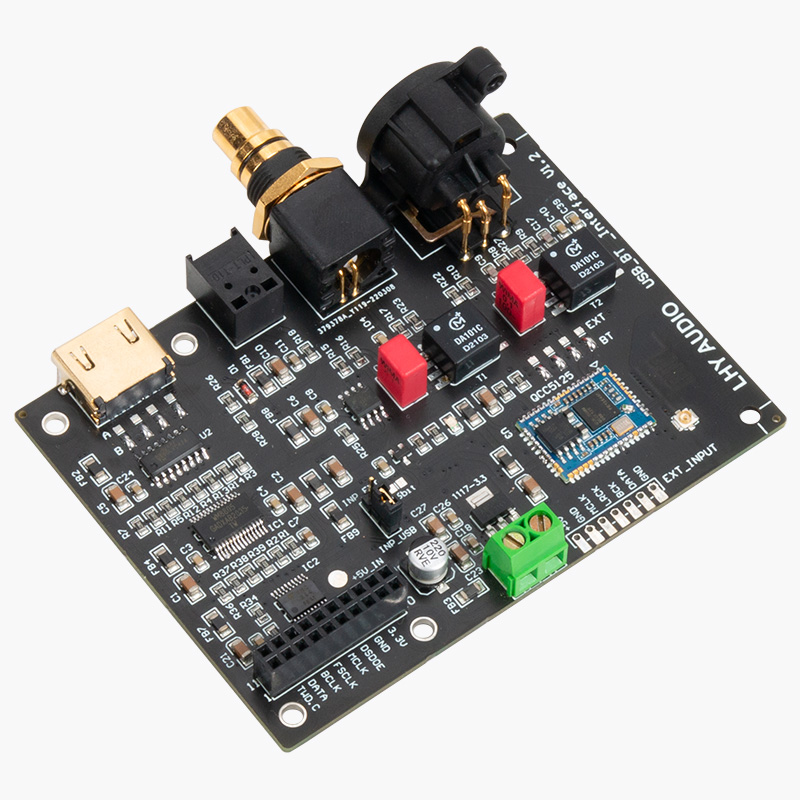

4/   IIS to coaxial output board finished board + Bluetooth module

5/    IIS to coaxial output board finished board + USB interface + Bluetooth module
