R2R-XY3-V8 Discrete Ladder DAC Module XY-2 Decoder DAC Board R-2R Ladder Source

0.0 (0 Reviews)
$0.00 $140.57
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
  • Description
R2R-XY3-V8 Discrete Ladder DAC Module XY-2 Decoder DAC Board R-2R Ladder Source DA Convert

Design Reference:

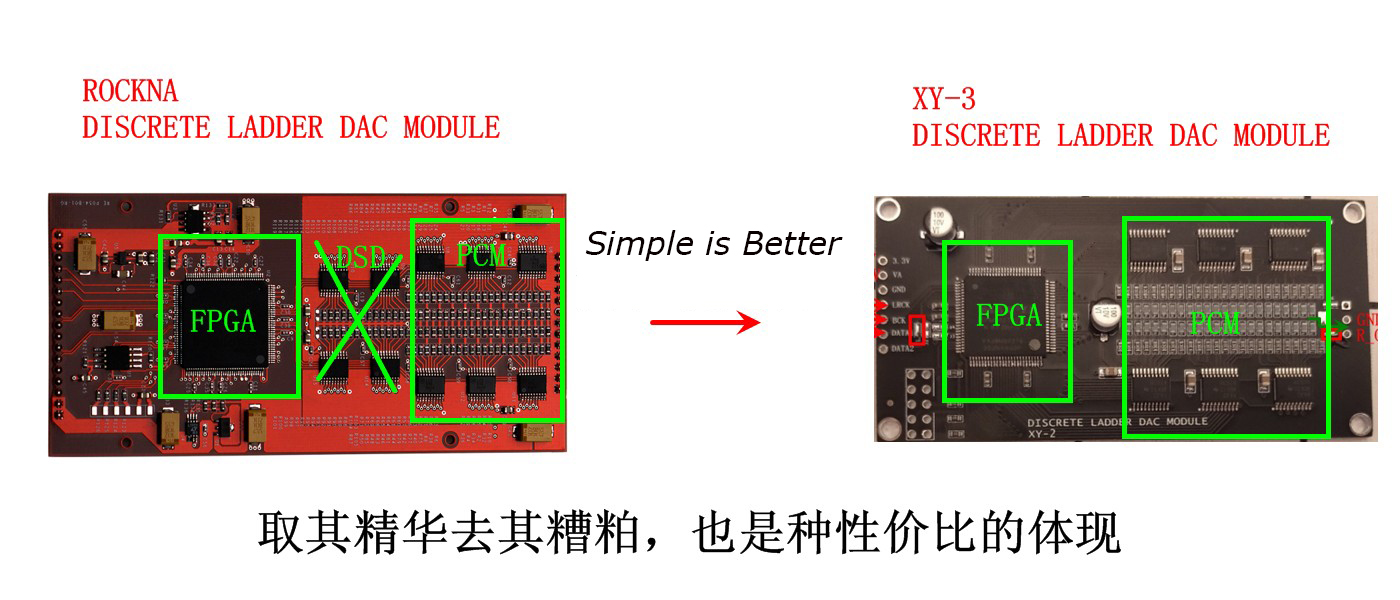

According to the working principle of the DAC for ROCKNA, coupled with the guidance of Professor Yin from China, the working principle and algorithm optimization of the R2R core board can be solved. Its overall effect is much higher than the previous design for TI.

Product Parameters:
- Product Name: Discrete Ladder DAC Module
- Size: 67 x 180mm/2.6 x 7.1"
- Weight: 180g/0.4 lb
- Input mode: three-wire IIS (BCK, LRCK and DATA)
- Support data width: 24Bits
- Support data format: PCM format (not left-justified, right-justified)
- Support data sampling rate: 384khz (measured), FPGA operating rate is limited, but it is not clear how much can be achieved

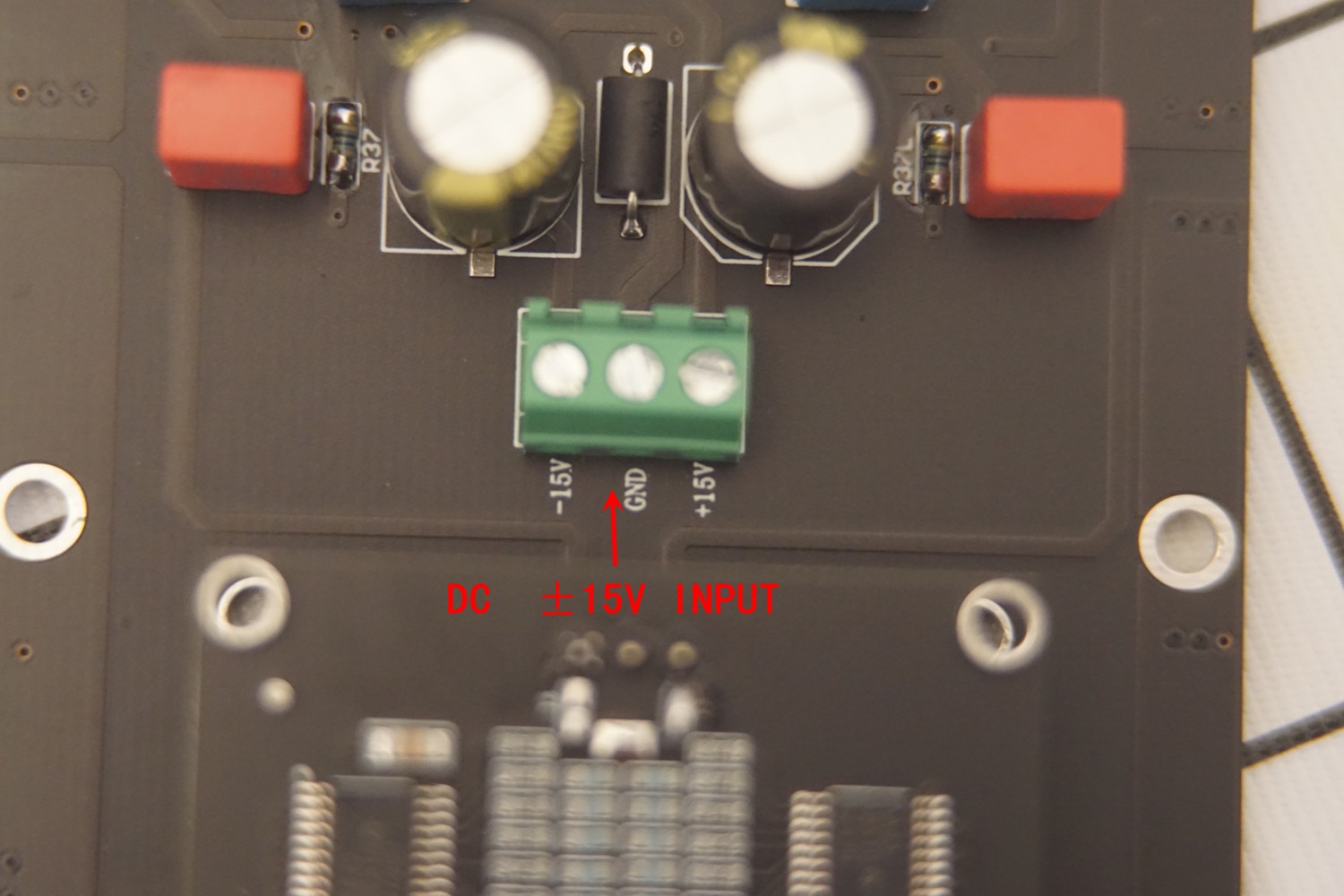

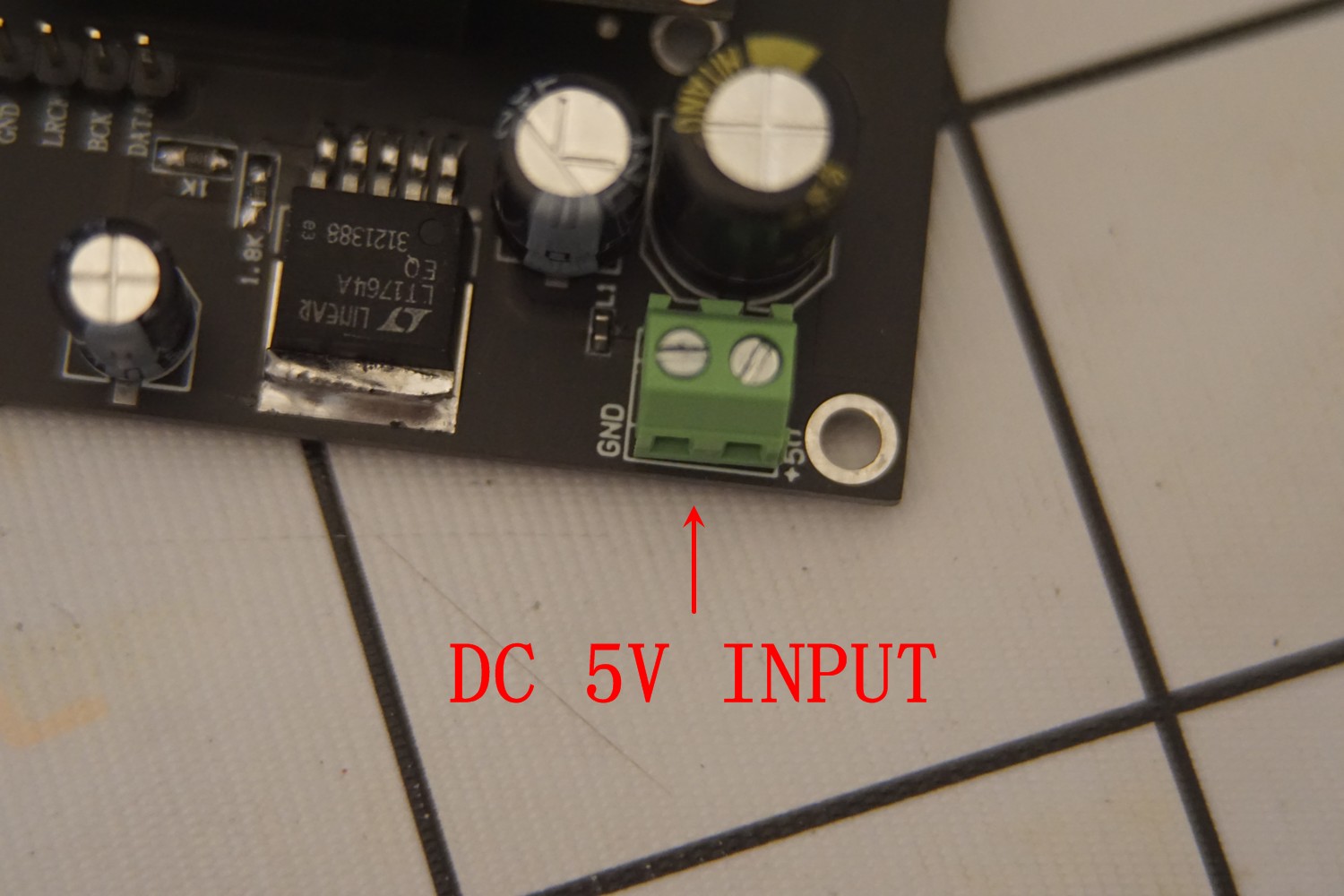

- Power supply input: digital circuit DC 5v/500ma or more, analog circuit DC ±15V/300ma or more

Package Included:
- 1 x Set of DAC Board
