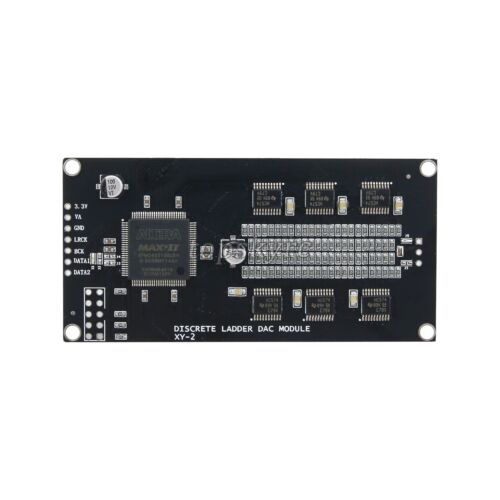

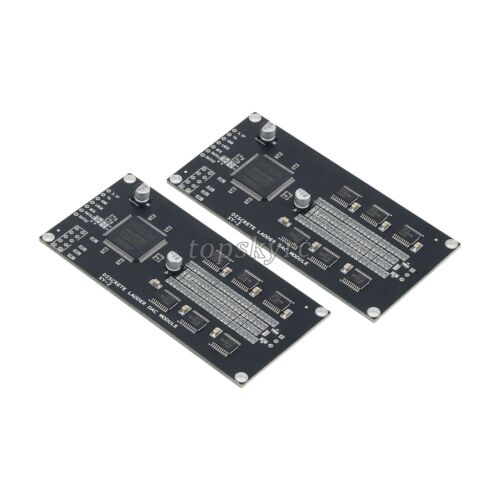

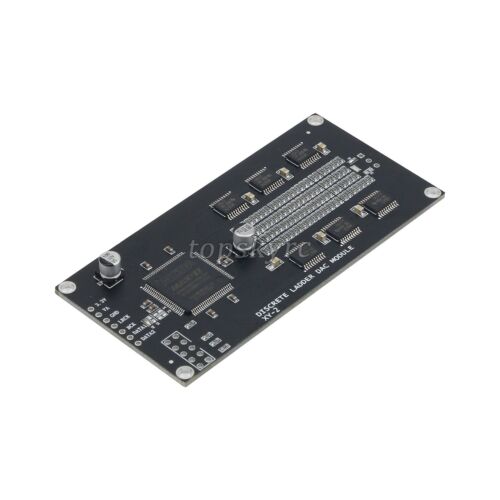

XY-2 Discrete Ladder DAC Module R2R DAC Audio Decoder Board 24Bit PCM Sampling Rate Depth 384KHz
Features:
- Model: XY-2
- Name: DISCRETE LADDER DAC MODULE
- Size: 86.21 x 42.42mm/3.4 x 1.7"
- Design scheme refers to complementary design for ROCKNA and compensation algorithm, which aims to solve the sound distortion caused by zero-crossing distortion and resistance accuracy. The actual test effect is more effective than ordinary schemes
- Support format: pcm 24-bit, non-left-justified and right-justified
- Support sampling rate depth: 384khz (conditional test range)
- Optional type: left channel, right channel
Attention:
The module has no IV and LPF circuits for direct output, and requires purchasers to have a high electronic technology foundation and hands-on ability. DAC design ability is highly recommended. Technical support is not provided.

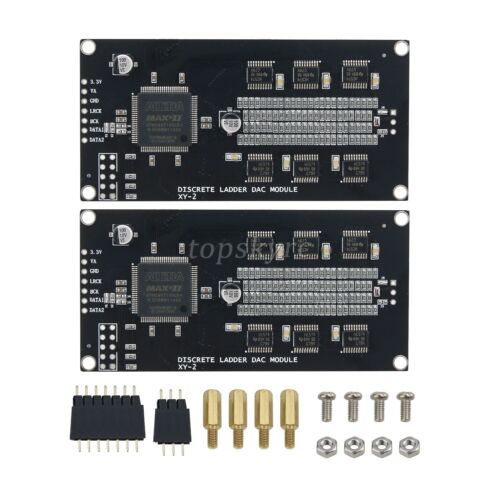

Package Included:
- 1 x DAC Module
